LED - Architectural Recessed Troffer in 4x4 with Concave and Convex lens

OnCurve Wave-XL

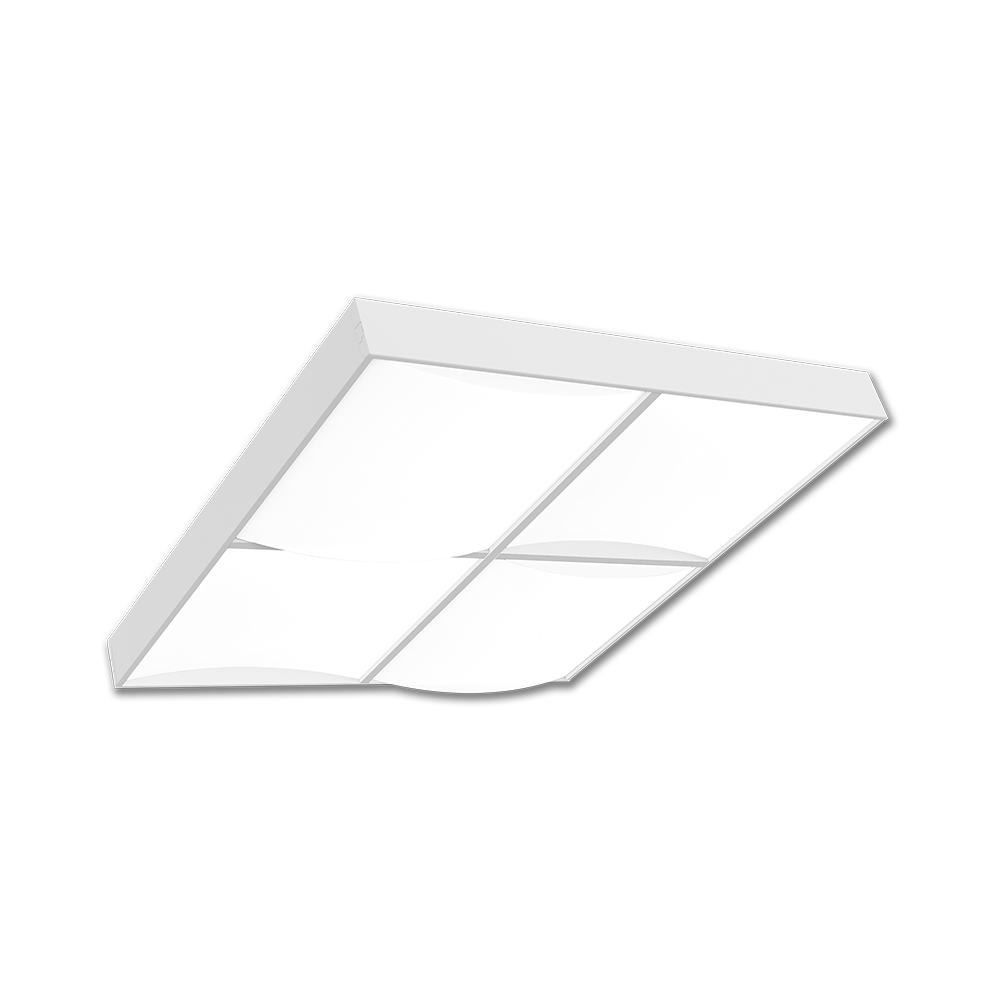

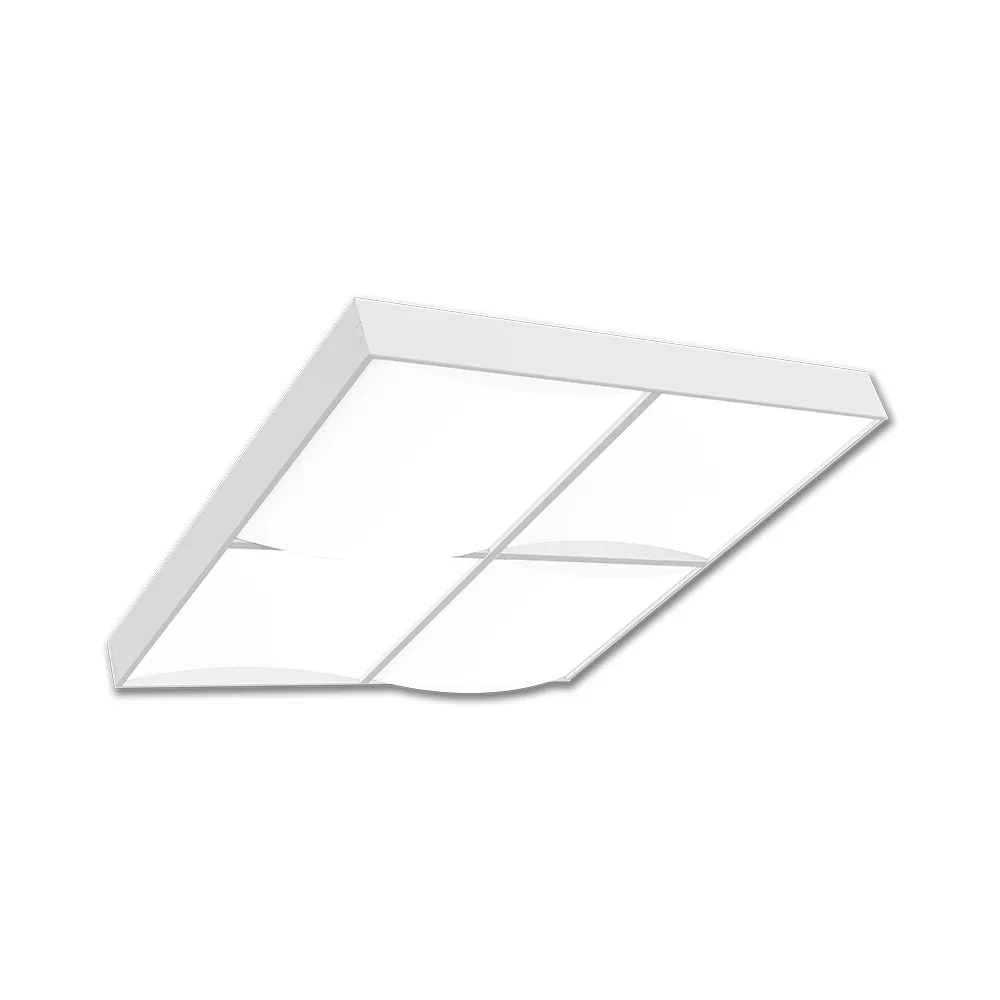

Soft curved lens design meets large format performance in the OnCurve Wave-XL LED 4x4 recessed light fixture, a premium architectural solution for modern indoor environments. Engineered for high visual comfort and contemporary aesthetics, this fixture features a unique double concave and double convex lens system that enhances light diffusion while maintaining a sleek profile. Ideal for insulated ceilings and T-Bar applications, it’s a standout choice for buyers seeking soft curved lens lighting in large format 4x4 configurations.

Designed for versatility, the OnCurve Wave-XL 4x4 excels in a range of commercial and institutional settings—from office areas and classrooms to hospitals and hospitality venues. Its frosted quadruple-piece lay-in diffuser ensures even light distribution, reducing glare and enhancing comfort. The fixture supports multiple lumen packages (from 5000 to 14000 lumens) and color temperatures (3000K to 5000K), allowing tailored lighting solutions for different environments. With standard low-voltage dimming (0–10V, 1%) and optional DALI controls, users gain precise control over illumination levels. Emergency battery pack options and flexible wiring configurations further expand its adaptability.

What sets this recessed light fixture apart is its robust construction and long-term reliability. The housing is made from die-formed, cold-rolled heavy-gauge steel, finished in white polyester powder paint for durability and clean aesthetics. Rated for L80 performance beyond 50,000 hours and L70 up to 238,000 hours, the OnCurve Wave 4x4 delivers consistent, energy-efficient lighting over time. It’s ETL listed and suitable for damp locations, making it a dependable choice for demanding architectural LED lighting applications. Integral earthquake clips and bulk packaging options support secure installation and streamlined logistics.

Whether you're upgrading an existing space or designing a new one, the OnCurve Wave-XL 4x4 offers a refined blend of form and function. Its architectural LED lighting profile, combined with high efficacy (up to 140 lumens per watt), makes it a smart investment for professionals seeking performance without compromise.

The OnCurve Wave-XL 4x4 LED troffer is more than just a recessed light fixture—it’s a high-performance lighting solution that balances design, efficiency, and reliability. With its soft curved lens and large format 4x4 build, it’s tailored for modern architectural needs. Explore how this fixture can elevate your space with comfort and style.

  • Soft curved quadruple-piece lens enhances visual comfort with a modern concave and convex design.
  • Large format 4x4 configuration delivers up to 14,000 lumens with high efficacy (up to 140 lm/W).
  • Architectural LED lighting rated for L80 > 50,000 hours and L70 > 238,000 hours for long-term performance.
  • Recessed light fixture designed for T-Bar ceilings with integral earthquake clips and flexible mounting.
  • Dimming and control options include 0–10V standard, DALI compatibility, and emergency battery packs.
Country of Origin: Canada

Product Information

  • Product Specifications

    Application : Office,Retail Store,Classroom,Hospitals,Nursing Homes,Hospitality

    Available Size(s) : 4x4

    Brand : VIS

    CRI : 80+

    Certification : ETL Listed, Suitable for Damp Location

    Color Temperature : 3000K,3500K,4000K,5000K

    Fixture Type : Architectural,Recessed,Troffer

    Grade : Premium Grade

    Light Source : LED

    Lumen Output : 5000-16000

    Market : Commercial,Education,Healthcare

Related Videos

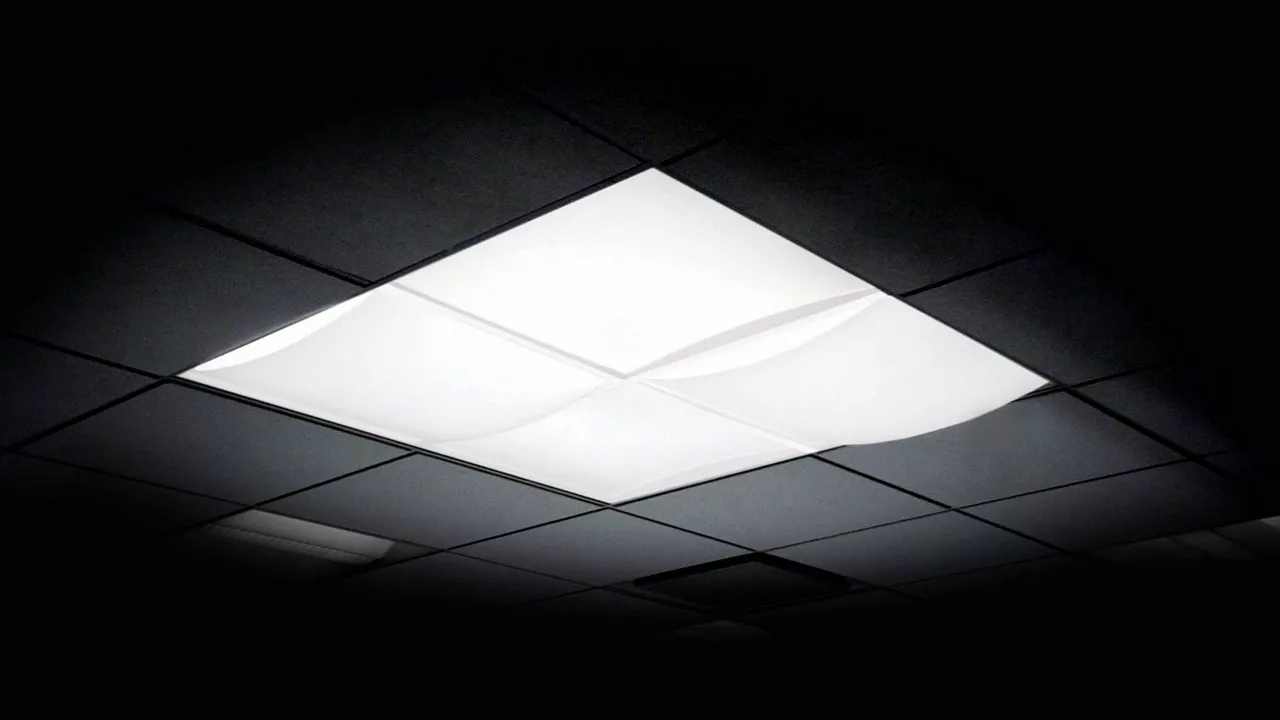

OnCurve Wave Architectural Luminaires
