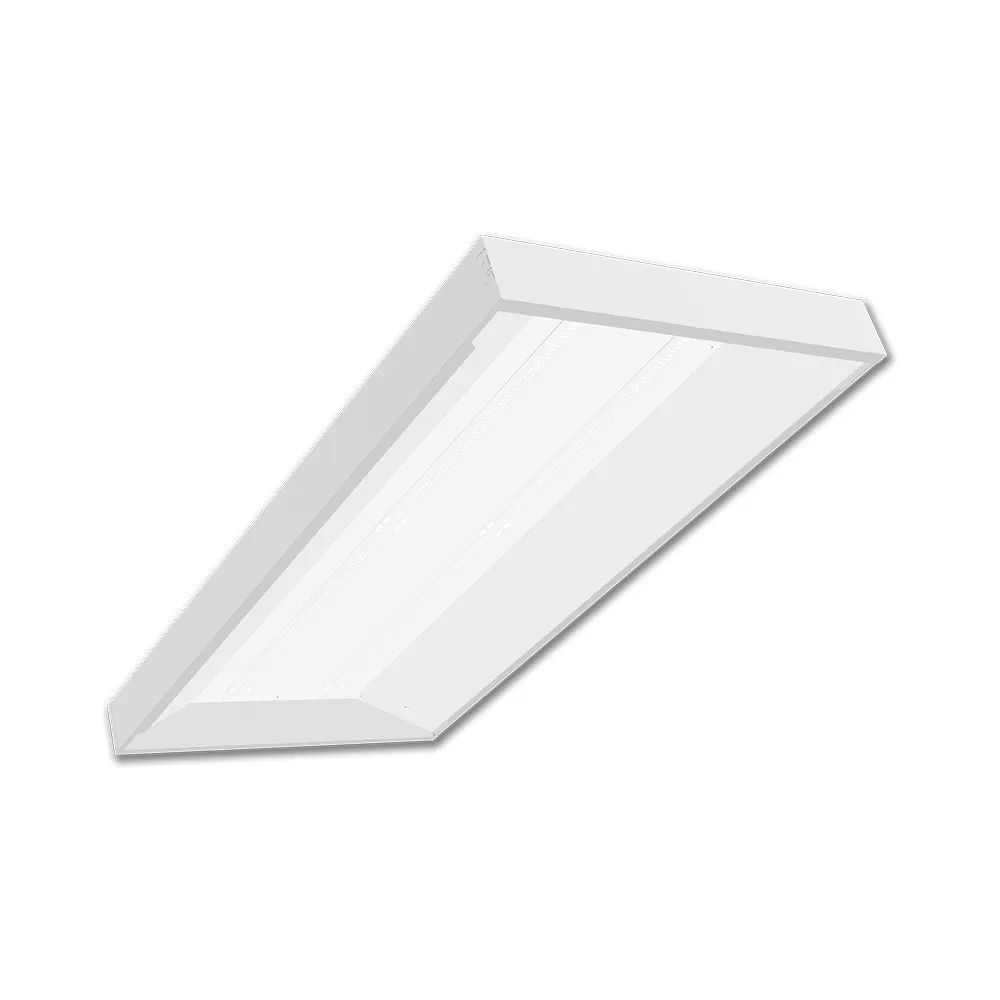

LED High-Bay Recessed Luminaire
LHBT

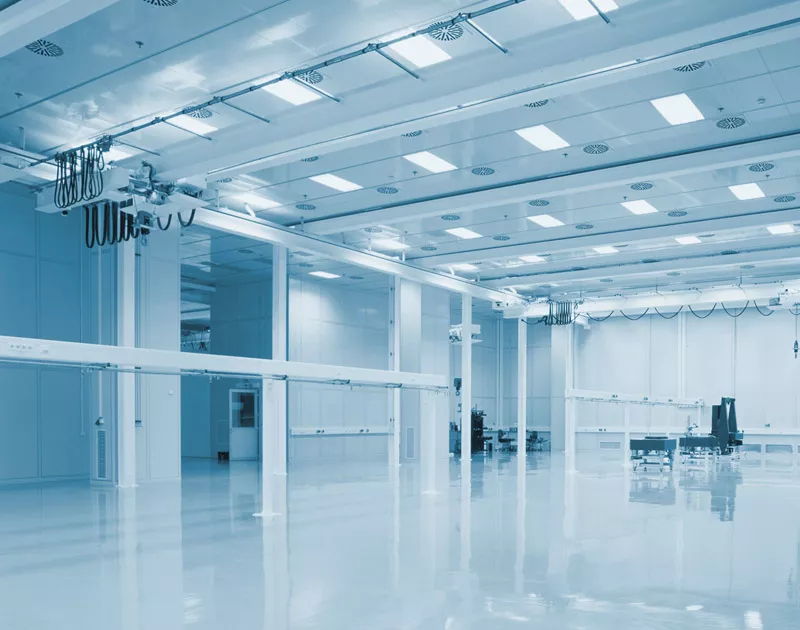

The LHBT LED high-bay lighting system is a commercial-grade recessed luminaire designed to meet the demands of high-output applications in industrial and commercial environments. Whether you're outfitting a warehouse, retail store, school, or atrium, the LHBT delivers powerful illumination with configurations reaching up to 30,000 lumens. This recessed high-bay solution is engineered for insulated ceilings and exposed grid acoustical ceiling structures, making it ideal for spaces with high ceilings and challenging lighting requirements. With its clean, low-profile design and robust construction, the LHBT offers both performance and flexibility for general-purpose lighting needs.

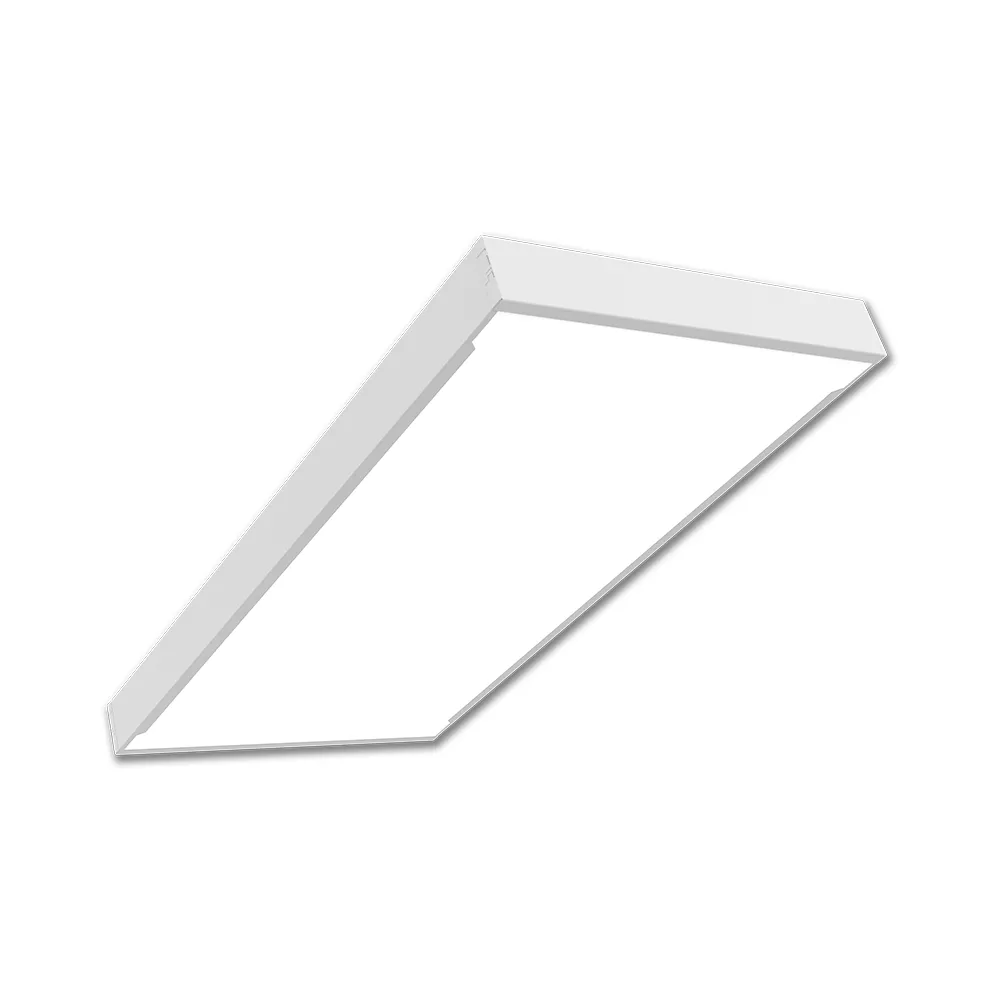

Available in 2x2 and 2x4 sizes, the LHBT supports a wide range of lumen packages from 8,000 to 30,000, allowing users to tailor the lighting output to their specific environment. The luminaire is constructed from die-formed, code-gauge pre-painted white steel and finished with a white polyester powder coating for durability and a clean aesthetic. It includes an access plate for quick wiring and is compatible with surface and flange kits for additional mounting options. The LHBT is ETL listed for insulated ceilings, CSA/UL approved, and suitable for damp locations, ensuring compliance with safety standards across various applications.

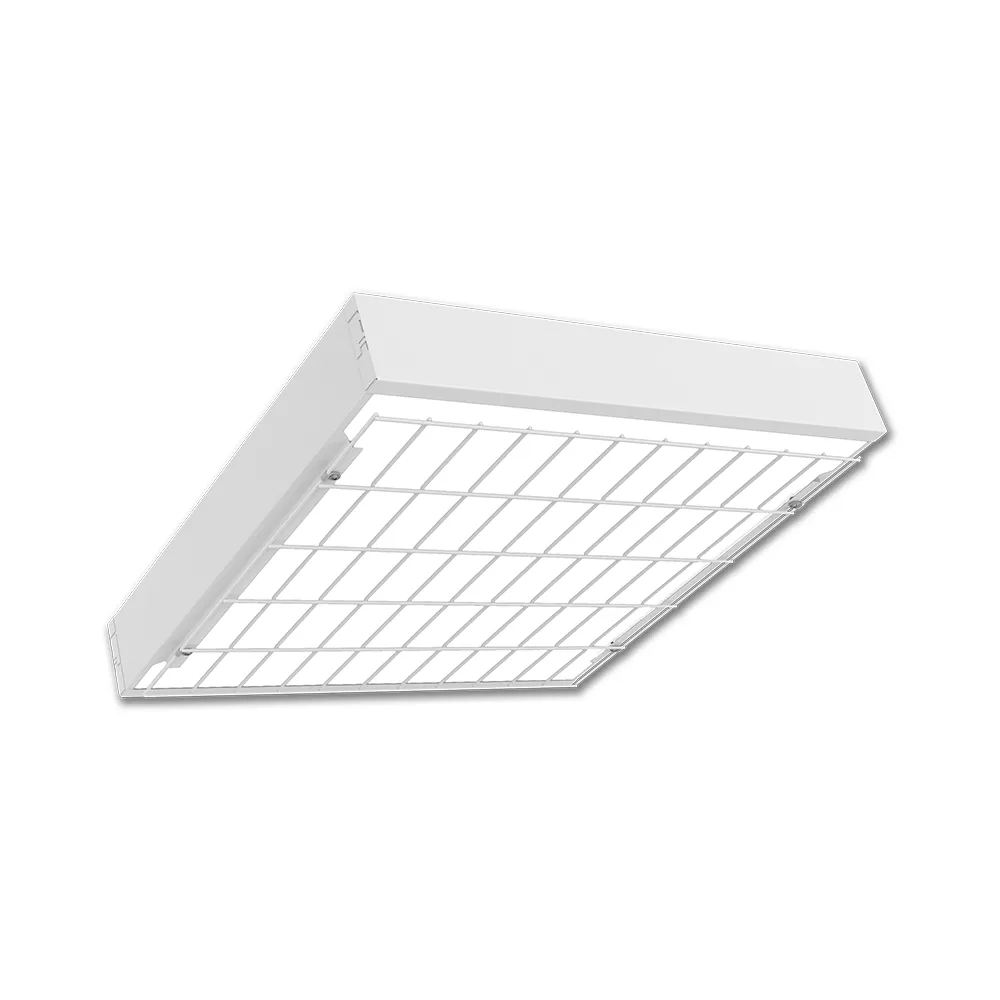

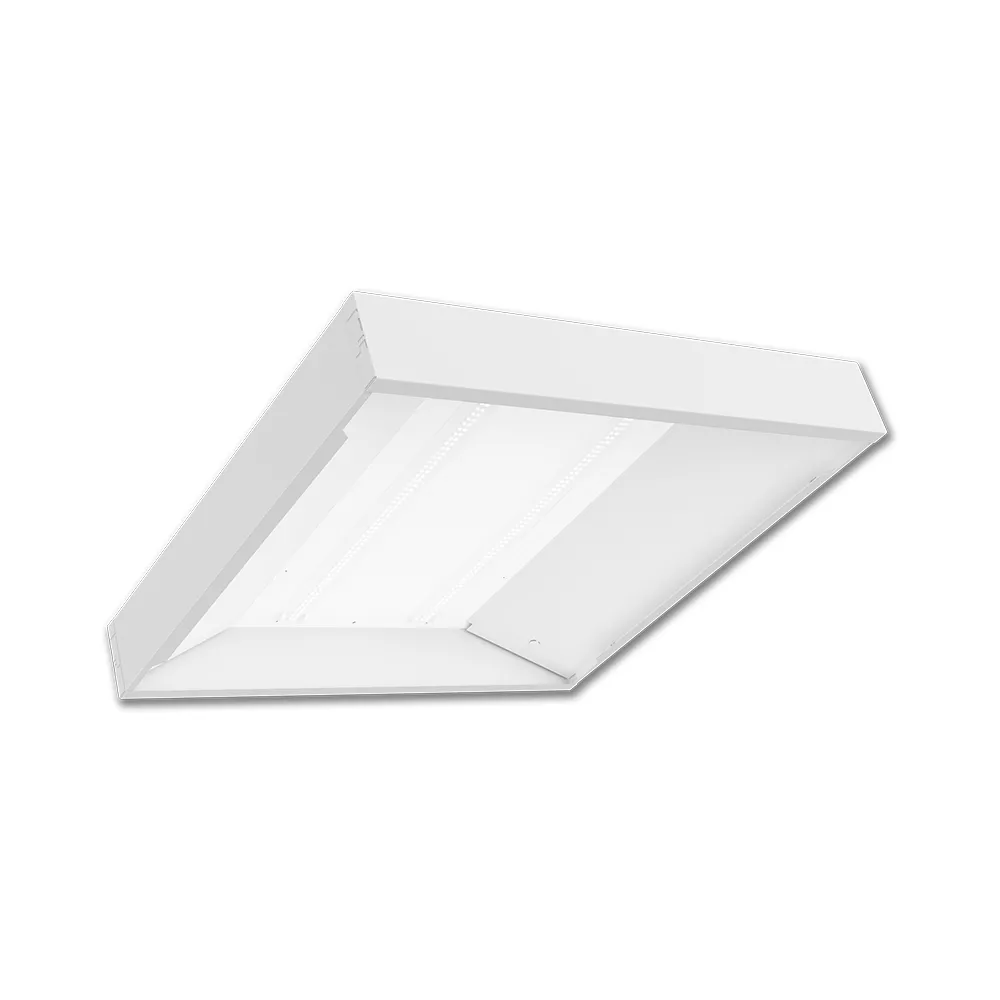

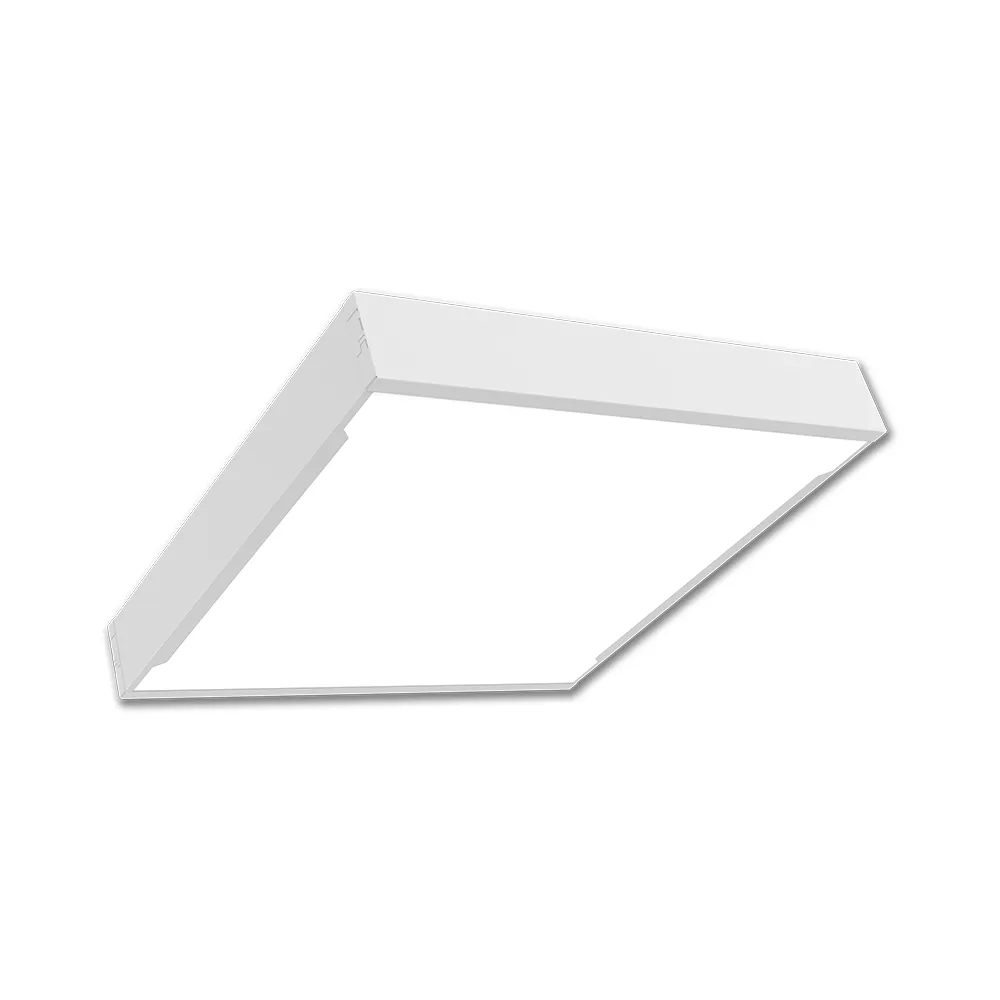

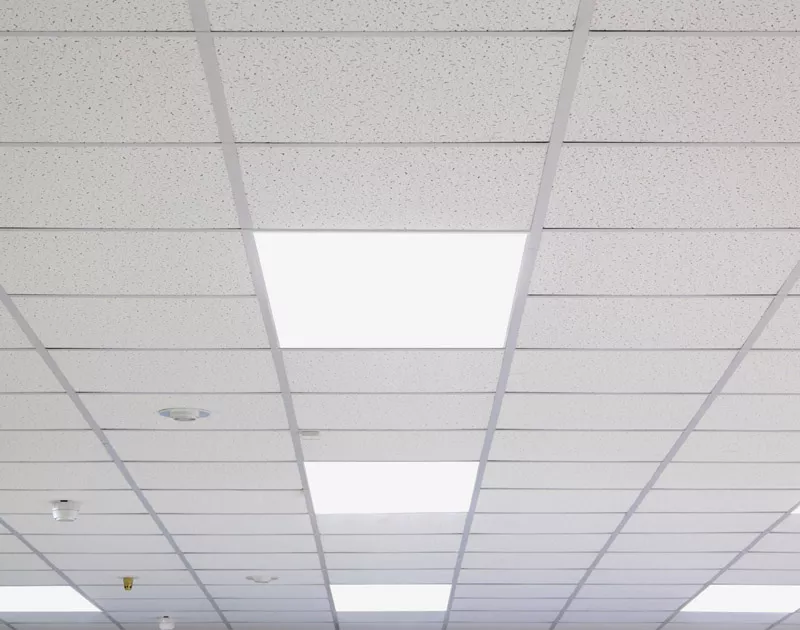

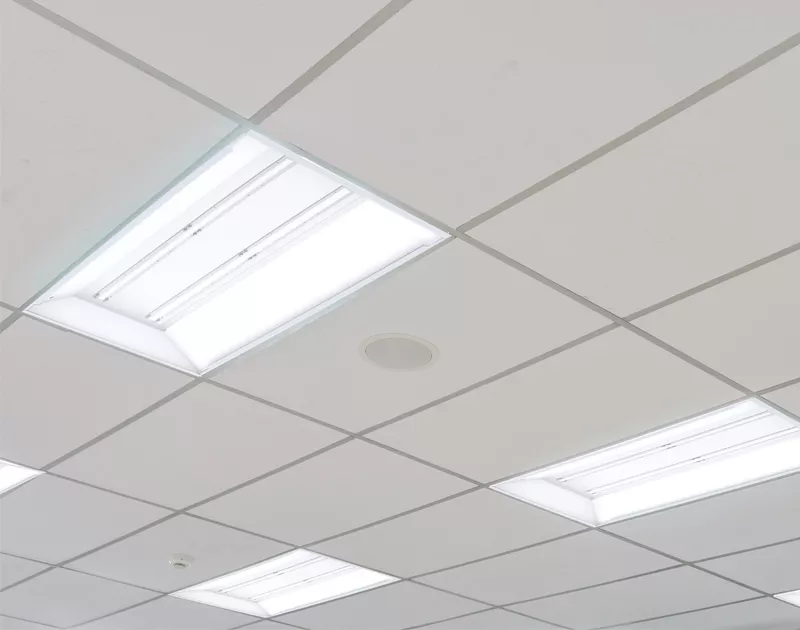

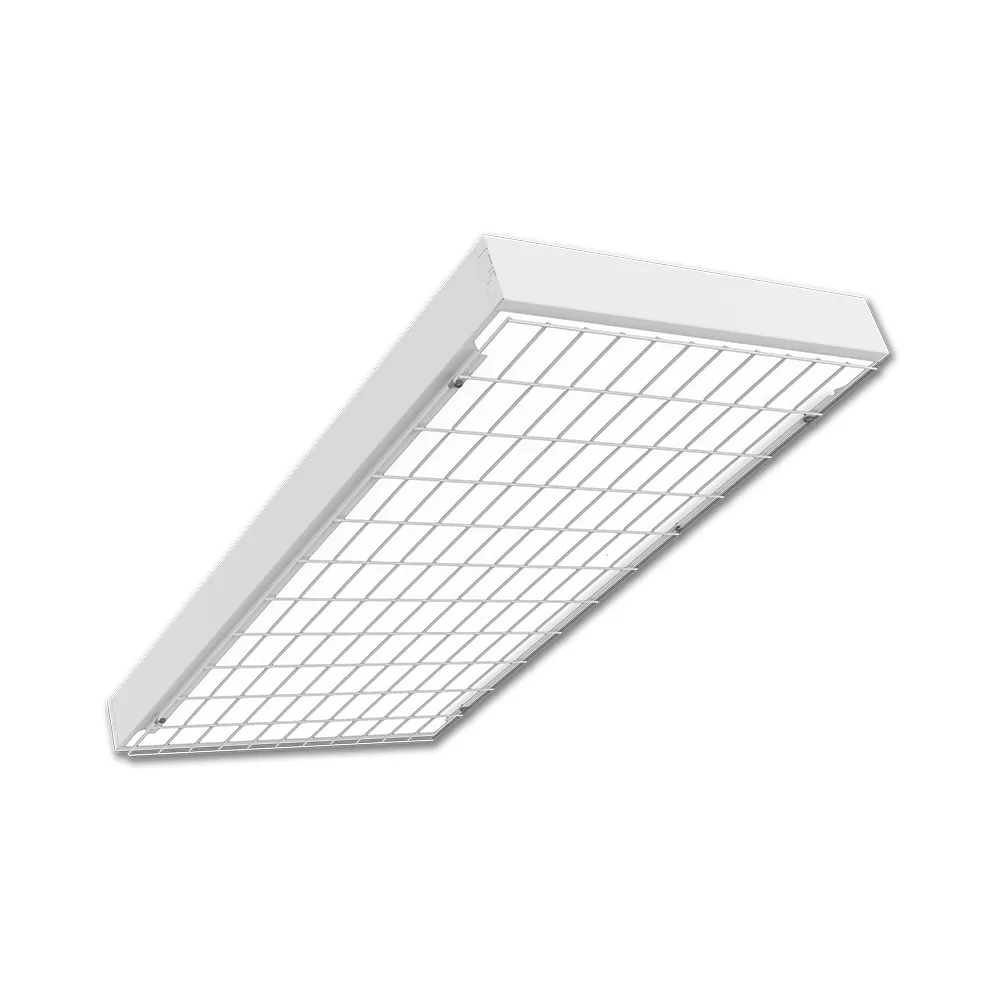

One of the key differentiators of the LHBT is its support for configurations with or without lens, giving users control over light diffusion and glare management. The optional translucent polycarbonate lens (P73) and heavy-duty wireguard (W1) can be installed in the field without the need for a doorframe, simplifying customization and reducing installation time. The luminaire also features standard low-voltage dimming (0–10V), 80+ CRI for accurate color rendering, and a default color temperature of 4000K, which provides balanced, neutral white light suitable for a wide range of tasks and environments.
In terms of performance, the LHBT is built to last. It combines long-life LEDs with high-efficiency drivers to deliver L80 performance beyond 60,000 hours at ambient temperatures up to 50°C. Calculated lifespans reach up to 238,000 hours (L70), significantly reducing maintenance and replacement costs over time. Depending on the configuration, the LHBT achieves up to 154 lumens per watt, offering excellent energy efficiency without compromising brightness. Emergency battery pack options are available for backup lighting, and advanced wireless controls can be integrated for smart lighting management.
The LHBT is not just about power it’s about precision and adaptability. Its recessed design makes it an ideal choice for modern commercial interiors where aesthetics and performance must align. The ability to choose between lens and no-lens configurations, combined with multiple lumen packages and mounting options, ensures that the LHBT can be customized to meet the specific needs of any project. Whether you're upgrading an existing facility or designing a new one, this industrial LED lighting solution offers the reliability, efficiency, and flexibility required for today’s demanding environments.
- High lumen output: Delivers up to 30,000 lumens with ambient operating temperatures up to 50°C.
- Flexible configurations: Available in 2x2 and 2x4 sizes with or without lens and wireguard options.
- Efficient performance: Achieves up to 154 lumens per watt and L80 > 60,000 hours at 50°C.
- Field-installable accessories: Lens and wireguard options can be added without a doorframe.
- Certified and compliant: ETL listed for insulated ceilings, CSA/UL approved, and suitable for damp locations.
Product Information
Product Specifications
Application : Atriums,Retail Store,Showroom,Supermarket,Showroom,Warehouse,Sport Center (Athletic centers),Recreational,Public Storage
Available Size(s) : 2x2,2x4
Brand : VIS
CRI : 80+
Certification : ETL Listed,Damp Locations,IESNA LM-79
Color Temperature : 3500K,4000K,5000K
Fixture Type : High-Bay,Recessed
Grade : Commercial Grade
Light Source : LED
Lumen Output : 8000-15000,12000-30000
Market : Commercial,Recreational,Industrial
