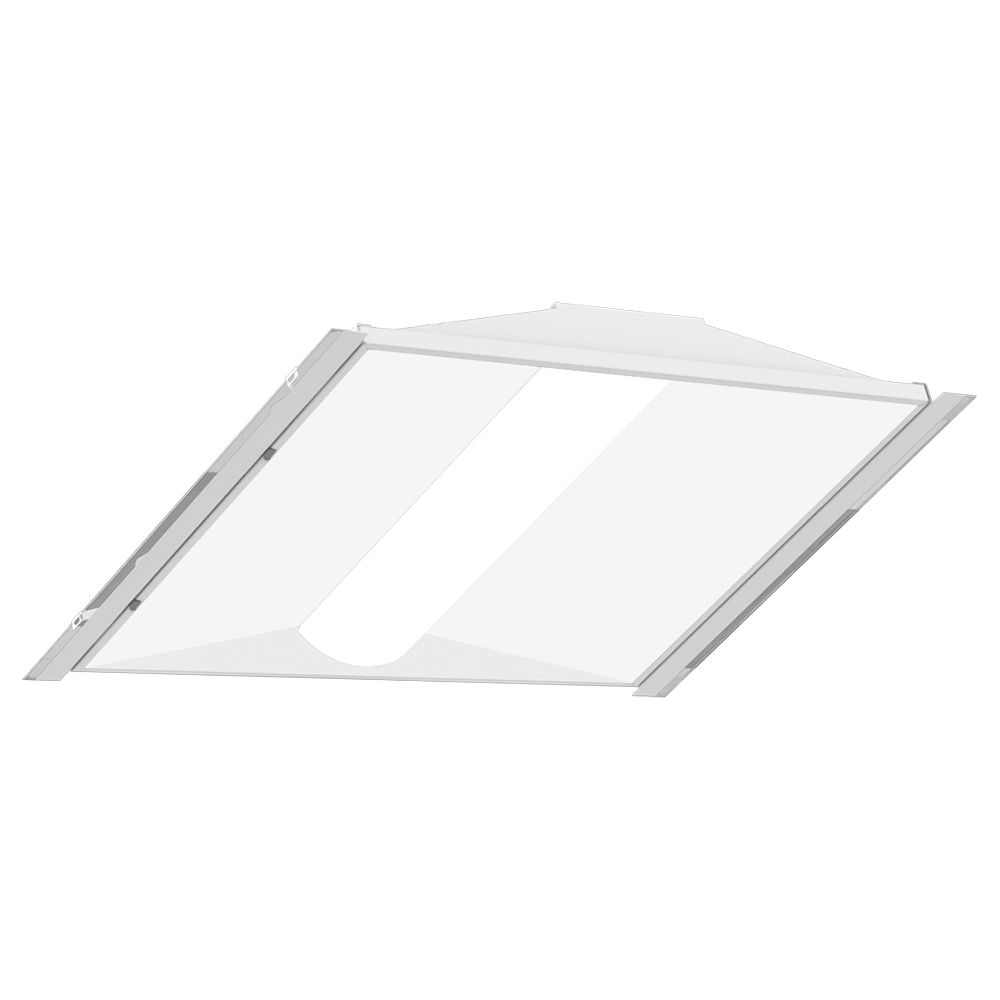

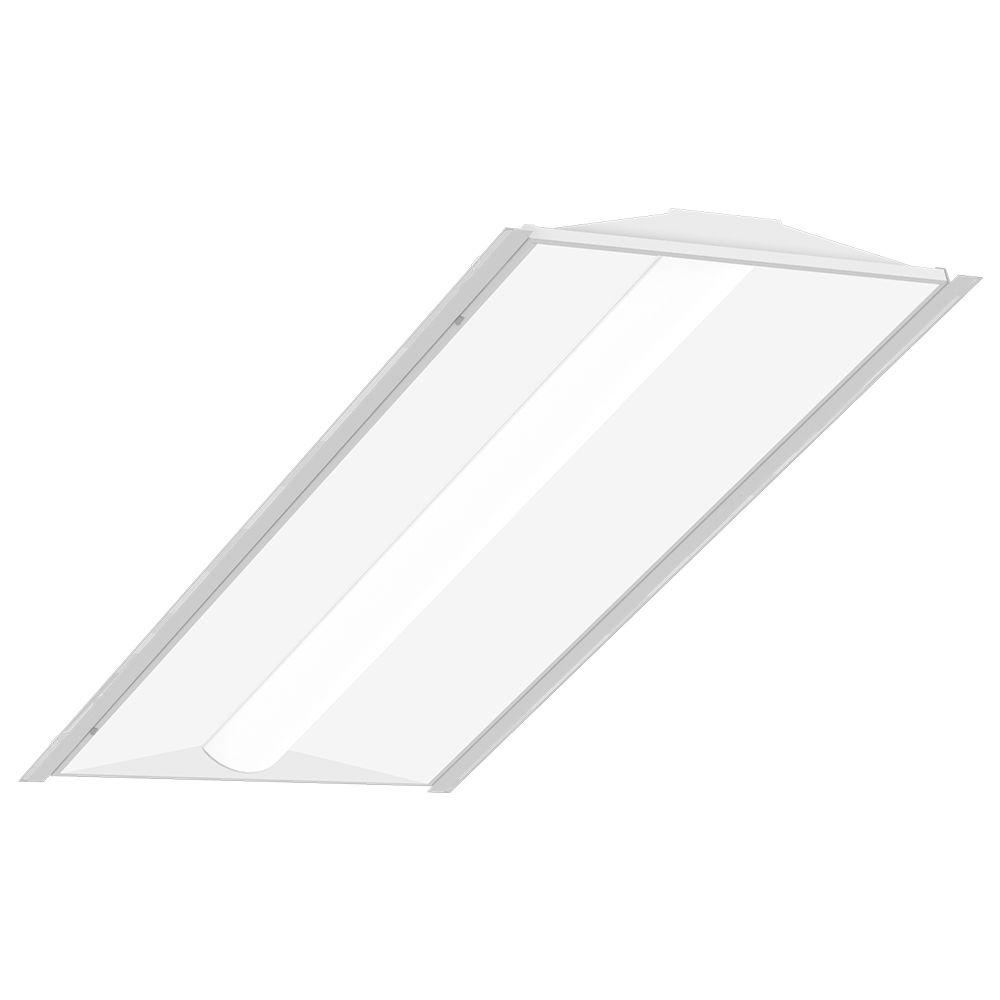

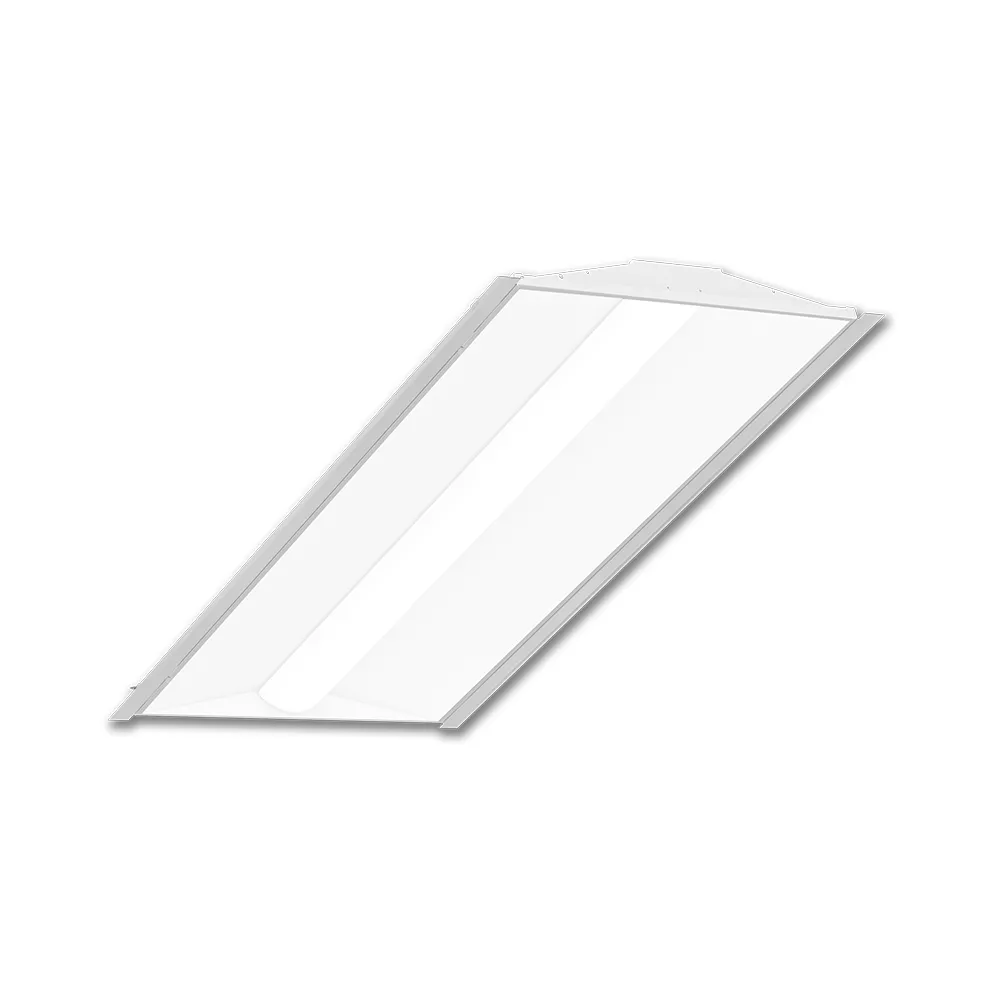

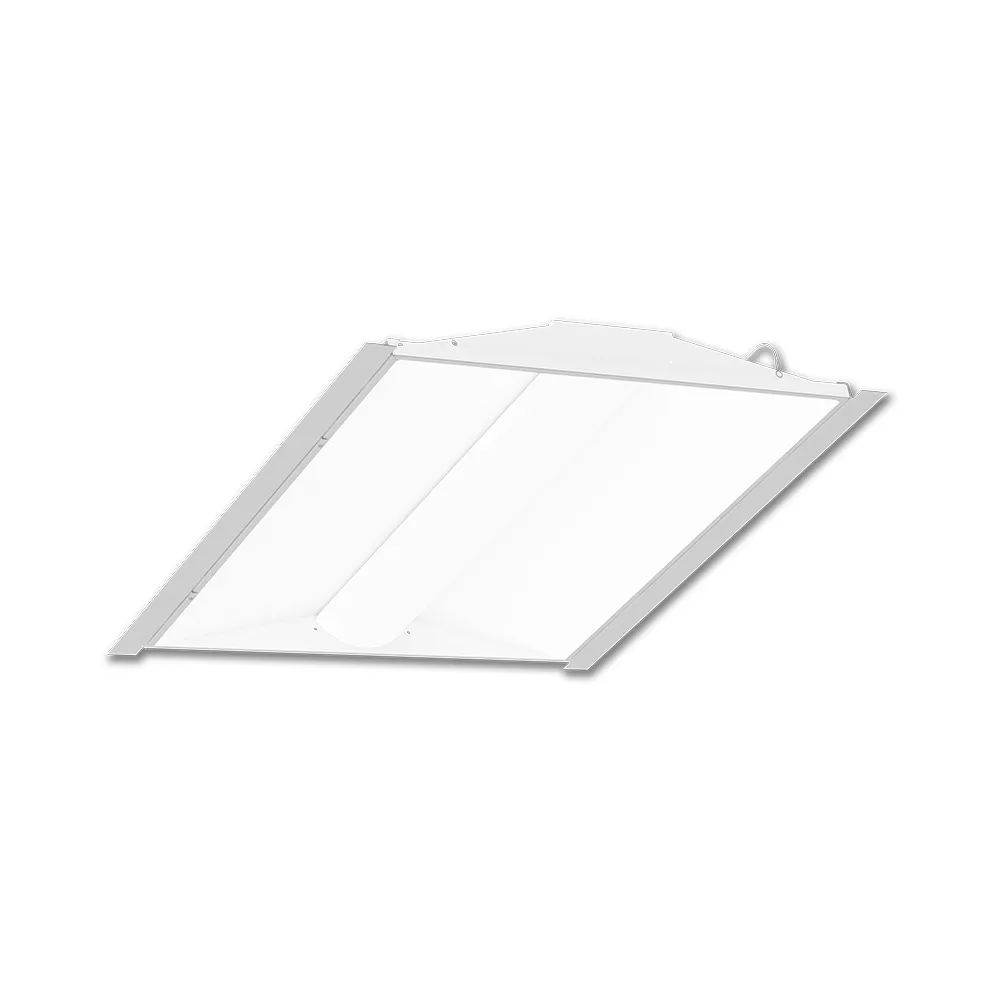

LED Recessed Troffer Retrofit Kit
LRK-TRH
LRK-TRH LED Recessed Troffer Retrofit Kit is a smart, efficient fixture-in-fixture solution designed to upgrade outdated fluorescent troffers with modern LED technology without replacing the entire fixture. This low-profile retrofit kit is ideal for commercial settings where fast installation, energy savings, and improved aesthetics are top priorities. Whether you're renovating office spaces, classrooms, or healthcare facilities, the LRK-TRH simplifies the process with a clean design and reliable performance.
Engineered for retrofit lighting applications, the LRK-TRH offers a shallow form factor and a high-efficiency optical system. Its round linear ribbed frosted acrylic diffuser ensures uniform, low-glare illumination across work surfaces and environments. Available in 1x4, 2x2, and 2x4 sizes, the kit supports multiple lumen packages from 2000 to 7000 lumens and color temperatures ranging from 3000K to 5000K. This flexibility makes it a go-to choice for facilities seeking commercial retrofit lights that deliver both performance and visual comfort.

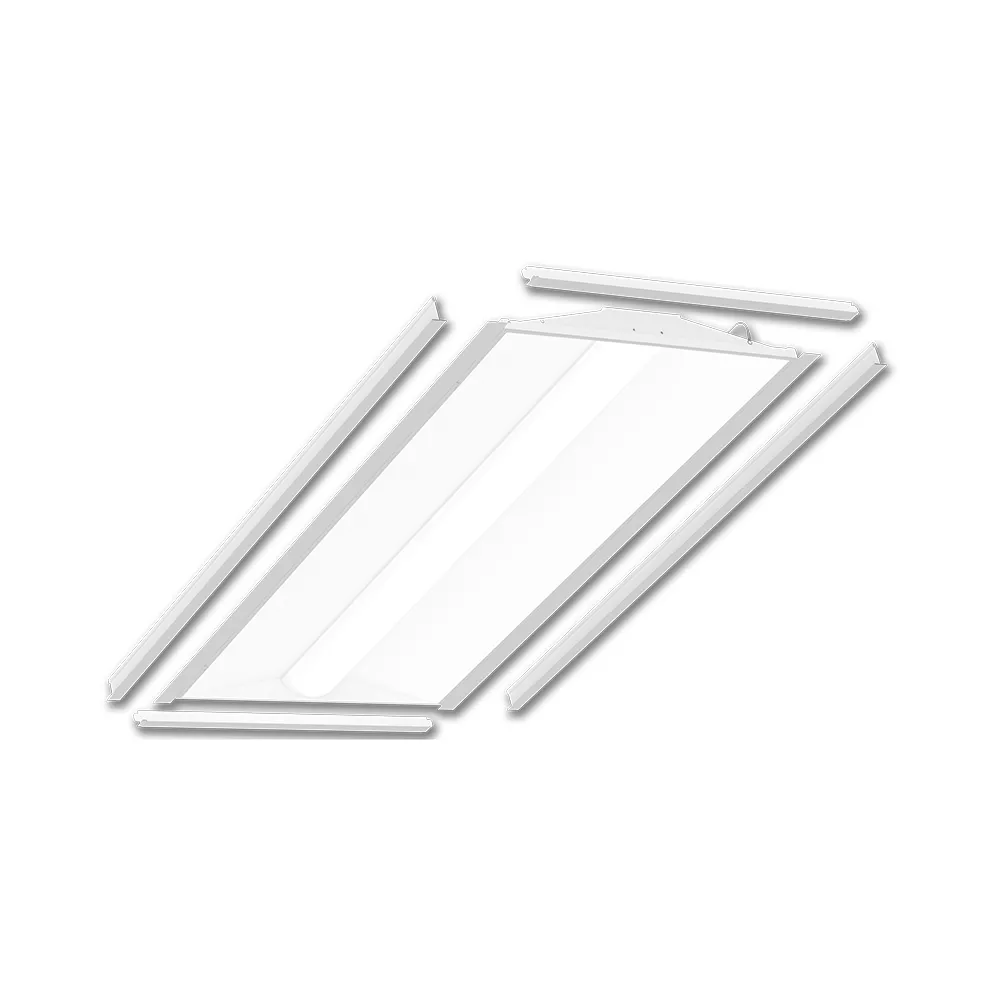

Installation is straightforward: two steel brackets secure the kit to the existing recessed T-Bar fixture using self-tapping screws. The driver and light engine are integrated into the doorframe, streamlining the process and reducing labor time. Rated for L80 performance over 60,000 hours, the LRK-TRH ensures long-term reliability and minimal maintenance. It also supports standard 0–10V dimming and is compatible with advanced wireless controls and emergency battery options including cold-weather and self-testing variants.
As a retrofit recessed lights with LED solution, the LRK-TRH meets stringent safety and performance standards. It is UL listed for insulated ceilings, suitable for damp locations, and DesignLights Consortium® qualified. The white polyester powder-coated finish adds a clean, professional look to any ceiling grid, while the extruded acrylic lens enhances light diffusion and visual appeal.
For buyers searching online for dependable retrofit lighting, the LRK-TRH offers a compelling combination of ease, efficiency, and adaptability. It’s a practical upgrade for any commercial space looking to reduce energy costs and improve lighting quality without the hassle of full fixture replacement.
- True Fixture-in-Fixture Retrofit: Installs directly into existing recessed T-Bar troffers using steel brackets and self-tapping screws.
- High-Efficiency Output: Delivers up to 7348 lumens with efficacy up to 155.6 lm/W for powerful, energy-saving illumination.
- Flexible Configurations: Available in 1x4, 2x2, and 2x4 sizes with multiple lumen and CCT options (3000K–5000K).
- Smart Controls Ready: Supports 0–10V dimming and optional wireless control integration for advanced lighting management.
- Certified for Commercial Use: UL listed, DLC qualified, and rated for damp locations with a 5-year limited warranty.
Product Information
Product Specifications
Application : Office,Retail Store,Classroom,Corridors
Available Size(s) : 1x4,2x2,2x4
Brand : VIS
CRI : 80+,90+
Certification : DLC,UL Listed (C/US),Damp Location,IESNA LM-79
Color Temperature : 3000K,3500K,4000K,5000K
Fixture Type : Recessed,Troffer,Retrofit
Grade : Commercial Grade
Light Source : LED
Lumen Output : 2000-4000,2000-4800,3200-7400
Market : Education,Commercial,General Area,Industrial
Related Videos
Viscor Presents: LRK-TRH Retrofit Kit
Viscor Presents: How to Install an LRK-TRH Retrofit Kit
