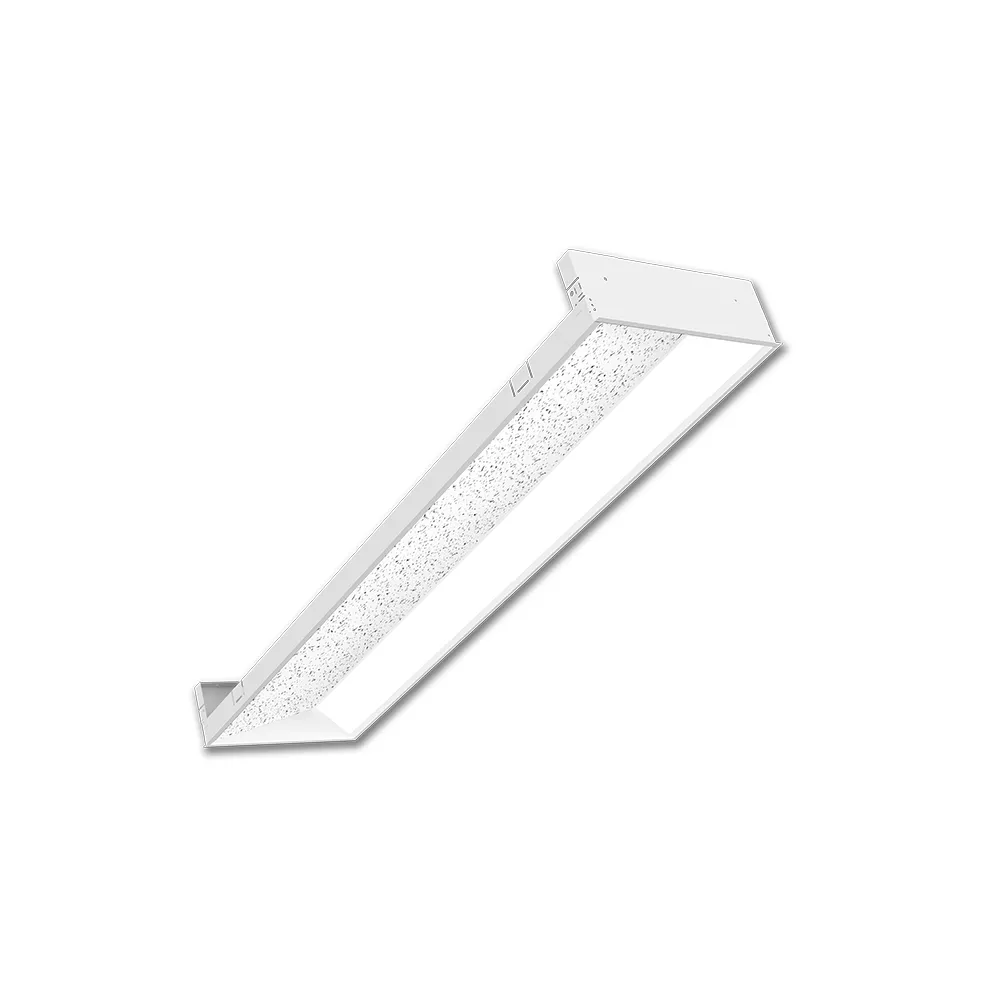

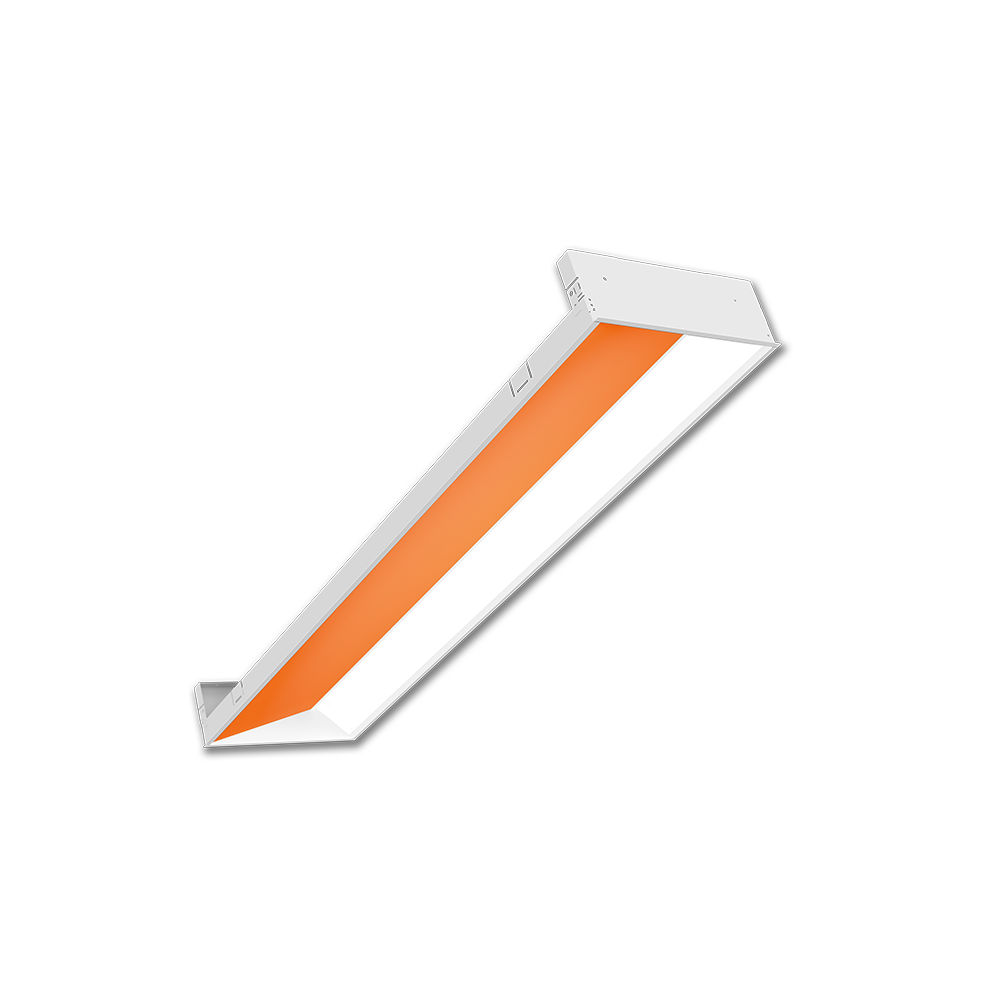

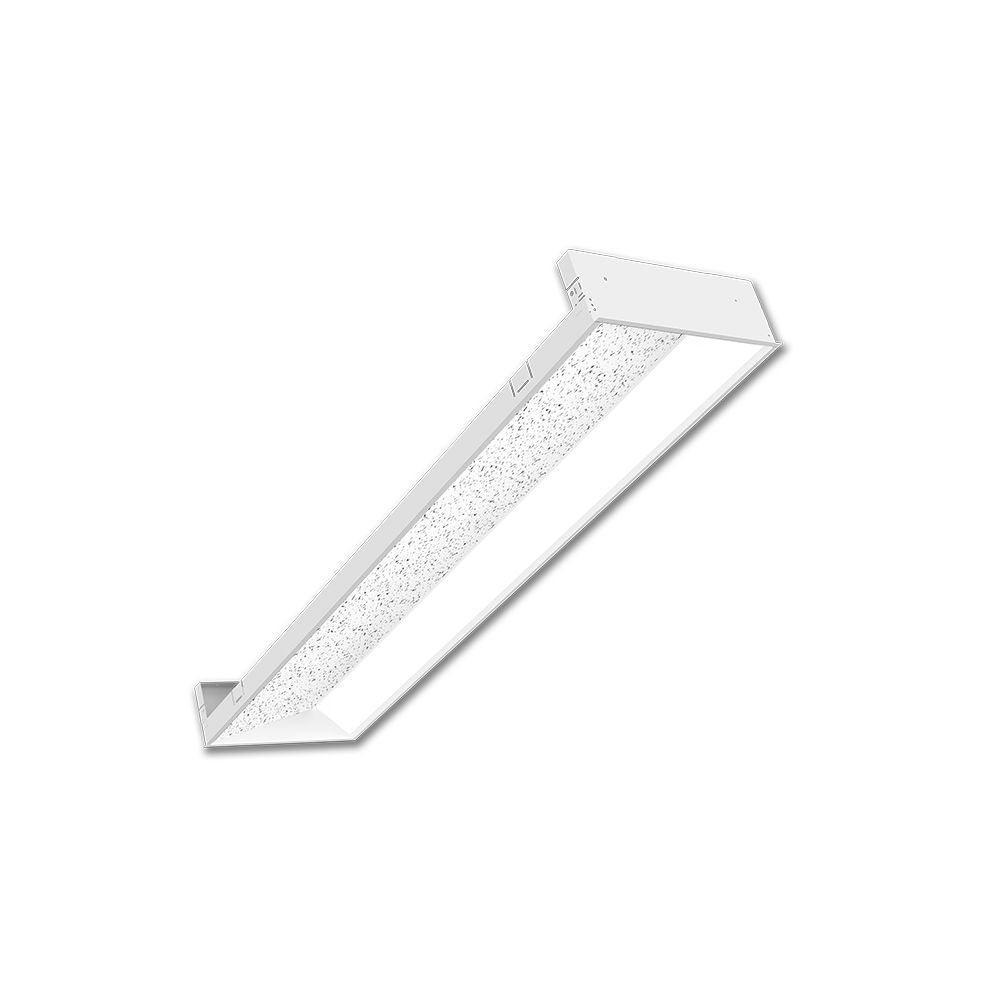

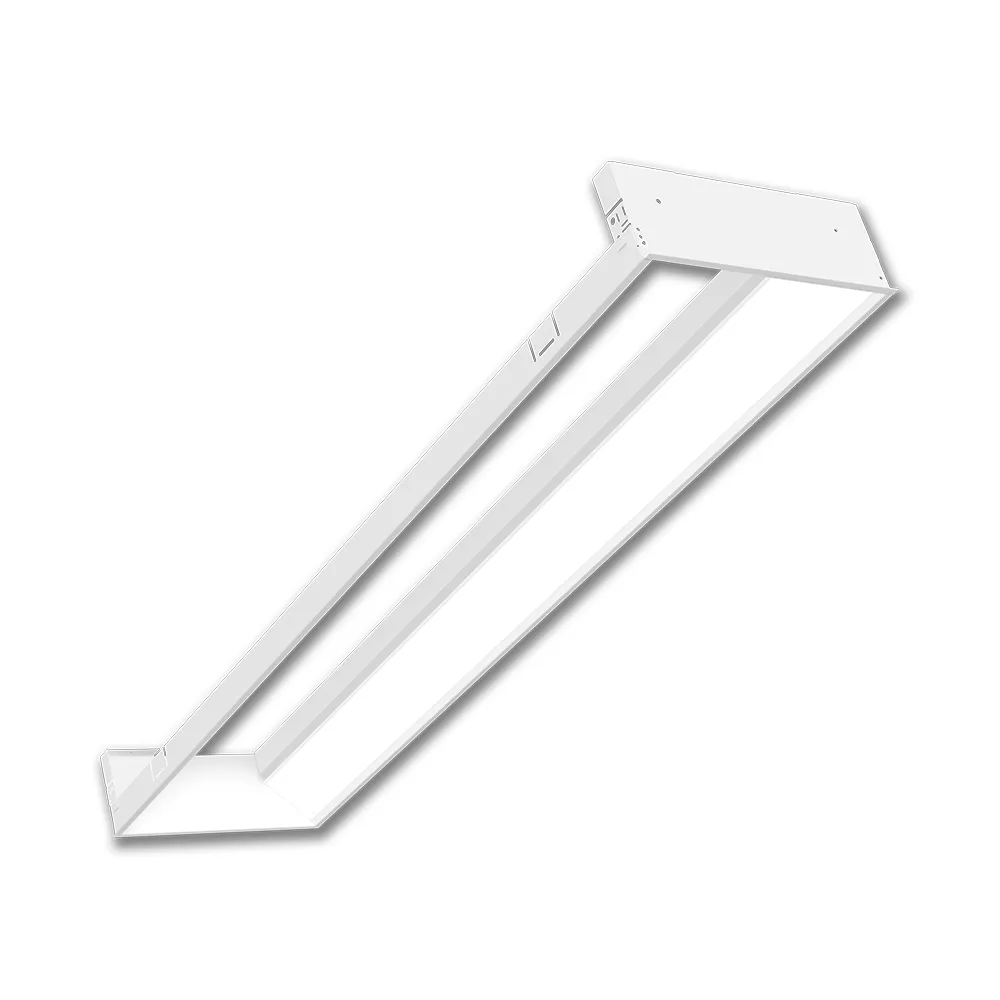

LED - Architectural Recessed Troffer

RISE

The RISE Architectural Recessed Troffer introduces a fresh interpretation of modern geometry, bringing a clean, sculpted lighting form to contemporary ceiling designs. Developed for interior environments where visual clarity and comfort matter, RISE uses an angled aperture to create depth and spatial hierarchy from the moment the fixture is powered on. This design elevates standard T‑Bar installations by blending architectural intention with practical illumination, making the system an ideal solution for designers and buyers seeking dependable, high‑quality lighting with an elevated aesthetic.

As a recessed light fixture built for insulated ceilings and 9/16" or 15/16" T‑Bar grids, RISE delivers consistent results in both new construction and retrofit applications. Its illuminated plane is available in one‑ or two‑side‑lit configurations across multiple sizes such as 1x2, 1x4, 2x2, 2x4, 4x2, and 4x4 supporting everything from small‑scale rooms to expansive open‑concept environments. A diffuse frosted lens ensures smooth, even light distribution while offering both symmetric and asymmetric performance, which is especially beneficial for wall‑wash applications or environments requiring controlled brightness.

Engineered for longevity, RISE integrates long‑life LEDs paired with high‑efficiency drivers, achieving L80 performance beyond 60,000 hours. Total harmonic distortion remains under 15%, and the fixture operates reliably from 0°C to 35°C. Standard 0–10V dimming down to 1% supports granular control, while optional tunable white (2700–6500K), circadian lighting (BioSYNC), and fully integrated occupancy/daylight sensors expand its functionality for health‑centric and energy‑optimized spaces. For acoustically sensitive areas, optional integrated acoustic materials help reduce ambient noise while maintaining visual consistency, a valuable addition for offices, educational spaces, collaborative environments, and modern commercial interiors.

The product’s construction reinforces its architectural positioning. A die‑formed, cold‑rolled heavy‑gauge steel housing ensures structural rigidity, while 5‑stage pretreatment and polyester powder coating protect the fixture against environmental wear. Easy‑access wiring plates, knockouts, and integral earthquake clips simplify installation and ensure proper alignment in the ceiling plane. Air supply and return slot options are available, allowing RISE to integrate seamlessly with HVAC systems when required. Emergency battery backup options including 10W, 20W, 347V configurations, cold‑weather variations, and self‑testing units ensure performance continuity across a range of safety and code‑driven applications.

As a piece of architectural LED lighting, RISE is built to meet stringent quality and safety requirements. It holds ETL certification to UL1598 and CSA 22.2 No. 250.0, is RoHS compliant, and is approved for both dry and damp locations. Multiple lumen packages from 500 to 12,000 lumens depending on size and configuration ensure the fixture can be tailored to the visual and functional demands of the environment. Designers can choose from standard tile compatibility or custom tile solutions to align RISE with surrounding materials while maintaining its distinctive angled, modern aesthetic.

With its elevated geometric profile, adaptable optical performance, and broad selection of control, mounting, and emergency options, RISE stands out as an architectural luminaire that merges design expression with robust, long‑term reliability. It supports both creative intent and technical precision, offering a lighting solution that enhances ceiling architecture while delivering dependable illumination day after day.

  • Available in multiple sizes (1x2, 1x4, 2x2, 2x4, 4x2, 4x4) with one‑ or two‑side‑lit configurations for broad application flexibility.
  • Diffuse frosted lens delivers even illumination with symmetric or asymmetric distribution options for area lighting or wall‑wash effects.
  • Long‑life LEDs and high‑efficiency drivers support L80 performance beyond 60,000 hours with low THD (<15%) and 1% dimming capability.
  • Optional features include tunable white (2700–6500K), circadian lighting (BioSYNC), acoustic material integration, and occupancy/daylight sensors.
  • ETL‑certified to UL1598 and CSA 22.2 No. 250.0, suitable for dry/damp locations, and offered with multiple emergency battery backup configurations.

Specifications

Resources

IES

Revit

Technical Information

  • Product Specifications

    Application : Office,Retail Store,Classroom,Hospitals,Nursing Homes,Hospitality

    Available Size(s) : 1x2,1x4,2x2,2x4,4x2,4x4

    Brand : VIS

    CRI : 80+,90+

    Certification : ETL Listed,RoHS Compliant,Damp Locations

    Color Temperature : 3000K,3500K,4000K,5000K,2765KT

    Fixture Type : Architectural,Recessed,Troffer,T-Bar

    Grade : Specification Grade

    Light Source : LED

    Lumen Output : 500-6000,1000-12000

    Market : Education,Healthcare,Commercial
