LED - Architectural Recessed Troffer with Concave lens
OnCurve Concave

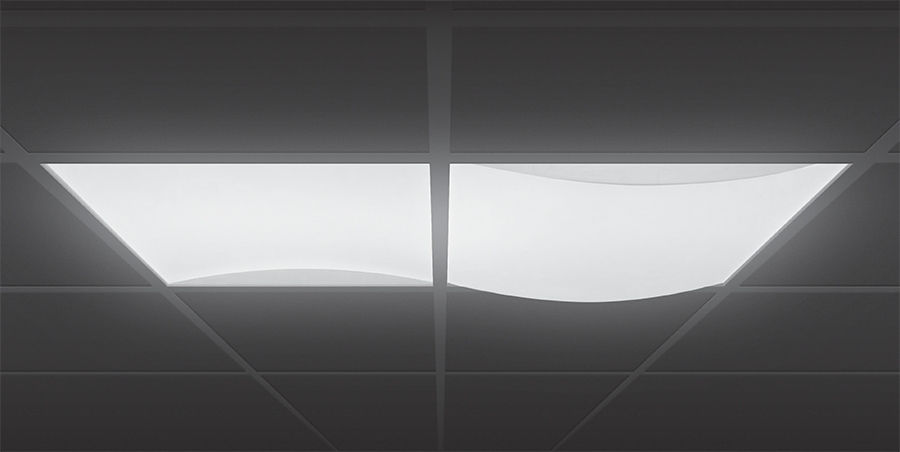

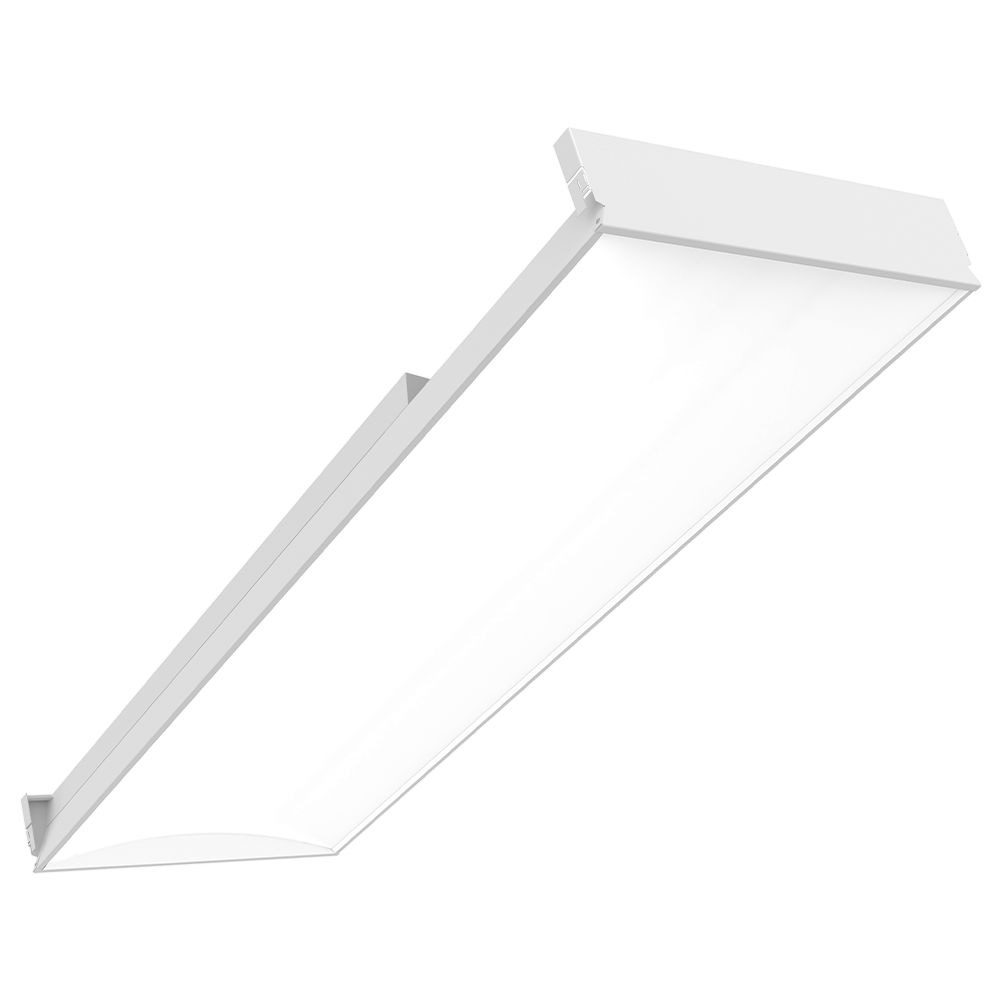

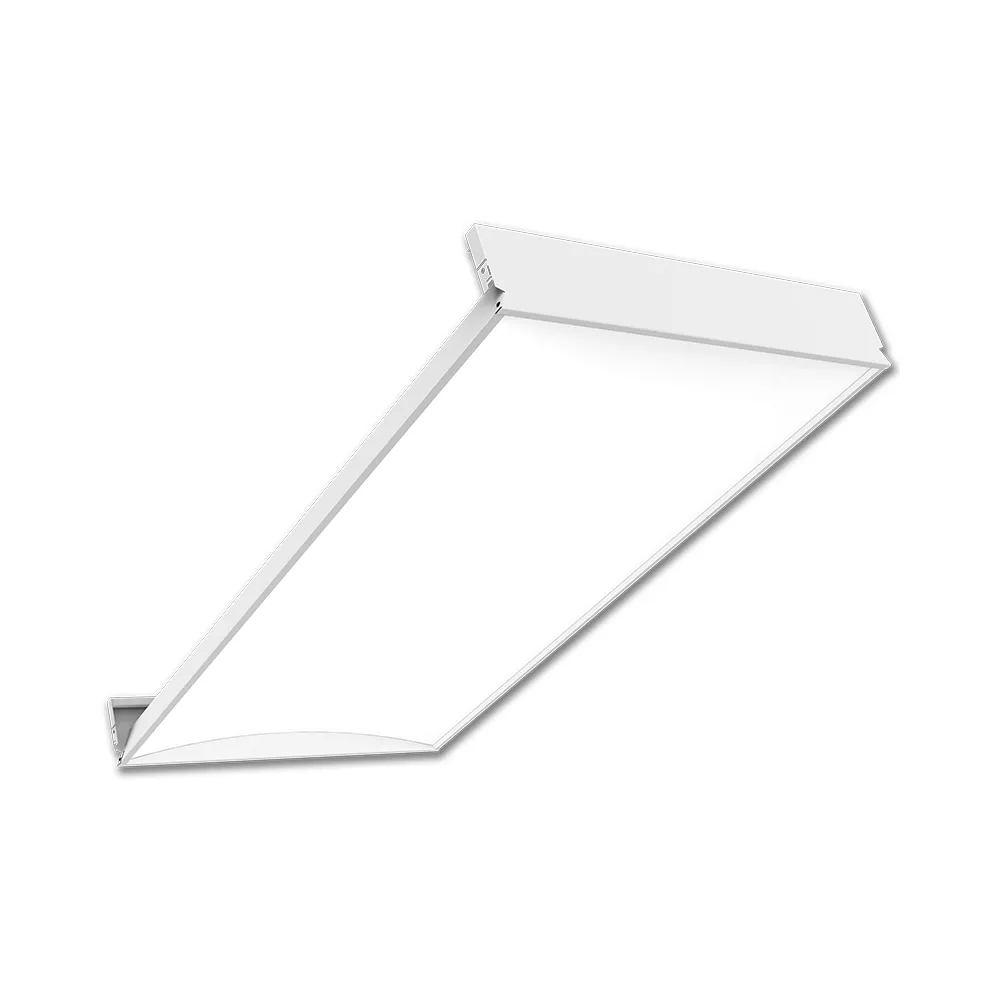

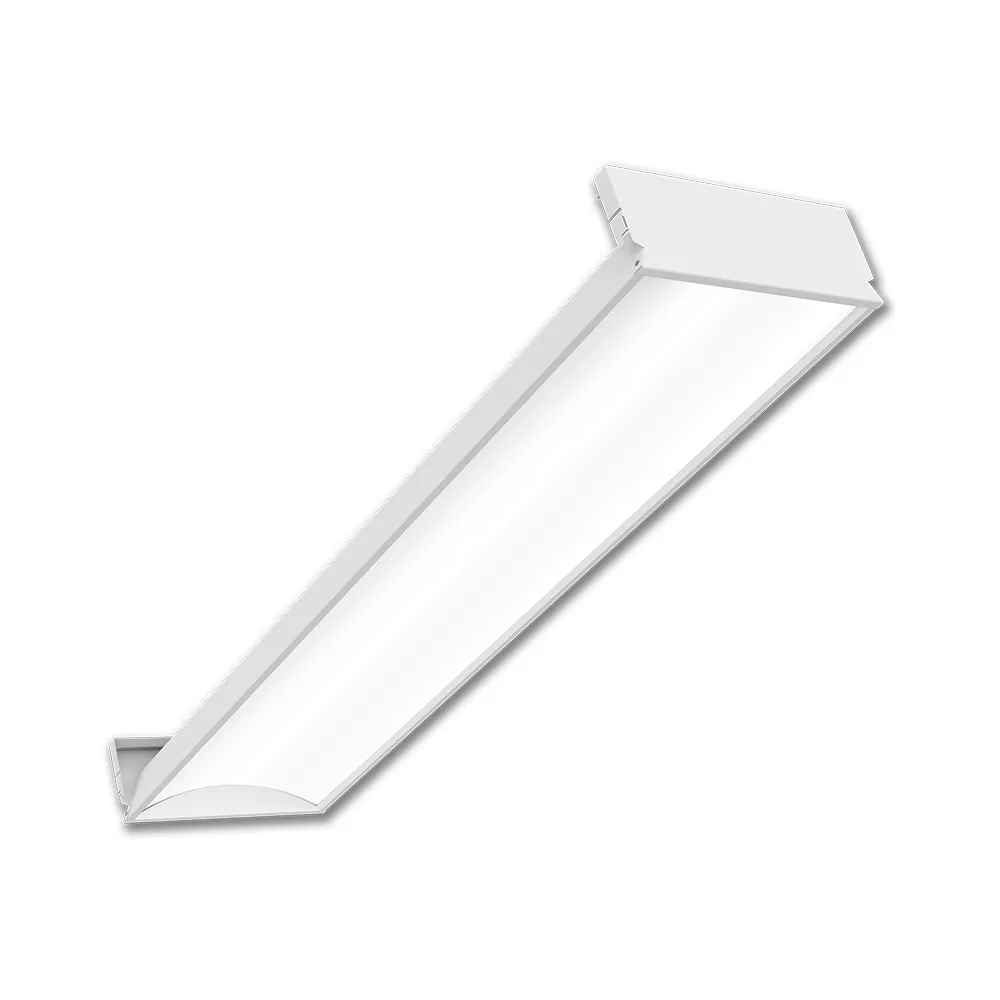

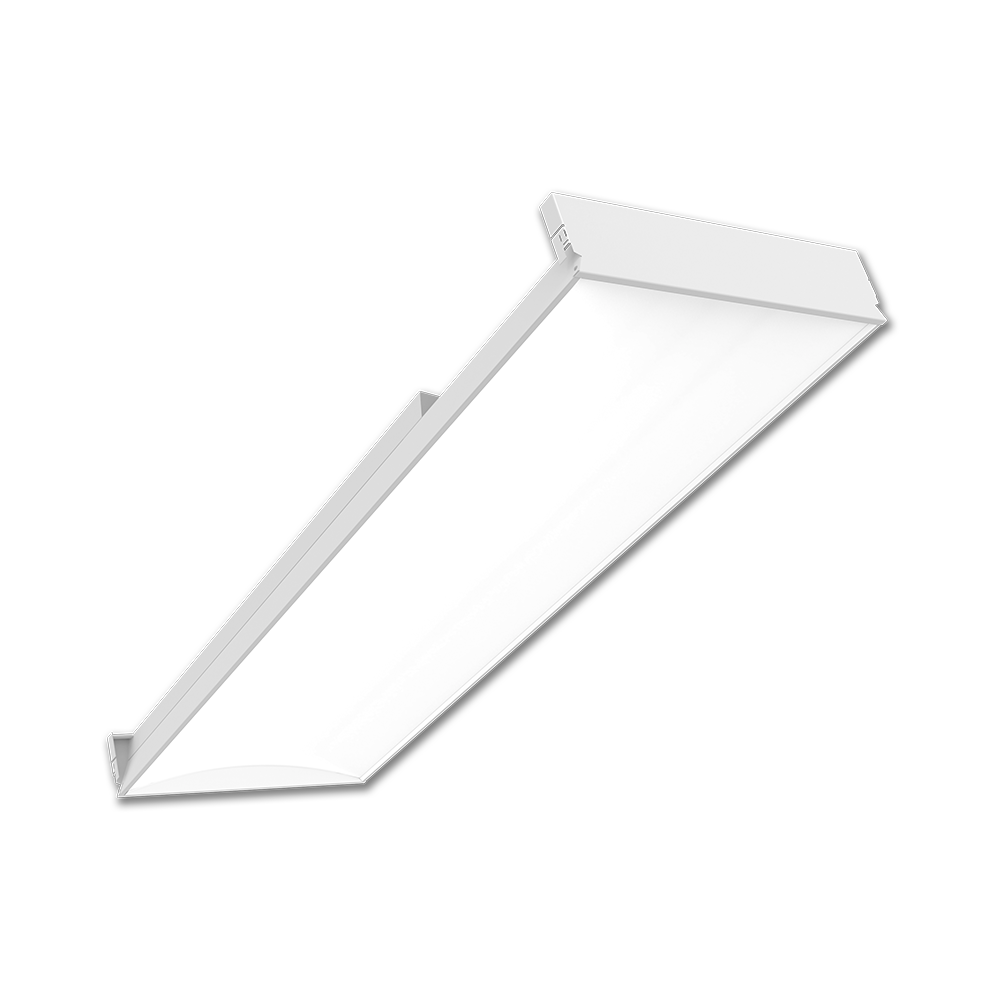

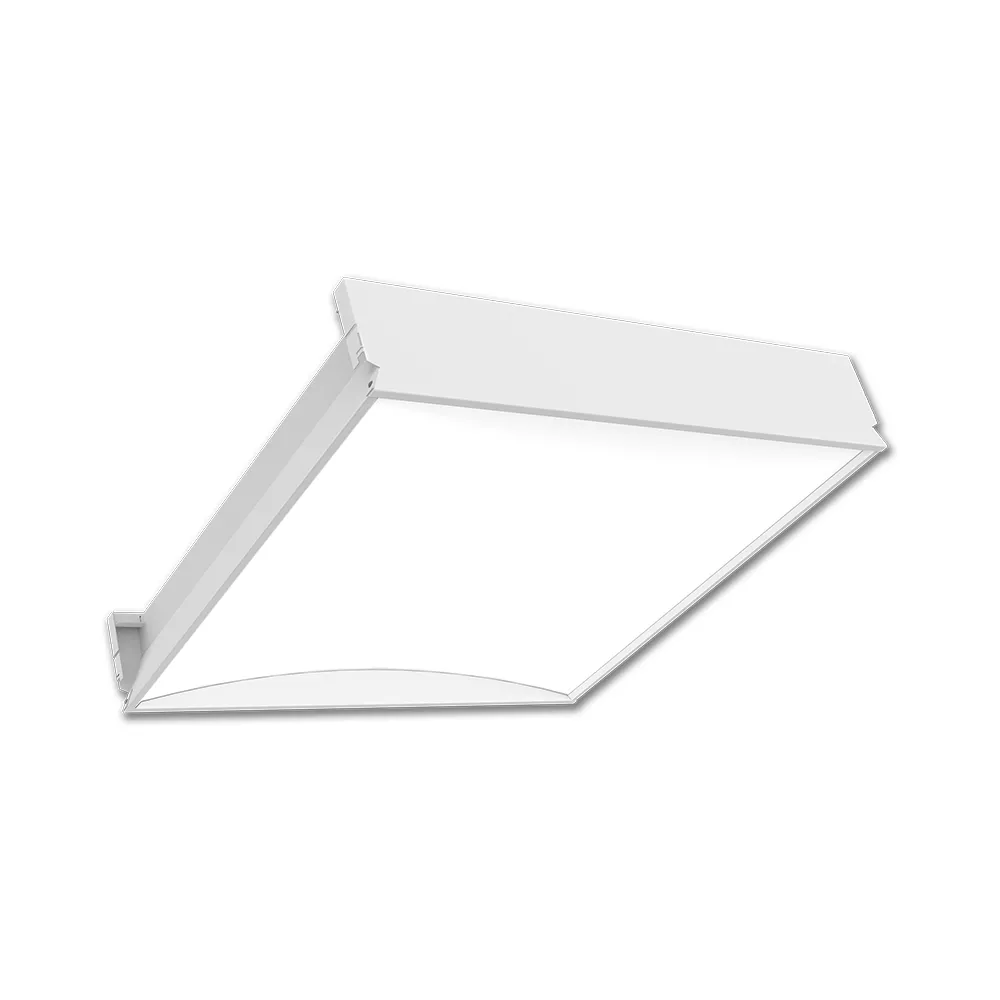

The OnCurve Concave LED troffer is a premium-grade recessed lighting solution designed for modern architectural environments. Featuring a soft curved lens, this fixture delivers high visual comfort and a sleek aesthetic ideal for insulated ceiling applications. Available in multiple metric sizes including 1x4, 2x2, 2x4, and 20x60, it offers versatile integration into a wide range of commercial and institutional spaces.

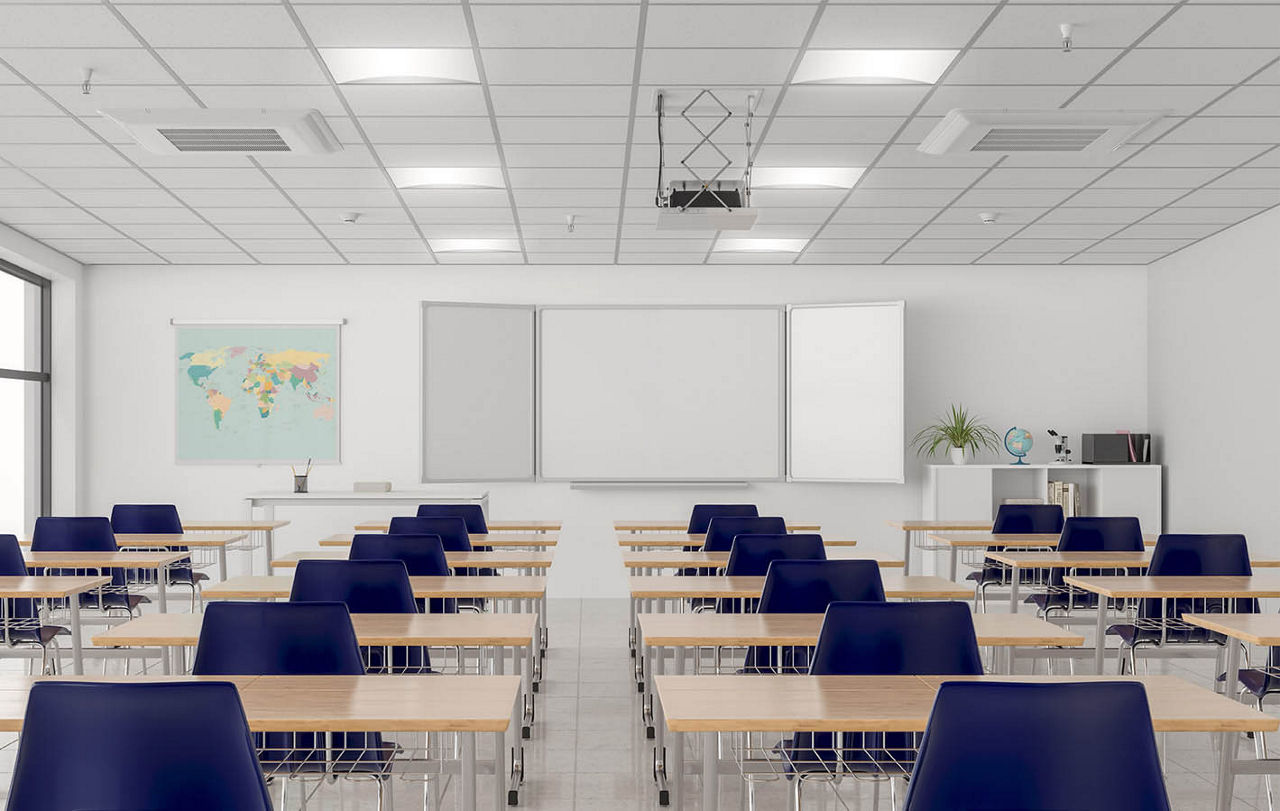

Engineered for performance and ease of installation, the OnCurve Concave is a standout recessed light fixture for offices, classrooms, healthcare facilities, and retail environments. Its frosted, single-piece concave diffuser ensures uniform light distribution while minimizing glare. The fixture is constructed from die-formed, cold-rolled steel with a white polyester powder-coated finish, ensuring durability and a clean appearance. Integral earthquake clips and T-Bar mounting compatibility make it a reliable choice for suspended ceiling systems.
This fixture supports standard low-voltage dimming (0–10V, down to 1%) and is available with a range of lumen outputs from 2000 to 7000, depending on size and configuration. It’s powered by long-life LEDs paired with high-efficiency drivers, delivering up to 135 lumens per watt and maintaining L80 performance beyond 60,000 hours. Optional features include emergency battery packs, occupancy/daylight sensors, and advanced wireless controls, making it adaptable to both energy-saving and safety requirements.
As part of a broader architectural LED lighting strategy, OnCurve Concave supports air handling options, Chicago Plenum compliance, and flexible wiring configurations. It’s ETL listed, suitable for damp locations, and many configurations are DLC qualified. Whether you're upgrading an existing space or designing a new one, this troffer offers a balance of form, function, and efficiency.
With its modern styling and high-performance specs, OnCurve Concave is more than just a light fixture—it’s a lighting solution that enhances the built environment. From healthcare to hospitality, it meets the demands of professionals seeking quality illumination with architectural appeal.
- Soft curved lens diffuser delivers uniform, glare-free illumination ideal for high-comfort environments.

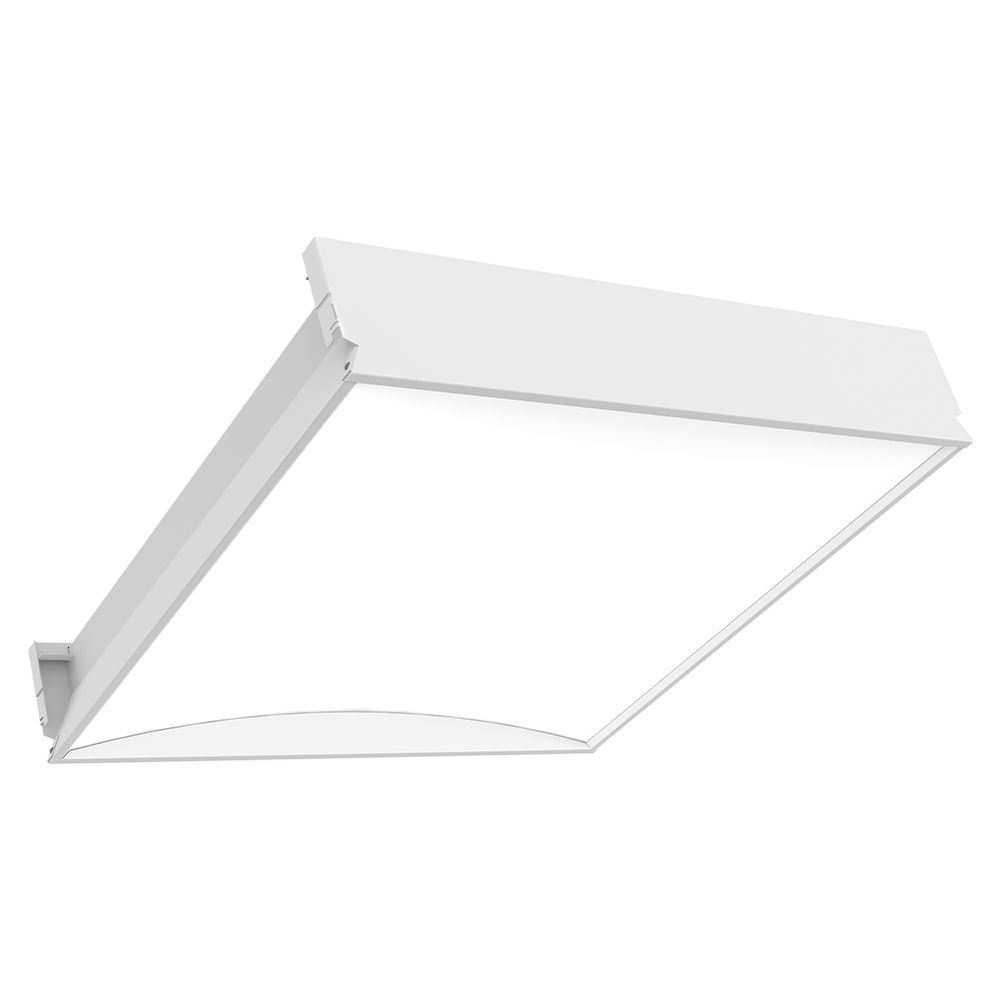

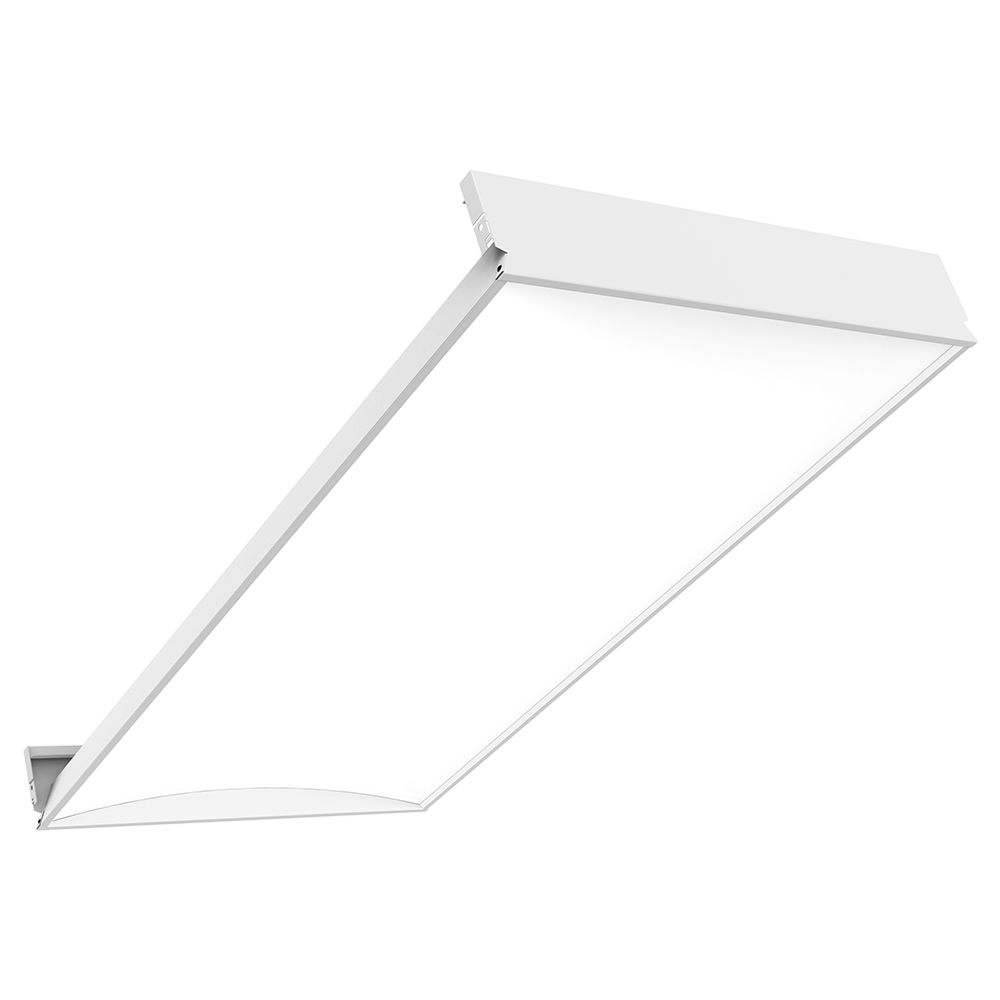

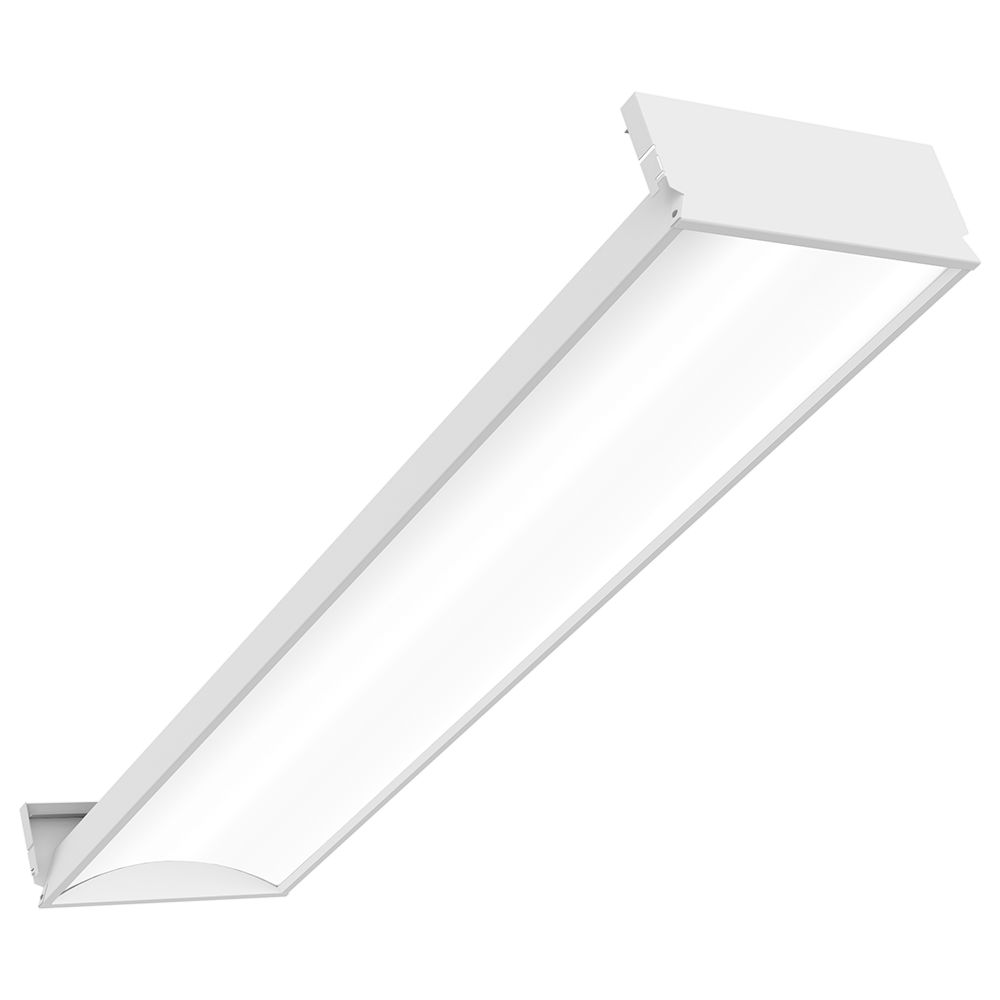

- Available in metric sizes: 1x4, 2x2, 2x4, and 20x60 for flexible ceiling integration.
- Architectural recessed light fixture designed for T-Bar applications with integral earthquake clips.
- High-efficiency LED performance rated for L80 > 60,000 hours with dimming and sensor options.
- Certified for quality: ETL listed, DLC qualified configurations, and suitable for damp locations.
Product Information
Product Specifications
Application : Office ,Retail Store,Classroom,Hospitals,Nursing Homes,Hospitality
Available Size(s) : 1x4,2x2,2x4,20x60
Brand : VIS
CRI : 80+
Certification : DLC Listed,ETL Listed,Suitable for Damp Location
Color Temperature : 3000K,3500K,4000K,5000K
Fixture Type : Architectural,Recessed,Troffer,Metric
Grade : Premium Grade
Light Source : LED
Lumen Output : 2400-5000
Market : Commercial,Education,Healthcare
