LED - Suspended Architectural Direct/Indirect Acoustic Felt Linear
QAF

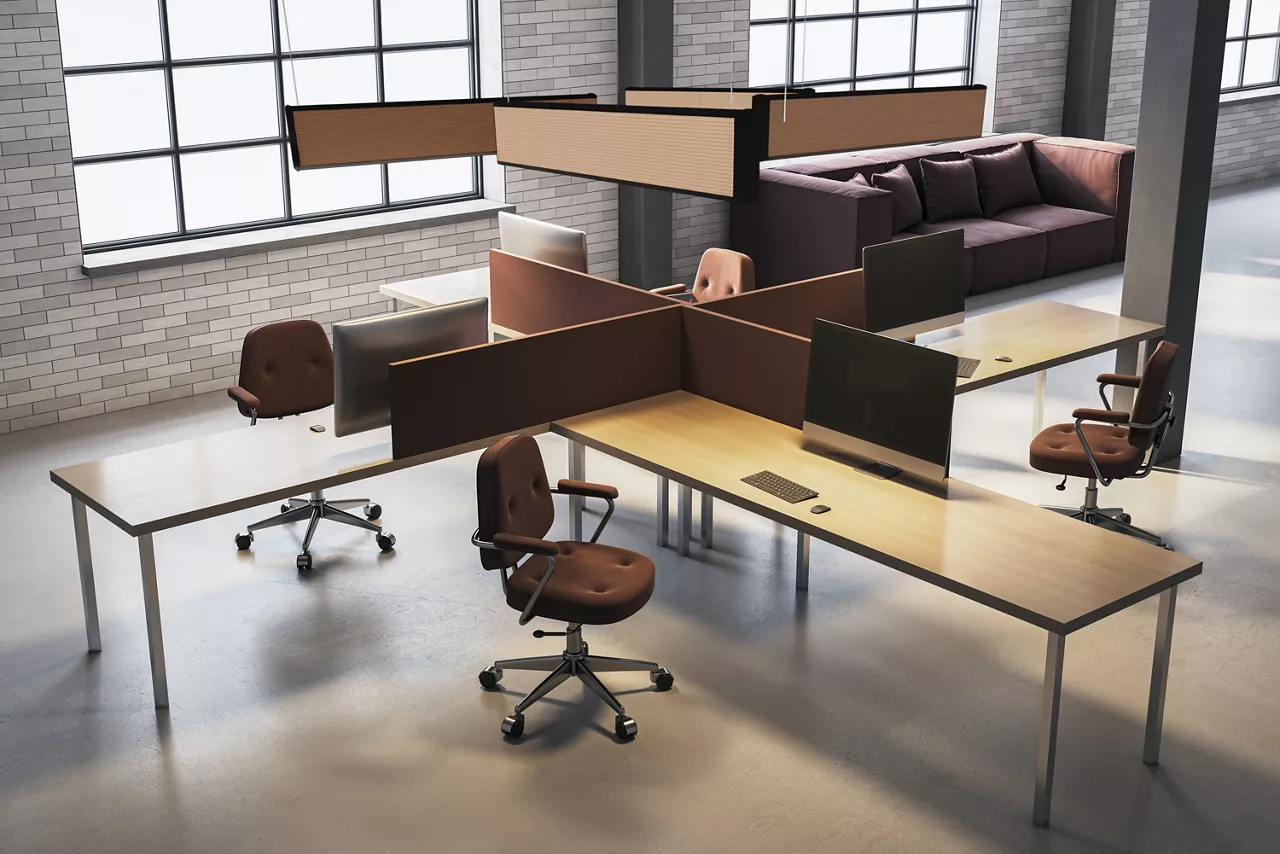

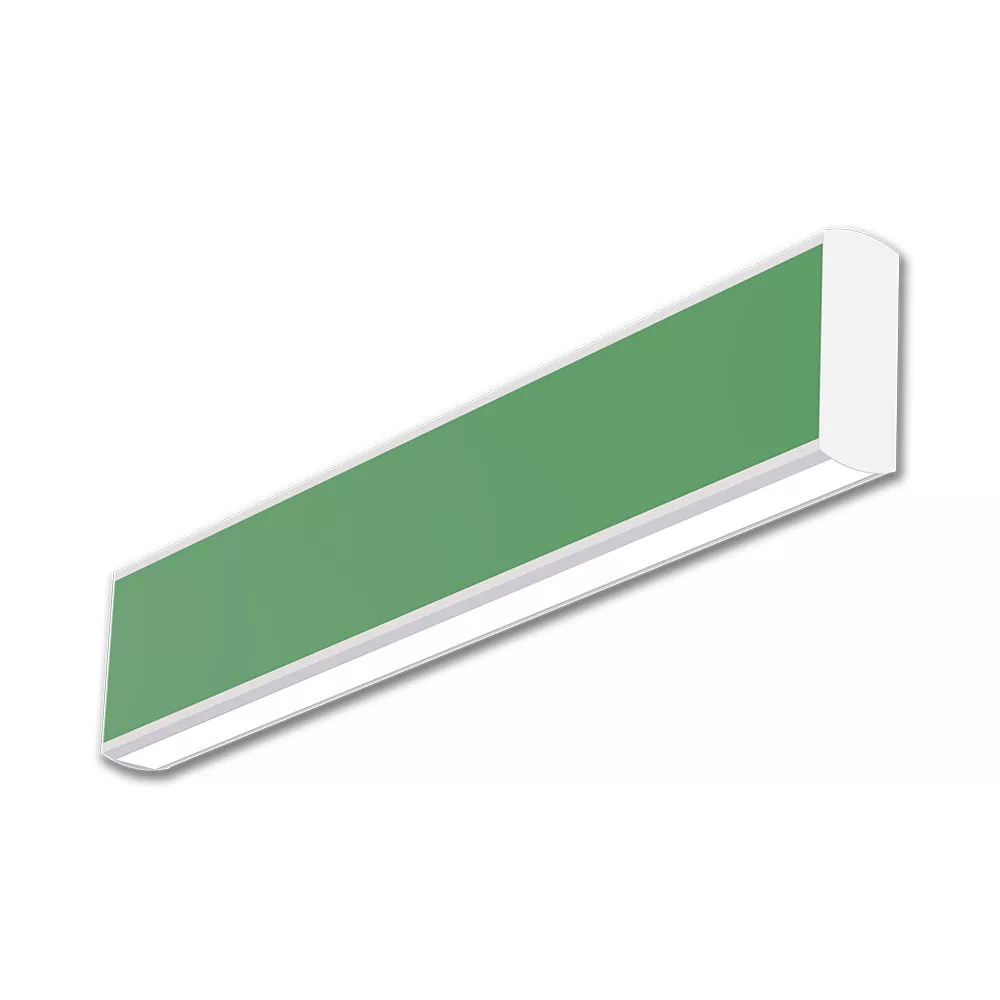

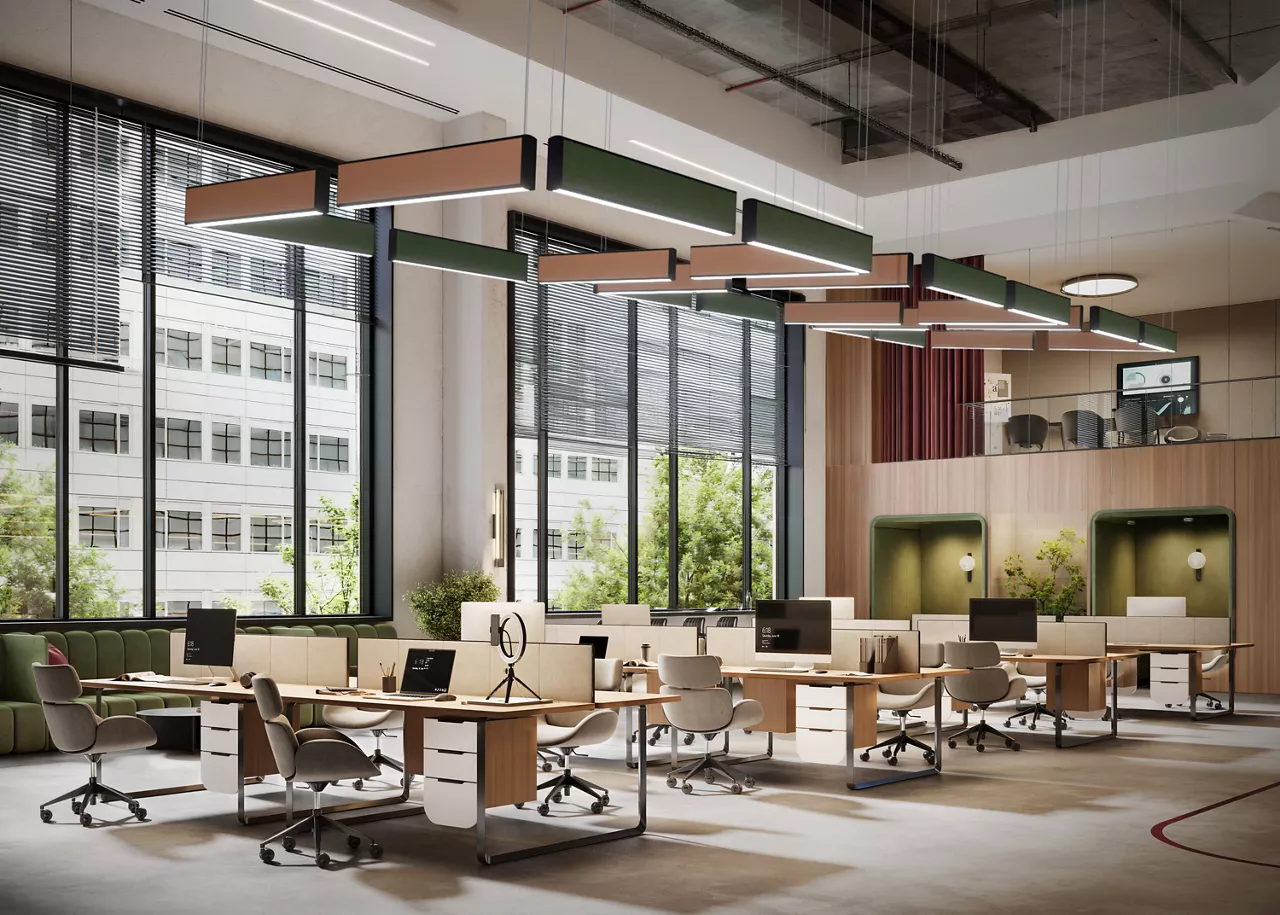

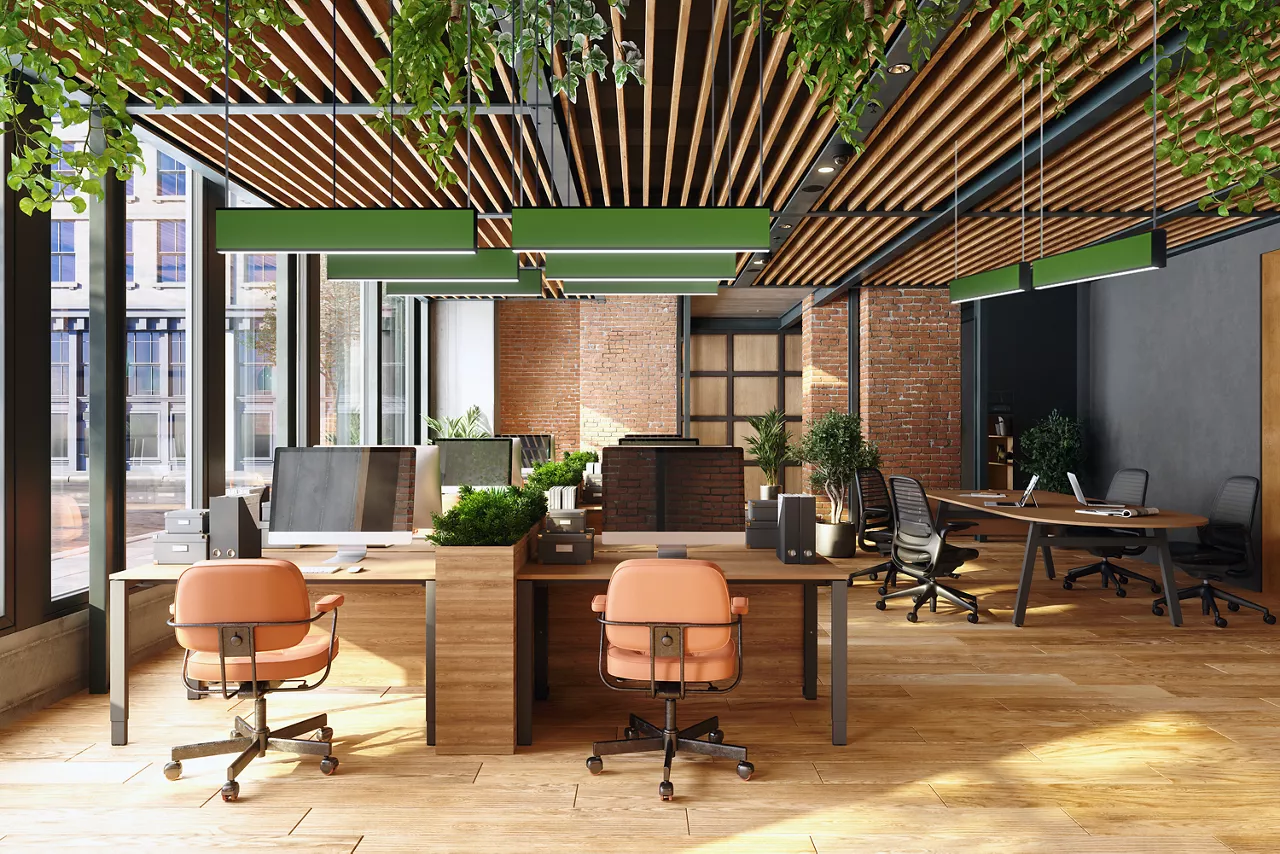

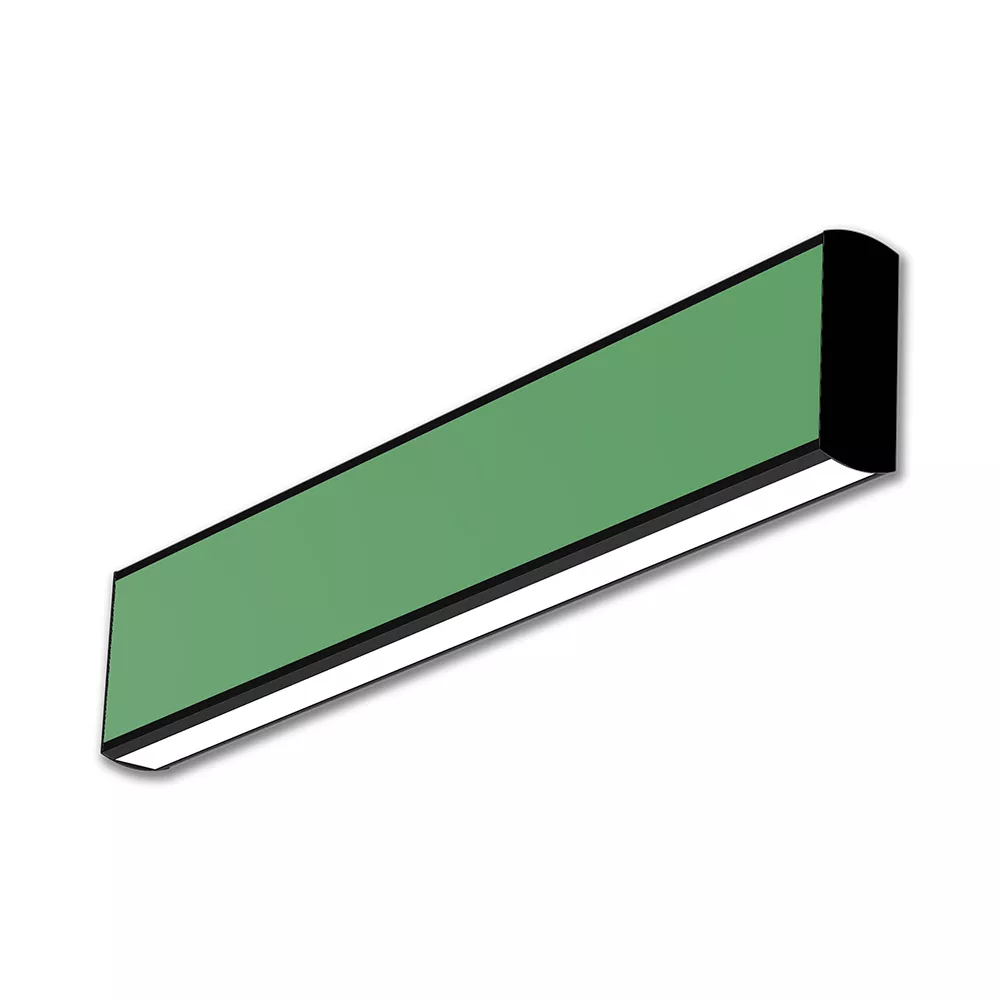

The Q-AF (Quiet Acoustic Felt Linear) is a suspended linear light that combines high-performance illumination with integrated acoustic felt to support both visual comfort and sound control in modern interior environments. Designed for direct/indirect applications, Q-AF provides a clean architectural aesthetic while helping reduce ambient noise in spaces where concentration, communication, and occupant comfort are important. Ideal for offices, boardrooms, classrooms, libraries, public spaces, and retail environments, this fixture offers a refined solution for projects that demand both lighting performance and acoustic enhancement.
Constructed with premium PET acoustic paneling, Q-AF achieves an NRC rating of 0.80, helping to absorb sound and improve the overall acoustic quality of a space. The acoustic material is manufactured using 75% post-consumer recycled content and is available in a variety of colors, giving designers the flexibility to complement interior finishes while supporting sustainability goals. Combined with its slim 3-inch profile and contemporary styling, the fixture adds both visual and functional value to commercial and institutional environments.
The fixture delivers flexible bidirectional lighting through independently controlled uplight and downlight components. A frosted acrylic diffuser provides comfortable direct illumination, while the uplight system helps brighten ceilings and create a more open, balanced environment. Multiple optical distributions, including symmetric, asymmetric, and batwing options, allow lighting performance to be tailored to the needs of each space. Standard 0-10V dimming is included, with DALI controls and tunable white technology available for projects that require advanced lighting control and adaptability.
Designed to support a wide range of applications, Q-AF is available in 24", 48", and 96" lengths, with multiple height options to accommodate different design objectives. The luminaire can be installed as a suspended standalone fixture or configured in continuous rows for larger architectural layouts. Adjustable aircraft cable suspension provides installation flexibility, while options such as emergency battery packs, custom finishes, and multiple endcap styles allow the fixture to meet project-specific requirements without compromising aesthetics.
As part of a comprehensive architectural lighting strategy, Q-AF delivers more than illumination alone. By integrating acoustic performance, advanced LED technology, and versatile design options into a single linear light, it helps architects, designers, and facility owners create spaces that are visually appealing, acoustically comfortable, and built for long-term performance. With high-efficiency LEDs rated for L80 performance beyond 60,000 hours and flexible optical configurations, Q-AF offers a practical and sophisticated solution for today's interiors.
- Integrated acoustic felt construction achieves an NRC rating of 0.80 to help reduce noise and improve acoustic comfort.
- Independently controlled uplight and downlight components provide flexible bidirectional lighting performance.
- Available in 24", 48", and 96" lengths with multiple height options to suit diverse project requirements.
- Supports standalone and continuous-row installations using an adjustable aircraft cable suspension system.
- Offers DALI controls, tunable white technology, emergency battery options, and multiple optical distributions.
Specifications
Resources
IES
Technical Information
Product Specifications
Application : Boardroom, Cafeteria, Corridor, Classroom, Hospitality, Hospitals, Library, Lobbies, Nursing Homes, Office, Restaurant, Retail Store, Showroom, Supermarket, Showroom
Available Size(s) : 24", 48", 96"
Brand : VIS
CRI : 80+, 90+, 95+
Certification : ETL Listed, Damp Locations, RoHS Compliant, IESNA LM-79, Maintainable
Color Temperature : 3000K, 3500K, 4000K, 5000K, 2765KT
Fixture Type : Wall Mount, Suspended, Linear, Direct/Indirect, Architectural, Bi-directional, Acoustic Felt
Grade : Specification Grade
Light Source : LED
Lumen Output : 250-600lm/ft, 400-1500lm/ft
Market : General Area, Education, Commercial
