LED - Patient Room Dished Circular Recessed Ambient Luminaire

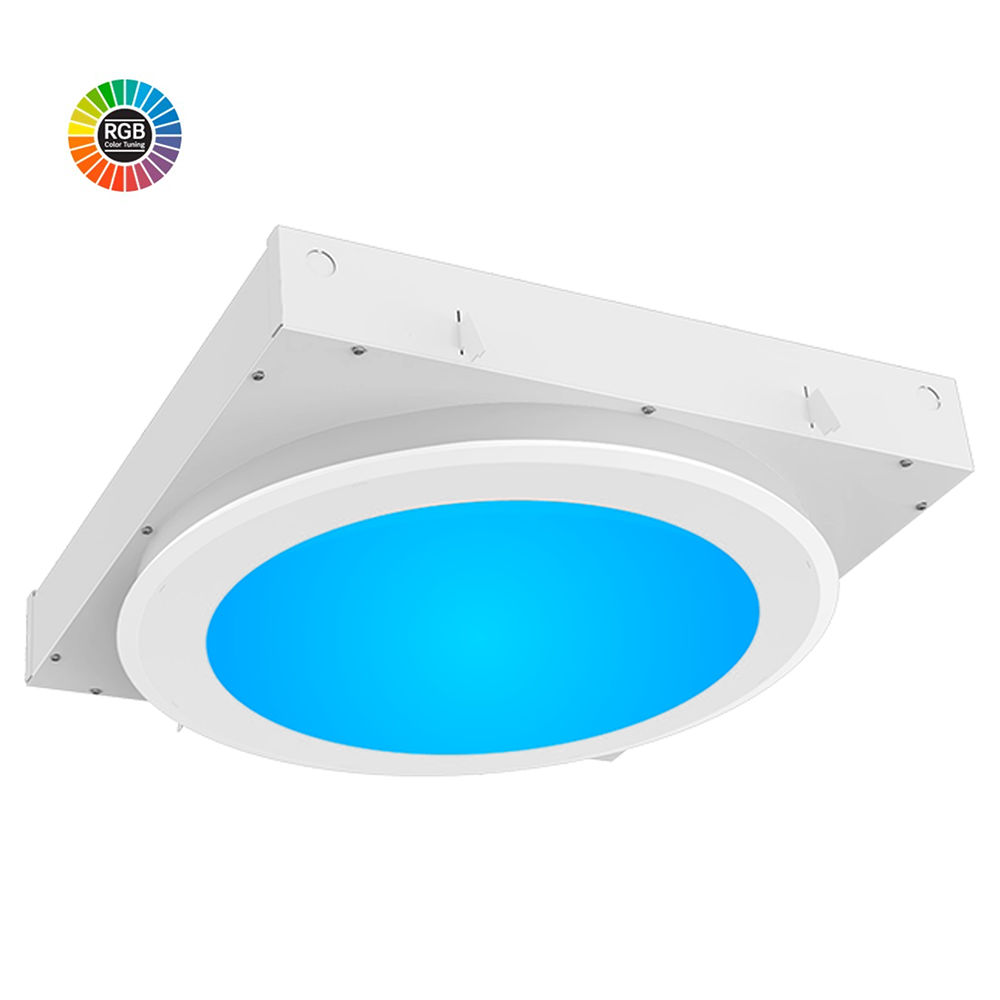

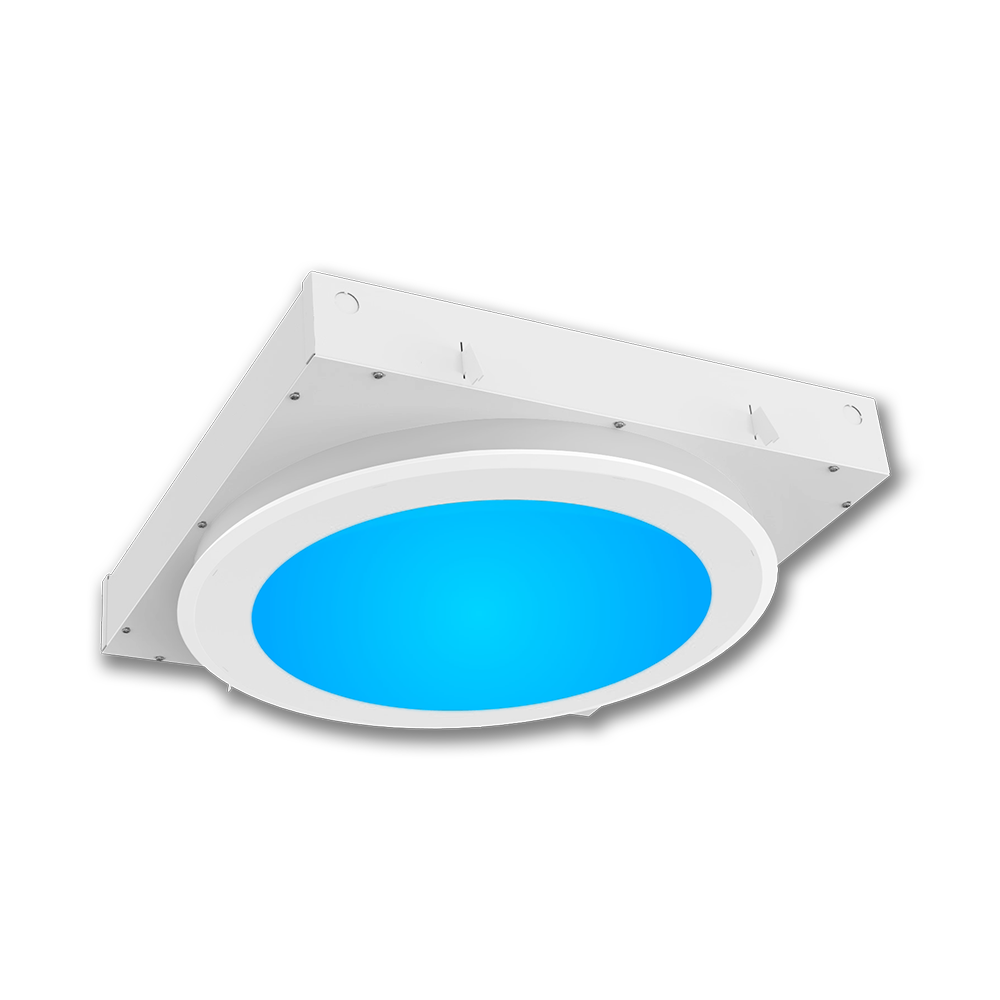

MD1-DCR Color Tuning

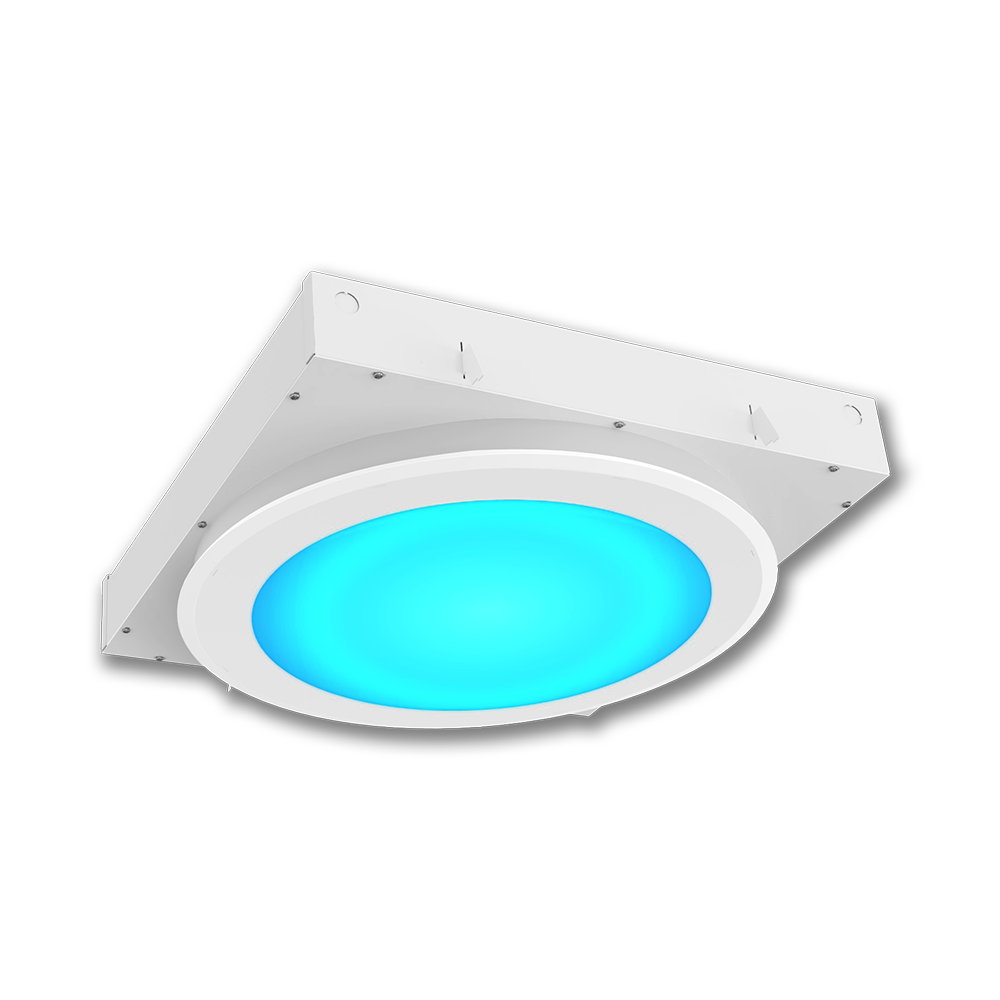

MD1-DCR Color Tuning LED is a dished circular recessed ambient luminaire engineered for patient rooms, combining cleanability, performance, and seamless color accent control for calming environments. Its concave, opal acrylic dome lens presents a smooth exterior that wipes down easily, while hidden torsion springs and pressure-sensitive gaskets seal the trim to the lens and ceiling for a tidy, hygienic finish ideal for modern medical spaces.

For daily care, MD1-DCR delivers high‑efficiency white ambient illumination with selectable CCTs of 3000K, 3500K, 4000K, and 5000K, maintained at 3 SDCM for color consistency and offered in 80 or optional 90 CRI. A tunable white option expands the range to 2700–6500K for circadian‑supportive transitions throughout the day. The constant‑current driver is programmable and dimmable to 1% via 0–10V, achieving >85% efficiency with THD <10%, and supports 120–277Vac or 347Vac input for flexible specification in medical lighting projects. ETL listing for recessed type IC damp locations and UL1598 compliance help streamline approvals and simplify coordination. An optional low‑voltage controller interfaces with pillow speakers and bed controls, enabling bedside on/off and dimming for the white light and color functions.

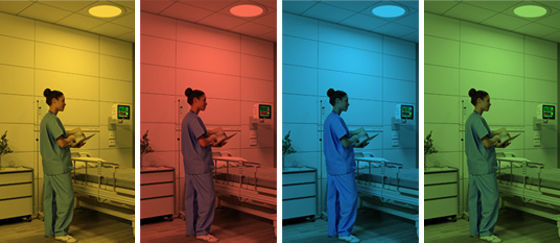

When the white light is off, RGB color tuning LEDs with a DMX‑controlled driver provide 20 watts of accent illumination across a wide color spectrum to create a soothing atmosphere—precisely the kind of color accent control that supports patient comfort. The MD1‑DCR installs in 9/16", 15/16", and 1" grid ceilings or F‑type drywall ceilings, with integral earthquake clips to support compliance and peace of mind in facility upgrades, including over‑bed luminaire layouts. Its die‑formed, heavy‑gauge steel housing is polyester powder‑coated after fabrication, and the trim is finished in antimicrobial matte white (gloss antimicrobial available) to balance durability and infection‑control priorities. The one‑piece, sealed lens and smooth surfaces make routine cleaning fast and consistent, while lens retention and gasketing protect against dust ingress. For low‑illumination needs, chart/night observation options include white (400 lm) and amber (300 lm).

Field‑replaceable, commercially available LED modules (L70 >60,000 hours) simplify long‑term maintenance and reduce downtime in patient room lighting. Designers can specify DALI driver options for addressable control or choose the low‑voltage controller with or without dimming to align with the facility’s existing nurse‑call and pillow‑speaker systems. These differentiators, paired with tunable white capability and RGB accent flexibility, make MD1‑DCR Color Tuning LED a dependable choice for over‑bed luminaire applications and broader patient room renovations.

The value is straightforward: MD1‑DCR Color Tuning LED helps caregivers tailor light for comfort, observation, and rest without compromising performance, listings, or cleanability. If you’re planning upgrades in medical lighting, specify MD1‑DCR to unify high‑quality ambient light with therapeutic accent control and practical installation options that fit real‑world healthcare spaces.

  • Tunable white range from 2700–6500K, plus selectable ambient CCTs at 3000K/3500K/4000K/5000K for flexible patient‑centric lighting.
  • RGB color tuning accent light (DMX, 20 W) operates when white light is off to create a calming atmosphere and precise color accent control.
  • Programmable constant‑current driver dimmable to 1% via 0–10V; >85% efficiency, THD <10%, and 120–277Vac or 347Vac compatibility.
  • Concave opal acrylic lens with hidden torsion springs, antimicrobial matte white finish, and gasketed seals for easy cleaning and hygiene.
  • ETL listed for recessed type IC damp locations, UL1598 compliant; installs in grid or drywall ceilings with integral earthquake clips.



Country of Origin: Canada

Product Information

  • Product Specifications

    Application : Chronic Care Facilities,Healthcare,Hospitals,Nursing Homes

    Available Size(s) : 2x2

    Brand : CER

    CRI : 80+,90+

    Certification : ETL Listed Damp Locations UL1598

    Color Temperature : 3000K,3500K,4000K,5000K,2765KT

    Fixture Type : Medical,Recessed,Patient Room

    Grade : Specification Grade

    Light Source : LED

    Lumen Output : 3000-7000

    Market : Healthcare
