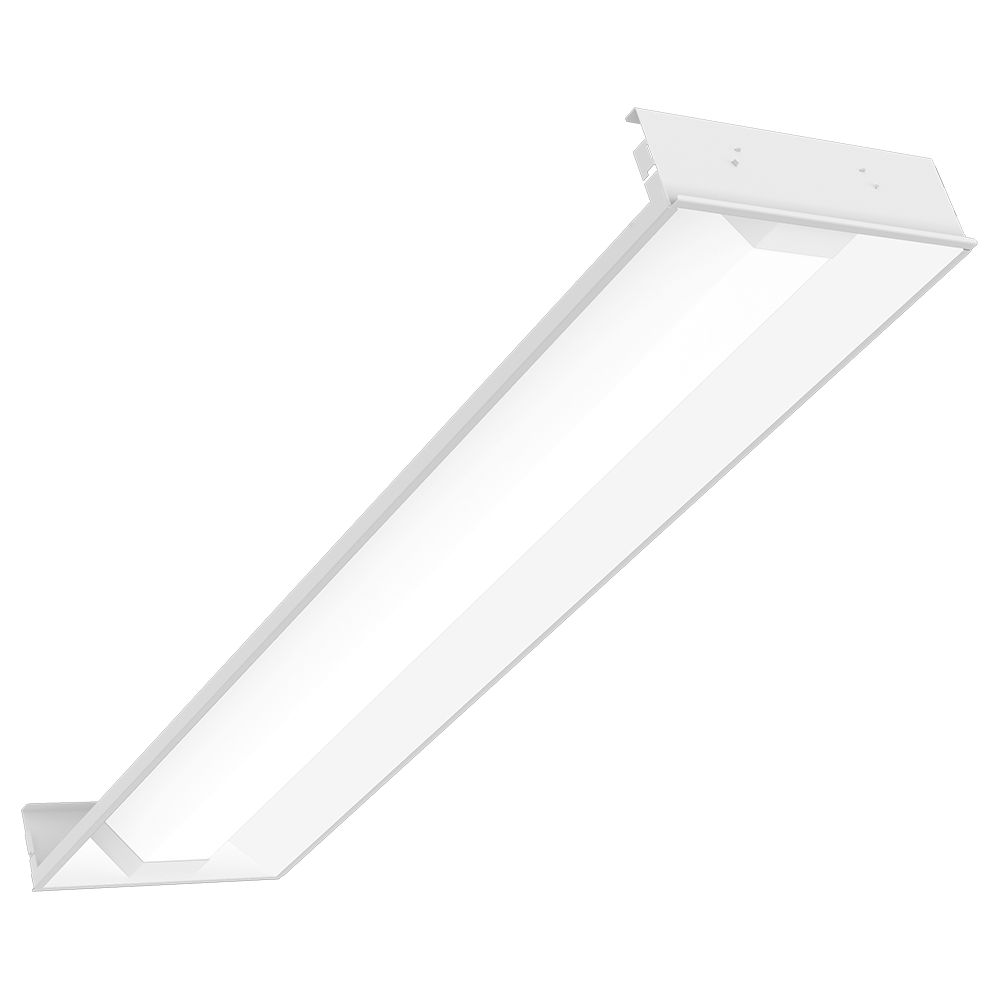

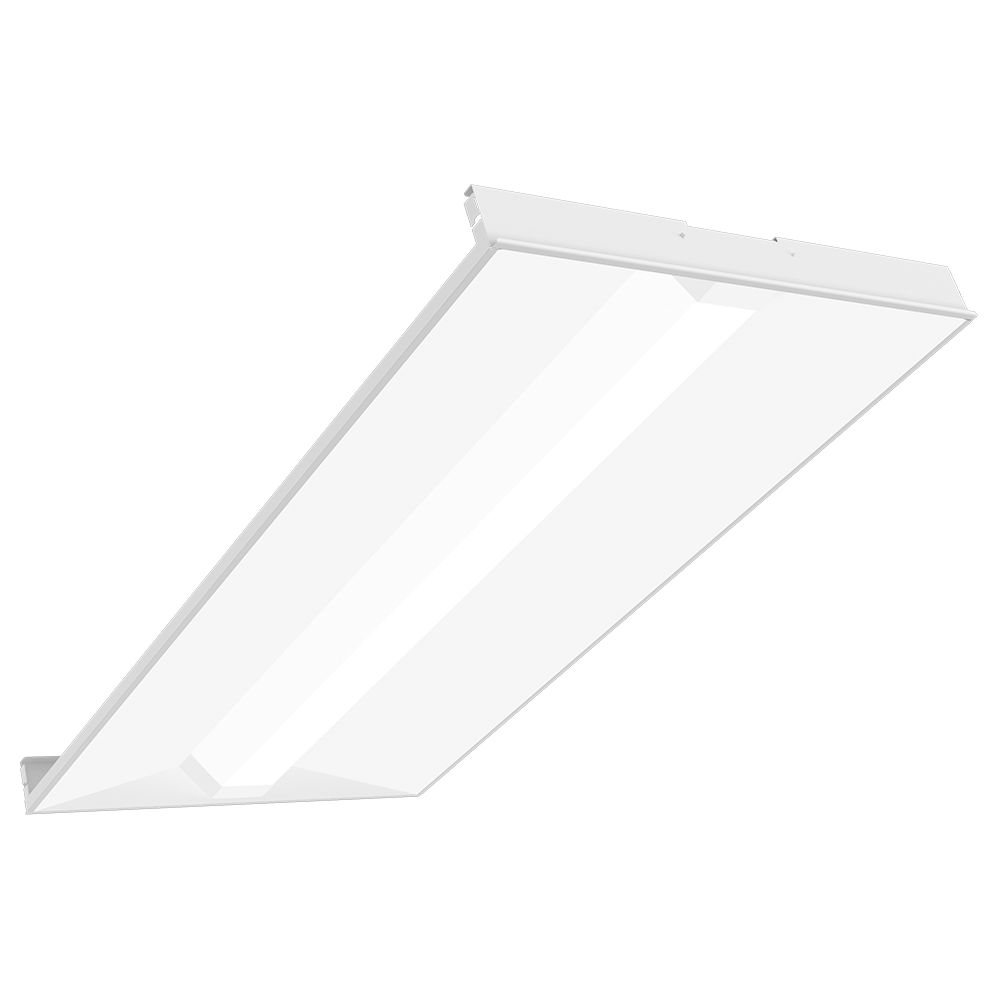

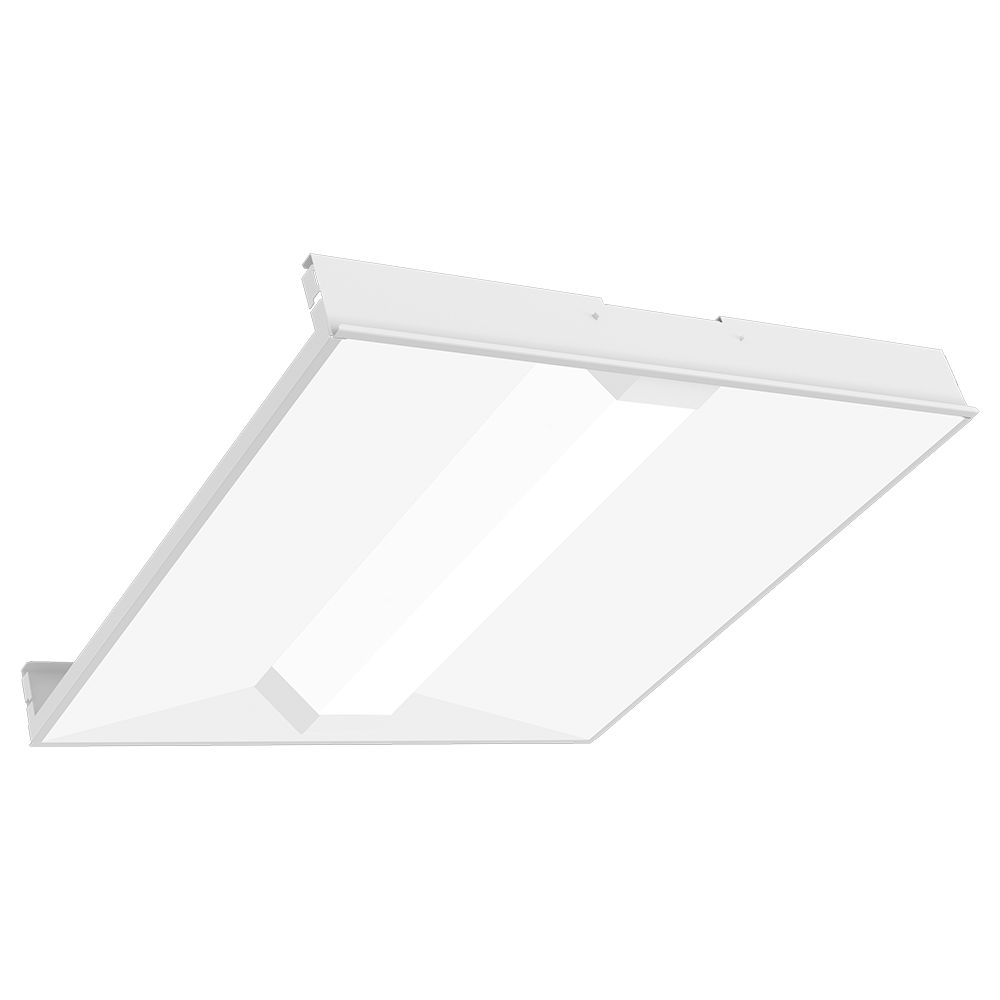

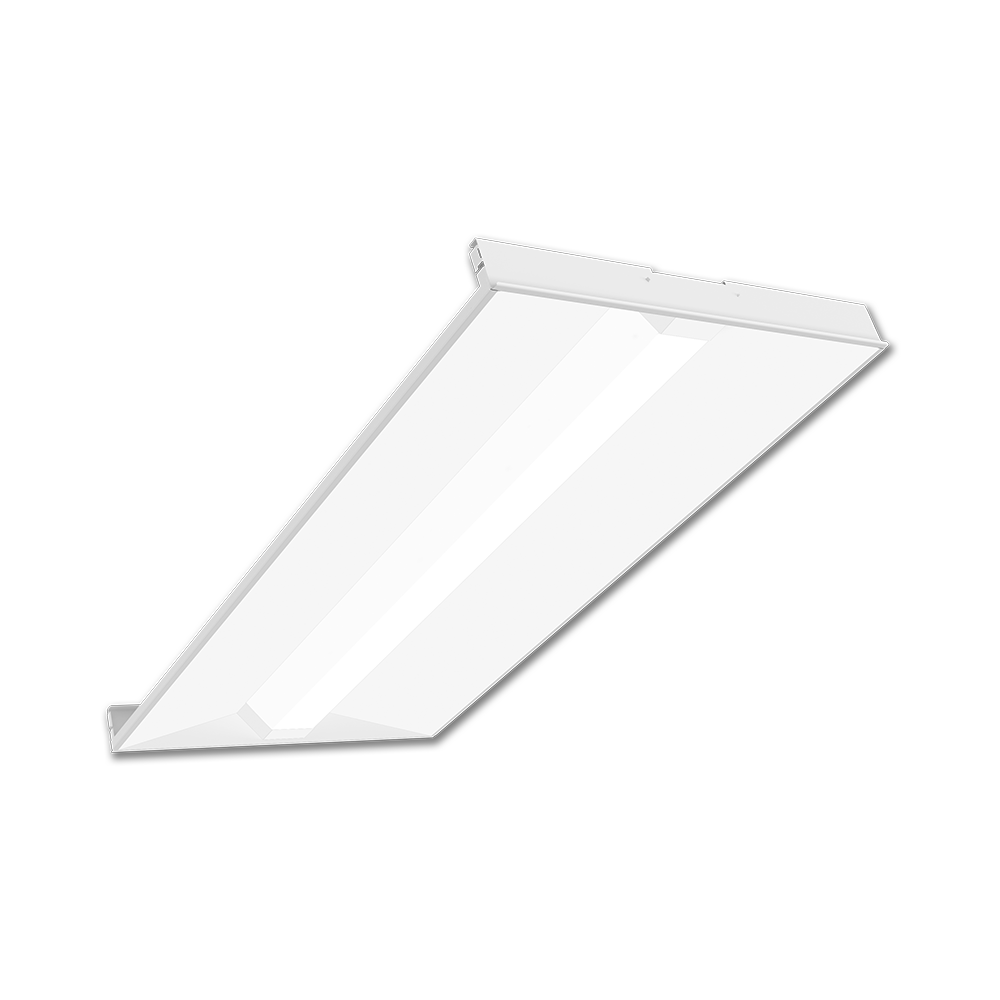

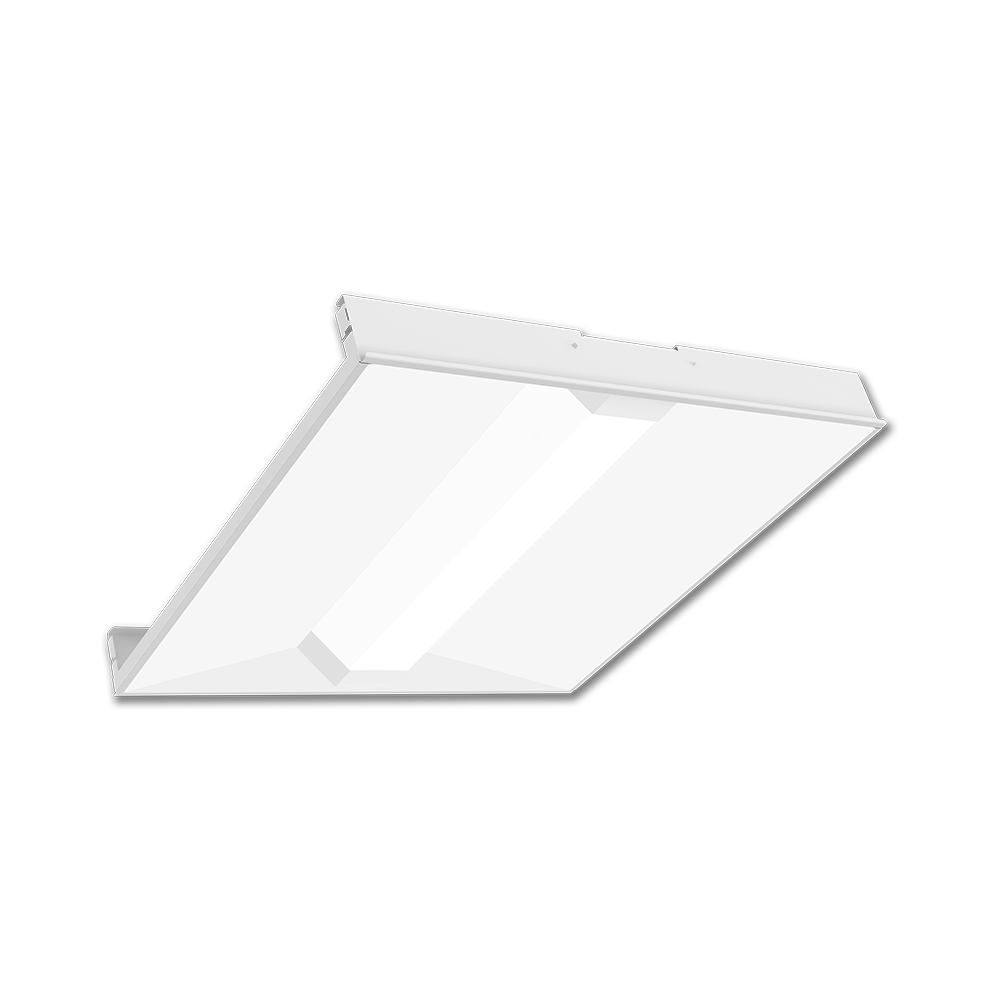

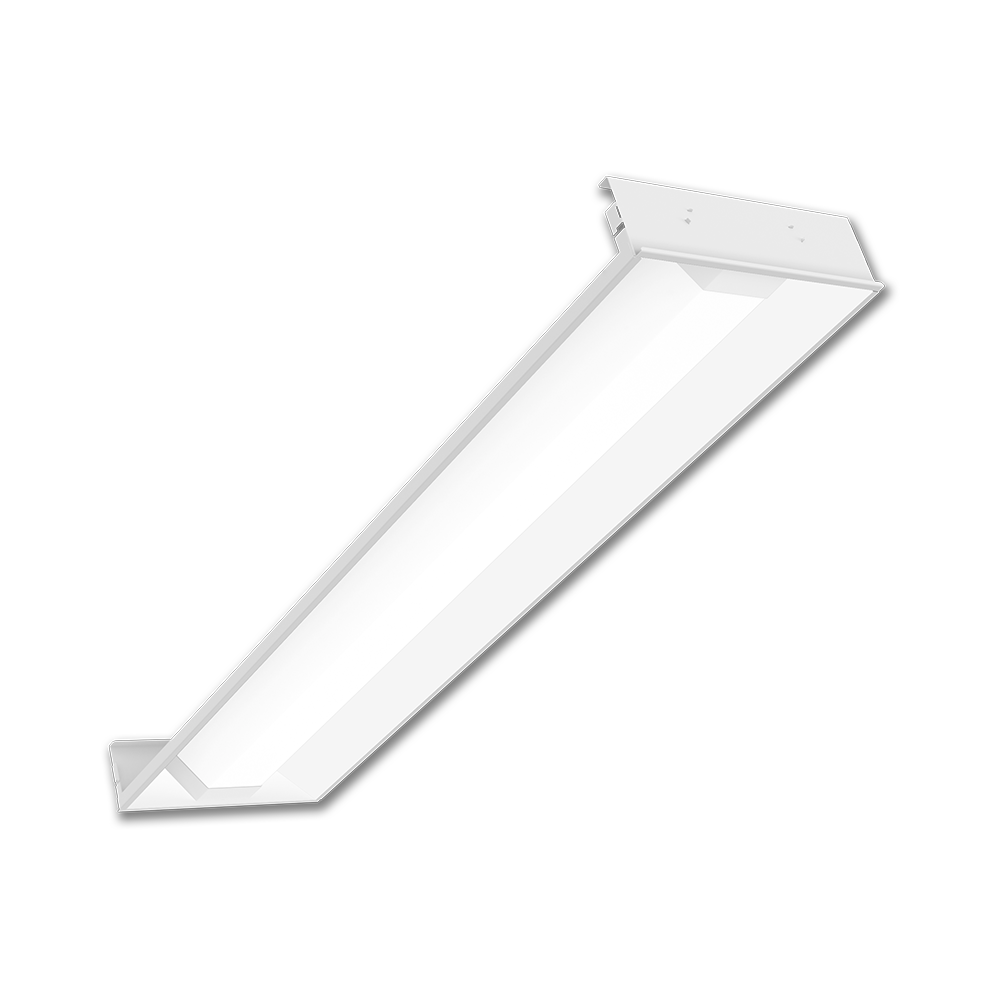

LED Recessed Troffer with Angled Center Lens
LRTZ
The LRTZ architectural LED lighting series is designed for modern commercial spaces that demand both performance and style. This commercial-grade luminaire is a recessed light fixture with a low-profile design, making it perfect for shallow or obstructed plenum applications. Its signature angled center lens delivers uniform, glare-free illumination, creating a comfortable visual environment for offices, schools, retail spaces, and healthcare facilities.
Available in multiple configurations, the LRTZ offers flexibility for any project. Standard sizes include 1x4, 2x2, and 2x4, but it also features fixtures available in non-standard sizes such as 20x60, 30x30, 750x750, and 500x1500. This adaptability ensures seamless integration into unique layouts without sacrificing aesthetics or performance. Color temperature options range from 3000K to 5000K, with 4000K as the standard, making it suitable for a variety of lighting environments.
Built for reliability, the LRTZ uses long-life LEDs paired with high-efficiency drivers to deliver L80 performance beyond 60,000 hours. Standard 0-10V dimming allows smooth light control, while optional features like emergency battery packs and daylight or occupancy sensors enhance functionality. The frosted polycarbonate diffuser combined with the angled center lens ensures balanced light distribution and reduced glare. Approved to CSA/UL standards, suitable for damp locations, and DesignLights Consortium® qualified, this luminaire meets stringent performance and safety requirements.
Durability is at the core of the LRTZ design. Its housing is constructed from die-formed, cold-rolled steel with a white polyester powder-coated finish for long-lasting strength. Installation is simplified with integral earthquake clips, chain-mounting holes, and wiring access plates. Backed by a 5-year limited warranty, the LRTZ provides peace of mind for contractors and building owners alike.
The LRTZ series combines architectural elegance with practical performance, making it the ideal solution for commercial and institutional spaces. Whether you need standard or custom sizes, this luminaire delivers efficiency, flexibility, and long-lasting quality.
- Architectural LED lighting with a low-profile design for shallow or obstructed plenums.
- Available in standard and non-standard sizes (20x60, 30x30, 750x750, 500x1500) for maximum flexibility.
- Features an angled center lens for uniform, glare-free illumination.
- IC-rated recessed light fixture with 0-10V dimming and optional sensors for advanced control.
- Durable steel construction, CSA/UL approved, DLC qualified, and backed by a 5-year warranty.
Product Information
Product Specifications
Application : Classroom,Hospitals,Nursing Homes,Office,Retail Store,Supermarket,School
Available Size(s) : 1x4,2x2,2x4,30x30,750x750,20x60,500x1500
Brand : VIS
CRI : 80+,90+
Certification : Damp Locations,DLC Listed,UL Listed (C/US)
Color Temperature : 3000K,3500K,4000K,5000K
Fixture Type : Metric,Recessed,Troffer,Low Plenum,T-Bar
Grade : Premium Grade
Light Source : LED
Lumen Output : 2000-3200,4000-5000
Market : Education,Commercoal,General Area,Healthcare
Quickship : 1 Day,3 Days
