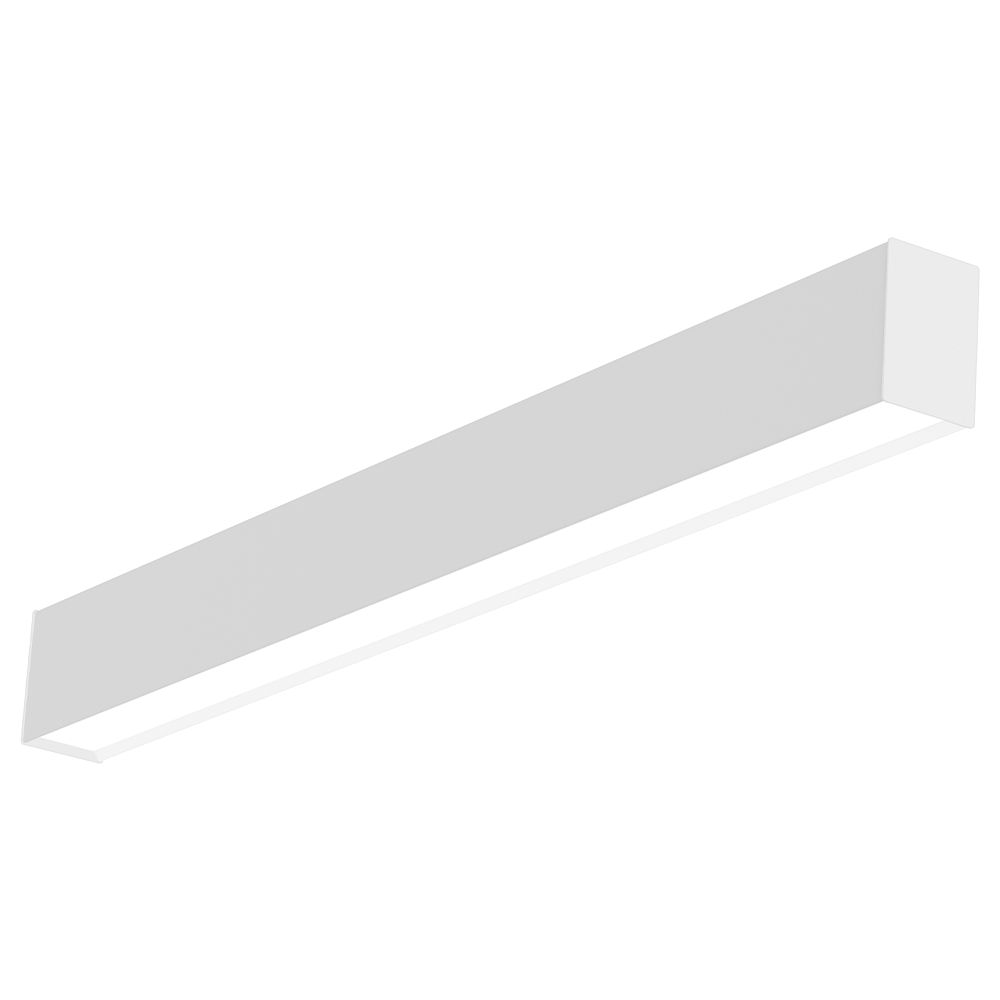

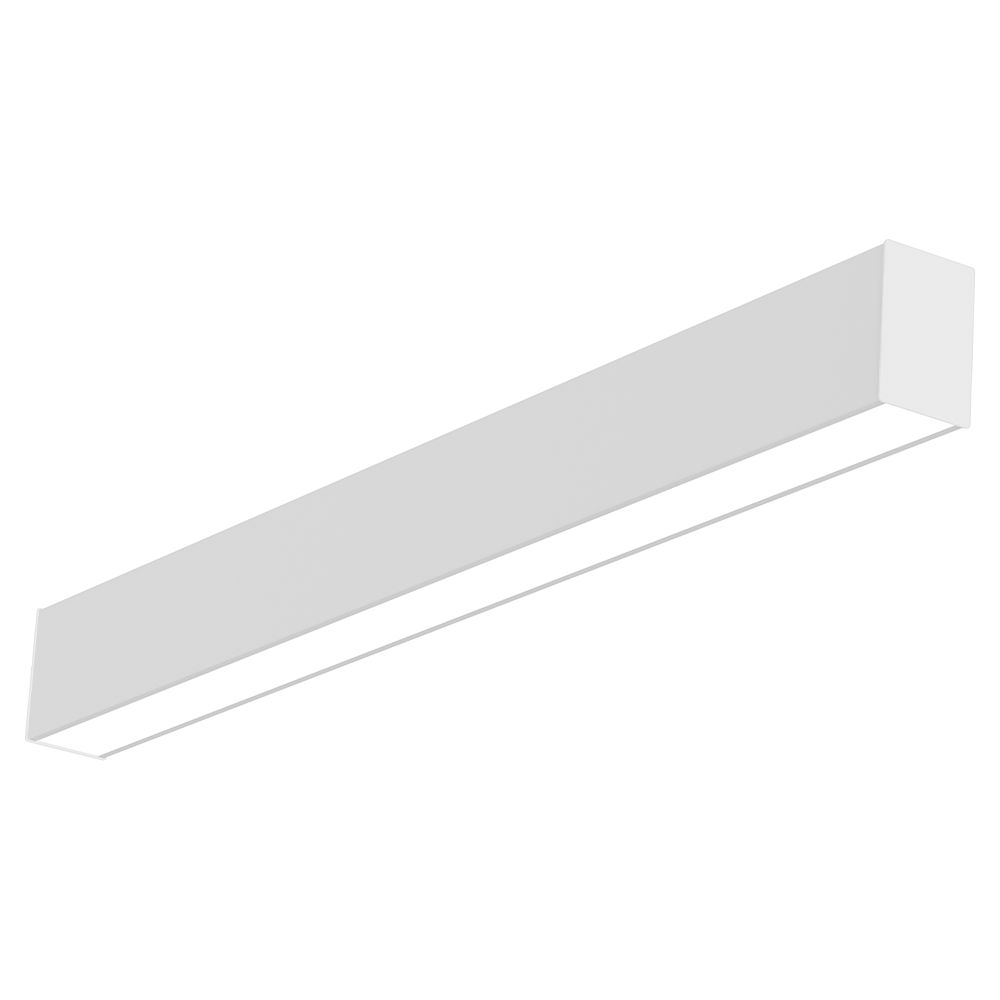

LED - 3" Bidirectional Suspended or Wall-Mounted Architectural Linear
LMEZ 3 Bidirectional
The LMEZ3 T Bidirectional LED luminaire is designed for seamless row mounting in modern architectural environments. Engineered for suspended installation, this premium-grade linear lighting solution delivers both direct and indirect illumination, making it ideal for continuous runs or stand-alone applications. Whether you're outfitting a classroom, office, or retail space, the LMEZ3 T offers a refined blend of performance and visual comfort.
This fixture excels in environments where bi-directional lighting enhances both ambiance and functionality. Its dual light output, providing illumination both upward and downward, ensures balanced lighting across ceilings and workspaces. Available in lengths from 24 to 96 inches, the LMEZ3 T supports high lumen outputs up to 1500 lumens per foot, with tunable white options ranging from 2700K to 6500K. A lay-in lens comes standard, while a regressed lens is available as an option for enhanced visual comfort and a more refined architectural aesthetic. The frosted acrylic diffuser and optional straight blade louvers, offered in white, black, or silver gray, provide additional glare control and design flexibility. With ETL listing and damp location suitability, it is a reliable choice for libraries, supermarkets, and collaborative workspaces.
Built with die-formed, spot-welded steel and finished in durable white polyester powder paint, the LMEZ3 T is as robust as it is elegant. Its integrated row mounting joiners ensure precise alignment and eliminate light leaks, making it a standout in architectural lighting design. The adjustable aircraft cable suspension system simplifies installation, while advanced dimming capabilities, including 0-10V standard and DALI optional, support seamless integration with modern lighting controls. Compatibility with Leviton Intellect Solo controls and tunable white wiring further enhances its versatility. Emergency battery packs, cold-weather options, and multiple CRI levels of 80+ and 90+ allow the fixture to adapt to a wide range of project requirements.
Designed for long-term performance, the LMEZ3 T delivers L80 ratings beyond 60,000 hours and calculated L70 lifespans exceeding 238,000 hours. Its modular construction supports configurable systems with start, middle, and end units, making it ideal for large-scale linear lighting installations. Whether specified for new construction or retrofit projects, this luminaire offers a future-ready solution that balances efficiency, flexibility, and visual appeal.
The LMEZ3 T combines form, function, and flexibility to meet the demands of today’s architectural lighting projects. With its clean lines, smart controls, high-performance optics, and the choice of a standard lay-in lens or optional regressed lens, it is more than just a fixture. It is a complete lighting solution designed to enhance architectural spaces with seamless row mounting and tailored illumination.
- Row Mounting Made Simple: Integrated joiners ensure secure alignment and eliminate light leaks in continuous installations.
- Bi-directional Output: Provides both direct and indirect lighting for balanced illumination across ceilings and workspaces.
- Tunable White & High Lumen Options: Adjustable color temperature (2700K–6500K) and up to 1500 lumens/ft for dynamic environments.
- Architectural Build Quality: Die-formed steel housing with powder-coated finish and optional louvers for visual comfort.
- Smart Controls & Emergency Options: Supports advanced dimming, wireless controls, and multiple emergency battery configurations.
Specifications
Resources
IES
Revit
Technical Information
Product Specifications
Application : Boardroom,Cafeteria,Corridor,Classroom,Hospitality,Hospitals,Library,Lobbies,Nursing Homes,Office,Restaurant,Retail Store,Showroom,Supermarket,Showroom
Available Size(s) : 24",48",72",96"
Brand : VIS
CRI : 80+,90+
Certification : ETL Listed,Suitable for Damp Location,RoHS Compliant
Color Temperature : 3000K,3500K,4000K,5000K,2765KT
Fixture Type : Wall Mount,Suspended,Linear,Direct/Indirect,Architectural,Bi-directional
Grade : Specification Grade
Light Source : LED
Lumen Output : 280-600,400-1500
Market : General Area,Education,Commercial
Related Videos
LMEZ 3 Linear Architectural Luminaires
LMEZ Row Mounting
