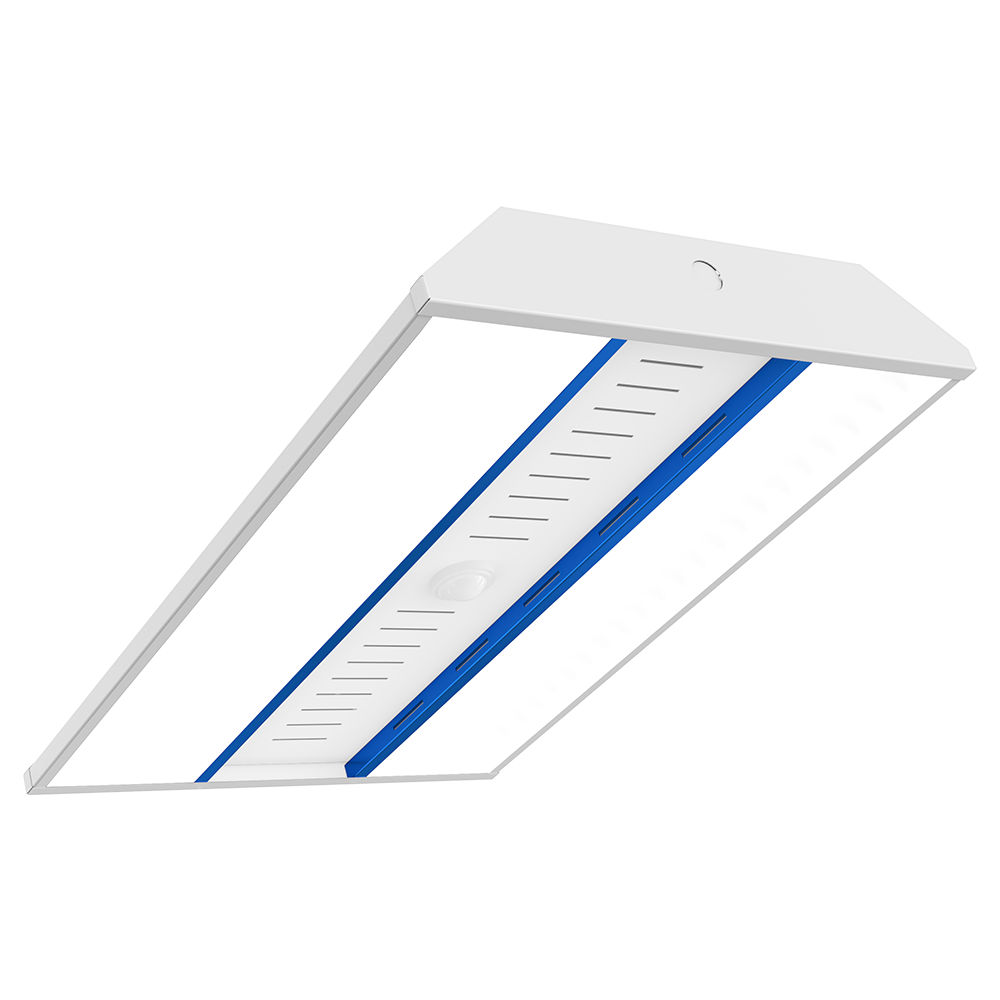

LED High Performance High-Bay with Bluetooth Configurable Occupancy and Daylight Harvesting Sensor

Blue-Bay Plus

When it comes to maximizing energy efficiency in large-scale facilities, the Blue-Bay Plus stands out as a top-tier solution in the world of LED high-bay lighting. Designed for high performance and adaptability, this luminaire delivers up to 168 lumens per watt and supports a wide range of mounting heights and ambient temperatures. Whether you're outfitting a warehouse, manufacturing floor, or retail space, the Blue-Bay Plus offers the performance and flexibility needed for modern industrial environments.

Built for demanding applications, the Blue-Bay Plus is a high-efficiency LED high bay lighting system that combines robust construction with smart technology. Its CNC-fabricated steel housing includes integrated heat sinks and ventilation slots, ensuring long-term durability and thermal management. The luminaire is available in multiple lumen packages from 12,000 to 60,000 lumens making it suitable for both low and high bay installations. It operates reliably in ambient temperatures ranging from -30°C to 55°C, and its long-life LEDs are rated for 50,000 hours at 40°C, delivering consistent performance over time.

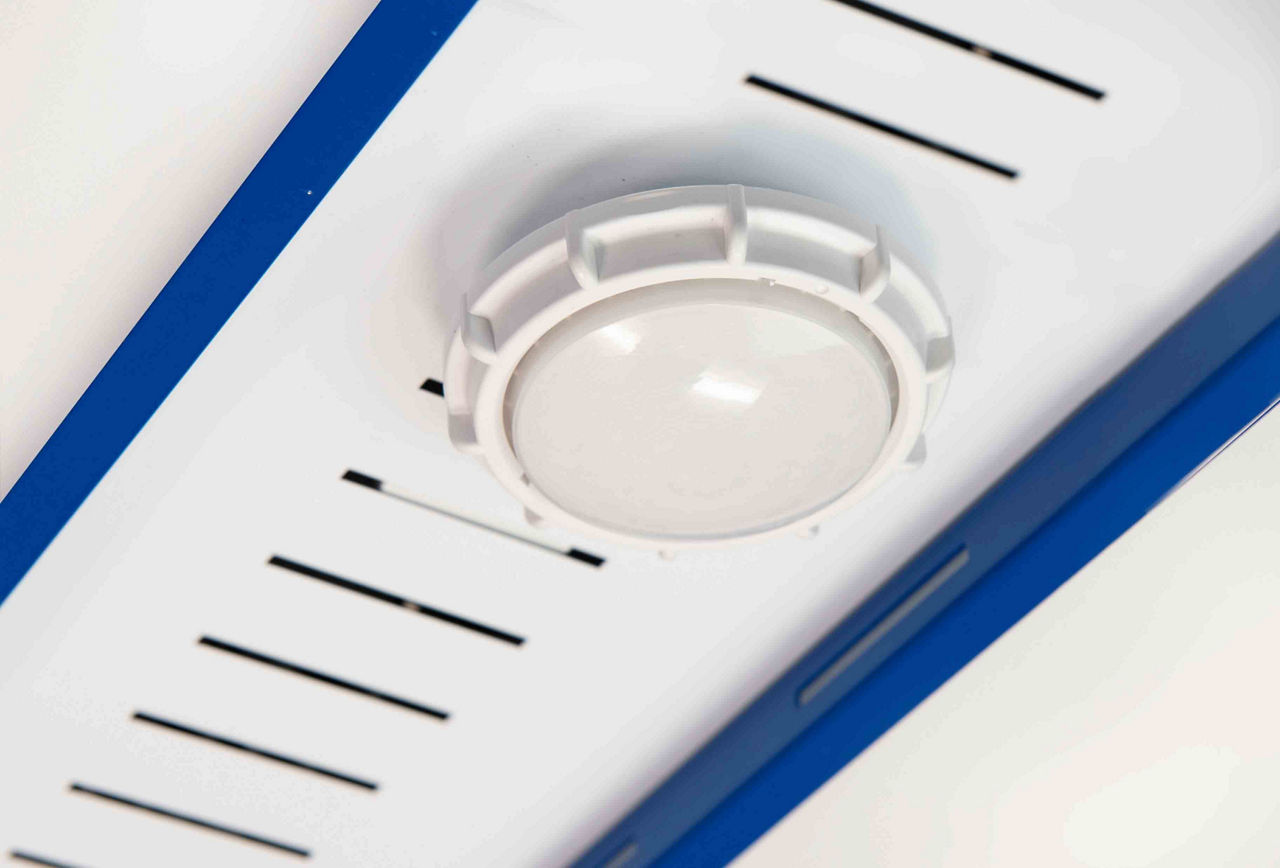

A key differentiator is its Bluetooth-enabled occupancy sensor, which allows for easy configuration via the Leviton Smart Sensor App. This passive infrared (PIR) sensor features advanced optics and programmable settings, including step dimming (5–100%), Auto-ON/Auto-OFF functionality, and daylight harvesting with auto-calibration. The sensor’s field of view is optimized for mounting heights from 8 to 40 feet, with optional aisle-way masks for targeted coverage. These features make the Blue-Bay Plus ideal for facilities looking to reduce energy consumption without compromising on lighting quality or control.

As a leader in industrial LED lighting, the Blue-Bay Plus meets stringent regulatory standards, including CSA, UL, and DesignLights Consortium® Premium qualifications. It complies with IECC, ASHRAE 90.1, and California Title 24 requirements for occupancy sensing and dimming. The luminaire also supports various mounting options—stem, chain, or aircraft cable—and offers lens choices like clear acrylic or frosted polycarbonate with blue rails for added visual appeal and protection.

Whether you're upgrading an existing system or designing a new lighting layout, the Blue-Bay Plus offers a future-ready solution that balances performance, control, and compliance. Its modular design and smart features make it a compelling choice for facility managers and contractors seeking reliable, energy-efficient lighting.

  • Exceptional Efficiency: Delivers up to 168 lm/W with lumen packages ranging from 12,000 to 60,000 lumens for both low and high bay applications.
  • Smart Sensor Integration: Features a Bluetooth-configurable PIR occupancy and daylight harvesting sensor with advanced optics and programmable dimming.
  • Rugged Construction: CNC-fabricated steel housing with integrated heat sinks ensures durability in ambient temperatures from -30°C to 55°C.
  • Flexible Mounting & Optics: Supports stem, chain, and aircraft cable mounting with optional clear or frosted lenses and aisle-way masks.
  • Code-Compliant & DLC Premium: Meets CSA, UL, IECC, ASHRAE 90.1, and Title 24 standards; many configurations are DLC Premium qualified.
Country of Origin: Canada

Product Information

  • Product Specifications

    Application : Distribution Center,Manufacturing,Retail Store,Supermarket,Warehouse

    Available Size(s) : 24",48"

    Brand : VIS

    CRI : 80+

    Certification : DLC Listed,UL Listed (C/US),IESNA LM-79,DLC Premium,Damp Locations

    Color Temperature : 4000K,5000K

    Fixture Type : High-Bay,Suspended

    Grade : Commercial Grade

    Light Source : LED

    Lumen Output : 12000-15000,24000-30000,18000-30000,36000-60000

    Market : Industrial
