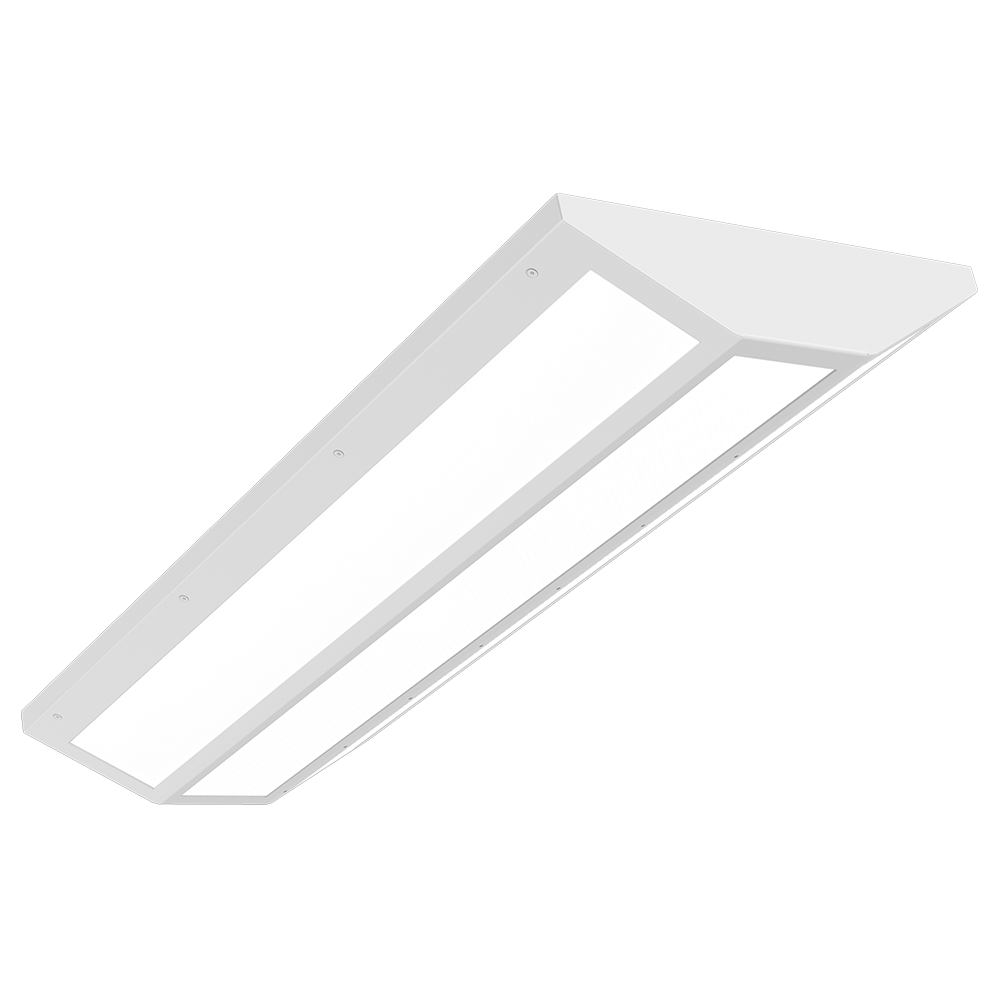

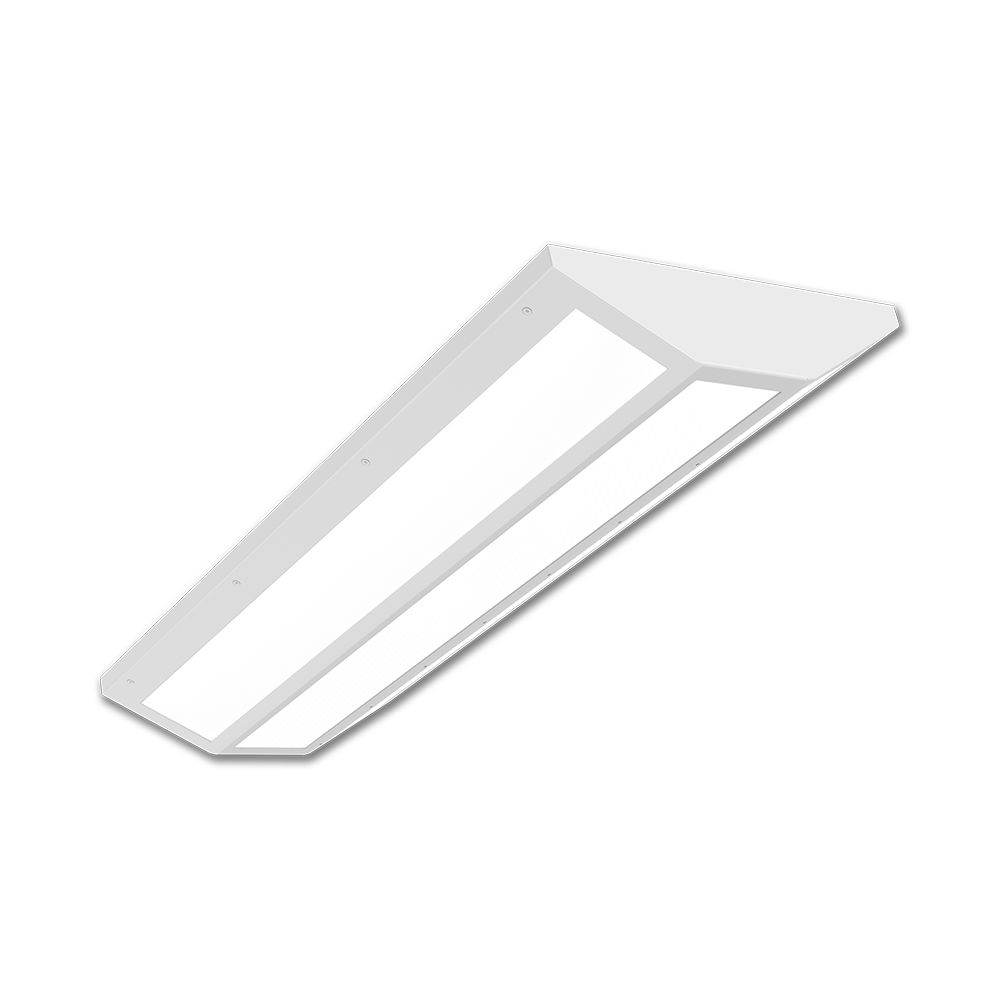

LED - Surface Mount Correctional Luminaire

VRS-3489

The VRS-3489 LED luminaire is engineered specifically for high-risk environments where safety, durability, and tamper resistance are non-negotiable. Designed for prison lighting applications, this surface-mounted fixture combines robust construction with advanced LED technology to deliver reliable illumination in correctional facilities. Its clamshell design, concealed hinges, and tamper-proof fasteners make it ideal for areas requiring maximum security and minimal maintenance.

Whether wall- or ceiling-mounted, the VRS-3489 is purpose-built for correctional facility lighting. Its housing is precision die-formed from 12, 14, or 16-gauge cold rolled steel, with continuously welded end plates for added strength. The backplate includes embossed mounting holes and a contraband trap, helping prevent concealment of unauthorized items. A full-length concealed piano hinge and tamper-resistant TORX® fasteners ensure the fixture remains secure and inaccessible to tampering. The luminaire supports multiple lens configurations, including prismatic acrylic, polycarbonate, and tempered glass, with a combined maximum thickness of 0.625 inches offering flexibility without compromising security.

Inside, long-life LEDs paired with high-efficiency drivers deliver L80 performance beyond 50,000 hours. Standard low-voltage dimming (0–10V, 1%) and optional DALI or Triac interfaces provide adaptable lighting control. All electrical components are CSA or UL approved, and the fixture includes an access plate for simplified wiring. With lumen packages ranging from 2,600 to 10,400 lumens and color temperatures from 3000K to 5000K, the VRS-3489 meets a wide range of lighting requirements.

The VRS-3489 stands out in the market for its vandal resistant lighting capabilities. Its seam-welded door frame, adjustable lens retention brackets, and heavy-duty materials make it exceptionally resilient to impact and abuse. Available in painted or brushed stainless steel finishes, the fixture is both functional and visually discreet. Optional features like emergency battery packs, night light modes, and single-pole fuseholders further enhance its versatility. Packaging options include bulk or single-pack configurations to suit project logistics.

This luminaire is CSA and UL listed, with a 5-year limited warranty backing its performance. It’s a trusted solution for facilities that demand tamper-proof lighting without compromising on energy efficiency or ease of installation.

For institutions seeking lighting that supports safety, resists vandalism, and simplifies maintenance, the VRS-3489 is a proven choice. Its thoughtful design and rugged build make it a standout in correctional lighting solutions.

  • Tamper-proof design: Concealed hinges and TORX® fasteners prevent unauthorized access and fixture tampering.
  • Contraband prevention: Embossed mounting holes and integrated contraband trap enhance facility security.
  • Durable construction: Made from 12–16 gauge cold rolled steel with welded end plates for maximum impact resistance.
  • Flexible lens options: Supports acrylic, polycarbonate, and tempered glass lenses up to 0.625” thick.
  • Efficient LED performance: Delivers up to 10,400 lumens with L80 >50,000 hours and multiple dimming interfaces.
Country of Origin: Canada

Product Information

  • Product Specifications

    Application : Corridor,Detention Cell,Prison

    Available Size(s) : 1.5x2,1.5x4

    Brand : CER

    CRI : 80 - 89

    Certification : Built to CSA & UL Standards

    Color Temperature : 3000K,3500K,4000K,5000K

    Fixture Type : Surface,Vandal/Security

    Grade : Specification Grade

    Light Source : LED

    Lumen Output : 2001-3000,3001-4000,5001-10000

    Market : Correctional
