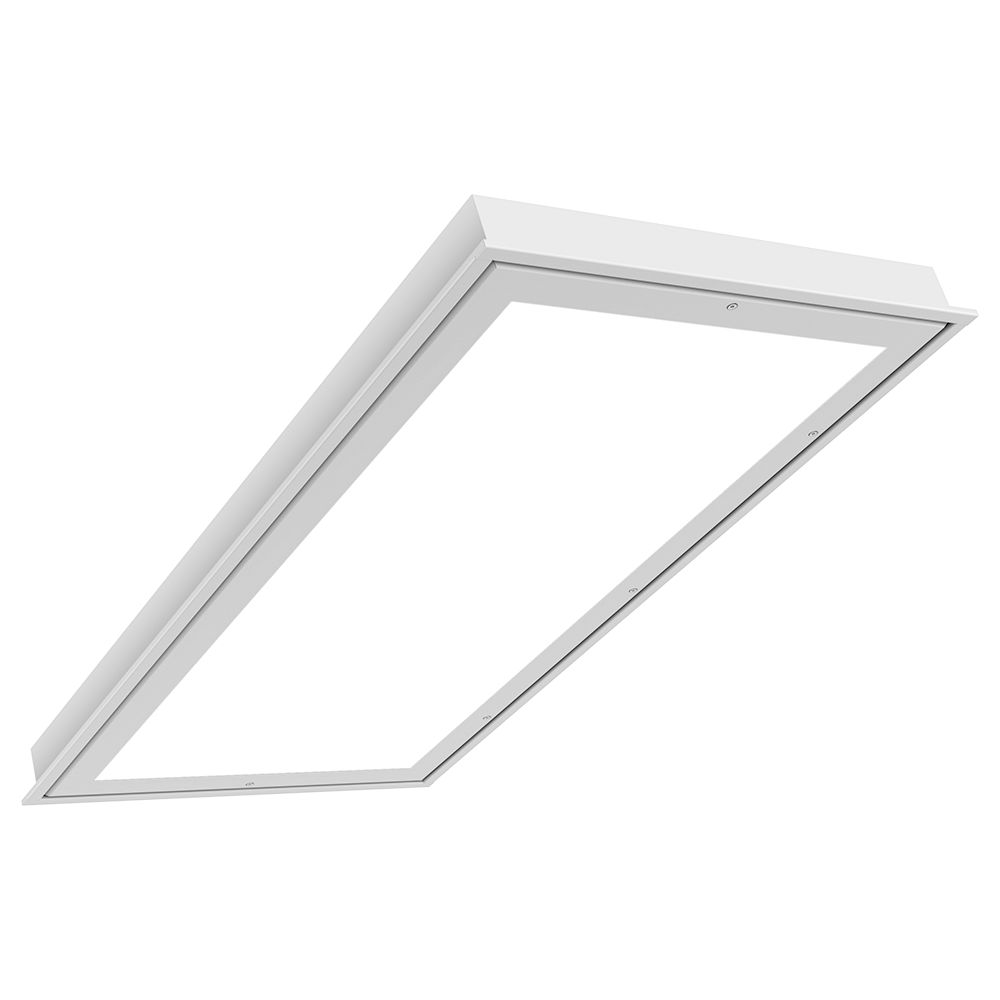

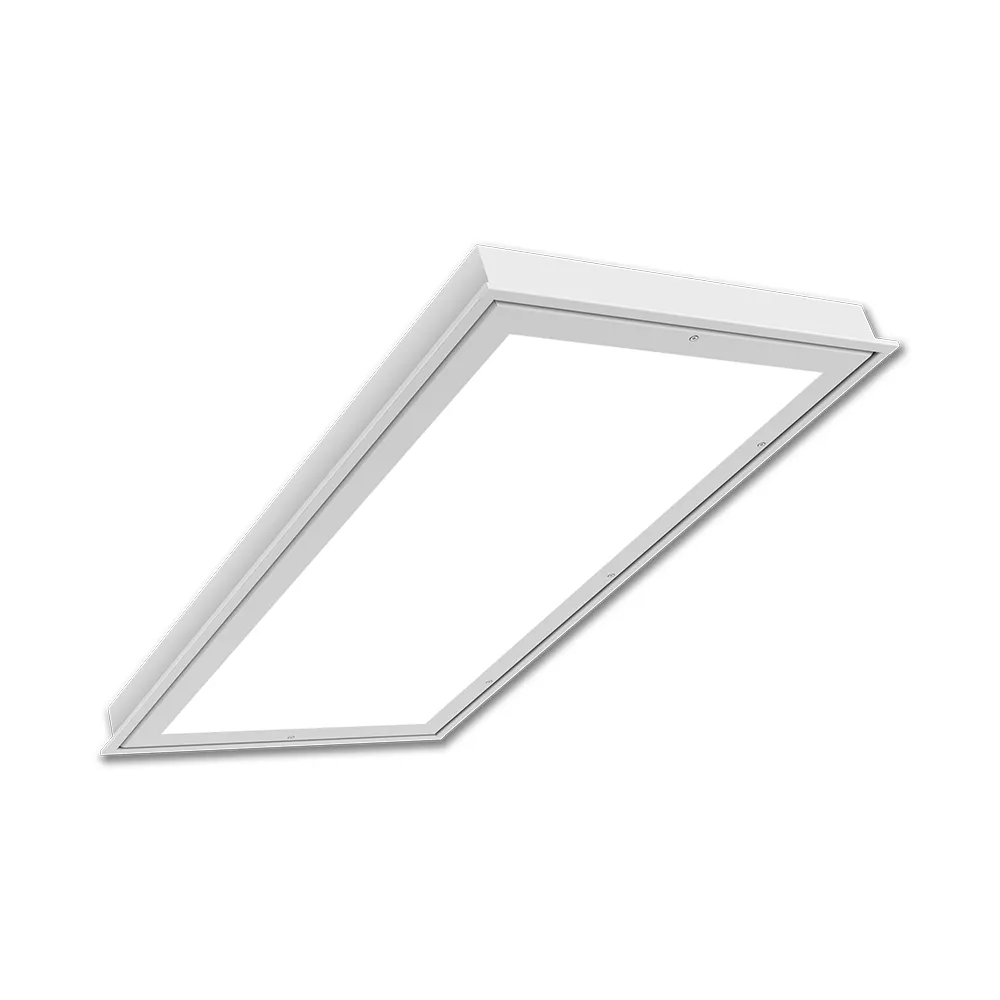

LED - Recessed Flanged Inset Door Correctional Luminaire

VRIF-3497

When it comes to prison lighting, durability and security are non-negotiable. The VRIF-3497 series is engineered to meet the rigorous demands of correctional environments, offering a robust solution for facilities requiring tamper-proof, high-performance illumination. Designed for medium-security applications, this recessed flanged LED fixture combines strength, efficiency, and compliance with wet location and insulated ceiling standards.

Built for correctional facility lighting, the VRIF-3497 features precision die-formed housing and a single-piece door frame, both available in multiple gauge and material options including stainless steel and cold-rolled steel. The fixture’s concealed full-length hinge and tamper-resistant TORX® fasteners ensure maximum resistance to vandalism and unauthorized access. With a lens retention system that accommodates up to 0.625” thickness, the fixture supports a wide range of impact-resistant lens materials, including polycarbonate and tempered glass, making it ideal for environments where safety and durability are paramount.

The VRIF-3497 is not just tough, it’s smart. Long-life LEDs paired with high-efficiency drivers deliver consistent illumination with an L80 rating exceeding 50,000 hours. Standard low-voltage dimming (0–10V, 1%) and optional DALI compatibility provide flexible control. The fixture is CSA and UL listed, including approvals for wet locations and insulated ceilings, ensuring compliance across a variety of institutional settings. Optional features like emergency battery packs, night lights, and RF filters further enhance its adaptability.

What sets this vandal resistant lighting solution apart is its thoughtful engineering. Adjustable Z-style brackets secure the lens from the housing faceplate, while the concealed hinge and welded corners eliminate pry points. Available in multiple sizes (1x4, 2x2, 2x4) and lumen packages ranging from 2,600 to 15,000 lumens, the VRIF-3497 can be tailored to meet specific lighting requirements without compromising security. Whether installed in correctional facilities, psychiatric centers, or other high-risk environments, this fixture delivers peace of mind through performance and protection.

In summary, the VRIF-3497 is a purpose-built lighting solution that balances rugged construction with advanced electrical performance. It’s a reliable choice for institutions seeking tamper-proof, vandal-resistant lighting that meets stringent safety and operational standards.

  • Tamper-Proof Design: TORX® fasteners with center pins and concealed hinges prevent unauthorized access and fixture tampering.
  • Vandal Resistant Build: Seam-welded corners and heavy-gauge material options (up to 14 Ga. SS) ensure maximum impact resistance.
  • Flexible Lens Options: Supports up to 0.625” thick lenses, including prismatic polycarbonate and tempered glass for added durability.
  • High-Efficiency LED Performance: Delivers up to 15,000 lumens with L80 >50,000 hours and low THD drivers for consistent output.
  • Certified for Demanding Environments: CSA and UL listed for wet locations and insulated ceilings, ideal for correctional and institutional use.
Country of Origin: Canada

Product Information

  • Product Specifications

    Application : Detention Cell,Prison,Vandal Resistant

    Available Size(s) : 1x4,2x2,2x4

    Brand : CER

    CRI : 80 - 89

    Certification : Built to CSA & UL Standards,UL Listed (C/US),Wet Location

    Color Temperature : 3000K,3500K,4000K,5000K

    Fixture Type : Recessed,Vandal/Security

    Grade : Specification Grade

    Light Source : LED

    Lumen Output : 2001-3000,3001-4000,5001-10000,10001-20000

    Market : Correctional
