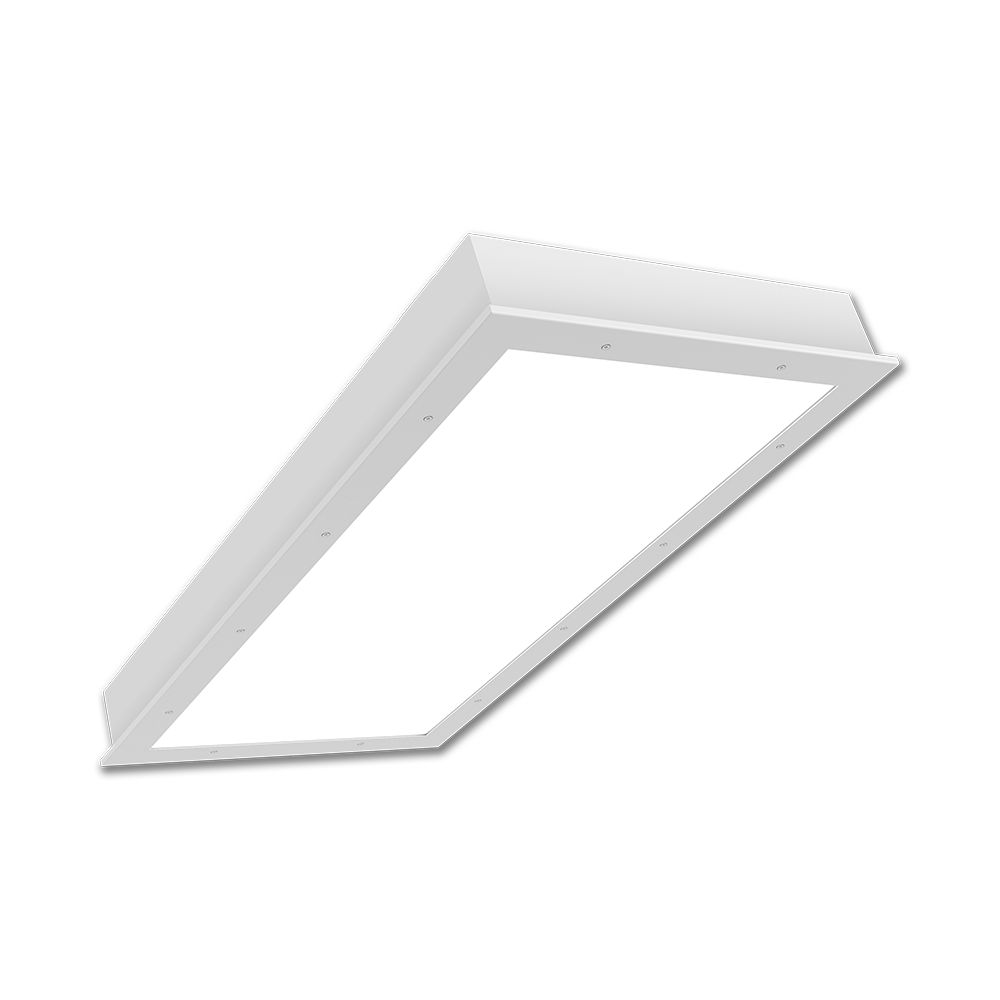

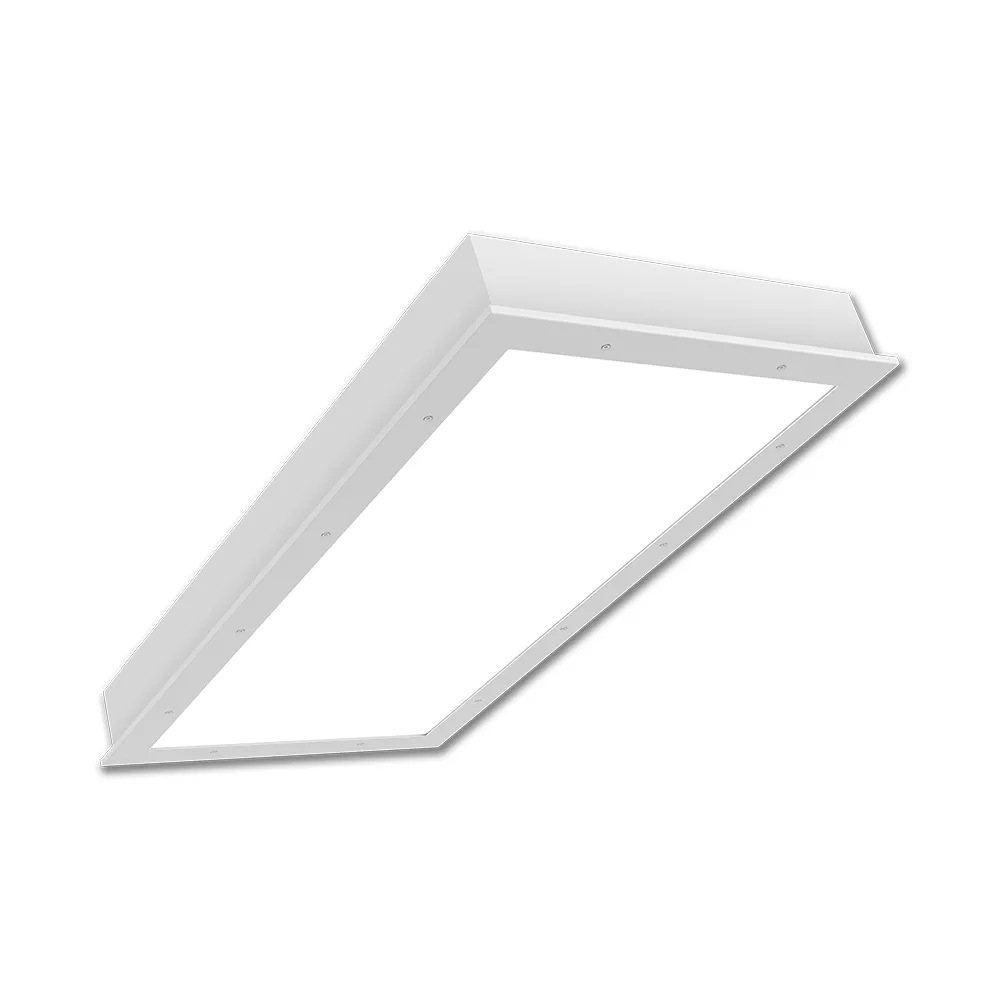

LED - Recessed Correctional Luminaire

VRF-3553

Built for the toughest environments, the VRF-3553 delivers unmatched performance in prison lighting applications. Designed specifically for high-security settings, this recessed flange LED luminaire combines rugged construction with advanced lighting technology to meet the demands of correctional facilities. Its tamper-proof design ensures maximum resistance to impact, ligature risks, and unauthorized access making it ideal for institutions requiring reliable and secure illumination.

The VRF-3553 is engineered for correctional facility lighting where durability and safety are non-negotiable. Its precision die-formed housing, available in multiple gauges and finishes, is paired with a single-piece door frame secured by tamper-resistant TORX® fasteners. Concealed hinges and reinforced lens retention systems further enhance its vandal resistant lighting capabilities. With multiple lens options including polycarbonate and tempered glass up to 0.625" thick, the fixture is built to withstand aggressive environments while maintaining optimal light distribution.

This luminaire supports a wide range of applications, from wet locations to insulated ceilings, and is certified for IP55 ingress protection when specified. It offers tunable white color temperatures (2700K–6500K) and standard options from 3000K to 5000K, with CRI ratings of 80+ or optional 90+. The LED modules are high-efficiency, field-replaceable, and designed for long-term performance with a lifetime L90 rating exceeding 60,000 hours. Whether installed in a prison cell, psychiatric ward, or detention corridor, the VRF-3553 ensures consistent, high-quality lighting with minimal maintenance.

Electrical performance is equally robust. The fixture includes a programmable, dimmable driver (0–10V) with low total harmonic distortion and high efficiency. Emergency battery packs and DALI driver options are available for enhanced functionality. The finish, either gloss white polyester powder coat or brushed stainless steel undergoes a 5-stage pretreatment and ASTM B117 1000-hour salt spray testing, ensuring corrosion resistance and longevity in demanding environments.

For facilities seeking tamper-proof lighting solutions that meet strict safety and performance standards, the VRF-3553 stands out as a reliable, specification-grade choice. Its modular design, security-focused features, and compliance with CSA and UL standards make it a top contender for institutional lighting needs.

  • Tamper-proof construction: TORX® fasteners, concealed hinges, and reinforced lens brackets prevent unauthorized access and fixture tampering.
  • Vandal resistant lighting: Durable housing and lens options up to 0.625" thick withstand high-impact environments.
  • Correctional facility lighting ready: Certified for damp and optional wet locations with IP55 ingress protection for secure installations.
  • High-performance LED modules: Tunable white (2700K–6500K), CRI 80+ or 90+, and L90 > 60,000 hours for long-lasting illumination.
  • Flexible configurations: Multiple sizes, lumen packages (2600–15,000 lm), and driver options including DALI and emergency battery packs.
Country of Origin: Canada

Product Information

  • Product Specifications

    Application : Corridor,Detention Cell,Prison,Vandal Resistant

    Available Size(s) : 1x2,1x4,2x2,2x4

    Brand : CER

    CRI : 80 - 89

    Certification : Built to CSA & UL Standards,IP65,UL Listed (C/US),Wet Location

    Color Temperature : 3000K,3500K,4000K,5000K

    Fixture Type : Recessed,Vandal/Security

    Grade : Specification Grade

    Light Source : LED

    Lumen Output : 2001-3000,5001-10000,10001-20000

    Market : Correctional,Damp/Wet Location
