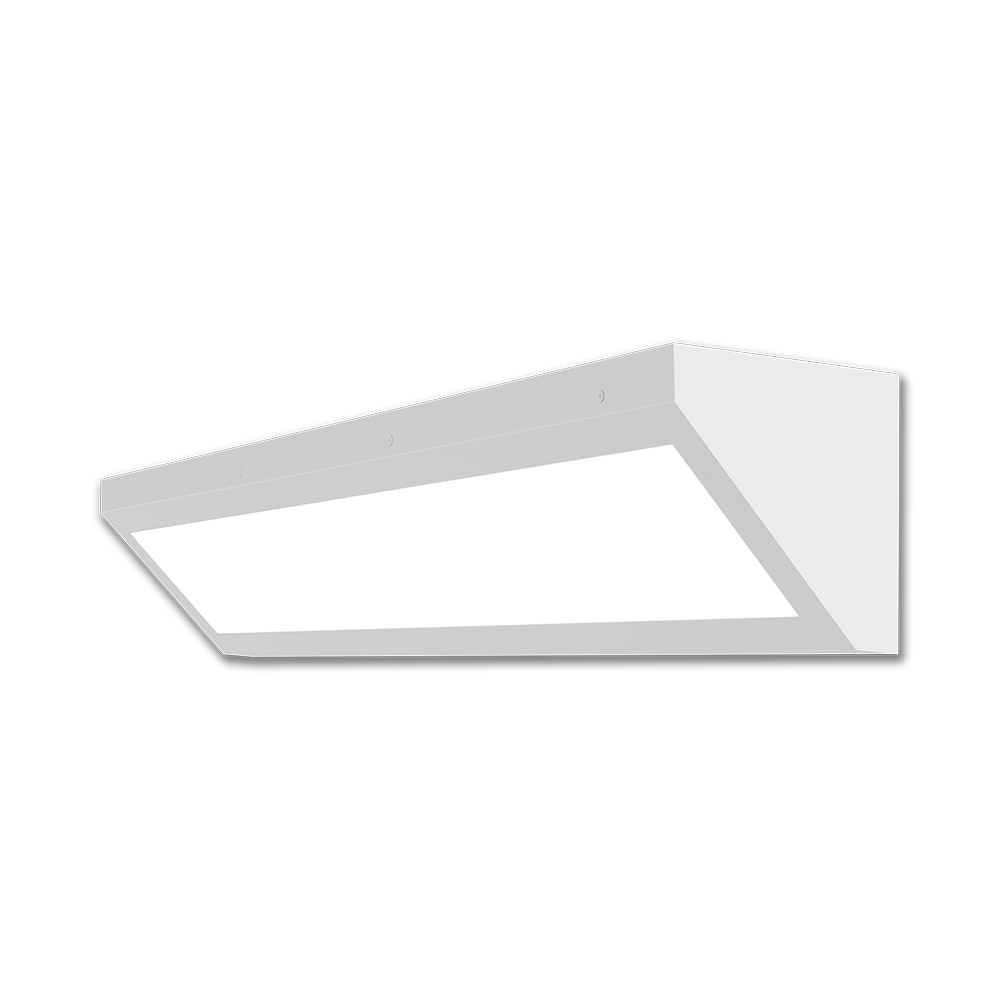

LED Corner Mount Correctional Lighting

VRC-3524

When it comes to prison lighting, durability and security are non-negotiable. The VRC-3524 by Certolux is engineered specifically for high-risk environments where tamper-proof construction and reliable performance are essential. Designed for corner mounting, this LED luminaire is built to withstand abuse while maintaining consistent illumination in correctional and institutional settings.

Ideal for correctional facility lighting, the VRC-3524 combines robust materials and thoughtful design to prevent unauthorized access and contraband concealment. Its precision die-formed housing is available in 12, 14, or 16-gauge cold rolled steel, with continuously welded end plates for added strength. The clamshell-style door frame features TIG-welded corners and tamper-resistant TORX® fasteners with center pins, ensuring the fixture remains secure against vandalism and tampering. A concealed full-length piano hinge adds to the fixture’s integrity, while the backplate includes embossed mounting holes and a contraband trap critical features for maintaining safety in secure environments.

The VRC-3524 offers multiple lens options for both the fixture-facing and room-facing sides, with a combined maximum thickness of 0.625". These lenses are designed to resist impact and prevent penetration, making the unit highly suitable for vandal resistant lighting applications. The fixture is finished in a high-reflectivity white powder coat, enhancing both durability and lighting efficiency.

Internally, the VRC-3524 is powered by long-life LEDs paired with high-efficiency drivers, delivering L80 performance beyond 50,000 hours. It supports standard low-voltage dimming (0–10V, down to 1%) and maintains a total harmonic distortion (THD) of less than 10%. All electrical components are CSA or UL approved, and a ½” EMT hole is provided for secure wiring connections. Optional features include emergency battery packs and red LED arrays, allowing customization for specific facility needs.

Whether installed in detention centers, psychiatric units, or other secure facilities, the VRC-3524 stands out for its tamper-proof design, high lumen output (ranging from 2600 to 10,400 lumens), and flexible configurations. It’s available in multiple sizes (24", 36", 48") and color temperatures (3000K to 5000K), with CRI ratings of 80+, ensuring both visual comfort and compliance with institutional standards.

Backed by a 5-year limited warranty, the VRC-3524 is a trusted solution for environments where safety, reliability, and performance must go hand-in-hand.

  • Tamper-proof construction: Features TIG-welded corners, concealed hinges, and TORX® fasteners with center pins to prevent unauthorized access.
  • Contraband prevention: Includes a specially designed backplate with embossed mounting holes and a contraband trap to enhance facility security.
  • Vandal resistant lighting: Offers multiple impact-resistant lens options with a combined thickness of up to 0.625", ideal for high-abuse environments.
  • High-performance LED system: Delivers up to 10,400 lumens with L80 performance over 50,000 hours and supports 0–10V dimming.
  • Flexible configurations: Available in various sizes, materials, and color temperatures (3000K–5000K) to meet diverse correctional facility lighting needs.
Country of Origin: Canada

Product Information

  • Product Specifications

    Application : Corridor,Detention Cell,Prison

    Available Size(s) : 24",48"

    Brand : CER

    CRI : 80 - 89

    Certification : Built to CSA & UL Standards

    Color Temperature : 3000K,3500K,4000K,5000K

    Fixture Type : Corner,Surface,Vandal/Security

    Grade : Specification Grade

    Light Source : LED

    Lumen Output : 2001-3000,3001-4000,5001-10000,10001-20000

    Market : Correctional
