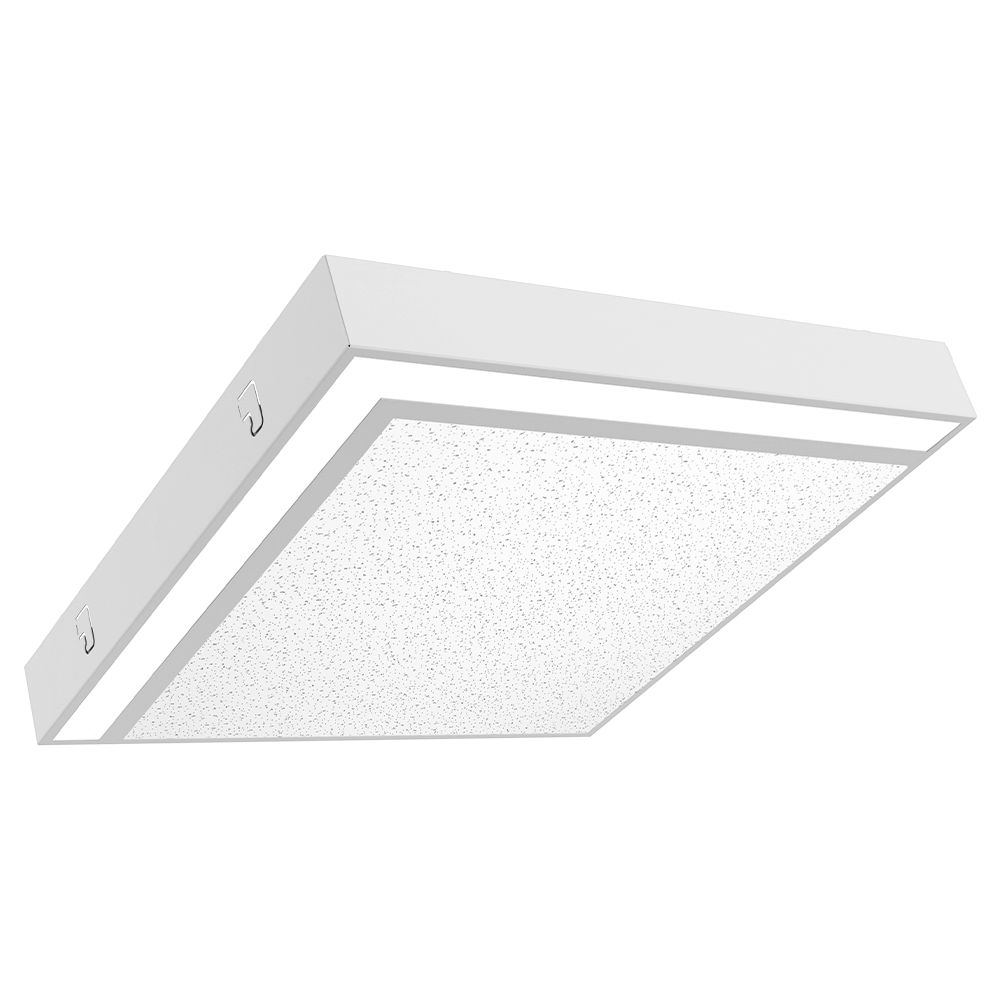

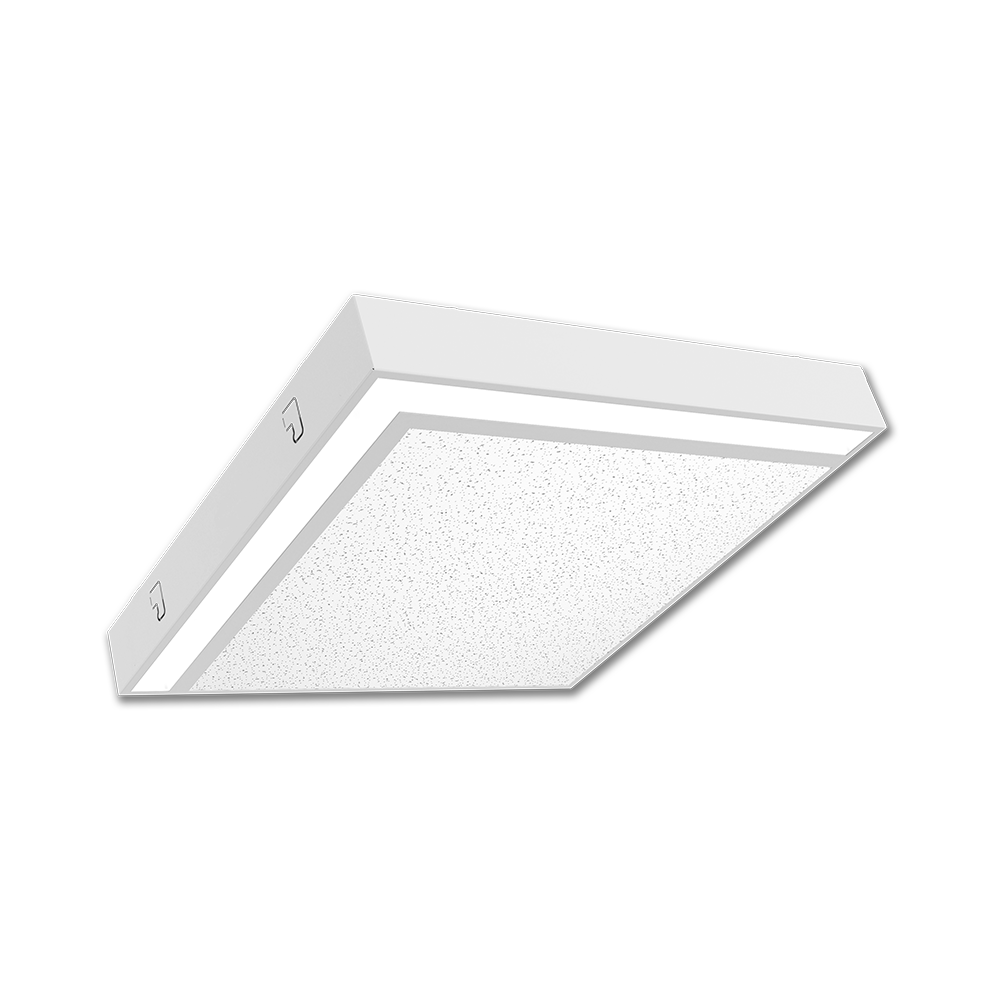

LED - Recessed Troffer – Outline™ Type L with Continuous Lens for Architectural Spaces

OTLL

The OUTLINE™ Type L (OTLL) LED recessed light fixture seamlessly blends modern lighting design with geometric precision. Designed to elevate architectural interiors, this geometrically shaped luminaire delivers enhanced, uniform illumination across workspaces, walls, and surfaces. Its angular design and low-profile form factor make it ideal for shallow or obstructed plenum applications, offering both style and substance in demanding environments.

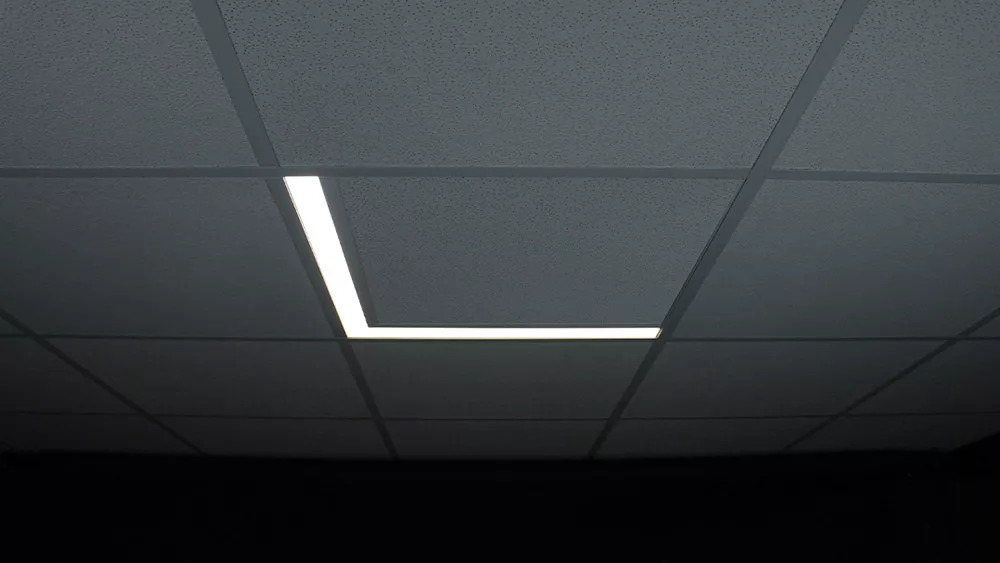

Engineered for performance and visual comfort, the OUTLINE™ Type L features a single continuous lens crafted from laser-formed frosted material. This diffuser ensures high efficiency and low glare, making it a standout choice for office areas, classrooms, and retail spaces. The fixture’s recessed mounting system is tailored for T-Bar ceilings and includes integral earthquake clips for added stability. Whether you're designing for aesthetics or functionality, this architectural LED lighting solution delivers on both fronts.

The luminaire’s construction is robust, with die-formed code gauge steel housing and a precision-formed steel reflector. Its white polyester powder-coated finish ensures durability and a clean appearance. Electrical performance is equally impressive—long-life LEDs paired with high-efficiency drivers are rated for L80 performance beyond 60,000 hours, with calculated L70 lifespans exceeding 238,000 hours. Standard low-voltage 0–10V dimming allows for flexible light control, while optional tunable white technology supports dynamic color temperature adjustments from 2700K to 6500K.

Customization is a key differentiator. Buyers can choose from multiple lumen packages (1000, 2000, or 3000 nominal lumens), voltage options (120–277V or 347V), and control integrations including Casambi and Lutron wireless modules. Emergency battery packs and flexible metal whips are also available, ensuring the fixture meets a wide range of installation and safety requirements. The OUTLINE™ Type L is UL listed for insulated ceilings, suitable for damp locations, and tested to IESNA LM-79 standards—making it a reliable choice for specifiers and contractors alike.

Whether you're upgrading an existing space or planning a new build, the OUTLINE™ Type L offers a sleek, high-performance solution that blends seamlessly into modern interiors. Its recessed design, continuous lens, and architectural LED lighting capabilities make it a versatile and visually striking option.

Reimagine your lighting with the OUTLINE™ Type L—where geometric design meets high-efficiency performance. Explore how this recessed light fixture can transform your space with style, comfort, and control.

  • Geometrically shaped design with angular accents and a continuous lens for modern architectural appeal.
  • High-efficiency recessed light fixture rated for L80 performance over 60,000 hours and L70 up to 238,000 hours.
  • Continuous lens diffuser provides uniform, low-glare illumination ideal for offices, classrooms, and retail.
  • Flexible options include tunable white (2700K–6500K), emergency battery packs, and wireless control modules.
  • Architectural LED lighting approved for insulated ceilings and damp locations, tested to IESNA LM-79 standards.
Country of Origin: Canada

Product Information

  • Product Specifications

    Application : Aisle,Cafeteria,Display,Office,Retail Store,Classroom,Hospitals,Nursing Homes,Hospitality,Library,Restaurant,Showroom,Supermarket

    Available Size(s) : 2x2

    Brand : VIS

    CRI : 80+,90+

    Certification : Built to CSA & UL Standards,IESNA LM-79,Damp Locations

    Color Temperature : 3000K,3500K,4000K,5000K,2765KT

    Fixture Type : Architectural,Recessed,Troffer,T-Bar

    Grade : Specification Grade

    Light Source : LED

    Lumen Output : 1000-3000

    Market : Commercial,Education,Healthcare
