LED - Architectural Recessed Troffer with Concave and Convex lens
OnCurve Wave 2x4

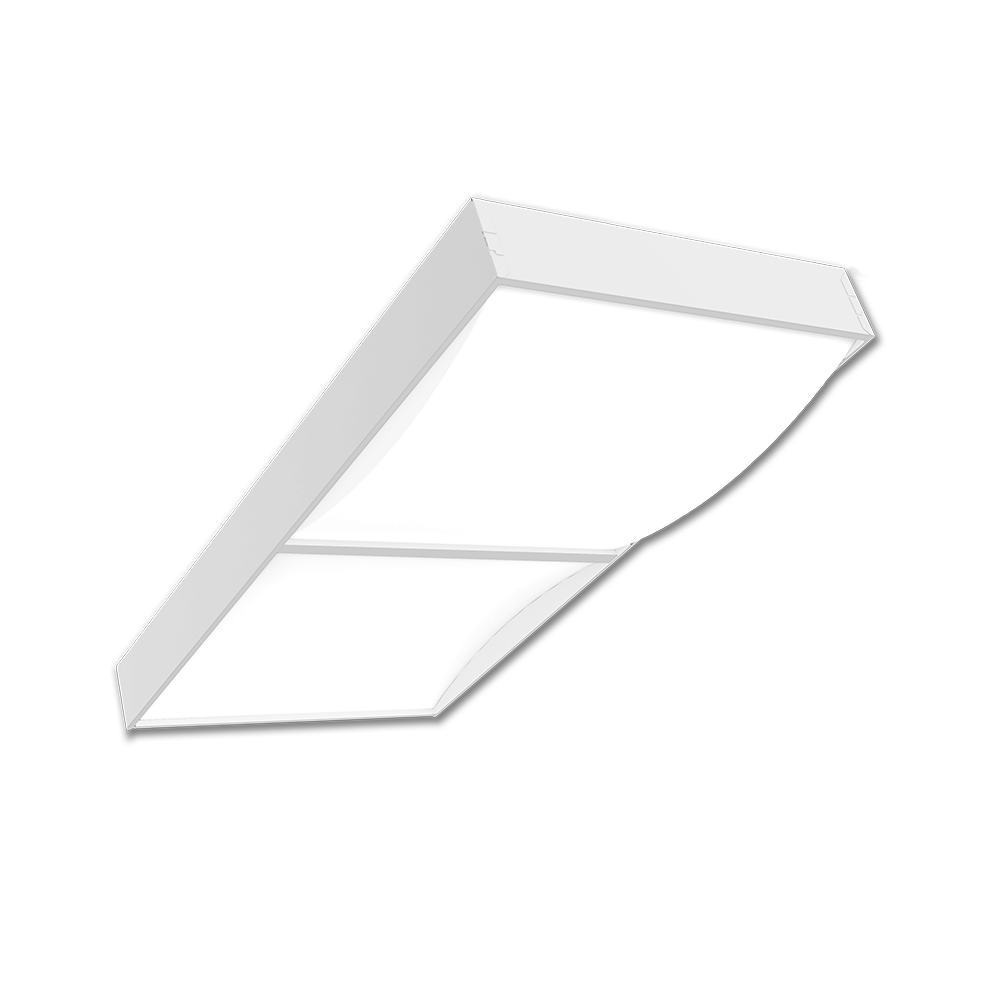

The OnCurve Wave 2x4 LED is a recessed light fixture that brings a refined touch to architectural LED lighting. Its standout feature is a soft curved lens formed by a combination of concave and convex elements, offering both visual comfort and a sleek, modern aesthetic. Designed for T-Bar ceiling applications and insulated ceilings, this fixture is ideal for commercial environments such as offices, classrooms, healthcare facilities, retail spaces, and hospitality settings.
Built with durability in mind, the fixture features a die-formed, cold-rolled steel housing finished in white polyester powder paint. The frosted double-piece lay-in diffuser ensures smooth, glare-free illumination, enhancing comfort in visually demanding spaces. Installation is straightforward thanks to integral earthquake clips and accessible wiring plates. Flexible wiring options include armored cable whips and emergency battery packs, while standard 0–10V dimming and optional DALI compatibility allow seamless integration with advanced lighting control systems.
Performance is a key strength of the OnCurve Wave 2x4 LED. It offers multiple lumen packages ranging from 3600 to 7000 lumens and color temperatures from 3000K to 5000K, giving designers and specifiers the flexibility to tailor lighting to specific needs. With efficacy reaching up to 139 lumens per watt and L80 performance rated beyond 50,000 hours, this fixture delivers long-term energy savings and reduced maintenance. Its calculated L70 lifespan exceeds 238,000 hours, making it a reliable and cost-effective solution for high-use environments.
The fixture is ETL listed and suitable for damp locations, with DesignLights Consortium® qualification pending for select configurations. Its architectural design, highlighted by the unique combination of concave and convex lens elements, sets it apart from standard troffers. This is not just a lighting product—it’s a design-forward solution that supports both aesthetic and operational goals in modern commercial spaces.
Whether you're upgrading an existing installation or specifying lighting for a new project, the OnCurve Wave 2x4 LED offers a refined balance of style, efficiency, and performance. Its thoughtful design and robust engineering make it a smart choice for professionals seeking dependable, high-quality recessed lighting.
- Soft curved lens design combines concave and convex elements for enhanced visual comfort and architectural appeal.
- High-efficiency performance delivers up to 139 lumens per watt with multiple lumen packages ranging from 3600 to 7000 lumens.
- Durable construction features cold-rolled steel housing with white polyester powder finish and integral earthquake clips.
- Flexible installation options include T-Bar mounting, emergency battery packs, and advanced dimming controls (0–10V and DALI).
- Long-lasting LED technology rated for L80 performance over 50,000 hours and calculated L70 lifespan exceeding 238,000 hours.
Product Information
Product Specifications
Application : Office,Retail Store,Classroom,Hospitals,Nursing Homes,Hospitality
Available Size(s) : 2x4
Brand : VIS
CRI : 80+
Certification : DLC (DesignLights Consortium®) pending, ETL Listed, Suitable for Damp Location
Color Temperature : 3000K,3500K,4000K,5000K
Fixture Type : Architectural,Recessed,Troffer
Grade : Premium Grade
Light Source : LED
Lumen Output : 3600-7000
Market : Commercial,Education,Healthcare
