LED - Patient Room Multi-Function Linear Luminaire
MD3-AL4

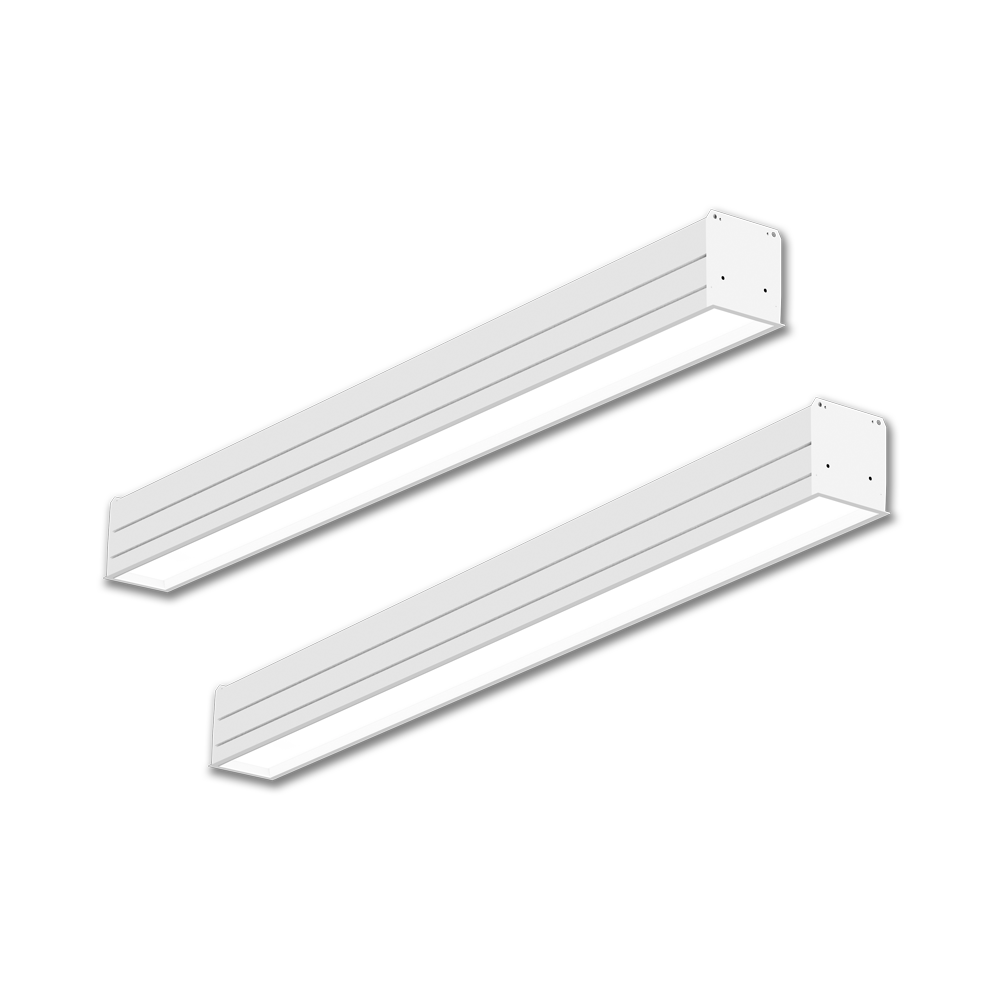

Certolux Auralux MD3–AL4 is built around multi-function linear pairs, placing light exactly where it supports care without overwhelming the patient. Designed for paired installation over the bed, this recessed solution delivers ambient, exam, and reading light in a slim 4-inch profile that integrates cleanly into standard grid ceilings. By shifting illumination away from a single overhead source, it creates a calmer, more controlled environment that aligns with modern healthcare design while meeting the performance expectations of clinical staff.
As an advanced over-bed luminaire, Auralux MD3–AL4 supports the full range of activities that occur in patient rooms throughout the day. Ambient lighting provides balanced, low-glare illumination for general comfort, while the integrated exam function delivers higher light levels at the bed to support accurate medical assessments. The dedicated patient reading light is built directly into the fixture, eliminating the need for add-on task lights and reducing ceiling clutter. Independent control of each function allows lighting to adapt quickly, from rest and recovery to examinations, without disturbing the patient.
Purpose-built for medical lighting applications, Auralux MD3–AL4 combines high-quality optics with robust construction. The extruded aluminum housing and frameless snap-in acrylic lens ensure durability and a clean architectural appearance. LEDs are available in 3000K, 3500K, or 4000K with 80 or 90 CRI, and ambient and exam functions can be specified independently to meet clinical preferences. With smooth 0–10V dimming down to 1%, the luminaire supports precise light levels for both patient comfort and staff performance. Rated L70 greater than 60,000 hours, the system is designed for long-term reliability in demanding healthcare environments.
For patient room lighting, operational efficiency matters as much as visual quality. Auralux MD3–AL4 is sold in matched pairs, with optional pre-wired whips that simplify installation and ensure consistent performance across the bed zone. Components are serviceable in place, including drivers, lenses, and LED boards, minimizing disruption and maintenance time. Antimicrobial powder coat finishes help support infection control protocols, while optional low-voltage relays enable integration with bed controls, pillow speakers, and nurse call systems.
Backed by ETL listing for dry and damp locations, NSF2 certification, RoHS compliance, and a 5-year limited warranty, CERTOLUX Auralux MD3–AL4 offers a balanced approach to comfort, control, and clinical performance. It is a lighting solution designed not just to meet codes, but to improve how patient rooms function every day.
- Three integrated lighting functions: ambient, exam, and reading, purposefully distributed through paired linear fixtures to improve comfort and task accuracy.
- Narrow 4-inch recessed design fits standard 9/16-inch and 15/16-inch T-grid ceilings for clean over-bed integration.
- High-performance LEDs with selectable CCT and CRI, smooth 0–10V dimming to 1%, and L70 >60,000 hours for long-term reliability.
- Antimicrobial white finishes and in-place serviceable components support infection control and simplify maintenance.
- ETL damp location listed, NSF2 certified, RoHS compliant, and backed by a 5-year limited warranty for healthcare confidence.
Specifications
Resources
IES
Revit
Technical Information
Product Specifications
Application : Patient Room,Hospitals,Medical
Available Size(s) : 48",72",96"
Brand : CER
CRI : 80+,90+
Certification : ETL Listed,NSF,Damp Location,RoHS Compliant,Maintable
Color Temperature : 3000K,3500K,4000K
Fixture Type : Recessed,Strip
Grade : Specification Grade
Light Source : LED
Lumen Output : 2000-5600,3500-9000
Market : Healthcare
