LED - Patient Room 2 Function Linear Luminaire
MD2-AL4
Certolux Auralux MD2‑AL4 is engineered as a solution built around two function linear pairs, delivering purposeful illumination designed specifically for healthcare patient rooms. Installed as a recessed over-bed luminaire, this fixture provides both ambient and exam lighting in a paired configuration that avoids placing harsh light directly above the patient. By shifting illumination slightly off-axis, it improves visual comfort while still supporting clinical tasks. The result is a clean, modern lighting approach that aligns performance, comfort, and reliability in a single coordinated system.

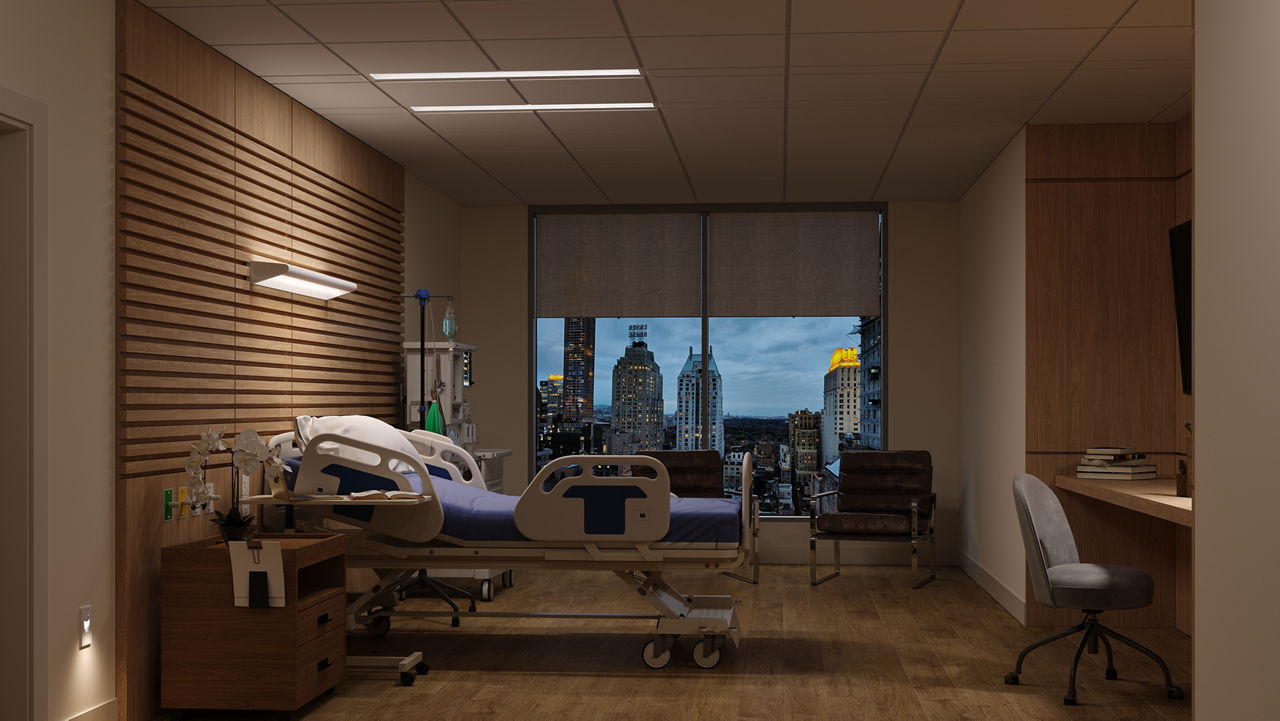

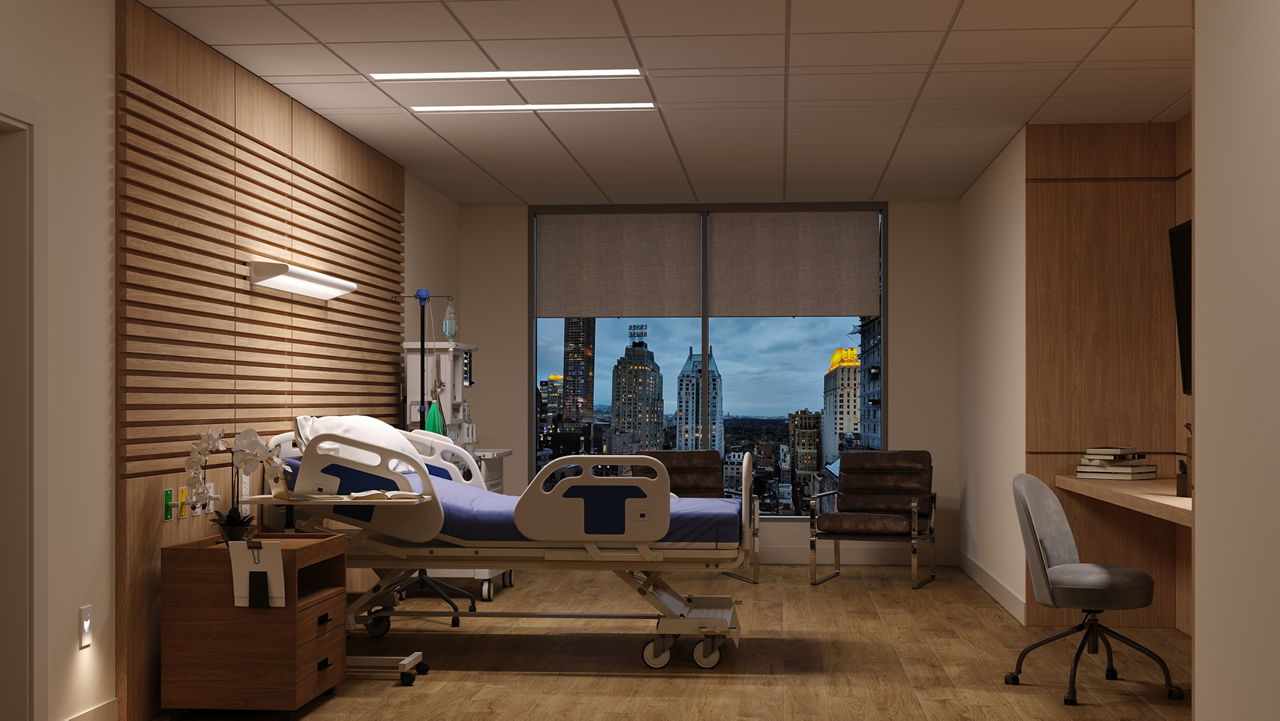

Developed for demanding medical lighting environments, Auralux MD2‑AL4 integrates two independently controlled functions within a slim 4‑inch linear profile. Ambient lighting supports everyday room use, patient movement, and rest, while the exam function delivers focused, high-output illumination at the bed surface when clinical observation or procedures are required. This separation allows caregivers to access appropriate light levels without disrupting the patient unnecessarily. High-quality LEDs provide selectable color temperatures from 3000K to 4000K and up to 90 CRI, ensuring accurate color rendering and visual clarity during examinations.

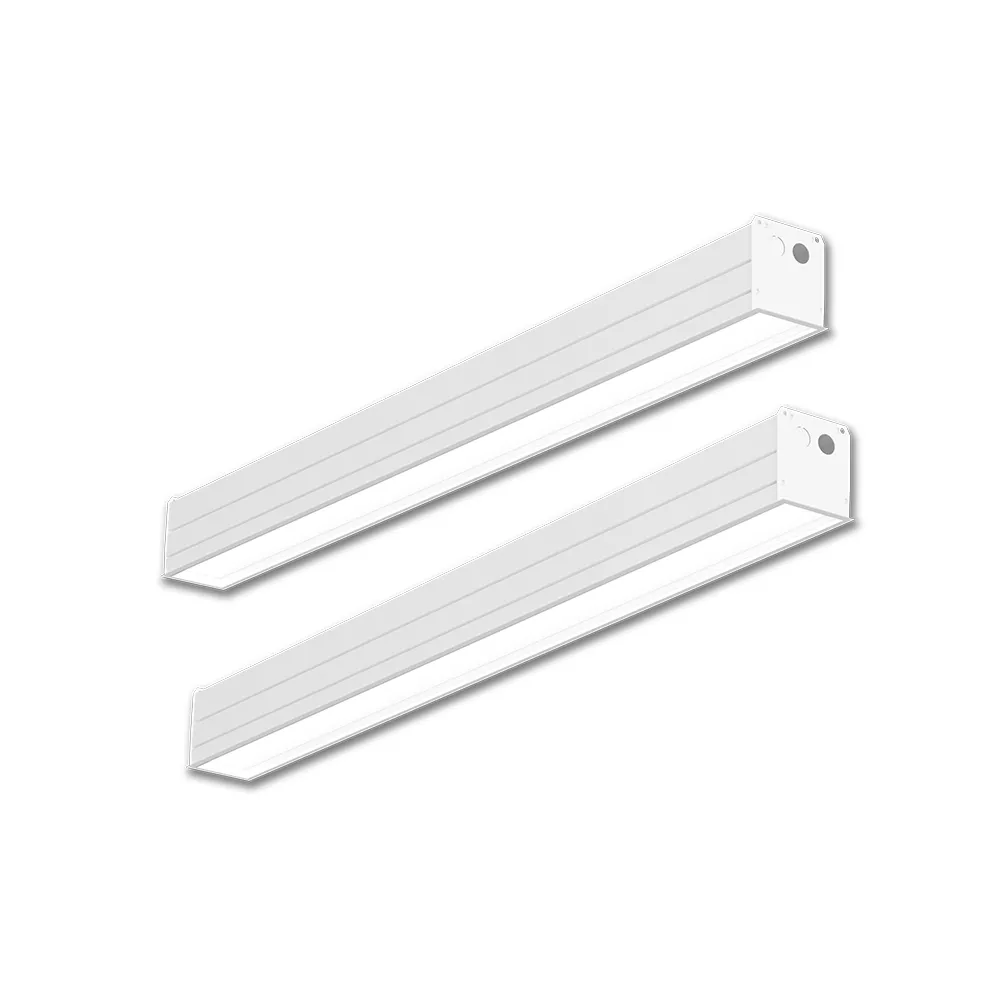

The fixture’s construction is intentionally simple and durable. An extruded aluminum housing with die‑formed endcaps supports long-term structural integrity, while the frameless snap‑in diffuse acrylic lens creates a smooth appearance that reduces glare and visible seams. An antimicrobial white polyester powder coat finish, available in matte or gloss, supports infection control practices and withstands frequent cleaning. Separate CCT and CRI selection for ambient and exam functions allows designers to fine‑tune light output based on patient comfort or clinical preference, making the fixture adaptable across different care settings.
As patient room lighting, Auralux MD2‑AL4 is designed to integrate cleanly into hospital infrastructure. It fits standard 9/16” and 15/16” T‑grid ceilings and provides dedicated seismic support points. Paired installations are simplified through master and satellite operation with optional pre-wired whips. Optional low‑voltage relays and wall plate accessories allow direct interface with patient bed controls and nurse call systems, ensuring intuitive control for both staff and occupants without adding operational complexity.
Reliability and serviceability are central to the design. High‑efficiency LED systems deliver long lifespans with L70 ratings exceeding 60,000 hours. All major components, including drivers, LED boards, and lenses, are serviceable from below the ceiling, minimizing maintenance time and disruption to occupied spaces. ETL listing for dry and damp locations, NSF2 certification, and RoHS compliance make the system suitable for regulated healthcare projects and aligned with common approval requirements, including FGI and NYOMH standards.
For facilities seeking a dependable over‑bed lighting solution that supports clinical performance while respecting patient comfort, Certolux Auralux MD2‑AL4 offers a refined and flexible approach to modern medical environments.
- Two function linear pairs provide separate ambient and exam lighting from a coordinated over‑bed configuration
- Narrow 4‑inch recessed design with a frameless diffuse acrylic lens reduces glare and visual clutter
- Independent CCT and CRI selection per function with smooth 0–10V dimming down to 1%
- Antimicrobial powder coat finish with LEDs and drivers serviceable from below the ceiling
- ETL damp‑location listed, NSF2 certified, RoHS compliant, and compatible with low‑voltage bed and nurse call controls
Specifications
Resources
IES
Revit
Technical Information
Product Specifications
Application : Patient Room,Hospitals,Medical
Available Size(s) : 48",72",96"
Brand : CER
CRI : 80+,90+
Certification : ETL Listed,NSF,Damp Location,RoHS Compliant,Maintable
Color Temperature : 3000K,3500K,4000K
Fixture Type : Recessed,Strip
Grade : Specification Grade
Light Source : LED
Lumen Output : 2000-5600,3500-9000
Market : Healthcare
