LED Surface-Mount Wrap-Around Luminaire for Vandal-Prone, High-Traffic Areas

LTRB

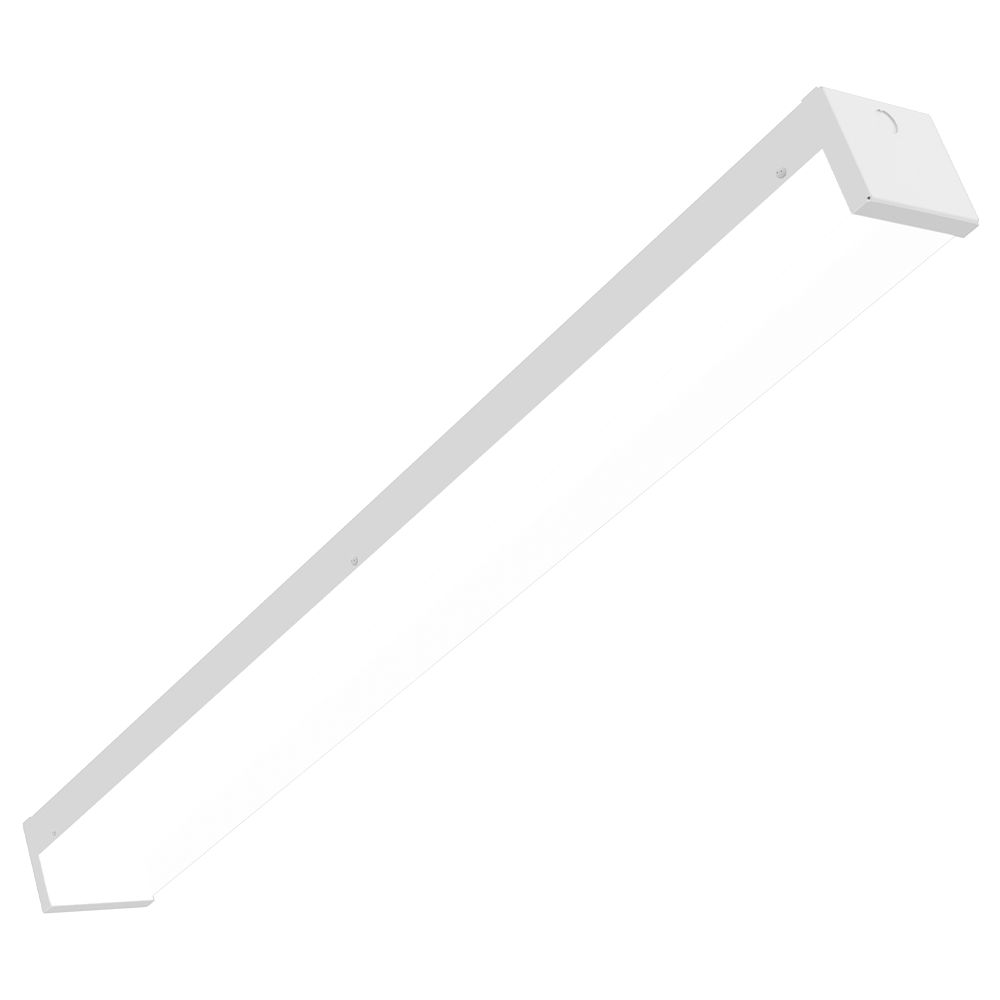

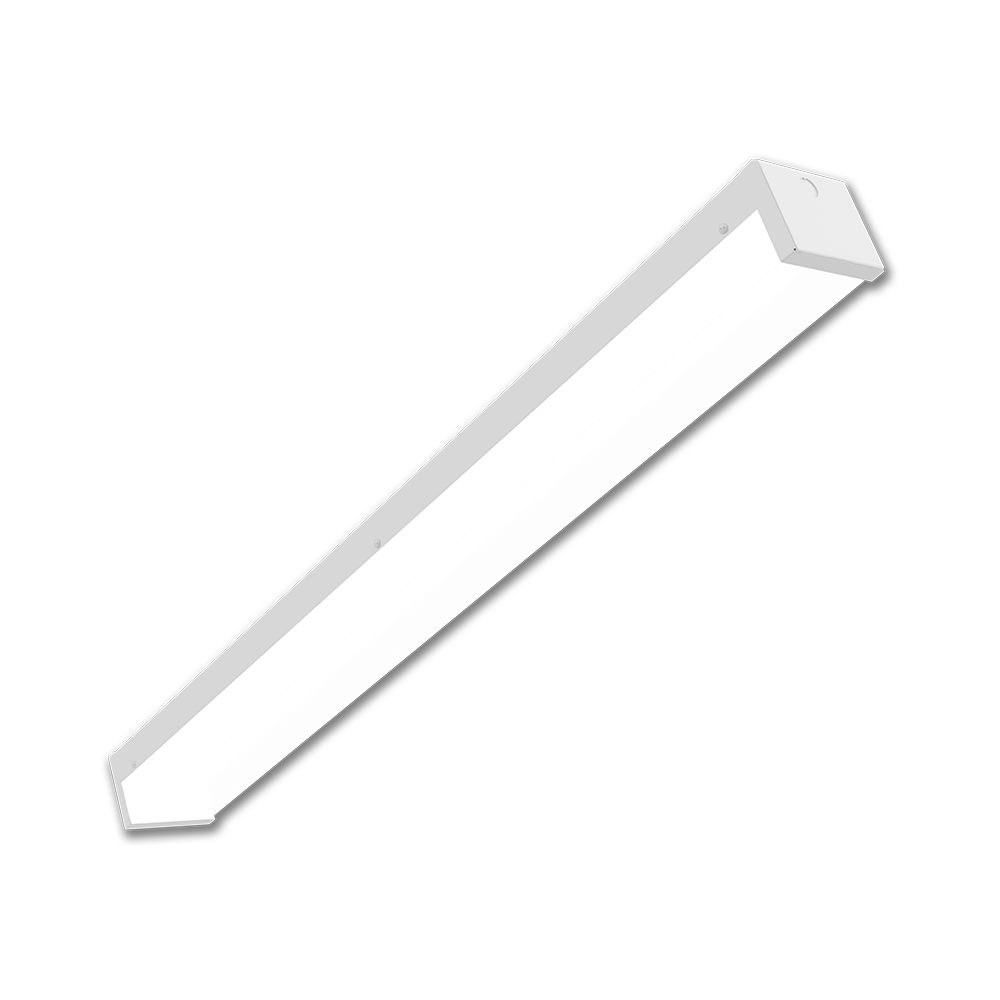

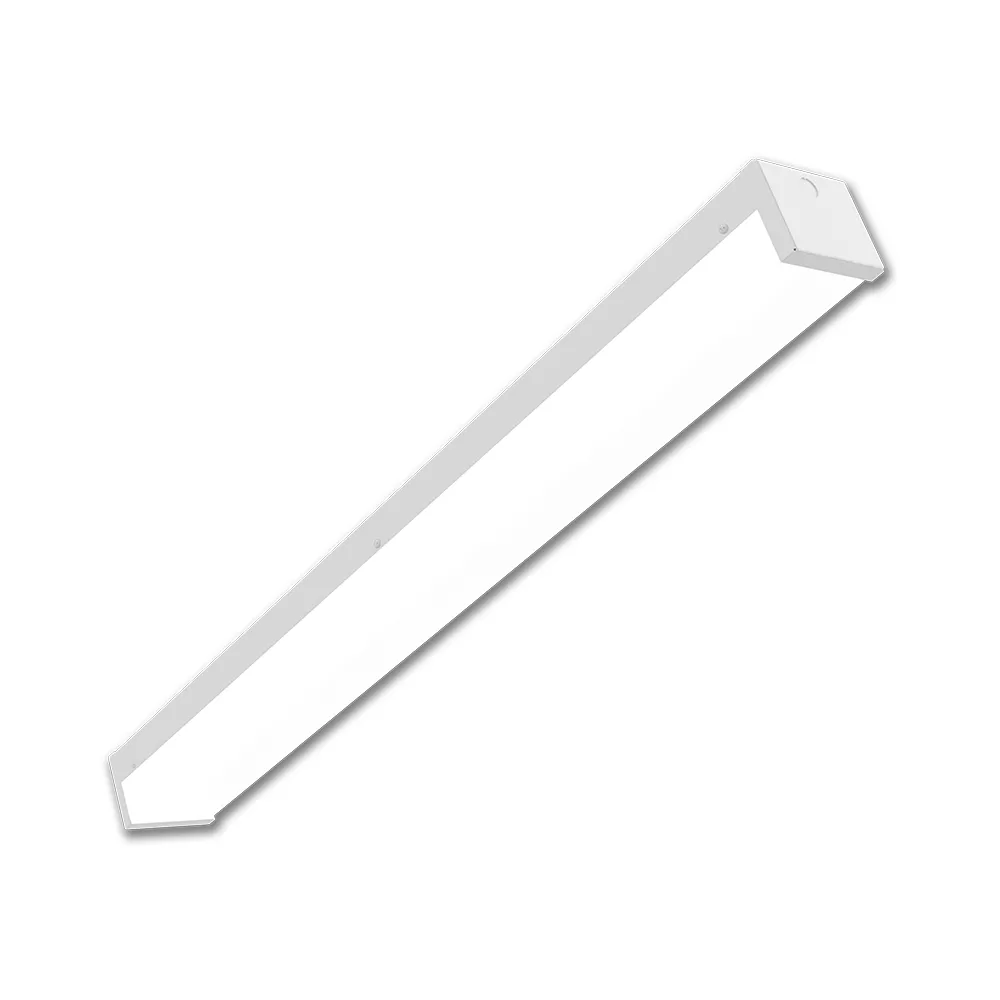

When durability and streamlined installation matter most, the LTRB LED delivers. Designed for demanding environments, this row mounting luminaire combines a narrow profile with rugged construction to meet the needs of public transit areas, walkways, and other high-traffic spaces. Its vandal-resistant design and surface-mount wrap-around form make it a reliable choice for facilities prioritizing safety, longevity, and ease of maintenance.

Built with heavy duty construction, the LTRB features a die-formed 18-gauge steel housing that’s spot-welded for rigidity and a clean, seamless appearance. The clear prismatic polycarbonate diffuser 0.125 inches thick offers both high efficiency and visual comfort, while tamper-resistant fasteners ensure the lens stay secure even in the most challenging environments. This luminaire is engineered for surface mount wrap around applications and is suitable for continuous row installations, thanks to flattened knockouts on the ends for through wiring.

The LTRB is ideal for a wide range of applications including canopies, locker rooms, public housing, and public transit areas. Its vandal resistant features make it especially well-suited for locations where security and durability are non-negotiable. The flush mounting surface eliminates exposed fasteners, reducing tampering risks and enhancing the fixture’s clean aesthetic. With mounting holes provided and compatibility with standard electrical junction boxes, installation is straightforward and efficient.

Performance-wise, the LTRB is equipped with long-life LEDs and high-efficiency drivers that deliver L80 performance beyond 50,000 hours. It supports dimmable 0–10V drivers and is available in multiple lumen packages ranging from 2000 to 3700 lumens—making it adaptable to various lighting needs. The fixture is approved to CSA/UL standards and rated for damp locations, ensuring compliance and reliability in diverse settings.

For added flexibility, the LTRB offers optional emergency lighting battery packs and alternative finishes like black satin. Whether you’re outfitting a transit corridor or a secure facility, this luminaire provides a dependable, low-maintenance solution that stands up to wear, weather, and misuse.

In summary, the LTRB LED is a specification-grade lighting solution that balances form, function, and fortitude. Its row mounting capability, heavy duty construction, and vandal resistant design make it a standout choice for professionals seeking long-term performance in tough environments.

  • Vandal-resistant design: 0.125" thick polycarbonate diffuser with tamper-resistant fasteners ensures durability in high-traffic areas.
  • Heavy-duty steel housing: Spot-welded 18-gauge construction provides rigidity and a clean, seamless appearance.
  • Surface mount wrap-around: Flush mounting with no exposed fasteners supports secure, tamper-proof installation.
  • Row mounting ready: Flattened knockouts on fixture ends allow for continuous row installations and through wiring.
  • High-efficiency performance: Delivers up to 3743 lumens with L80 > 50,000 hours and dimmable 0–10V drivers.
Country of Origin: Canada

Product Information

  • Product Specifications

    Application : Vandal Resistant,Locker Room,Public Spaces,Hallways

    Available Size(s) : 24",48"

    Brand : VIS

    CRI : 80+

    Certification : UL Listed (C/US),Damp Locations

    Color Temperature : 3500K,4000K

    Fixture Type : Surface,Ceiling Mount,Wall Mount,Strip,Wrap,Vandal Resistant

    Grade : Specification Grade

    Light Source : LED

    Lumen Output : 2000,2500-3700

    Market : Commercial,General Area
