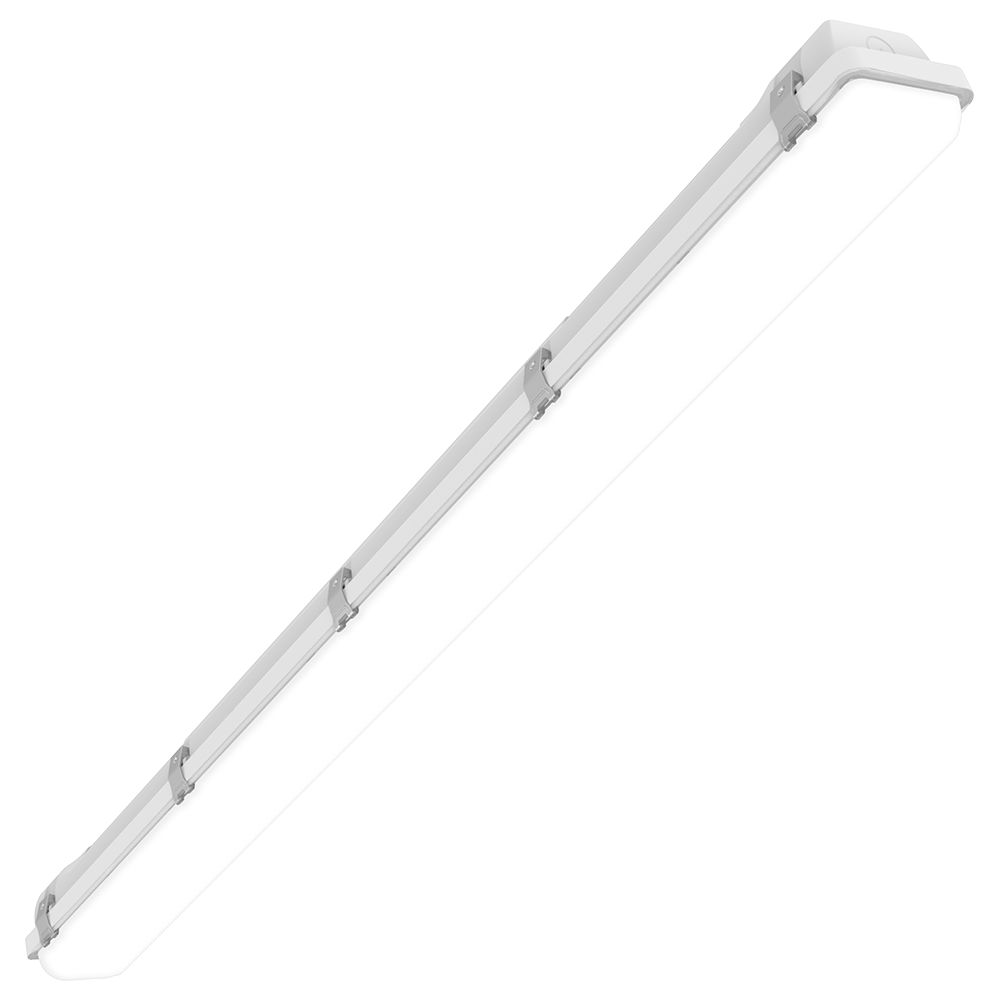

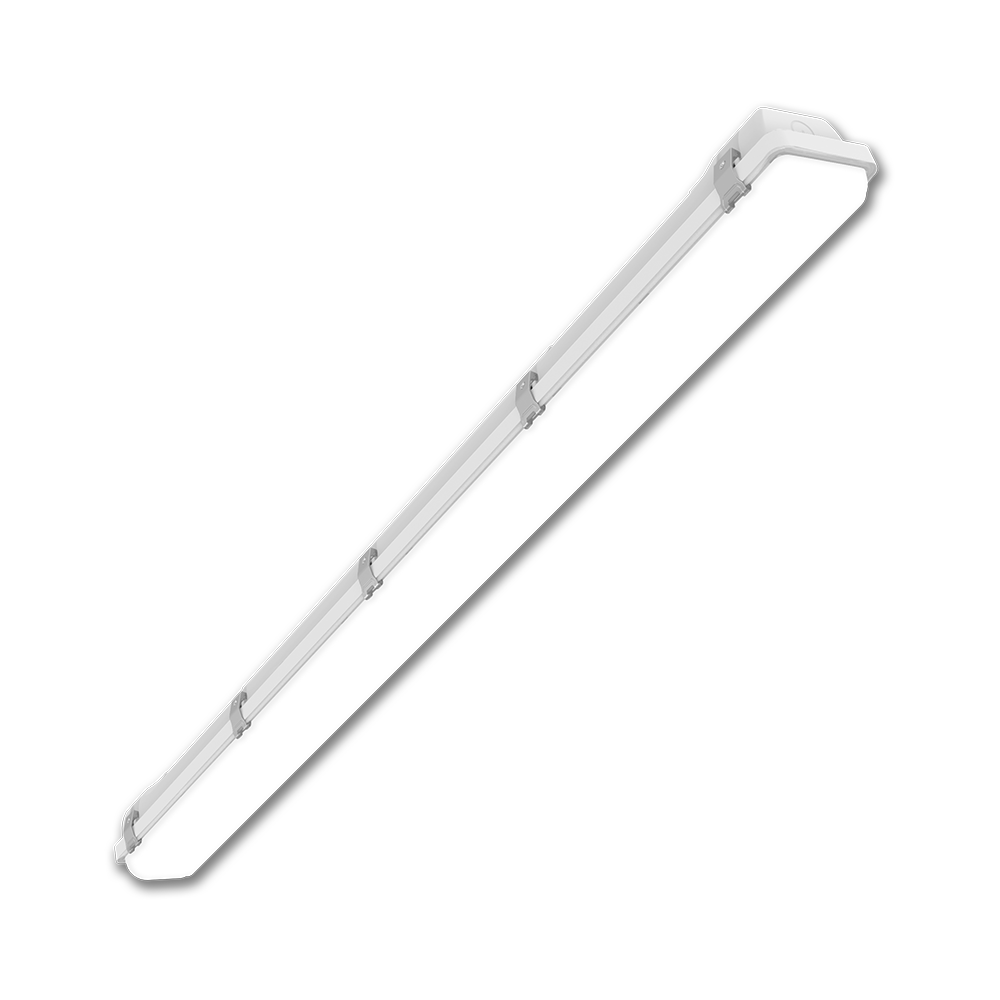

LED - LSVB IP66 Non-Corrosive Linear
LSVB
The LSVB IP66 LED fixture is a rugged, commercial-grade luminaire designed for high-efficiency lighting in wet, dusty, and impact-prone environments. Engineered with a flame-rated polycarbonate housing and lens, this fixture offers superior ingress protection, corrosion resistance, and mechanical durability. Certified to NEMA 4X and IP66 standards, the LSVB is ideal for cold storage facilities, canopies, garages, and workshops where reliability and resilience are essential.
This non-corrosive vapor tight light features a shallow, narrow-profile design and a UV-stabilized frosted polycarbonate diffuser that delivers high-efficiency illumination with reduced glare. The diffuser is sealed with a continuous gasket and secured by stainless steel latches, ensuring long-term protection against water and dust. Mounting options include stainless steel surface brackets, snap-in brackets, and optional V-hooks for chain suspension, allowing for ceiling, wall, or suspended installation.
The LSVB supports lumen packages ranging from 3,000 to 14,000 lumens and achieves efficacy ratings up to 151 lumens per watt. It operates in ambient temperatures as low as -40°C and is rated for L80 performance beyond 60,000 hours. Standard 0–10V dimming is included, and optional features such as emergency battery packs and IP65-rated motion sensors allow for energy-saving automation and compliance with building codes.
Whether you're lighting a wet processing zone or a rugged industrial corridor, this impact resistant LED lighting solution offers the durability, flexibility, and performance required in demanding environments. The fixture is CSA and UL listed, tested to LM-79 standards, and DesignLights Consortium® qualified for select configurations—making it eligible for energy rebate programs.
In summary, the LSVB is a robust wet location linear LED that combines ingress protection, high output, and long-term reliability—making it a trusted choice for professionals seeking sealed lighting solutions in regulated or rugged spaces.
- IP66 & NEMA 4X Rated: Fully sealed enclosure resists dust, water, and corrosion for wet and hazardous locations.
- Non-Corrosive Build: Flame-rated polycarbonate housing and lens offer long-term durability in harsh environments.
- High Efficiency: Delivers up to 14,663 lumens with efficacy up to 151 LPW and L80-rated life over 60,000 hours.
- Flexible Mounting: Supports ceiling, wall, or suspended installation with multiple bracket options.
- Smart Controls: Compatible with 0–10V dimming and optional IP65 motion sensors for energy savings.
Product Information
Product Specifications

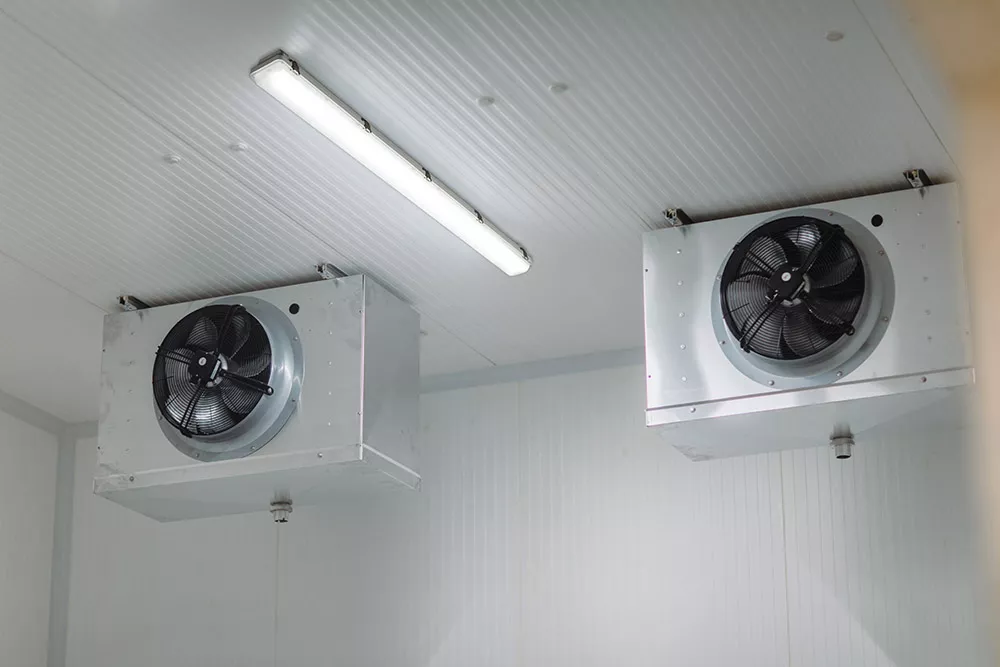

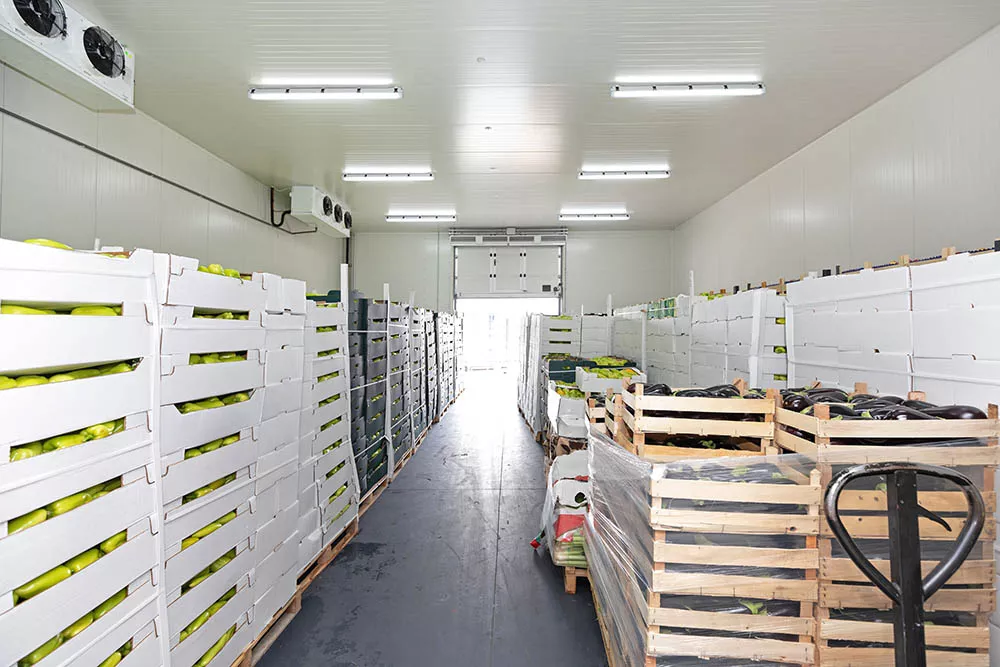

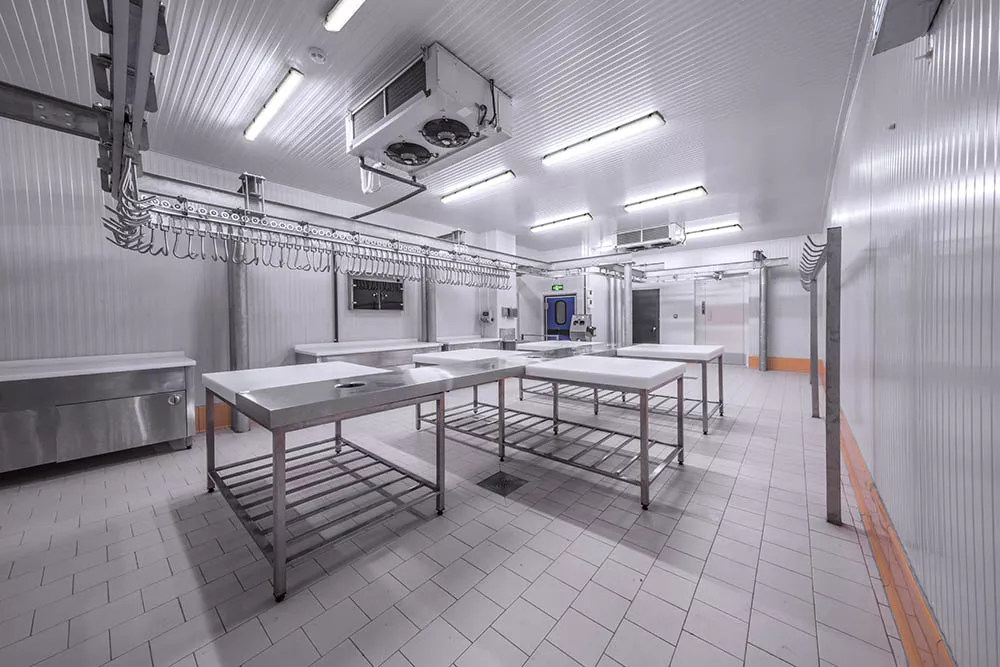

Application : Agriculture,Cold Storage,Wet Location,Dusty, Damp Location,Food Processing,Enclosed Parking Garage,Workshop/Garage
Available Size(s) : 24",48",96"
Brand : VIS
CRI : 80+
Certification : DLC,NSF,NEMA 4X,IP66,Wet Location,IK10UL Listed (C/US),RoHS Compliant
Color Temperature : 3500K,4000K,5000K
Fixture Type : Enclosed & Gasketed,Surface,Suspended,Vapour/Vapor Tight,Weather Resistant,Hazardous Location,Wall Mount
Grade : Commercial Grade
Light Source : LED
Lumen Output : 3500,3000-7000,7000-14000
Market : Dusty, Damp Location,Agriculture,Commercial,Industrial,Wet Location
