LED - Suspended Linear Direct/Indirect Luminaire with Inverted V Notched Housing

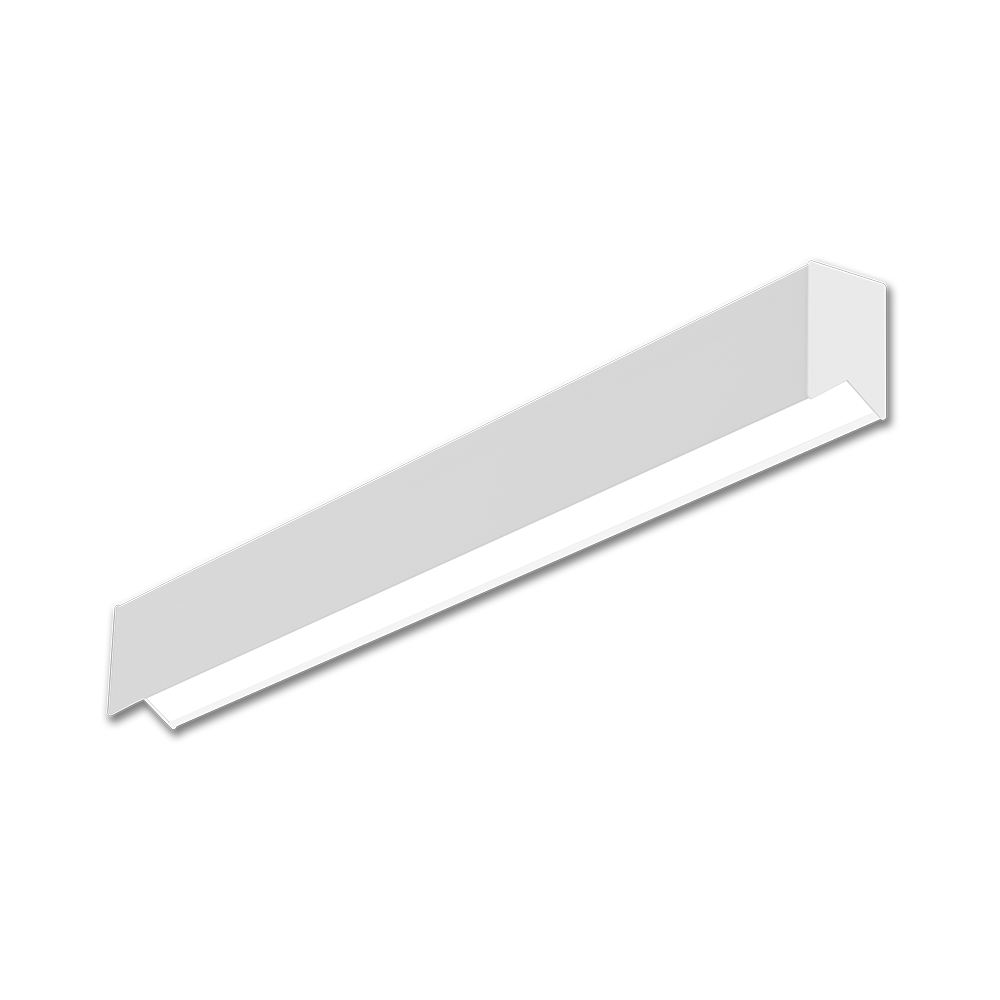

LMEZ 3 - Inverted V Lens

The LMEZ 3 – Inverted V Lens is a high-performance suspended linear luminaire designed to deliver both form and function. Featuring a distinctive Inverted V Lens and notched end-caps, this 3” wide fixture offers a sleek, modern profile ideal for architectural environments. Whether used in direct or direct/indirect configurations, the LMEZ 3 provides efficient, visually comfortable illumination for a wide range of indoor applications.

Built for design flexibility, the LMEZ 3 is available in multiple lengths—24", 48", 72", and 96"—and supports a variety of lumen outputs up to 1000 lumens per foot. Its modular construction allows for stand-alone installations, making it a versatile choice for both new construction and retrofit projects. The luminaire’s tunable white option (2700K–6500K) and compatibility with advanced dimming and control systems further enhance its adaptability to different lighting needs and preferences.

This linear lighting solution is engineered with a die-formed, spot-welded steel housing and a precision-formed frosted diffuser that ensures high efficiency and visual comfort. The fixture is finished in durable white polyester powder coat, with optional finishes in black, silver, or custom RAL colors. Rated for L80 performance beyond 60,000 hours and backed by a 5-year limited warranty, the LMEZ 3 is built to last in demanding environments.

Ideal for architectural and commercial interiors, the LMEZ 3 is ETL listed and suitable for damp locations. It’s a smart choice for classrooms, libraries, office areas, retail stores, and supermarkets. The luminaire supports various mounting options using adjustable aircraft cable kits, and emergency battery pack configurations are also available. With its clean lines, customizable features, and reliable performance, the LMEZ 3 brings both aesthetic appeal and practical lighting to any space.

Whether you're designing a collaborative workspace or upgrading retail lighting, the LMEZ 3 offers the performance and style to meet your goals. Its thoughtful engineering and modern design make it a standout solution in the linear lighting category.

  • Distinctive Inverted V Lens design with notched end-caps enhances visual appeal and light distribution.
  • Flexible configurations with lengths from 24” to 96” and outputs up to 1000 lumens per foot.
  • Tunable white (2700K–6500K) and 0–10V dimming support dynamic lighting environments.
  • Durable construction with die-formed steel housing and frosted diffuser for efficiency and comfort.
  • Ideal for architectural spaces, including offices, classrooms, and retail, with ETL listing for damp locations.
Country of Origin: Canada

Product Information

  • Product Specifications

    Application : Boardroom,Cafeteria,Corridor,Classroom,Hospitality,Hospitals,Library,Lobbies,Nursing Homes,Office,Restaurant,Retail Store,Showroom,Supermarket,Showroom

    Available Size(s) : 24",48",72",96"

    Brand : VIS

    CRI : 80+,90+

    Certification : ETL Listed,Suitable for Damp Location,RoHS Compliant

    Color Temperature : 3000K,3500K,4000K,5000K,2765KT

    Fixture Type : Suspended,Linear,Direct/Indirect,Architectural,Bi-directional

    Grade : Premium Grade

    Light Source : LED

    Lumen Output : 280-600,400-1000

    Market : General Area,Education,Commercial
