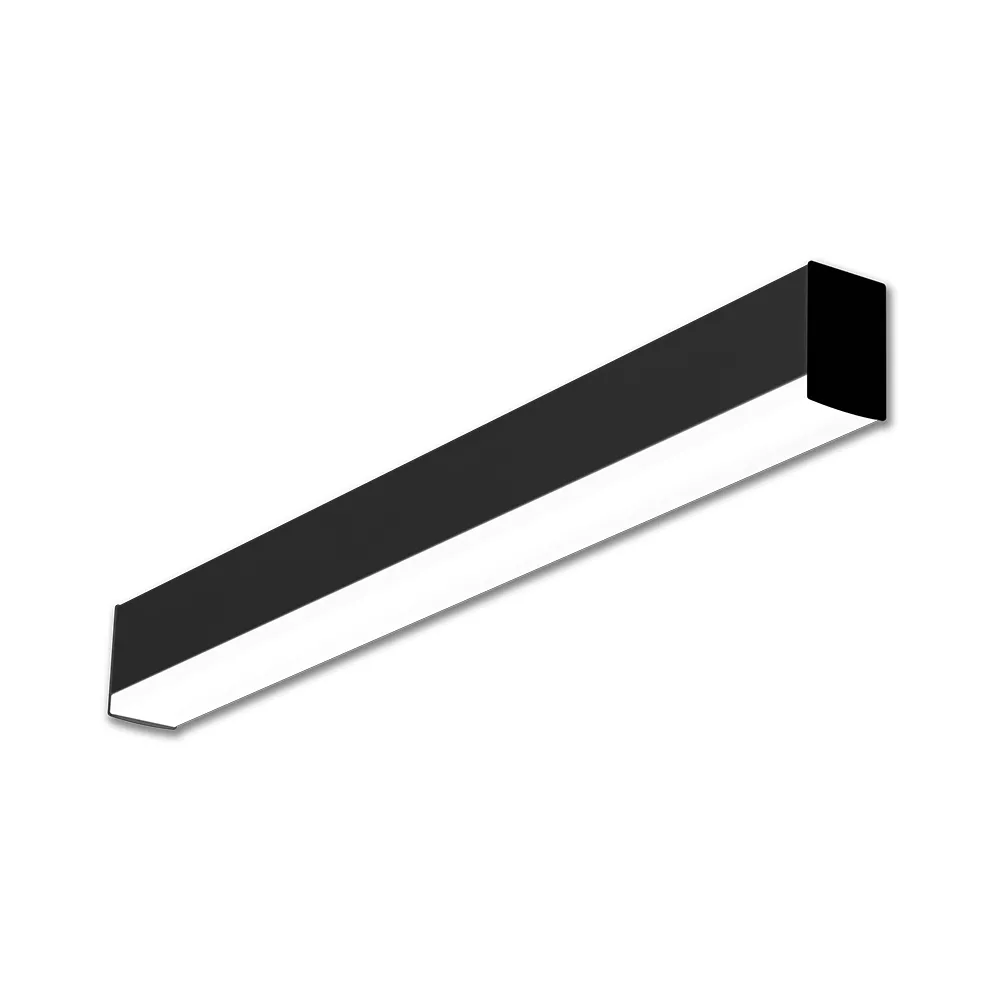

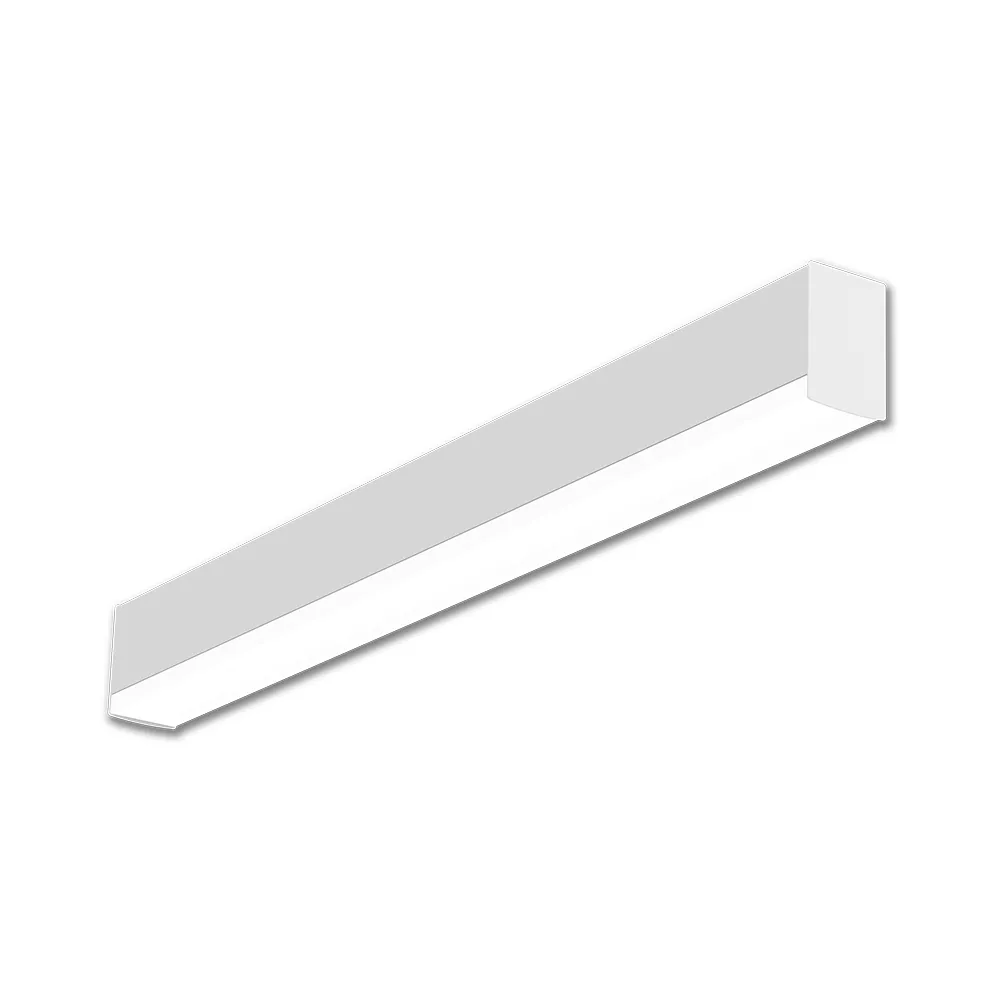

LED - 3" Direct ceiling or Wall-Mounted Architectural Linear with Drop Lens
LMEZ 3 Drop Lens Direct
Precision-engineered for modern interiors, the LMEZ-3 Drop Lens LED luminaire delivers high-performance linear lighting in a sleek 3” profile. Designed for surface mounting on ceilings or walls, this architectural fixture is ideal for continuous row mounting in commercial and retail environments. Whether you're illuminating a classroom, office, or supermarket aisle, the LMEZ-3 offers a refined lighting solution with visual comfort and clean aesthetics.
Built for versatility, the LMEZ-3 supports both stand-alone and continuous configurations, making it a go-to choice for designers seeking seamless linear lighting. Its drop lens option (P95) enhances light distribution while maintaining a minimalist appearance. The fixture is available in lengths from 24” to 96”, with lumen outputs ranging from 400 to 1500 lumens per foot. Tunable white options (2700K–6500K) and high CRI ratings (80+ and 90+) ensure accurate color rendering and adaptable ambiance. The integrated row mounting system features three points of contact for secure alignment and light-leak control—critical for architectural installations requiring precision and consistency.
Installation is straightforward: ceiling configurations use a direct surface-mount approach with a two-piece junction box cover for a clean finish, while wall setups include a secure bracket system. The die-formed steel housing is powder-coated in white as standard, with optional finishes in black, silver, or custom RAL colors. The frosted acrylic lay-in diffuser provides high efficiency and visual comfort, while optional straight blade louvers and regressed or drop lenses offer further customization.
Electrical performance is equally robust. Long-life LEDs paired with high-efficiency drivers deliver L80 performance beyond 60,000 hours. The fixture supports standard 0–10V dimming and is compatible with advanced wireless controls. Emergency lighting options include 10W and 20W battery packs, cold-weather variants, and self-testing models. The LMEZ-3 is ETL listed and rated for damp locations, ensuring reliability across a range of indoor environments.
Whether you're designing a retail space or upgrading office lighting, the LMEZ-3 combines form, function, and flexibility. Its architectural appeal, drop lens performance, and row mounting capability make it a standout choice for professionals seeking dependable linear lighting.
- Drop Lens Option (P95): Enhances light distribution while maintaining a clean, modern aesthetic—ideal for architectural applications.
- Row Mounting System: Integrated joiners with three-point contact ensure precise alignment and eliminate light leaks in continuous installations.
- Flexible Configurations: Available in stand-alone or modular row setups, with lengths from 24” to 96” and lumen outputs up to 1500 lm/ft.
- Tunable White & High CRI: Offers 2700K–6500K color tuning and 80+ or 90+ CRI for accurate color rendering and adaptable ambiance.
- Damp Location Rated: ETL listed and built with die-formed steel housing, suitable for classrooms, offices, and retail environments.
Product Information
Product Specifications
Application : Boardroom,Cafeteria,Corridor,Classroom,Hospitality,Hospitals,Library,Lobbies,Nursing Homes,Office,Restaurant,Retail Store,Showroom,Supermarket,Showroom
Available Size(s) : 24",48",72",96"
Brand : VIS
CRI : 80+,90+
Certification : ETL Listed,Suitable for Damp Location,RoHS Compliant
Color Temperature : 3000K,3500K,4000K,5000K,2765KT
Fixture Type : Wall Mount,Ceiling Mount,Linear,Direct,Architectural
Grade : Premium Grade
Light Source : LED
Lumen Output : 400-1500
Market : General Area,Education,Commercial
