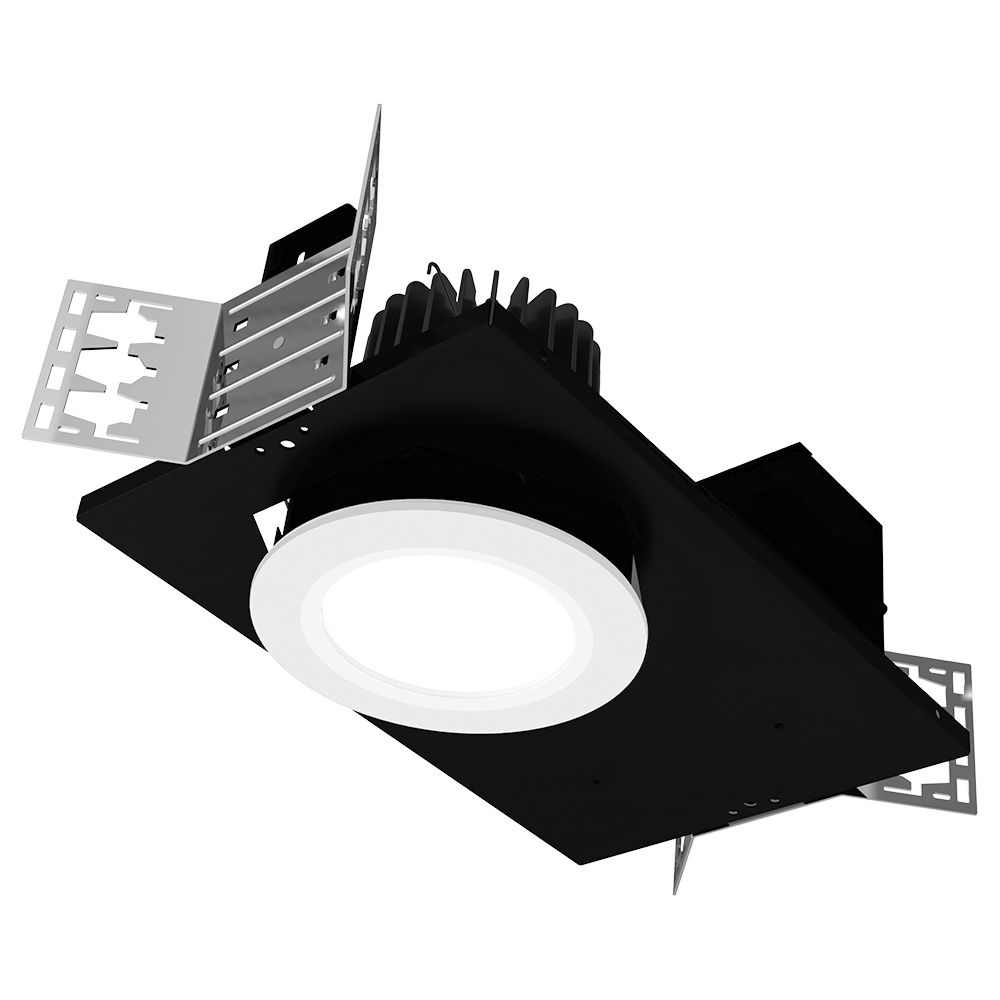

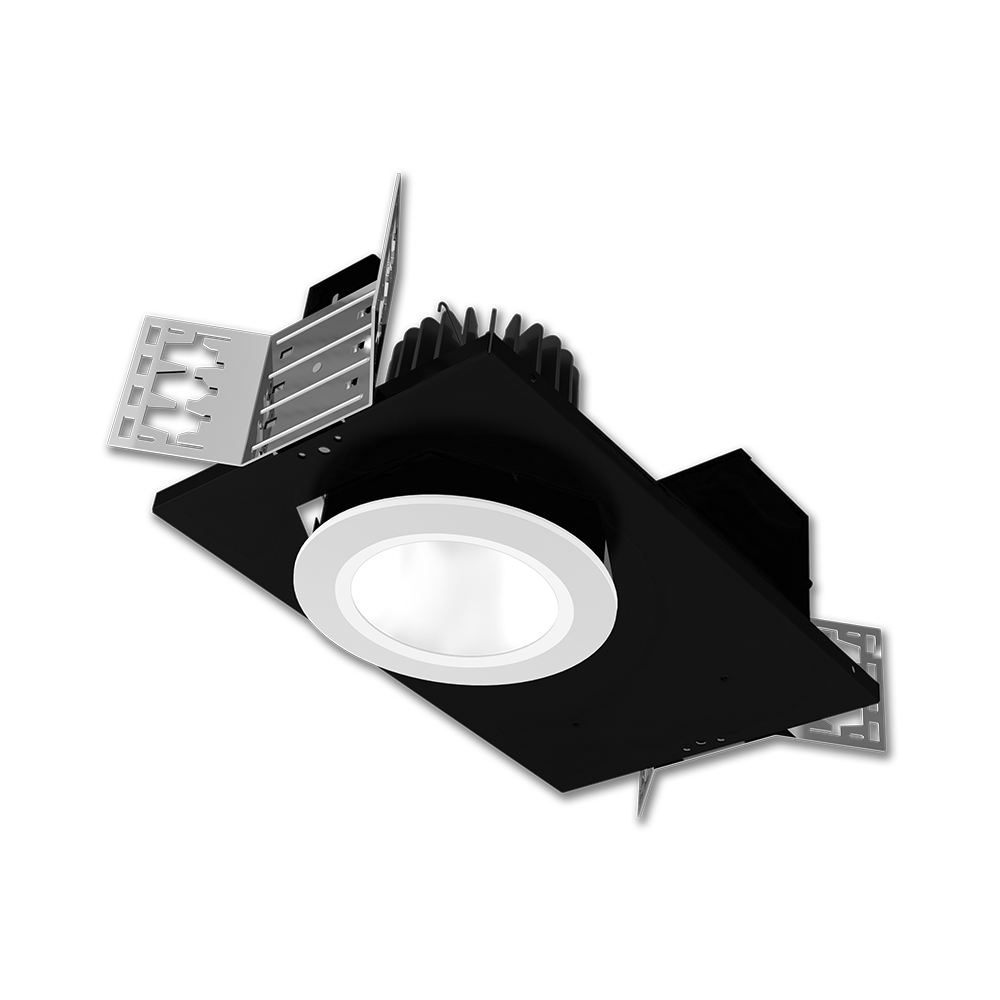

LED - Cleanroom 4” Downlight Luminaire

CRD-4

When precision lighting matters most, the Certolux CRD-4 (4-inch) Cleanroom Downlight delivers unmatched performance with dimming capabilities down to 1%. Engineered for environments where contamination control is critical, this luminaire is ideal for cleanrooms rated ISO 3–9 and BSL 1–3. Its sealed optical assembly and flush lens design ensure a smooth, cleanable surface that supports sterile conditions, making it a top choice for labs, pharmaceutical facilities, and controlled environments.

Designed specifically for cleanroom lighting applications, the CRD-4 integrates a factory-sealed COB LED engine that’s field-replaceable and serviceable from below. It offers a wide range of color temperatures (2700K–5000K) and CRI options up to 97+, including high R9 values for enhanced color rendering, critical for tasks requiring visual accuracy. The luminaire supports full-range dimming to 1% via a 0–10V protocol, with optional DALI drivers available. Its high efficacy (up to 97 lm/W) and long lifespan (L70 > 60,000 hrs) ensure reliable, energy-efficient performance.

What sets the CRD-4 apart is its antimicrobial finished trims, available in gloss or matte white polyester powder coating. These finishes help inhibit microbial growth, supporting hygiene protocols in sensitive environments. The trim is secured with EPDM closed-cell gaskets that seal the lens and reflector, preventing air leakage and contamination. Installation is flexible, with compatibility for grid, drywall, and cleanroom panel ceilings up to 2.5” thick. The adjustable plaster ring allows for vertical alignment post-installation, simplifying setup in varied ceiling types.

The CRD-4 is certified for wet locations and NSF2 splash zones, with ingress protection rated at IP65. It meets EU GMP Grade A standards and is available in multiple lumen packages (1000–5100 lm), making it adaptable to a wide range of cleanroom lighting needs. Whether you're outfitting a surgical suite or a pharmaceutical lab, this downlight offers the performance, flexibility, and compliance required for demanding environments.

With its robust construction, sealed optics, and advanced dimming capabilities, the CRD-4 downlight is more than just illumination, it’s a cleanroom lighting solution designed to meet the highest standards of safety, efficiency, and visual clarity.

  • Dimming to 1%: Offers precise light control with standard 0–10V dimming and optional DALI drivers.
  • Antimicrobial Finished Trims: Gloss or matte white powder-coated finishes inhibit microbial growth for enhanced hygiene.
  • Cleanroom Certified: Rated ISO 3–9, BSL 1–3, IP65, and NSF2 splash zone certified for sterile environments.
  • High CRI Options: Up to 97+ CRI with strong R9 values for accurate color rendering in clinical and lab settings.
  • Flexible Installation: Compatible with grid, drywall, and cleanroom panel ceilings; adjustable plaster ring supports up to 2.5” thickness.
Country of Origin: Canada

Product Information

  • Product Specifications

    Application : Hospitals,Cleanroom,Laboratory

    Available Size(s) : 4"

    Brand : CER

    CRI : 80+ , 90+ , 97+

    Certification : UL/ETL listed,Wet locations,NSF2,ISO3-9,BSL1-3,EU GMP Grade A

    Color Temperature : 2700K,3000K,3500K,4000K,5000K

    Fixture Type : Recessed

    Grade : Specification Grade

    Light Source : LED

    Lumen Output : 1000-5000

    Market : Healthcare,Cleanroom,Hospitals
