LED - Architectural Recessed Troffer with Rounded Corners Regressed Lens
ALTO - Rounded Corners
The ALTO - Rounded Corners LED recessed light fixture is designed to elevate architectural spaces with a sleek, modern profile and a 1.25” regressed aperture that enhances visual comfort. Engineered for T-Bar ceiling applications, this luminaire delivers fully luminous, even illumination through a frosted diffuser that’s recessed into the housing. Its rounded-corner aperture softens the visual impact, making it ideal for environments where aesthetics and performance matter equally.
Perfect for offices, classrooms, healthcare facilities, and hospitality settings, the ALTO combines form and function with high-efficiency LED technology. Its aperture with rounded corners not only contributes to a refined look but also improves light distribution, reducing glare and enhancing occupant comfort. Available in 1x4, 2x2, and 2x4 sizes, the fixture supports a wide range of lumen packages from 2000 to 7000 lumens making it adaptable to various ceiling heights and lighting needs. The regressed lens design increases optical cut-off, minimizing direct view of the light source and creating a soft, inviting glow across the space.
This recessed light fixture is built with a die-formed, cold-rolled steel housing and finished in white polyester powder paint for durability and clean aesthetics. It includes standard low-voltage dimming (0–10V, 1%) and is compatible with insulated ceilings. Optional features such as emergency battery packs, wireless controls, and tunable white configurations further enhance its versatility. The ALTO is ETL listed, RoHS compliant, and tested to IESNA LM-79 standards, ensuring reliable performance and safety. With a rated L80 lifespan of over 60,000 hours and a 5-year limited warranty, it’s a long-term solution for demanding commercial environments.
As part of a broader portfolio of architectural LED lighting, the ALTO stands out for its thoughtful design and robust engineering. Whether you're upgrading an existing space or specifying for new construction, this fixture offers a balance of energy efficiency, visual comfort, and architectural appeal. Its rounded corners and regressed lens are more than aesthetic choices, they’re functional enhancements that contribute to better lighting outcomes.
If you're seeking a recessed troffer that blends seamlessly into modern interiors while delivering high-performance illumination, the ALTO - Rounded Corners is a smart, reliable choice. Its combination of advanced optics, flexible configurations, and clean design makes it a standout in the architectural lighting category.
- 1.25” regressed lens enhances optical cut-off and reduces glare for improved visual comfort.
- Rounded-corner aperture delivers soft, even illumination with a modern architectural touch.
- Available in 1x4, 2x2, and 2x4 sizes with lumen outputs ranging from 2000 to 7000.
- Compatible with emergency battery packs, wireless controls, and tunable white options.
- Constructed from heavy-gauge steel with a white powder-coated finish for durability and clean aesthetics.
Product Information
Product Specifications
Application : Office,Retail Store,Classroom,Hospitals,Nursing Homes,Hospitality

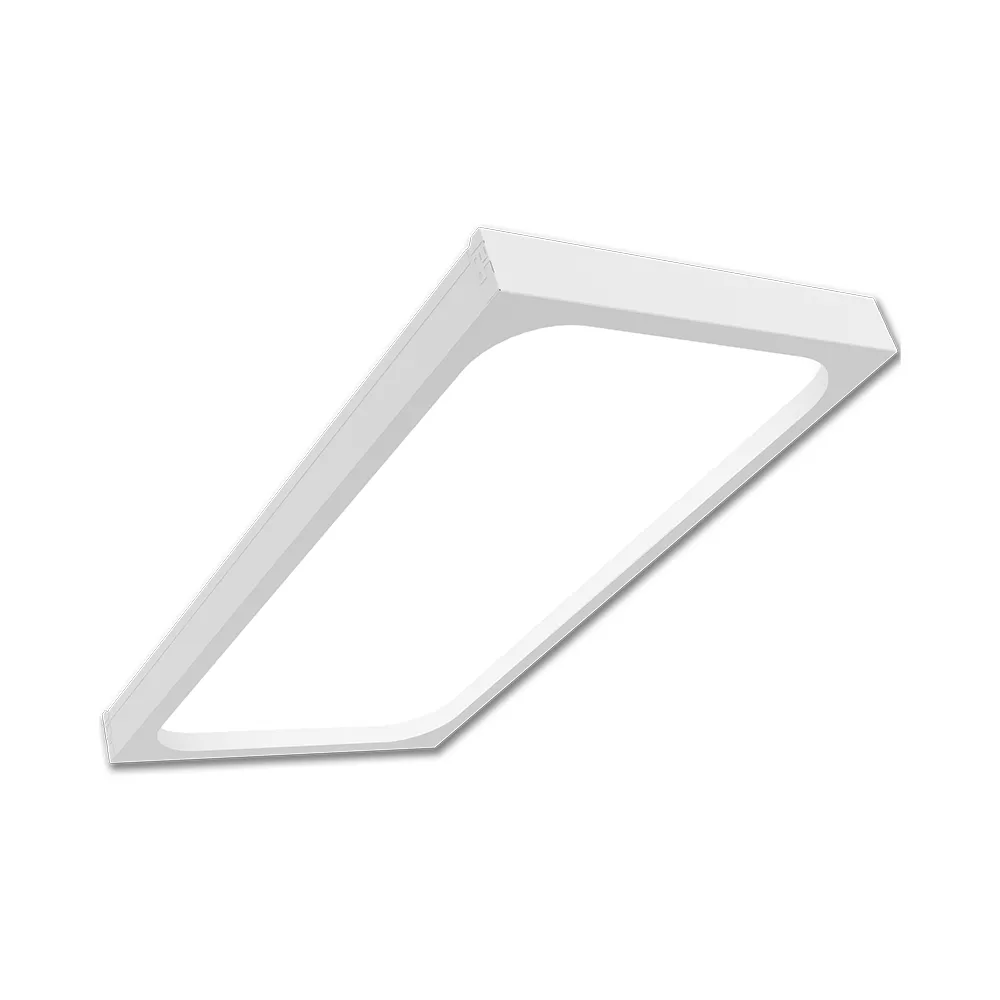

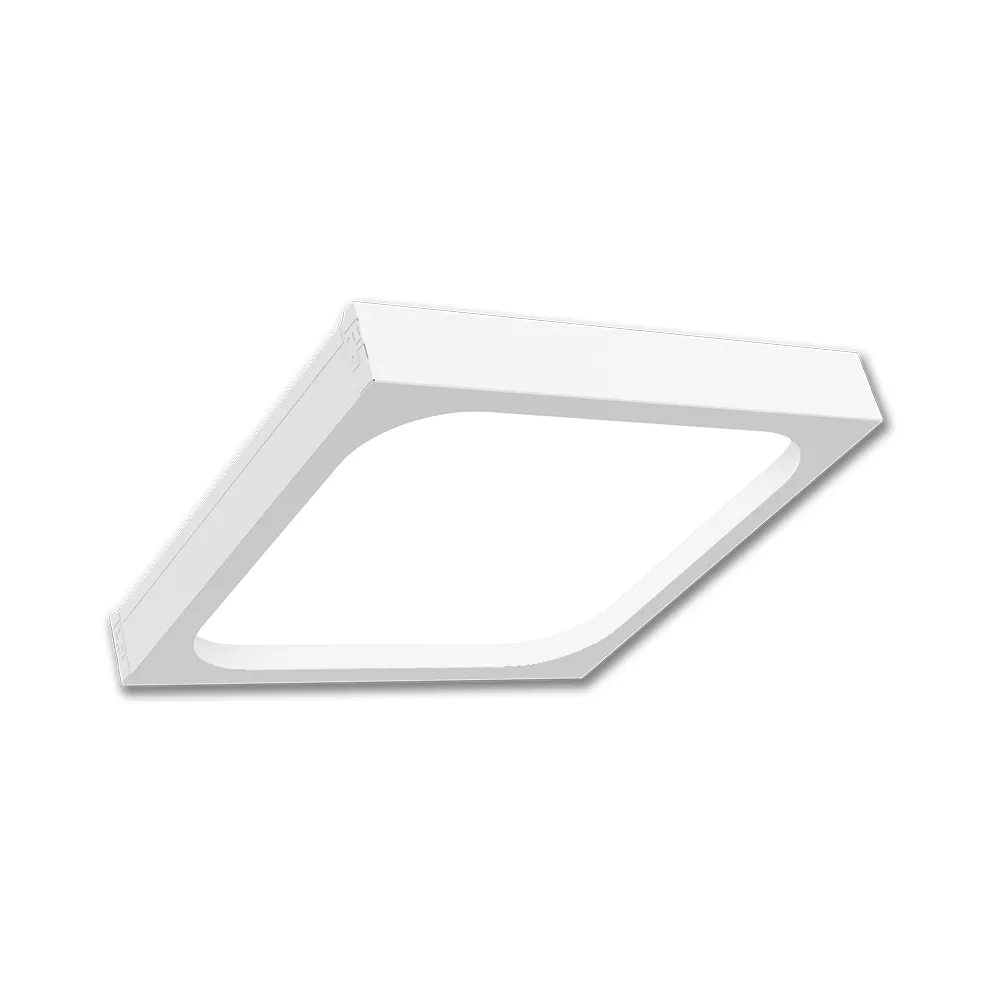

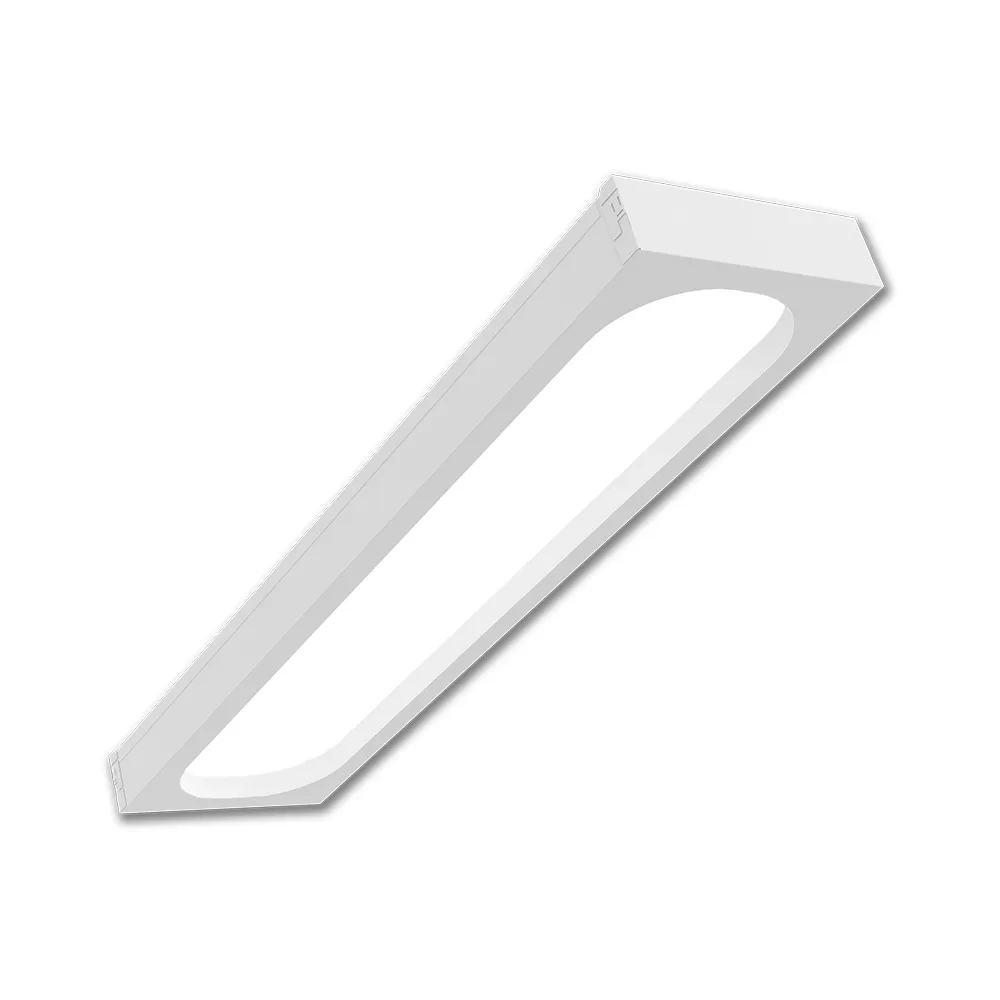

Available Size(s) : 1x4,2x2,2x4
Brand : VIS
CRI : 80+,90+
Certification : ETL Listed,Suitable for Damp Locations,ROHS Compliant, Tested in accordance to IESNA LM-79
Color Temperature : 3000K,3500K,4000K,5000K,2765KT
Fixture Type : Architectural,Recessed,Troffer
Grade : Premium Grade
Light Source : LED
Lumen Output : 2000-4000,2400-5000,3600-7000
Market : Commercial,Education,Healthcare
Related Videos
Visioneering's ALTO | Architectural Recessed Troffer with Regressed lens
