LED - Architectural Suspended Luminaire with Square Corners

ALTO Pendant - Square Corners

1.25” regressed aperture defines the visual experience of the ALTO Pendant – Square Corners, a modern suspended light fixture designed to deliver refined illumination across architectural environments. Built for visual comfort and consistency, this fixture features a fully luminous design paired with a regressed lens that softens brightness while maintaining output. The result is a clean, professional lighting solution that integrates seamlessly into commercial and institutional spaces where performance and aesthetics must work together.

The ALTO Pendant – Square Corners is engineered for high-performance architectural LED lighting, combining efficiency with a minimalist aesthetic. Its defining features an aperture with square corners that creates a structured, contemporary visual profile that aligns with modern interior design trends. The frosted single-piece diffuser, recessed within the housing, ensures even illumination with reduced glare, making it suitable for offices, classrooms, healthcare facilities, retail environments, and hospitality settings. Available in multiple configurations including 1x4, 2x2, and 2x4, the fixture adapts easily to varying ceiling layouts and spatial requirements.

Performance is driven by long-life LEDs paired with high-efficiency drivers, delivering consistent illumination while supporting energy-conscious design strategies. The system offers lumen packages ranging from 2000 to 7000 lumens depending on size, with efficacy reaching up to 140 lumens per watt. With an L80 rating exceeding 60,000 hours, this fixture supports long-term reliability with minimal maintenance. Standard 0–10V dimming allows smooth control down to 1%, while optional DALI and wireless control integrations provide flexibility for advanced lighting systems. Tunable white capabilities further enhance adaptability, allowing users to adjust color temperatures from 3000K to 5000K or select dynamic ranges for evolving environments.

Constructed from die-formed, cold-rolled steel and finished with a durable powder coating, the ALTO Pendant – Square Corners is built for durability without compromising appearance. The adjustable aircraft cable mounting system ensures precise installation and alignment, while integrated wiring access simplifies setup. Additional options such as emergency battery packs, high CRI outputs (80 or 90 CRI), and multiple finish selections support customization across projects. Certifications including ETL listing, IESNA testing, and suitability for damp locations ensure compliance with industry standards and building requirements.

The ALTO Pendant – Square Corners delivers a balance of visual comfort, efficiency, and modern design that makes it a reliable choice for specifiers and designers. Its clean geometry, advanced LED performance, and adaptable configurations position it as a practical solution for projects requiring both form and function in a suspended luminaire.

  • Features a 1.25” regressed aperture with a frosted diffuser to minimize glare and deliver smooth, uniform illumination.
  • Offers multiple sizes (1x4, 2x2, 2x4) with lumen outputs ranging from 2000 to 7000 for flexible application coverage.
  • Supports standard 0–10V dimming with optional DALI and wireless controls for enhanced lighting management.
  • Built with durable steel housing and a powder-coated finish, ensuring long-term performance in commercial environments.
  • Certified for dry and damp locations and backed by a 5-year warranty, meeting key industry and safety standards.
Country of Origin: Canada

Specifications

IES

Revit

Resources

Technical Information

  • Product Specifications

    Application : Office,Boardroom,Retail Store,Hospitality,Lobbies

    Available Size(s) : 1x4,2x2,2x4

    Brand : VIS

    CRI : 80+,90+

    Certification : ETL Listed,Suitable for Damp Locations,ROHS Compliant, Tested in accordance to IESNA LM-79

    Color Temperature : 3000K,3500K,4000K,5000K,2765KT

    Fixture Type : Architectural,Suspended,Troffer

    Grade : Premium Grade

    Light Source : LED

    Lumen Output : 2000-7000

    Market : Commercial

Related Products

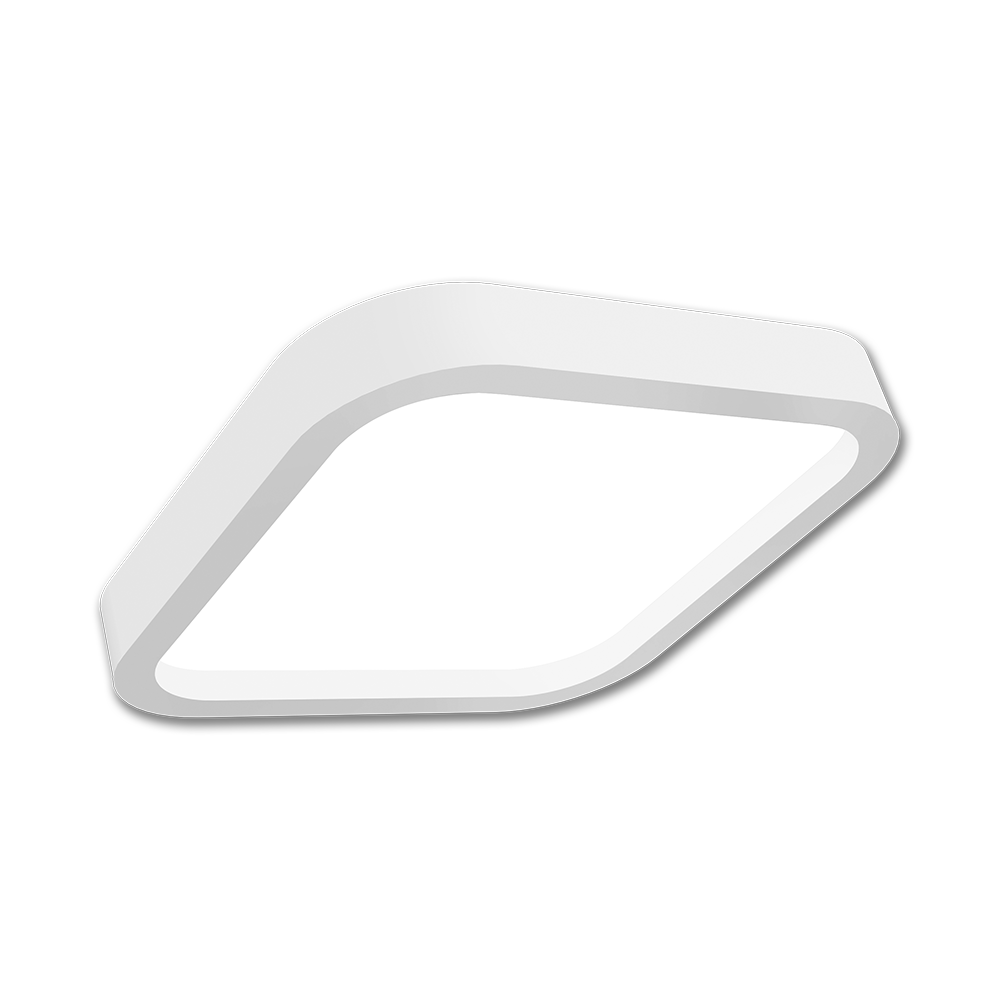

Product image for LED - Architectural Suspended Luminaire with Rounded Corners
