The North Dynamic

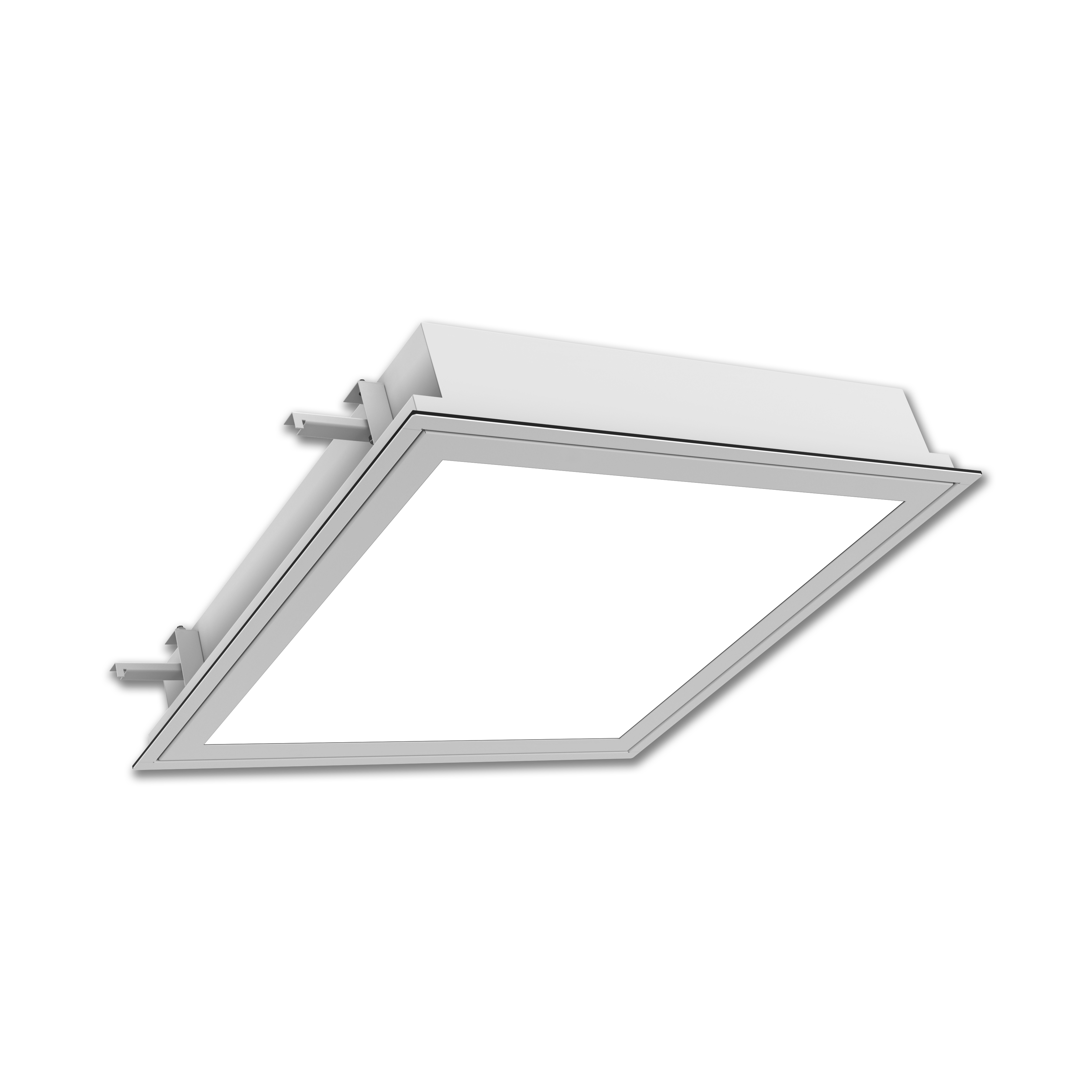

Recessed Cleanroom Luminaire with SureCloseTM Inset Door Frame

The CRUiQ LED cleanroom luminaire with SureClose™ technology is designed for environments where precision and cleanliness are non-negotiable. Featuring a screwless fixture mechanism, this innovative design eliminates the need for traditional fasteners, reducing contamination risks and simplifying installation. The SureClose™ door uses mechanical leverage to create a consistently tight seal, ensuring compliance with ISO3–8 cleanroom standards and IP65 protection. This fixture is ideal for facilities demanding reliability, easy maintenance, and superior sealing performance.

Features:
  • Fully luminous aperture
  • Even illumination
  • 1.25” Regressed lens increased optical cut-off
  • Standard low voltage dimming (0-10v, 1%)
  • Applicable for use in insulated ceilings

Options:

  • Aperture with rounded corners, square corners or circular
  • Rounded corners also available for patient rooms

Technical Information:

  • Size: 1x1, 1x4, 2x2, 2x4
  • CRI: 80+, 90+
  • CCT: 3000K, 3500K, 4000K, 5000K, Tunable White (2765KT)
  • Lumen Output: 2000-7000
  • Certifications: ETL Listed, Dry & Damp Location, RoHS Compliant
