ALTO

Architectural Recessed Troffer with Regressed Lens

The ALTO LED recessed lighting series is engineered for modern architectural spaces that demand high visual comfort, clean aesthetics, and dependable performance. Designed with advanced LED technology and available in rounded‑corner, circular, and square‑corner aperture styles, the ALTO delivers a refined luminous experience across commercial environments including offices, classrooms, healthcare facilities, and hospitality spaces.

Features:
  • Fully luminous aperture
  • Even illumination
  • 1.25” Regressed lens increased optical cut-off
  • Standard low voltage dimming (0-10v, 1%)
  • Applicable for use in insulated ceilings

Options:

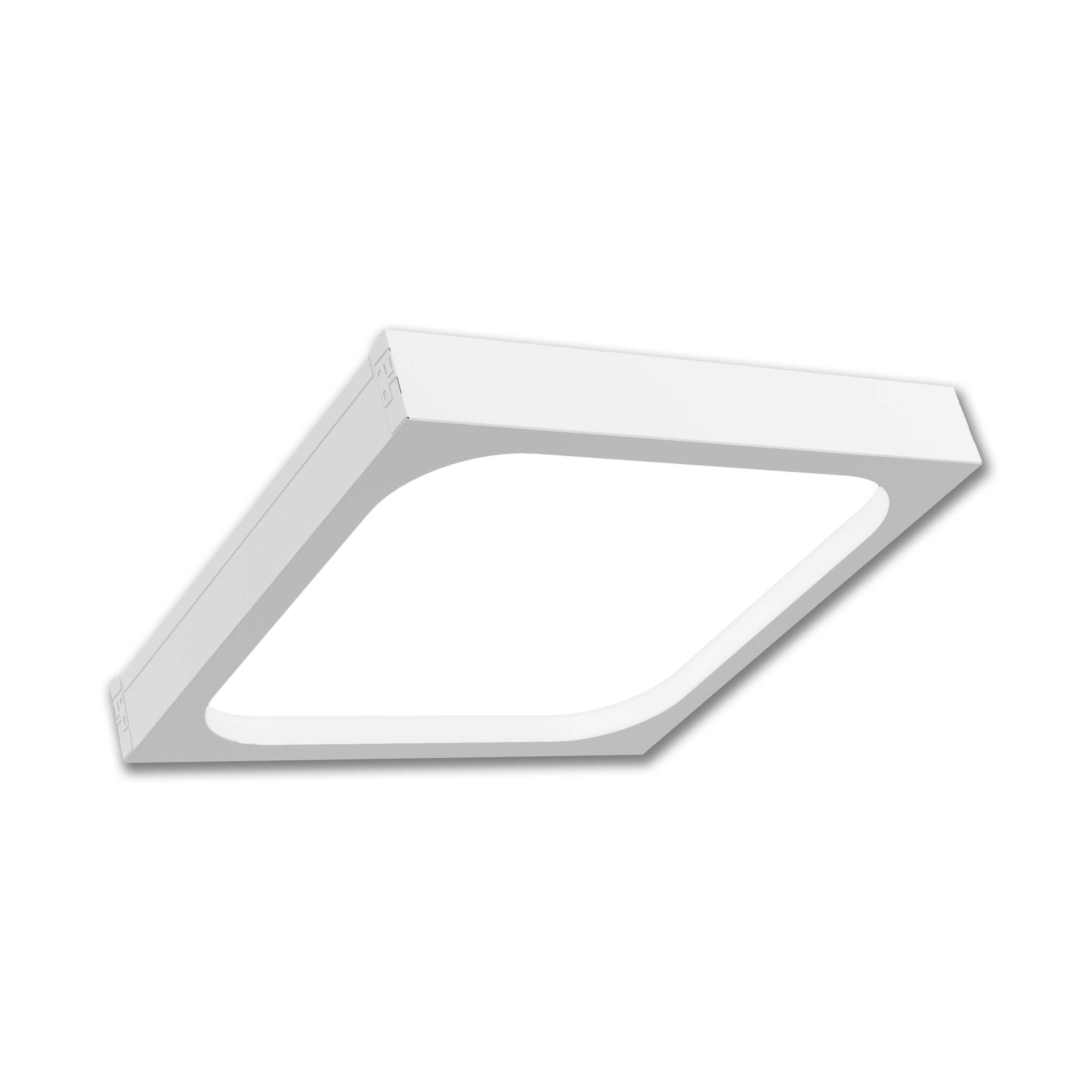

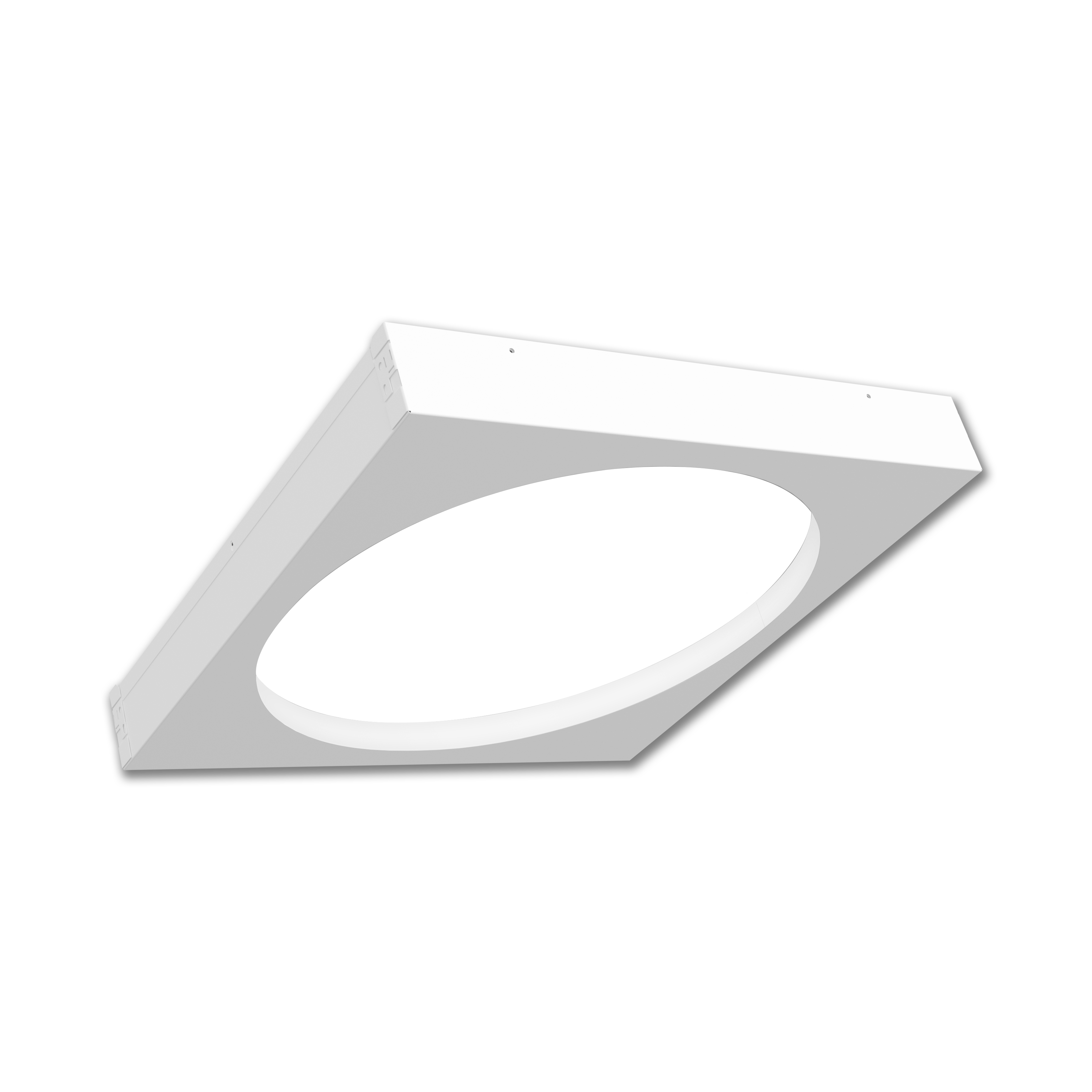

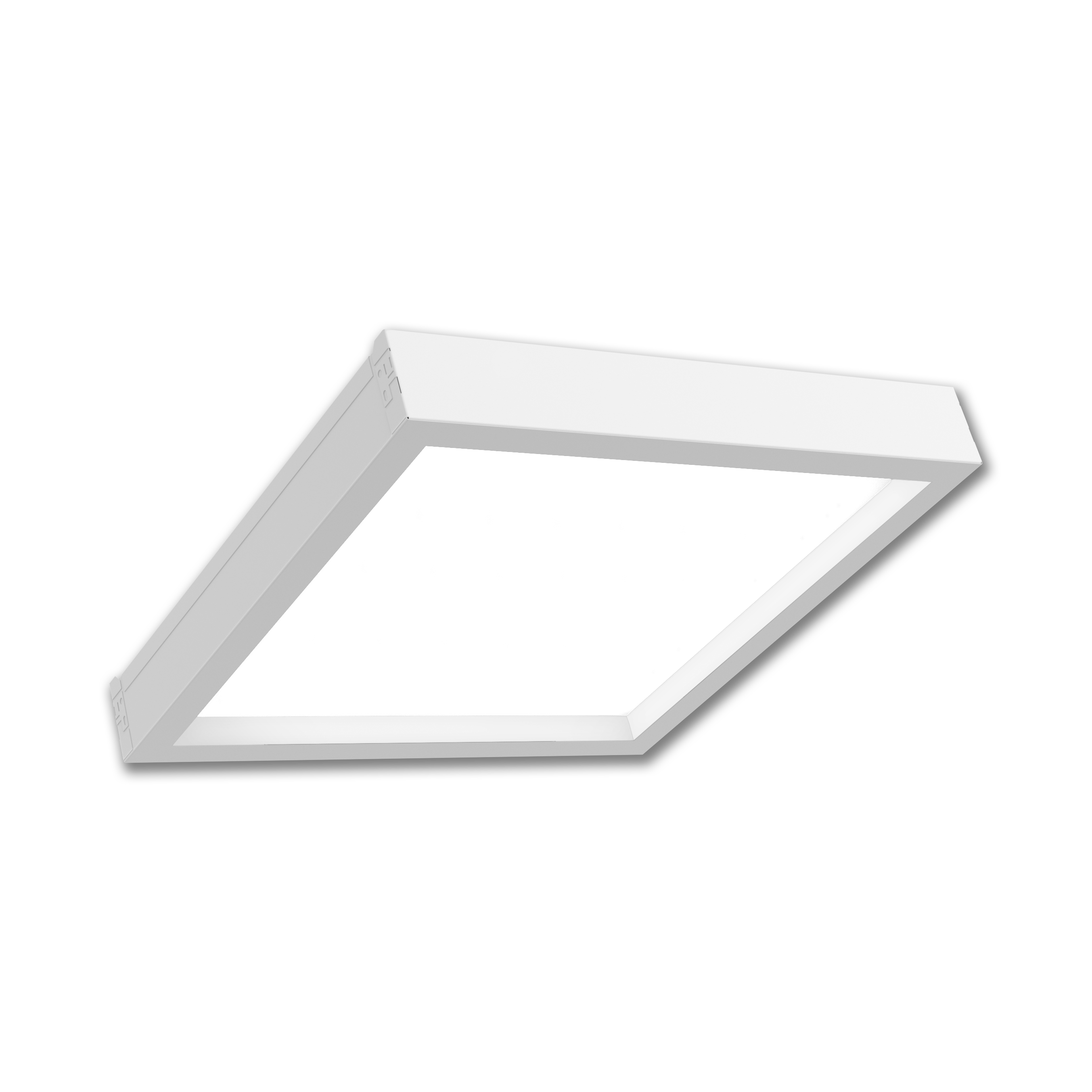

  • Aperture with rounded corners, square corners or circular
  • Rounded corners also available for patient rooms

Technical Information:

  • Size: 1x1, 1x4, 2x2, 2x4
  • CRI: 80+, 90+
  • CCT: 3000K, 3500K, 4000K, 5000K, Tunable White (2765KT)
  • Lumen Output: 2000-7000
  • Certifications: ETL Listed, Dry & Damp Location, RoHS Compliant
