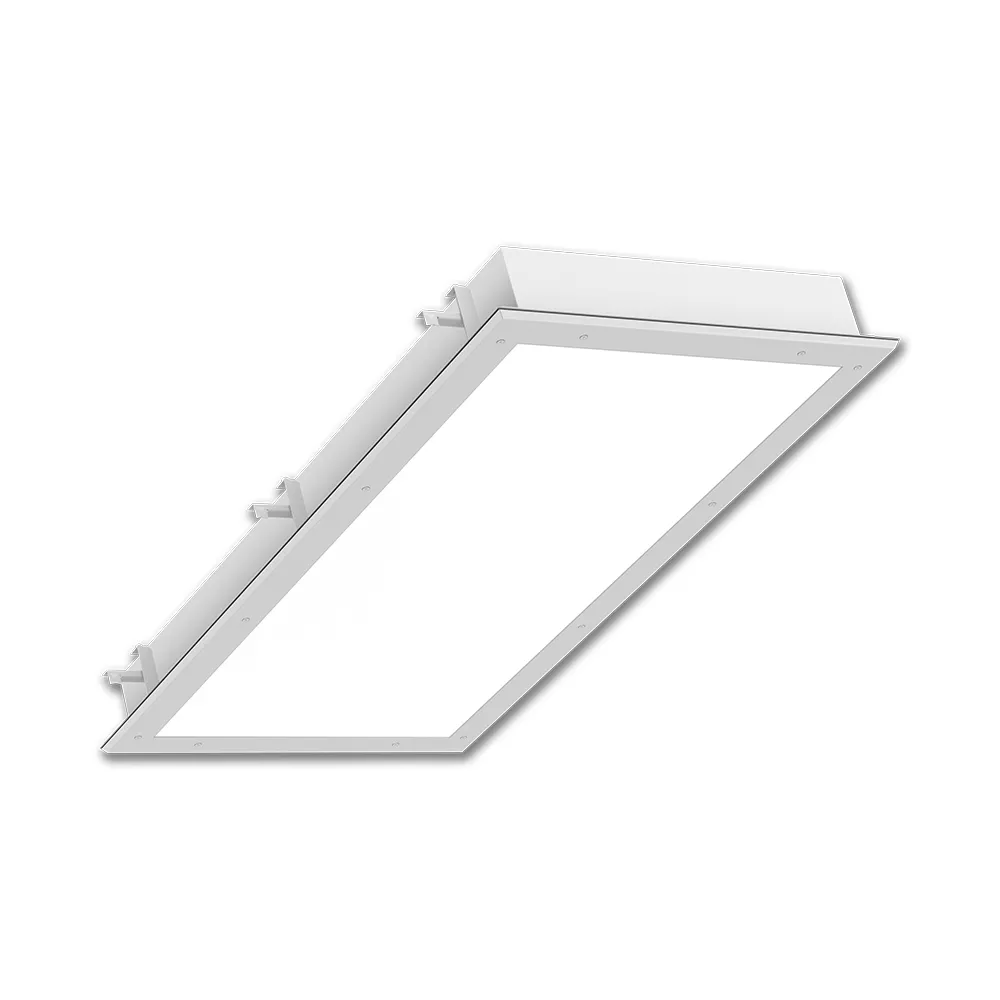

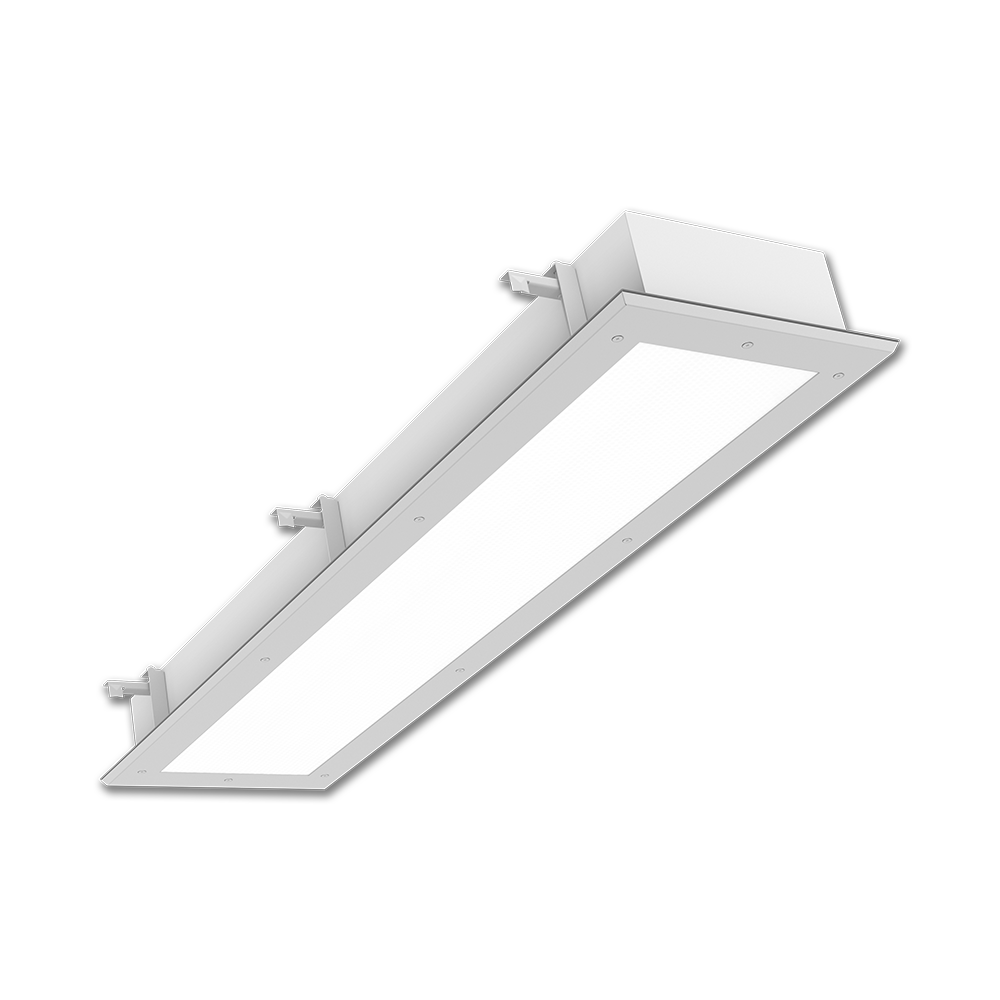

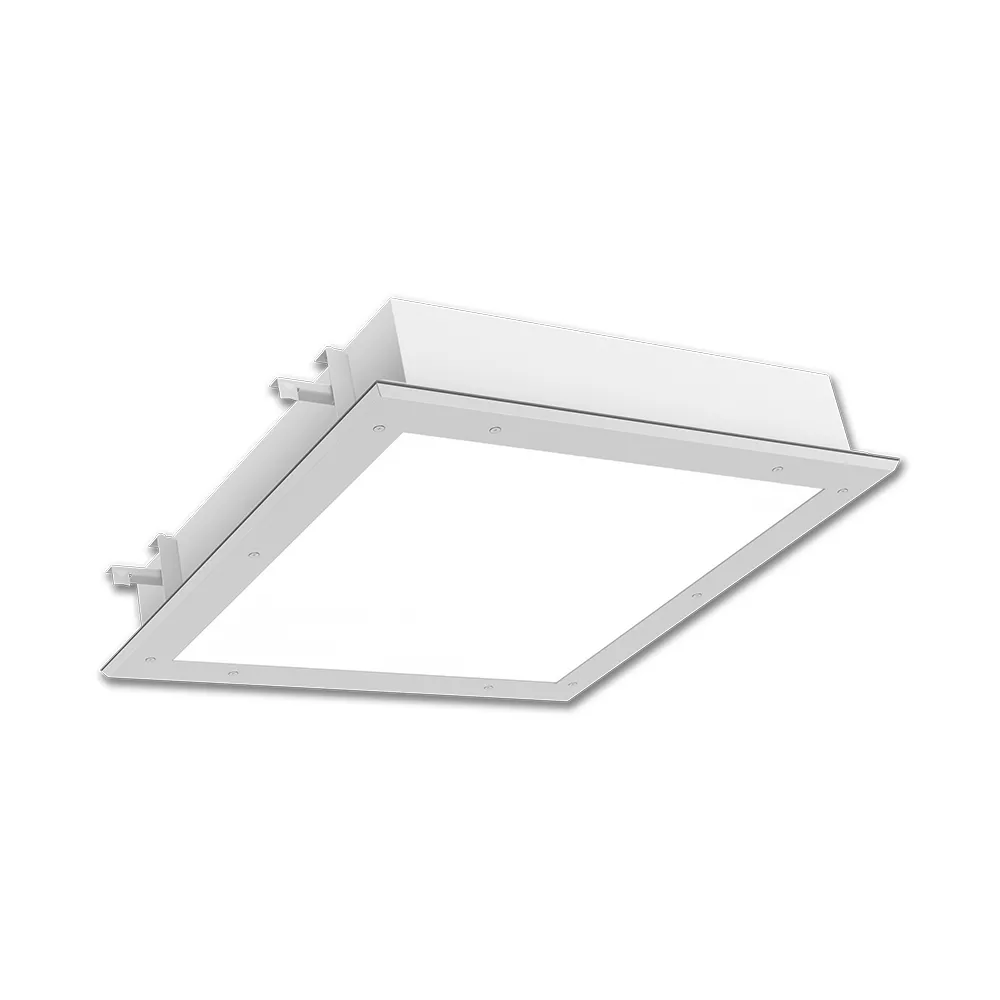

LED Superseal Alpha Flanged

SAF-3518

When lighting solutions must perform in hazardous locations, reliability and compliance are non-negotiable. The SAF-3518 LED Superseal Alpha Flanged luminaire is engineered for environments where safety and precision matter most. Designed for ISO Class 4 cleanrooms and certified for wet and hazardous locations, this fixture combines rugged construction with advanced optical performance. Its IP65 and IP66 ratings ensure superior protection against dust and water ingress, making it ideal for pharmaceutical manufacturing, food processing, and life sciences applications.

Built for demanding conditions, the SAF-3518 features a precision-formed, TIG-welded steel housing and a one-piece beveled door frame that guarantees structural integrity. The fixture’s continuous silicone gasketing and vulcanized corners create redundant seals, preventing contamination and maintaining plenum integrity. For facilities requiring plenum access, the optional C21 configuration provides a gasketed access panel without compromising the fixture’s airtight performance. This attention to detail ensures compliance with stringent cleanroom standards while simplifying maintenance.

Optical performance is equally uncompromising. The standard lens is a high-impact acrylic with a diffuse inner layer, delivering uniform illumination across critical workspaces. For specialized applications, the SAF-3518 offers a narrow spectrum red LED array option, ideal for processes sensitive to specific wavelengths. With spectral purity at 635 nm and zero UV output, this configuration supports controlled environments where precision lighting is essential. Combined with high-efficiency drivers and low-voltage dimming (0–10V), the luminaire achieves an L80 rating beyond 60,000 hours, reducing downtime and operational costs.

Safety certifications underscore its versatility. The SAF-3518 is UL-listed for wet locations and approved for Class I Zone 2 and Zone 22 hazardous environments. NSF/ANSI 2 compliance makes it suitable for food zone non-contact and splash zone applications. Available in multiple sizes (1x4, 2x2, 2x4) and lumen packages up to 15,000 lumens, it adapts to diverse layouts without sacrificing performance. Optional features such as emergency battery packs and antimicrobial finishes further enhance its suitability for mission-critical spaces.

In short, the SAF-3518 delivers a robust, specification-grade solution for cleanrooms and hazardous environments. Its combination of durability, optical precision, and compliance ensures that your facility meets the highest standards of safety and efficiency.

  • Hazardous Location Ready: UL-listed for Class I Zone 2 and Zone 22, plus IP65/IP66 protection for wet environments.
  • Cleanroom Compliance: ISO Class 4 rated with continuous silicone gasketing and vulcanized corners for airtight seals.
  • Plenum Access Option: C21 configuration provides gasketed access panels for easy maintenance without compromising integrity.
  • Narrow Spectrum Capability: Optional 635 nm red LED array with zero UV output for specialized applications.
  • Long-Life Performance: High-efficiency LEDs and drivers deliver L80 >60,000 hours with standard 0–10V dimming.
Country of Origin: Canada

Product Information

  • Product Specifications

    Application : Healthcare,Hospitals

    Available Size(s) : 1x4,2x2,2x4

    Brand : CER

    CRI : 80 - 89

    Certification : Class I Div 2,Class I Zone 2,Class II Div 2,Class III,CSA Listed (C/US),ETL Listed (C/US),IP65,IP66,ISO Class 4,ISO Class 5,NSF component listed,UL Listed (C/US),Wet Location,Zone 22

    Color Temperature : 3000K,3500K,4000K,5000K

    Fixture Type : Cleanroom,General Area,Hazardous Location,Recessed,Vapour Resistant

    Grade : Specification Grade

    Light Source : LED

    Lumen Output : 1001-1500,2001-3000,3001-4000,5001-10000

    Market : Cleanroom & Containment,Healthcare
