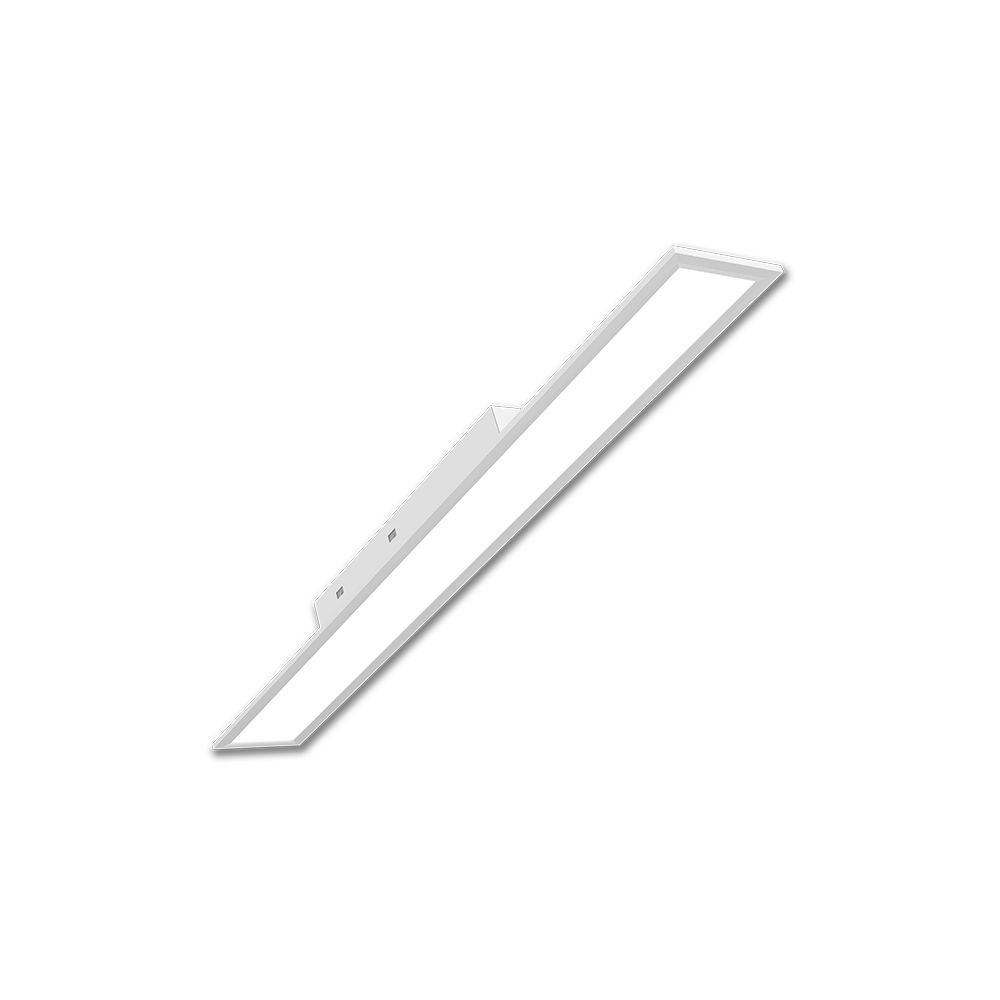

LED - Recessed 6” Low Profile Lay-In Linear
Reveal6
Reveal6 is a low profile lay-in luminaire designed to deliver clean, uniform illumination in modern commercial interiors where ceiling space, visual comfort, and reliability all matter. Built as a commercial-grade linear solution, it integrates seamlessly into standard T‑bar grid ceilings while maintaining a shallow form factor that simplifies coordination with mechanical and plenum constraints. With a fully luminous aperture and evenly distributed light, Reveal6 supports architectural designs that rely on consistent brightness and refined linear geometry rather than exposed hardware or disrupted ceiling planes.
As a true linear light, Reveal6 balances performance and efficiency across a wide range of applications, including offices, classrooms, corridors, healthcare environments, and retail spaces. Its frosted, single‑piece diffuser creates a soft, uniform glow that minimizes glare while maintaining visual clarity across work surfaces and circulation paths. The formed steel housing and durable powder‑coated finish are built for long-term use in demanding commercial settings, while integrated anchor points support secure installation and seismic compliance where required. Designed specifically as a recessed light fixture for lay‑in ceilings, it delivers a flush appearance that aligns well with contemporary architectural standards.
Flexibility is one of the defining advantages of Reveal6. The fixture is available in multiple lengths from 48 to 96 inches, making it easy to maintain consistent spacing and visual rhythm across large floorplates. Lumen output can be selected to match the needs of the space, from lower-output environments focused on comfort to higher-output configurations that support task-intensive areas. Long-life LED technology paired with high-efficiency drivers provides dependable performance, with rated output maintaining L80 performance beyond 60,000 hours, helping reduce maintenance cycles and lifecycle costs.
Reveal6 is also color selectable, allowing a single fixture family to adapt to different lighting moods and functional requirements. Selectable correlated color temperatures from 3000K through 5000K support everything from warm, inviting spaces to brighter, more neutral environments commonly used in healthcare and education. Standard 0–10V low-voltage dimming enables smooth light level control down to 10%, giving designers and facility teams the tools they need to fine-tune illumination without adding complexity. Optional emergency battery packs extend functionality further, ensuring compliance and continuity in critical spaces.
Backed by ETL certification to UL and CSA standards, damp-location suitability, and a five-year limited warranty, Reveal6 is built to integrate quickly, perform consistently, and age predictably. It offers designers and specifiers a dependable linear recessed solution that prioritizes visual comfort, installation efficiency, and long-term value without unnecessary complexity.
- Fully luminous, frosted diffuser delivers uniform, glare‑controlled illumination across the entire aperture.
- Low profile lay‑in design integrates cleanly into standard T‑bar ceilings with minimal plenum depth.
- Color selectable CCT options from 3000K to 5000K support varied environments using a single fixture family.
- High-efficiency LED system rated for over 60,000 hours (L80) with standard 0–10V dimming to 10%.
- Optional emergency battery packs and damp-location rating support code compliance in critical applications.
Specifications
Resources
IES
Revit
Technical Information
Product Specifications
Application : Office,Retail Store,Classroom,Hospitals,Nursing Homes,Corridor
Available Size(s) : 48",72",96"
Brand : VIS
CRI : 80+
Certification : ETL Listed,IC Rated,Damp Location,RoHS Compliant
Color Temperature : 3050KS
Fixture Type : Recessed,Linear,T-Bar,Strip
Grade : Commercial Grade
Light Source : LED
Lumen Output : 22/33/44LS,36/50/68LS,48/56/91LS
Market : Education,Healthcare,Commercial
