LED - Patient Room Wall Mount Luminaire for Headwalls
MDW

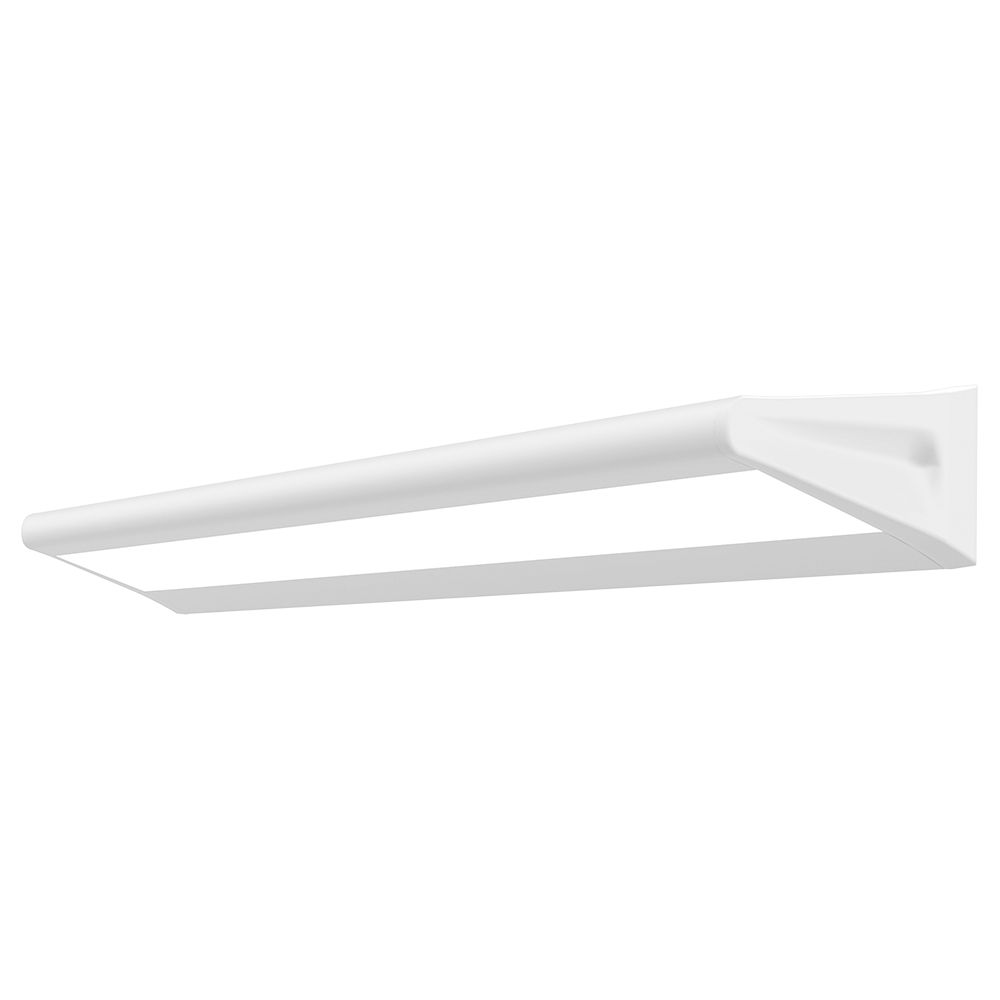

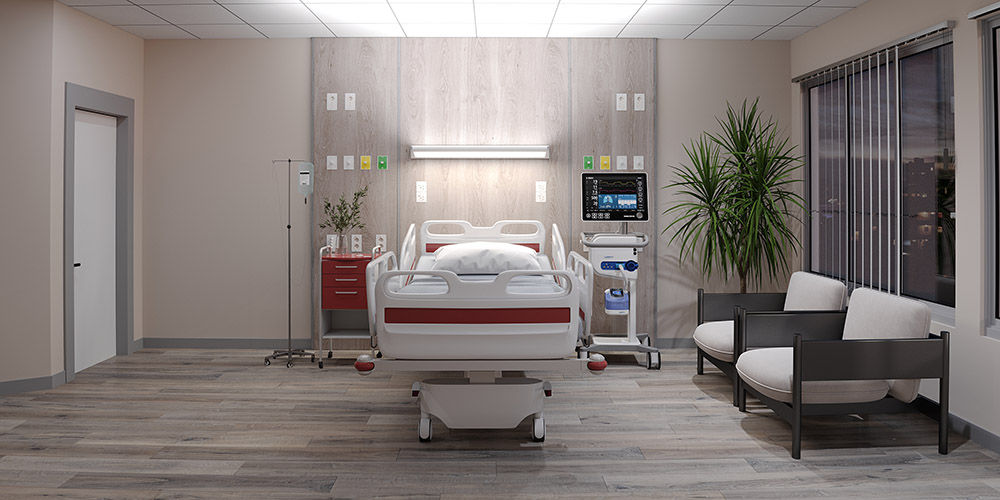

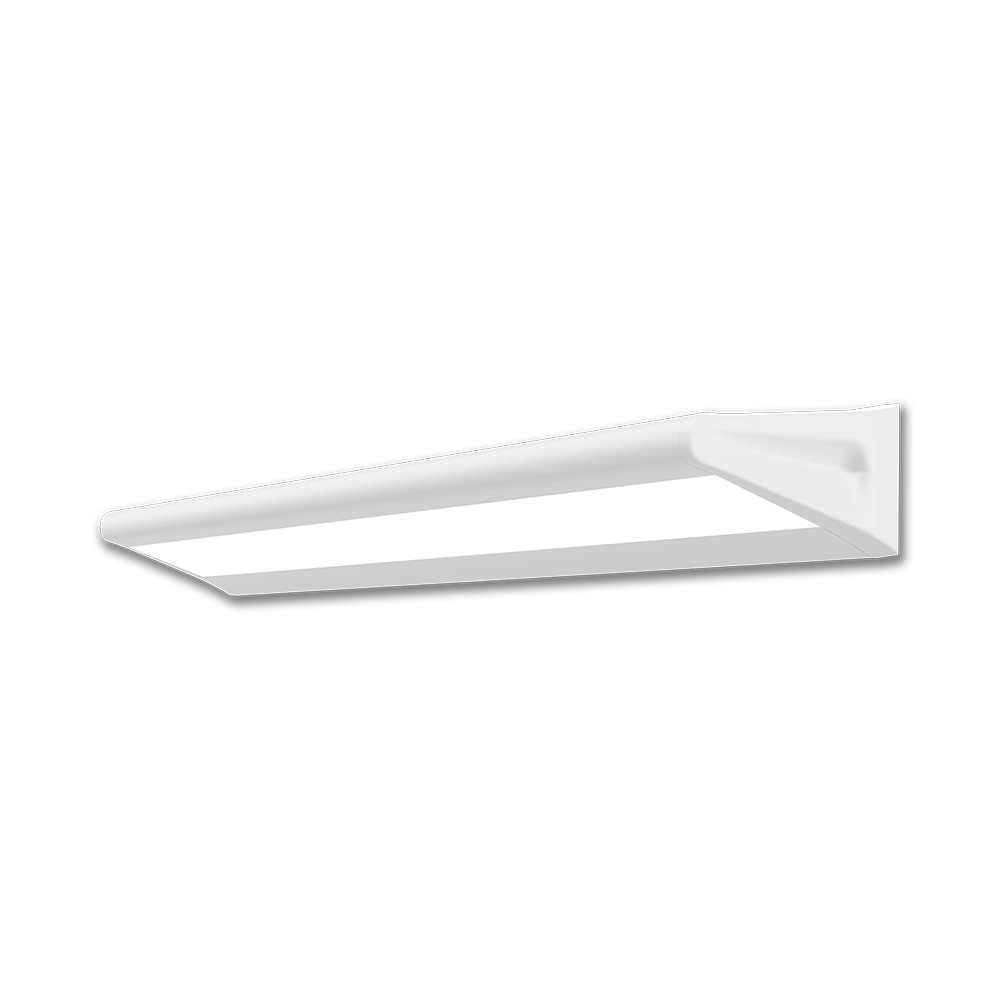

The MDW series architectural headwall luminaire is designed to deliver superior performance and aesthetics in modern healthcare environments. Engineered for patient rooms, this fixture combines functionality with a sleek, hygienic profile that simplifies cleaning and enhances infection control. Featuring both up-light and down-light capabilities, the MDW luminaire ensures optimal illumination for ambient comfort and precise examination tasks. Its low-profile design extends less than seven inches from the wall, making it ideal for headwall integration without compromising space or accessibility.

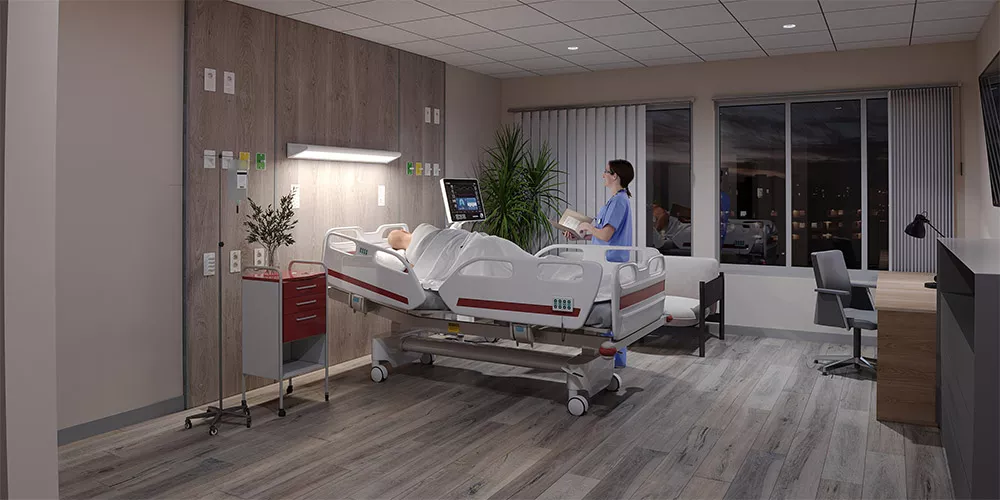

Built for versatility, the MDW luminaire supports multiple lighting modes, including exam, ambient, and night observation. Each aperture can be independently specified for color temperature and CRI, ensuring accurate visual rendering for clinical tasks while maintaining a soothing atmosphere for patients. The medical lighting system incorporates high-efficiency LED modules with a lifetime L90 exceeding 60,000 hours, delivering consistent performance and energy savings. Available in two-, three-, and four-foot lengths, the fixture offers lumen packages up to 13,000 lumens, meeting diverse illumination requirements in patient care settings.

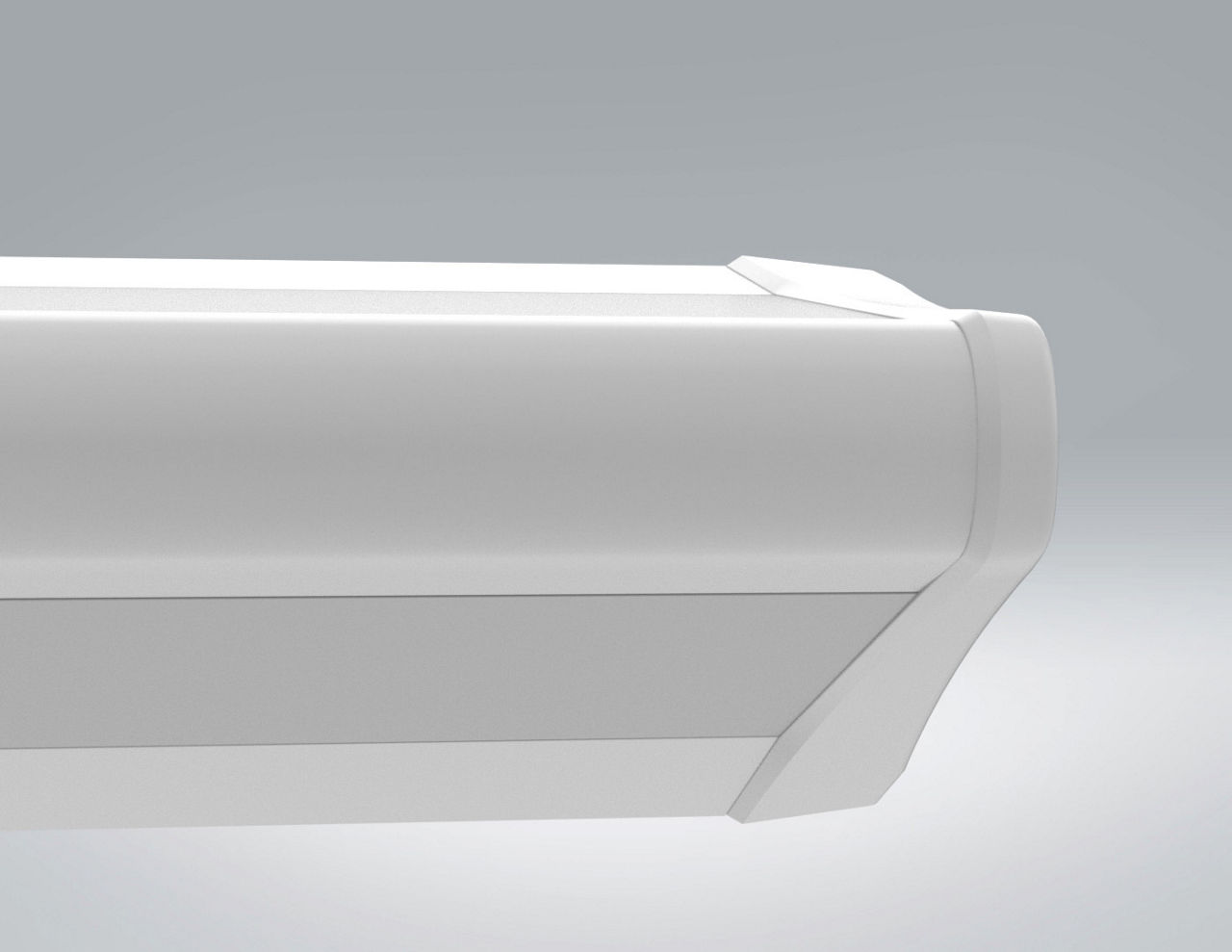

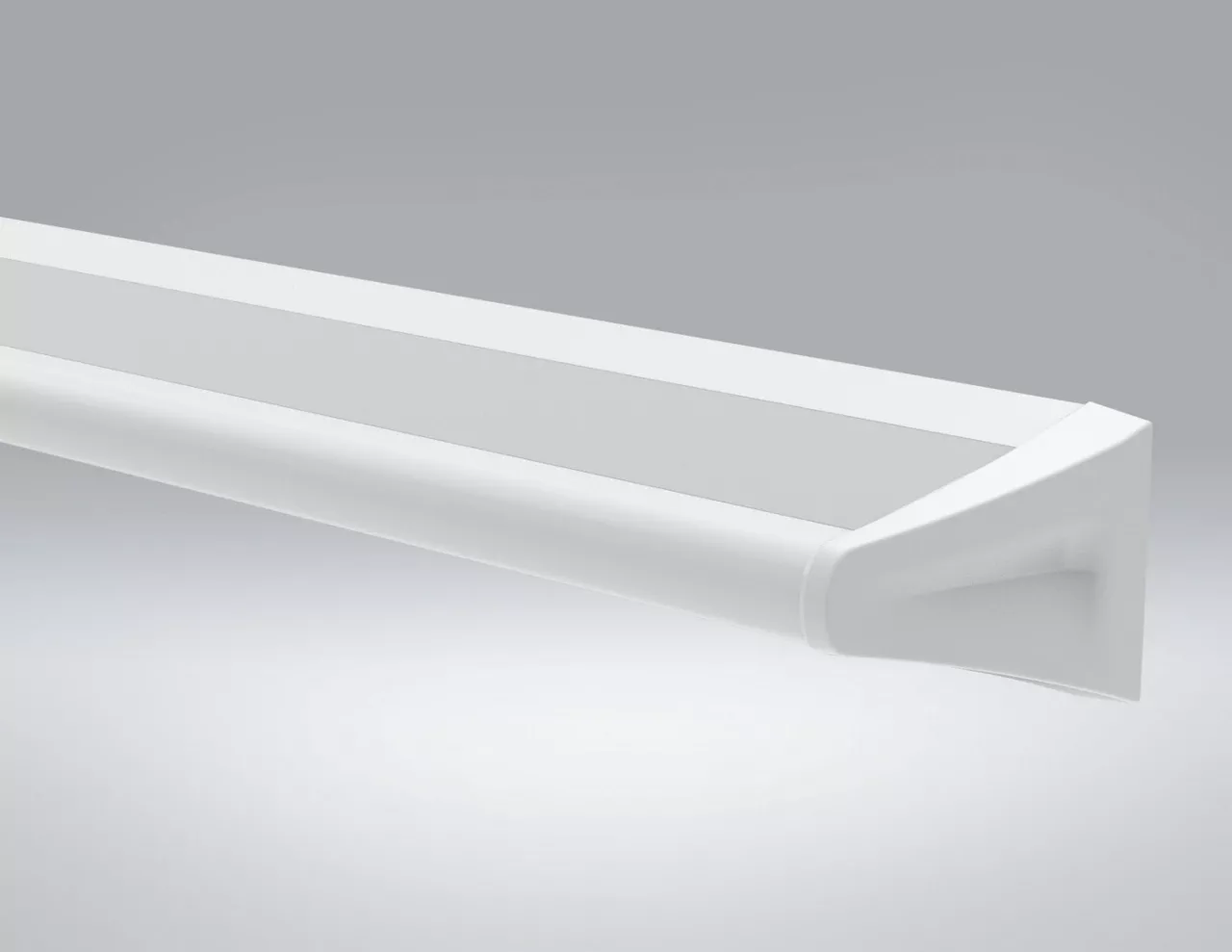

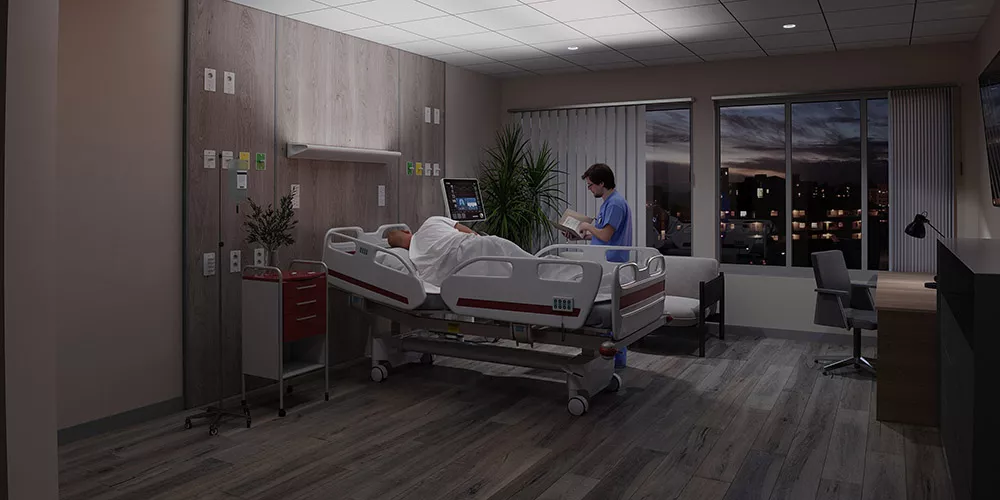

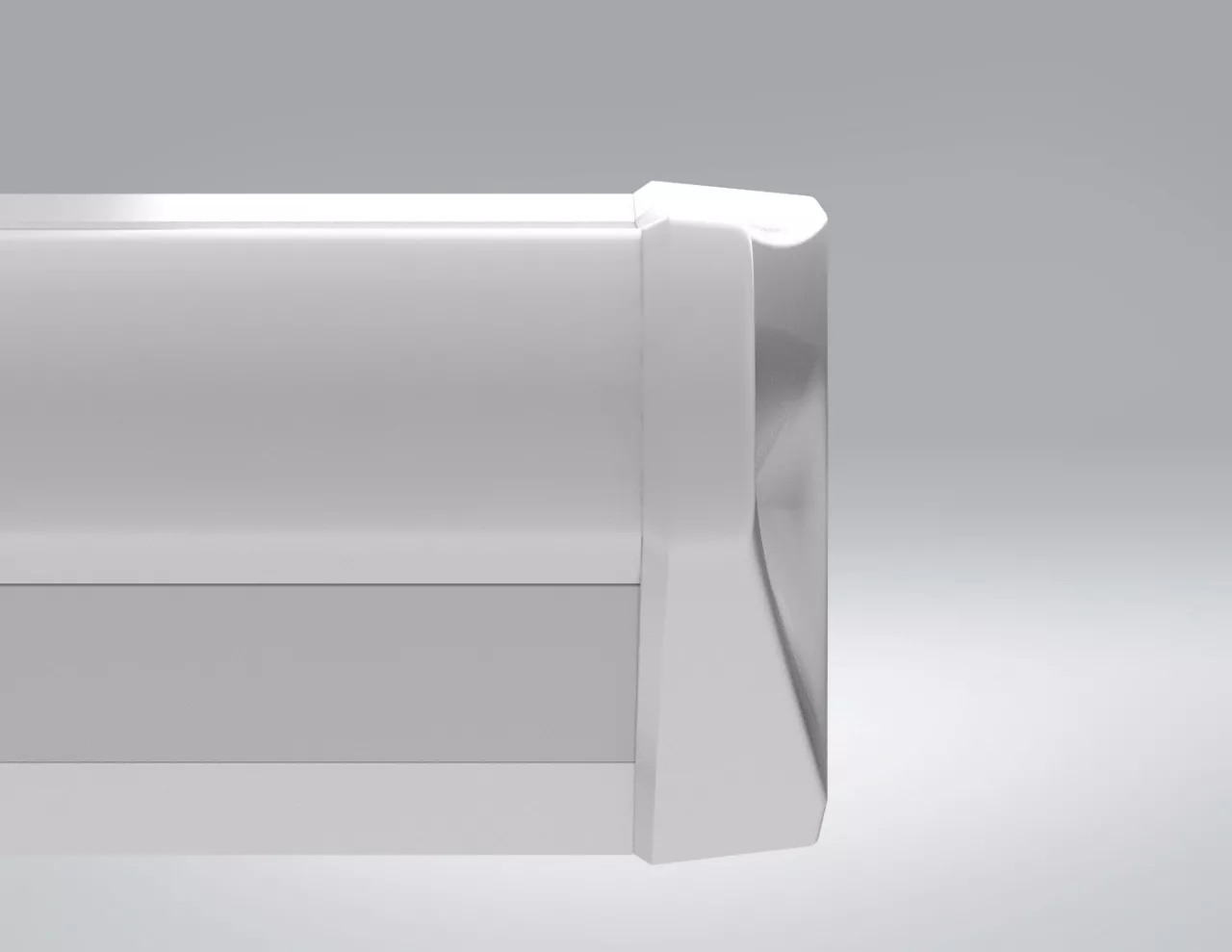

The MDW series stands out for its advanced optical design and robust construction. Its contoured extruded aluminum housing and antimicrobial matte white finish resist wear and simplify maintenance, while concealed hardware and tight-fitting die-cast end caps create a seamless appearance. The diffuse acrylic lens with internal optical ribs ensures low glare and uniform light distribution, enhancing visual comfort for staff and patients alike. For added flexibility, the luminaire includes dimmable drivers compatible with 0–10V, DALI, or Lutron™ protocols, and optional low-voltage controllers for integration with nurse call systems or bed switches. Pull-chain controls provide simple mode selection, while night observation lighting available in amber or white, offers discreet illumination during overnight care.
Sustainability and compliance are integral to the MDW design. LED modules are field-replaceable and Zhaga™ compliant, guaranteeing future compatibility and reducing environmental impact. The housing uses recyclable materials, over 60% of which are previously recycled, supporting green building initiatives. Certified by ETL for damp locations and backed by a five-year limited warranty, the MDW luminaire delivers reliability and peace of mind for healthcare facilities. Whether for new installations or retrofits, this patient room lighting solution combines performance, safety, and aesthetics to meet the highest standards of modern medical environments.

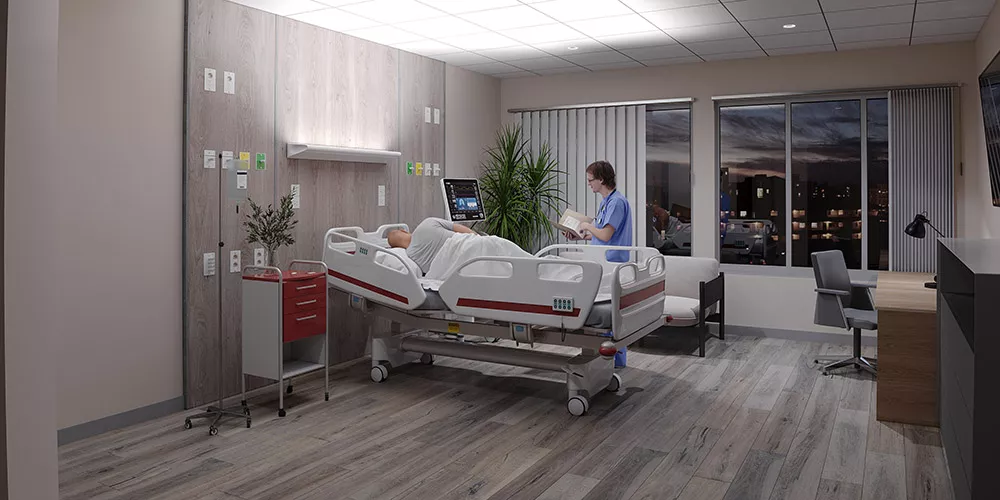

- Dual Illumination: Independent up-light and down-light provide ambient and exam lighting with separate controls for maximum flexibility.
- Customizable Performance: Multiple lengths and lumen packages up to 13,000 lumens, with selectable color temperatures and CRI options.
- Hygienic Design: Smooth, contoured housing with antimicrobial finish and easily cleanable acrylic lens for infection control.
- Advanced Controls: Dimmable drivers (0–10V, DALI, Lutron™) and optional low-voltage or pull-chain controls for seamless integration.
- Sustainable & Certified: Zhaga™ compliant, recyclable materials, ETL certified for damp locations, and backed by a 5-year warranty.
Product Information
Product Specifications
Application : Chronic Care Facilities,Healthcare,Hospitals,Nursing Homes
Available Size(s) : 24",36",48"
Brand : CER
CRI : 80+,90+
Certification : ETL Listed,Damp Locations
Color Temperature : 3000K,3500K,4000K
Fixture Type : Medical,Surface,Patient Room
Grade : Specification Grade
Light Source : LED
Lumen Output : 2500-6500
Market : Healthcare
