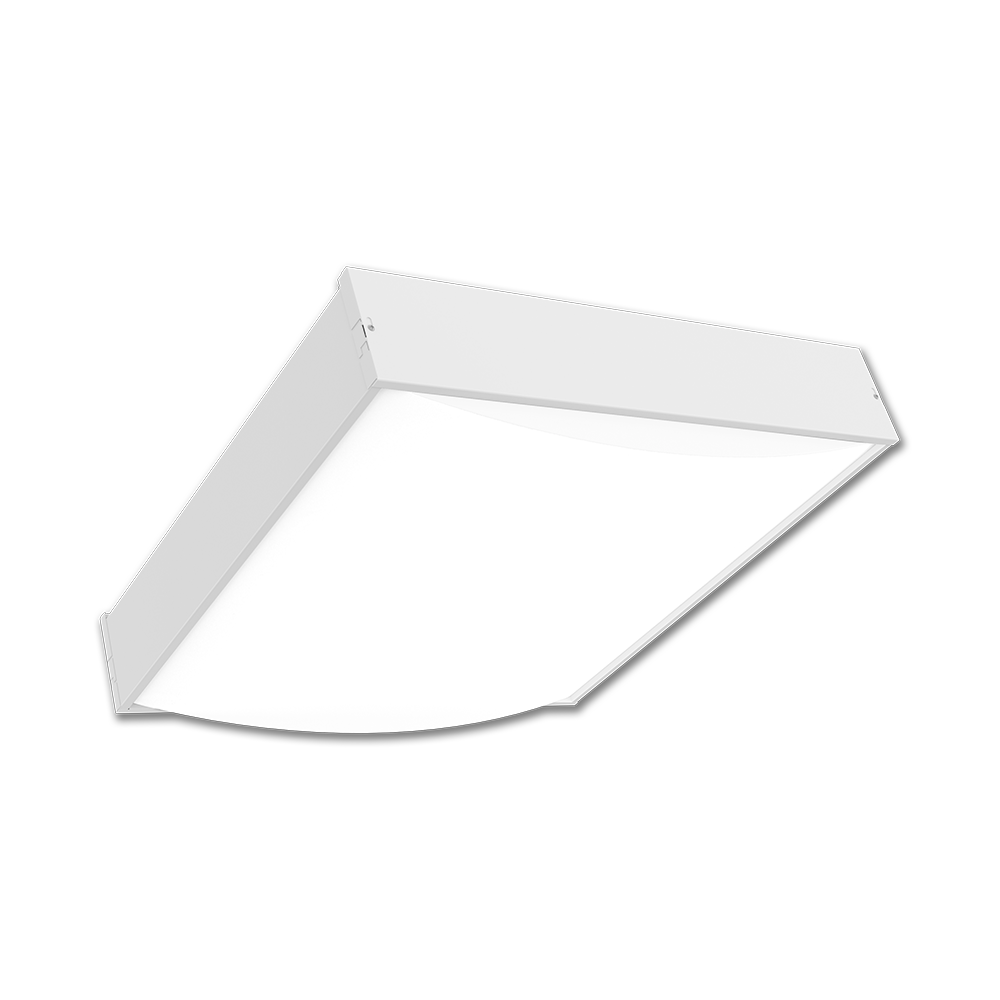

LED - Patient Room Recessed Ambient Luminaire

MD1-OCRX

The MD1-OCRX LED Patient Room Recessed Ambient Luminaire is designed to deliver superior comfort and performance in healthcare environments. Featuring an evenly illuminated convex drop lens, this luminaire provides soft, glare-free lighting that enhances patient well-being while meeting stringent medical standards. Engineered for grid ceilings, it integrates seamlessly into patient rooms, offering a clean aesthetic and reliable functionality for modern healthcare facilities.

Built with a heavy-gauge steel housing and antimicrobial matte white finish, the MD1-OCRX ensures durability and hygiene in demanding clinical settings. Its lens is crafted from high-impact acrylic with a smooth surface for easy cleaning, making it ideal for spaces where infection control is critical. The luminaire supports multiple color temperature options 3000K, 3500K, 4000K, and 5000K with excellent color consistency (3 SDCM) and CRI choices of 80 or 90, ensuring accurate color rendering for patient care tasks. For advanced flexibility, Tunable White technology (2700K–6500K) and circadian technology options are available, enabling dynamic lighting that supports circadian rhythms and patient comfort.

Performance is a key differentiator. The MD1-OCRX offers lumen packages ranging from 3100 to 7578 lumens with high efficacy (up to 139 lm/W) and a lifetime rating of L70 > 60,000 hours, reducing maintenance costs and downtime. Its programmable electronic driver is dimmable to 1% via 0–10V protocol, ensuring precise light control. Optional low-voltage controllers allow integration with pillow speakers and bed controls, providing patient-level dimming and switching for personalized comfort. Emergency drivers and addressable digital dimming (DALI) options further enhance adaptability for healthcare environments.

Installation is straightforward, with compatibility for 9/16”, 15/16”, and 1” grid ceilings. The luminaire is ETL listed for recessed IC damp locations, meeting UL1598 standards for safety and reliability. Backed by a five-year limited warranty, the MD1-OCRX combines robust engineering with thoughtful design, making it a trusted solution for medical lighting applications.

Whether you’re upgrading existing fixtures or specifying new builds, the MD1-OCRX delivers exceptional patient room lighting performance with energy efficiency, advanced control options, and a sleek, hygienic design. Its combination of comfort, flexibility, and compliance positions it as a leading choice for healthcare facilities seeking quality and reliability.

  • Convex drop lens provides uniform, glare-free illumination for patient comfort and visual clarity.
  • Multiple CCT options (3000K–5000K) and Tunable White (2700K–6500K) support dynamic lighting needs.
  • High efficacy up to 139 lm/W with lumen packages from 3100 to 7578 lumens for energy savings.
  • Optional low-voltage controllers enable integration with bed controls and patient-level dimming.
  • ETL listed for damp locations with antimicrobial finish for enhanced hygiene and safety.
Country of Origin: Canada

Product Information

  • Product Specifications

    Application : Chronic Care Facilities,Healthcare,Hospitals,Nursing Homes

    Available Size(s) : 2x2

    Brand : CER

    CRI : 80+,90+

    Certification : ETL Listed Damp Locations UL1598

    Color Temperature : 3000K,3500K,4000K,5000K,2765KT

    Fixture Type : Medical,Recessed,Patient Room

    Grade : Specification Grade

    Light Source : LED

    Lumen Output : 3000-7500

    Market : Healthcare
