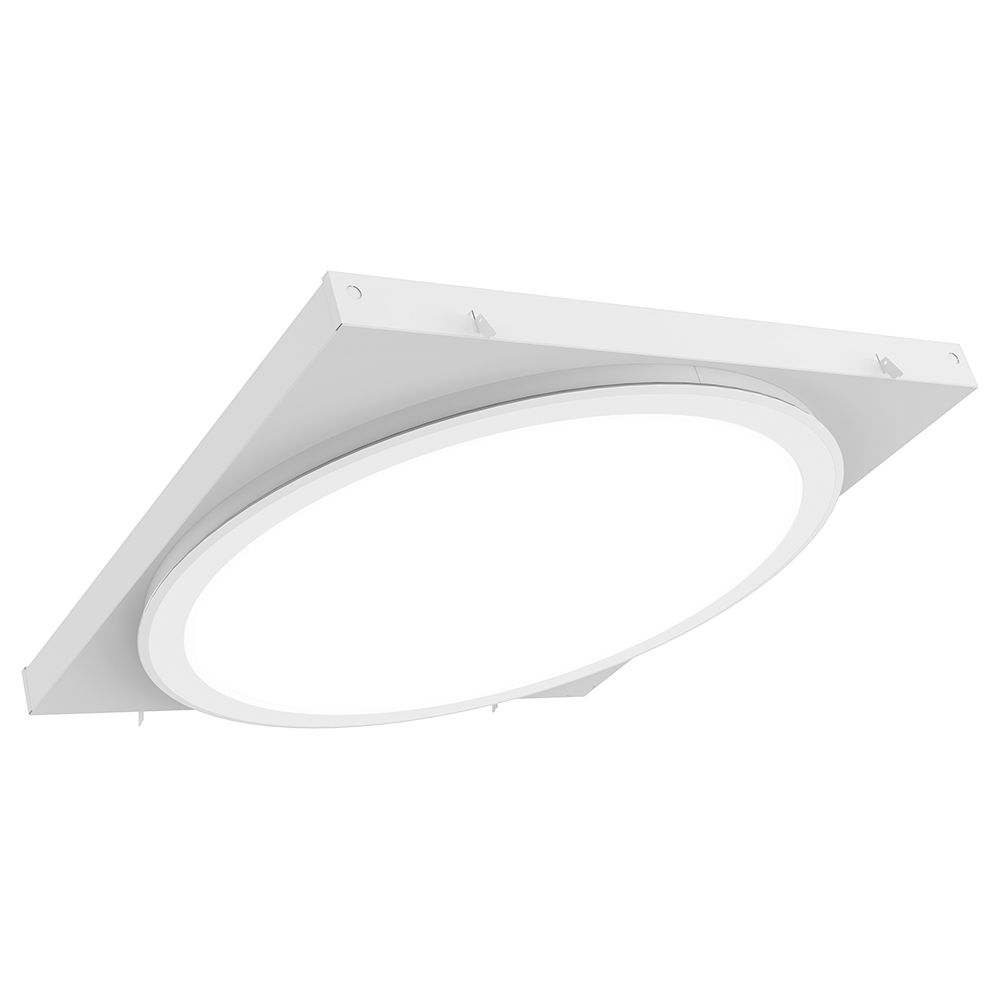

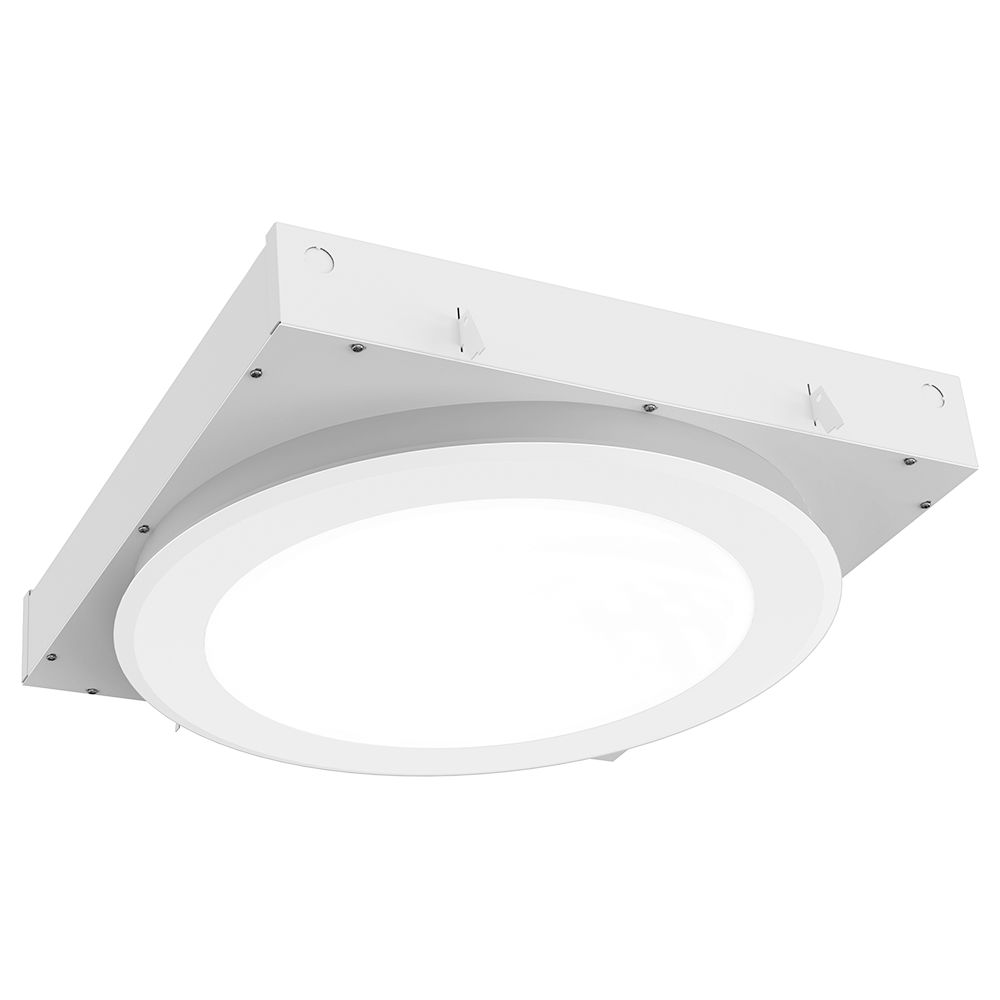

LED Architectural Circular Recessed Troffer
LTDCR
The LTDCR LED Troffer Circular Recessed fixture is engineered to deliver high-performance architectural lighting with a sleek, modern aesthetic. Featuring a concave opal acrylic lens, this specification-grade luminaire provides soft, glare-free illumination ideal for visually demanding environments. Designed for recessed installation in insulated ceilings, it combines form and function to meet the needs of commercial interiors where style and efficiency matter.
Built with heavy-duty construction, the LTDCR is crafted from die-formed, post-painted steel and finished with a white polyester powder coating for durability and clean visual appeal. Its robust design includes an access plate for quick wiring and tool-free ballast cover removal, making installation and maintenance straightforward. Available in multiple sizes—1x1, 2x2, 3x3, and 4x4—the fixture supports a range of lumen outputs from 800 to 10,500, ensuring flexibility across diverse lighting applications.

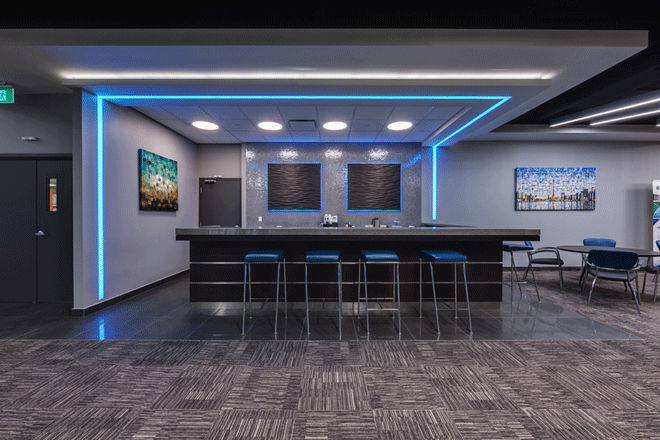

As a circular recessed light fixture, the LTDCR stands out for its ability to create a luminous skyscape effect, enhancing the ambiance of spaces such as lobbies, atriums, call centers, and retail environments. The standard concave lens diffuses light evenly, while optional convex or flat lenses allow for customization based on design preferences. Rated for L80 performance beyond 50,000 hours and offering standard 0–10V dimming, the fixture ensures long-term energy efficiency and lighting quality.
This architectural LED lighting solution is IC-rated and UL-listed for insulated ceilings, meeting CSA/UL standards for safety and performance. It’s compatible with emergency battery packs and flexible wiring options, making it suitable for both new construction and retrofit projects. Whether illuminating office corridors or enhancing the atmosphere in hospitality settings, the LTDCR delivers reliable performance with a refined visual impact.
With its blend of modern styling, durable build, and versatile configurations, the LTDCR fixture is a smart choice for professionals seeking high-efficiency lighting without compromising on design. Its thoughtful engineering and adaptable features make it standout in the architectural lighting category.

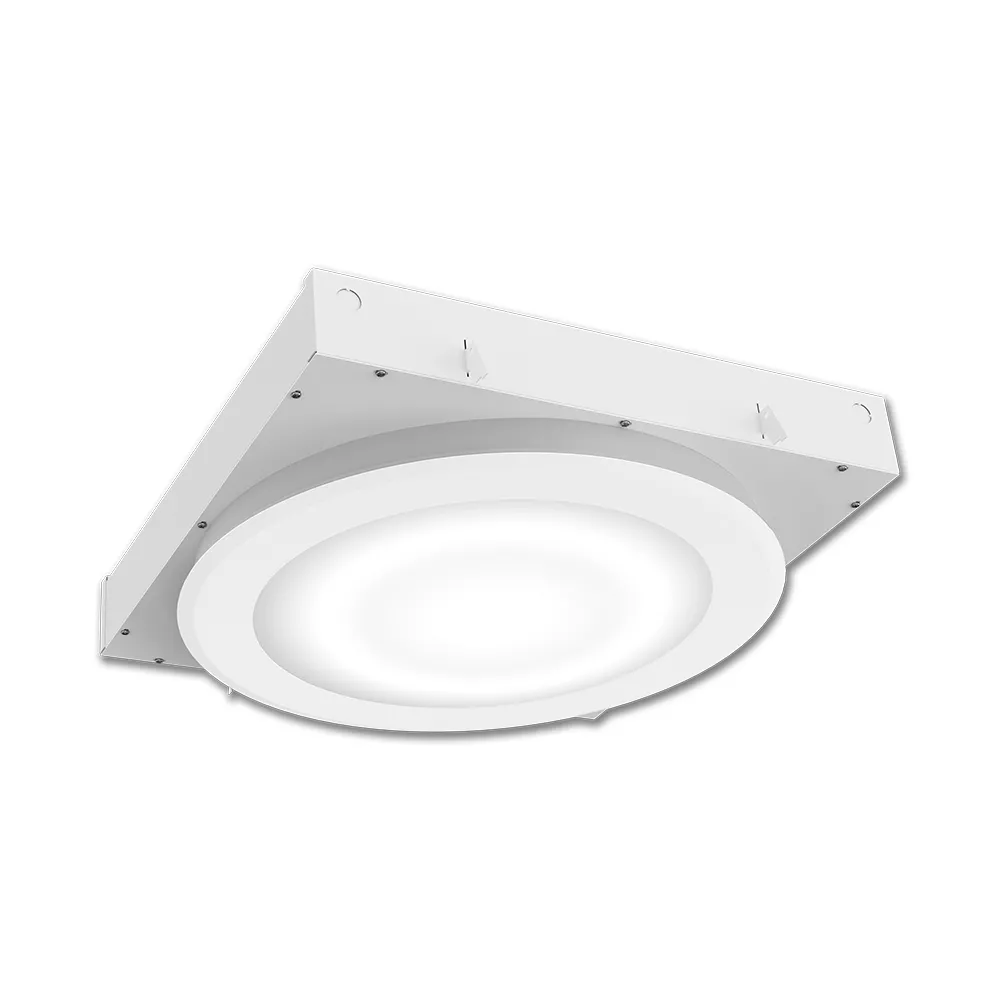

- Concave opal acrylic lens delivers soft, glare-free illumination with high visual comfort.
- Heavy-duty steel construction ensures durability and easy maintenance with tool-free access.
- Available in 1x1 to 4x4 sizes, supporting lumen outputs from 800 to 10,500 for flexible applications.
- Architectural LED lighting design enhances aesthetics in commercial and hospitality environments.
- UL-listed and IC-rated, with optional emergency battery pack and lens configurations for added versatility.
Product Information
Product Specifications
Application : Atriums,Corridor,Day Room,Hospitality,Lobbies,Office,Restaurant,Retail Store,Supermarket,Recreational
Available Size(s) : 1x1,2x2,3x3,4x4
Brand : VIS
CRI : 80+
Certification : UL Listed (C/US)
Color Temperature : 3500K,4000K
Fixture Type : Recessed,Troffer,T-Bar,Architectural,Metric
Grade : Specification Grade
Light Source : LED
Lumen Output : 800,2200,4100,7000-10500
Market : Education,Commercoal,General Area
