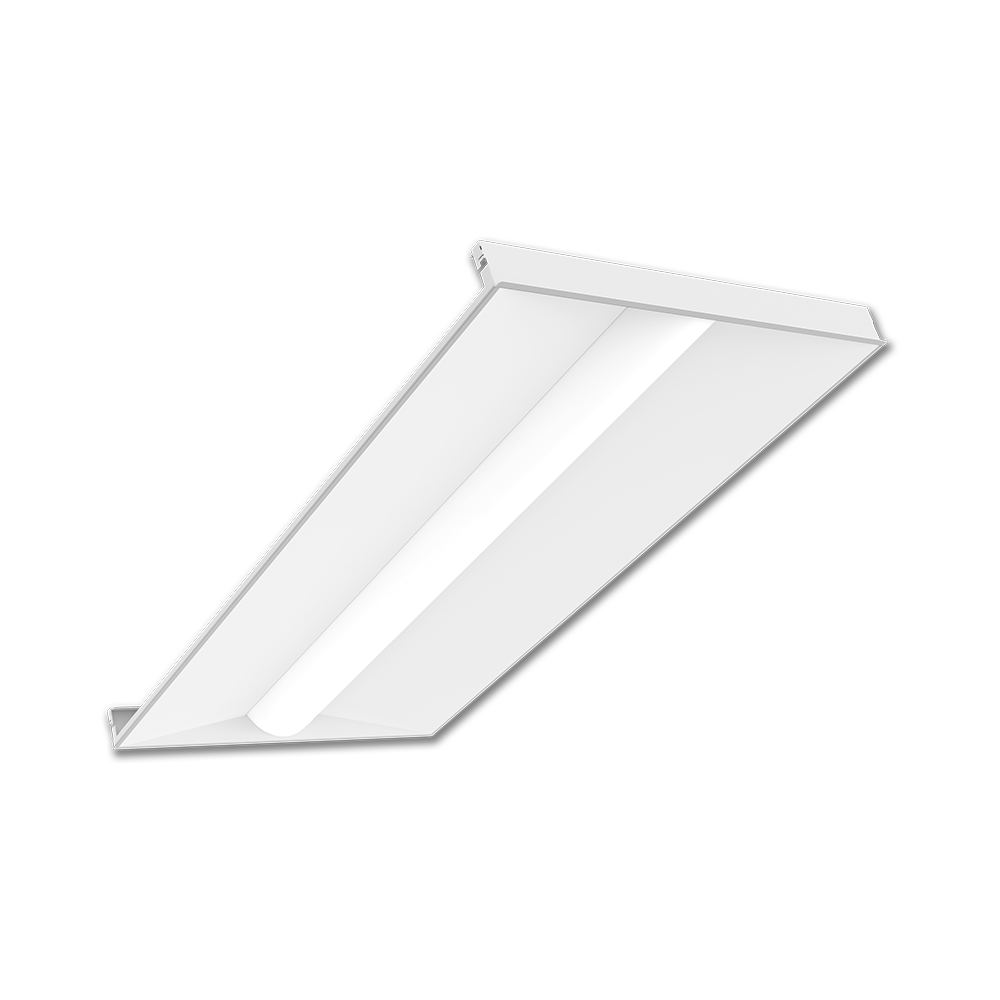

LED Recessed Troffer with Sleek Curved Reflectors
LRTL
The LRTL recessed light fixture is a high-performance commercial LED lighting solution that blends efficiency with elegance, designed to meet the demands of modern commercial environments while delivering exceptional value and performance. With a focus on energy efficiency and visual comfort, this luminaire delivers up to 130 lumens per watt, making it a standout choice for those seeking commercial LED lighting that doesn’t compromise on style or functionality.
The LRTL features a classic center-basket design and sleek curved reflectors, creating a refined aesthetic while ensuring uniform light distribution. Its wide center aperture enhances illumination quality, making it ideal for spaces where clarity and comfort are essential. Whether you're outfitting offices, retail stores, classrooms, or healthcare facilities, the LRTL adapts seamlessly thanks to its shallow profile and compatibility with 9/16” and 15/16” T-bar ceilings. Installation is straightforward, and the fixture supports chain mounting with integral earthquake clips for added security.
Designed for versatility, the LRTL is available in 1x4, 2x2, and 2x4 configurations, with multiple lumen packages ranging from 2000 to 7000 lumens. It supports standard 0–10V dimming down to 10%, giving users full control over brightness levels. The fixture’s frosted polycarbonate diffuser and precision-formed indirect reflectors work together to minimize glare while maximizing efficiency. Rated for L80 performance beyond 60,000 hours and compliant with DLC and WELL Building Standard luminance requirements, the LRTL is built to last and perform in demanding environments.
Sustainability and serviceability are also key strengths. All components—including drivers, lenses, and LEDs—are Zhaga-compliant and easily accessible without compromising air pressure or cleanliness. Optional accessories like emergency battery packs, surface kits, and drywall kits further enhance its adaptability. With a white polyester powder-coated finish and RoHS/TAA compliance, the LRTL is a reliable and responsible choice for any commercial lighting project.
Whether you're upgrading an existing space or designing a new one, the LRTL recessed troffer offers a smart, efficient, and visually appealing solution. Its combination of high output, sleek design, and flexible installation options makes it a top contender in the world of recessed light fixtures.
- High Efficiency: Delivers up to 141 lumens per watt with options ranging from 2000 to 7000 lumens.
- Elegant Design: Features a classic center-basket style with sleek curved reflectors and a wide center aperture for uniform light.
- Flexible Installation: Shallow profile fits insulated ceilings and T-bar grids; available in 1x4, 2x2, and 2x4 sizes.
- Advanced Control: Standard 0–10V dimming down to 10% for customizable lighting environments.
- Certified Performance: DLC listed, WELL qualified, and rated for L80 performance over 60,000 hours.
Product Information
Product Specifications

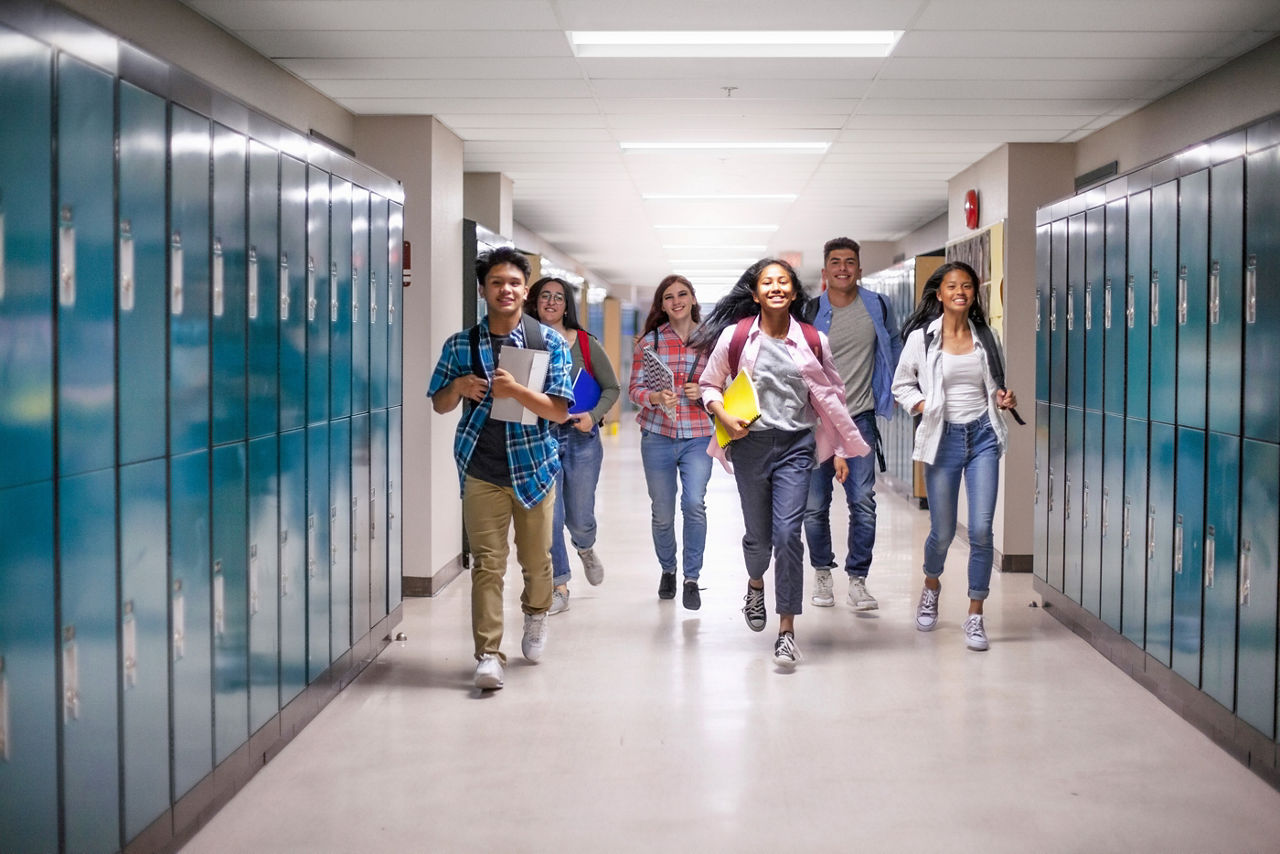

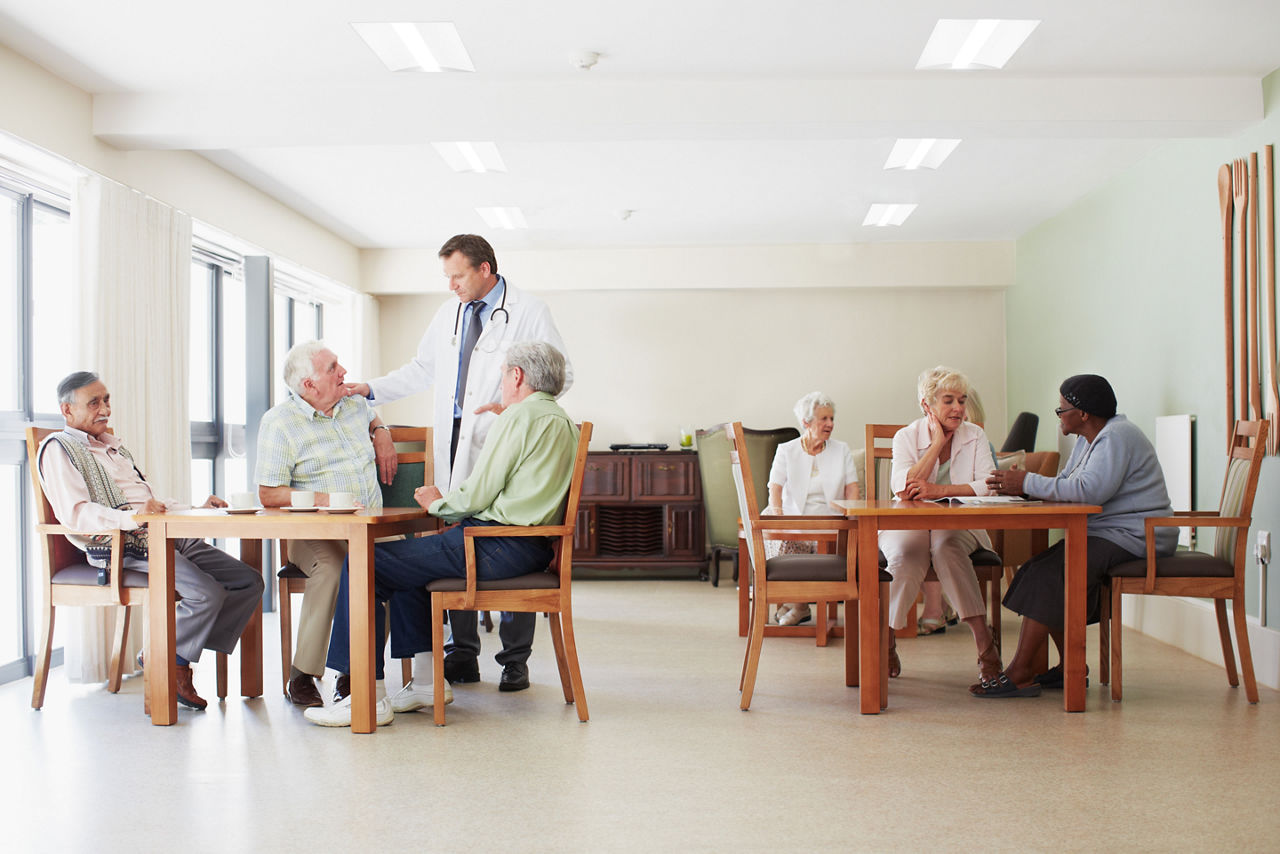

Application : Boardroom,Classroom,Corridor,Hospitals,Office,Nursing Homes,Retail Store,Showroom,School

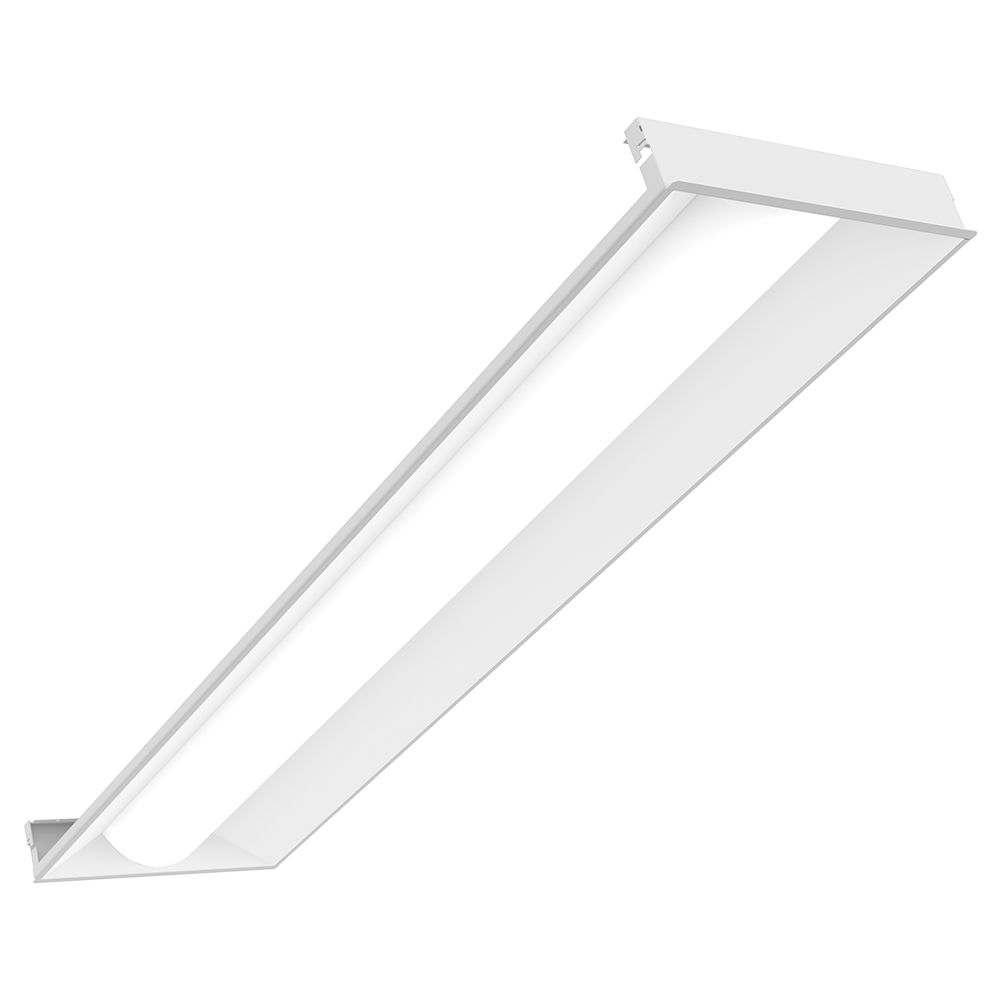

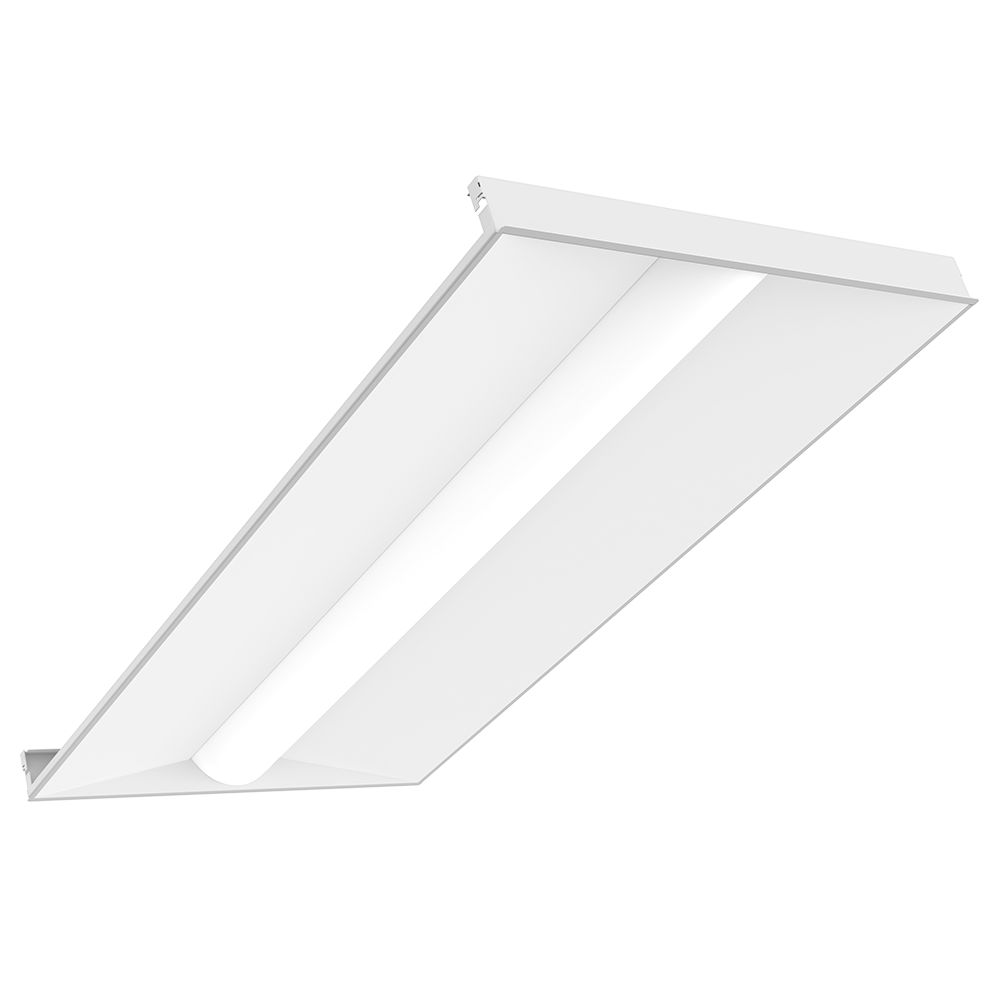

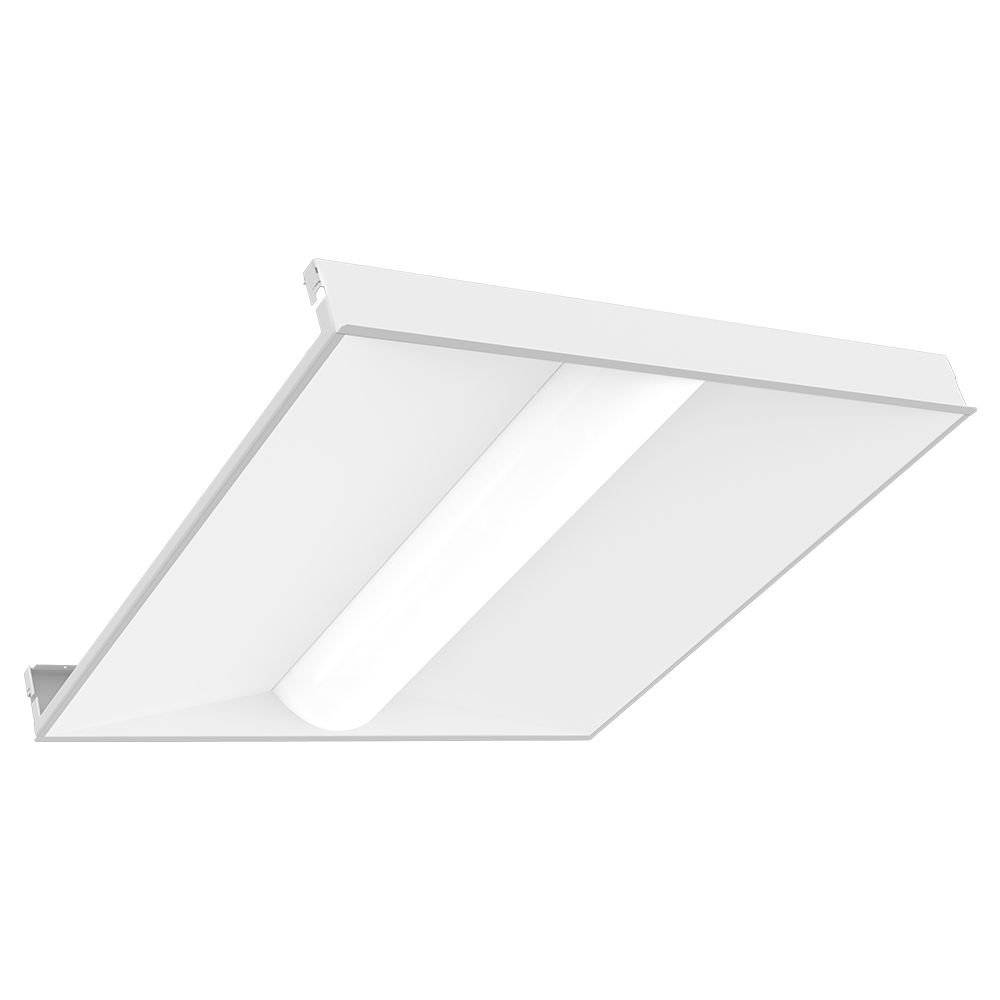

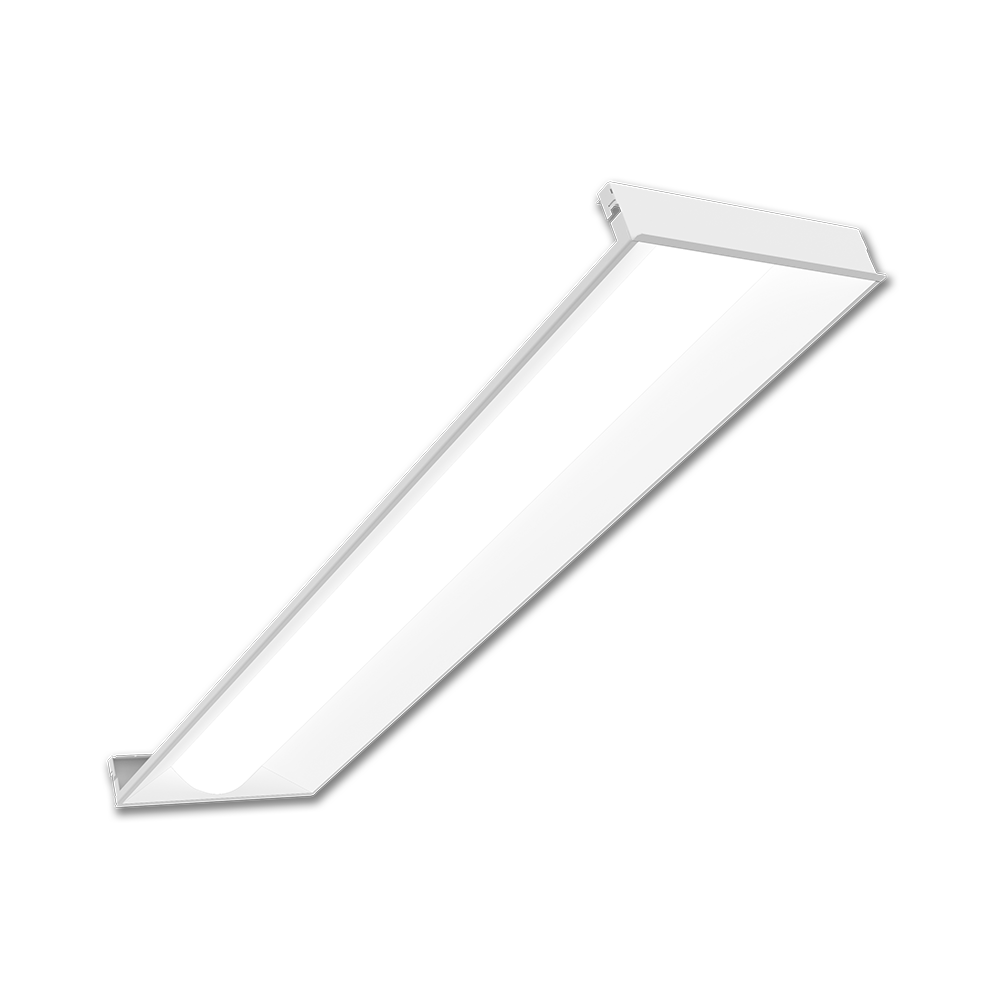

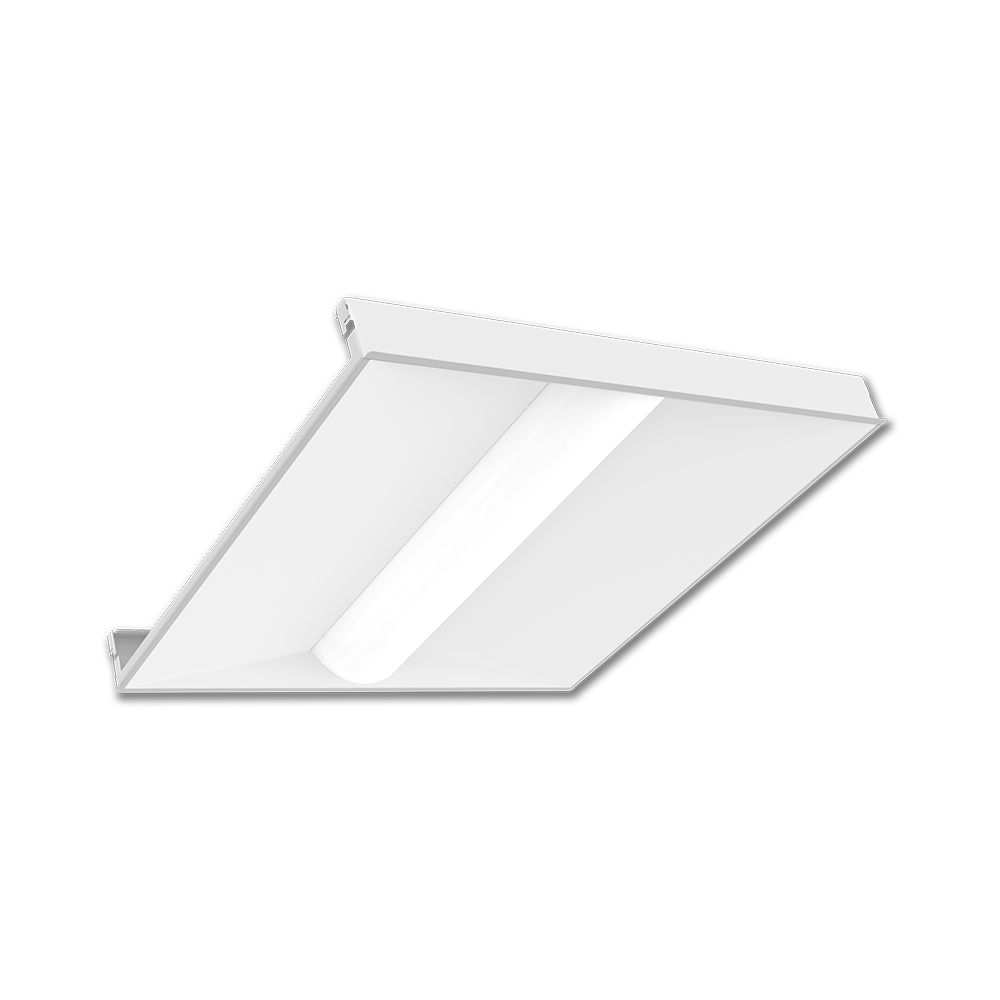

Available Size(s) : 1x4,2x2,2x4
Brand : VIS
CRI : 80+,90+
Certification : ETL Listed,IESNA LM-79,DLC Listed,UL Listed (C/US),Damp Location,RoHS Compliant,TAA Compliant
Color Temperature : 3000K,3500K,4000K,5000K
Fixture Type : Recessed,Troffer,T-Bar,Low Plenum
Grade : Commercial Grade
Light Source : LED
Lumen Output : 2000-6000,3000-7000
Market : Education,Healthcare,Commercial,General Area
Quickship : 3 Days
Related Videos
LRTL Luminaire – Where Value Meets Performance
