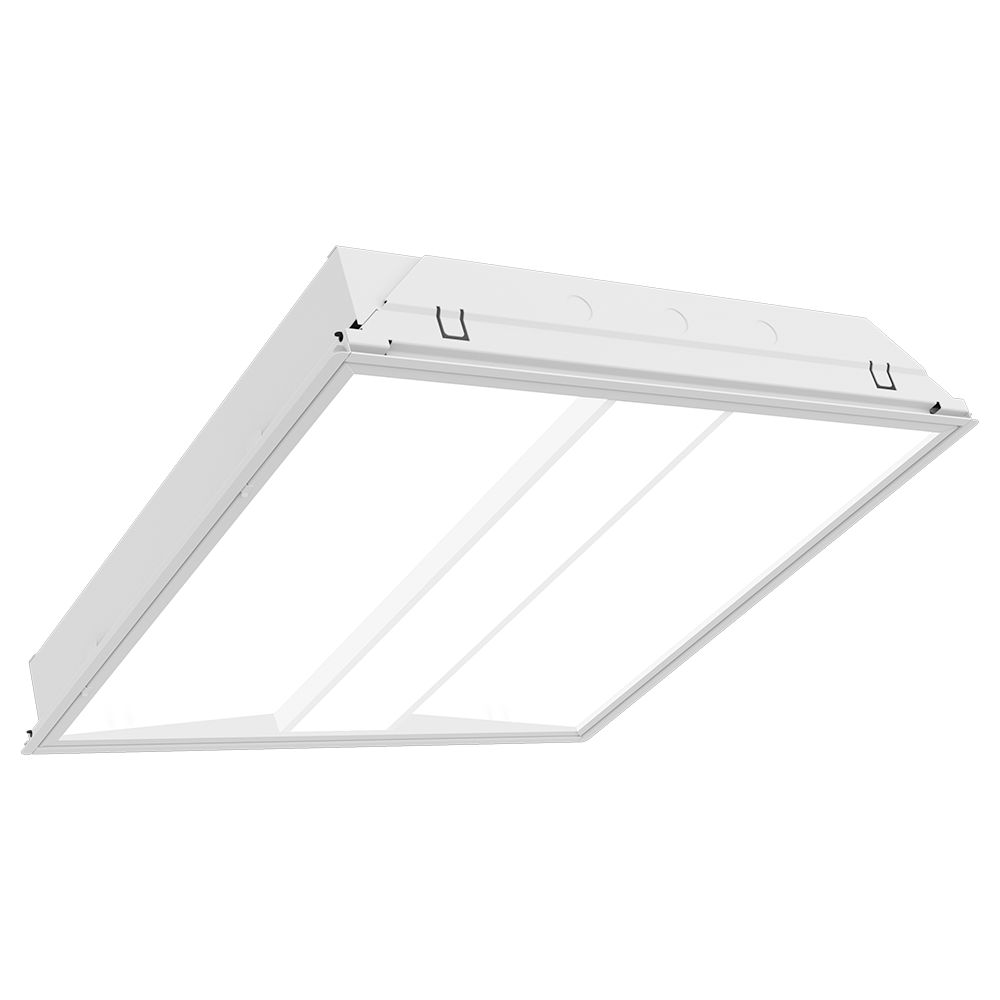

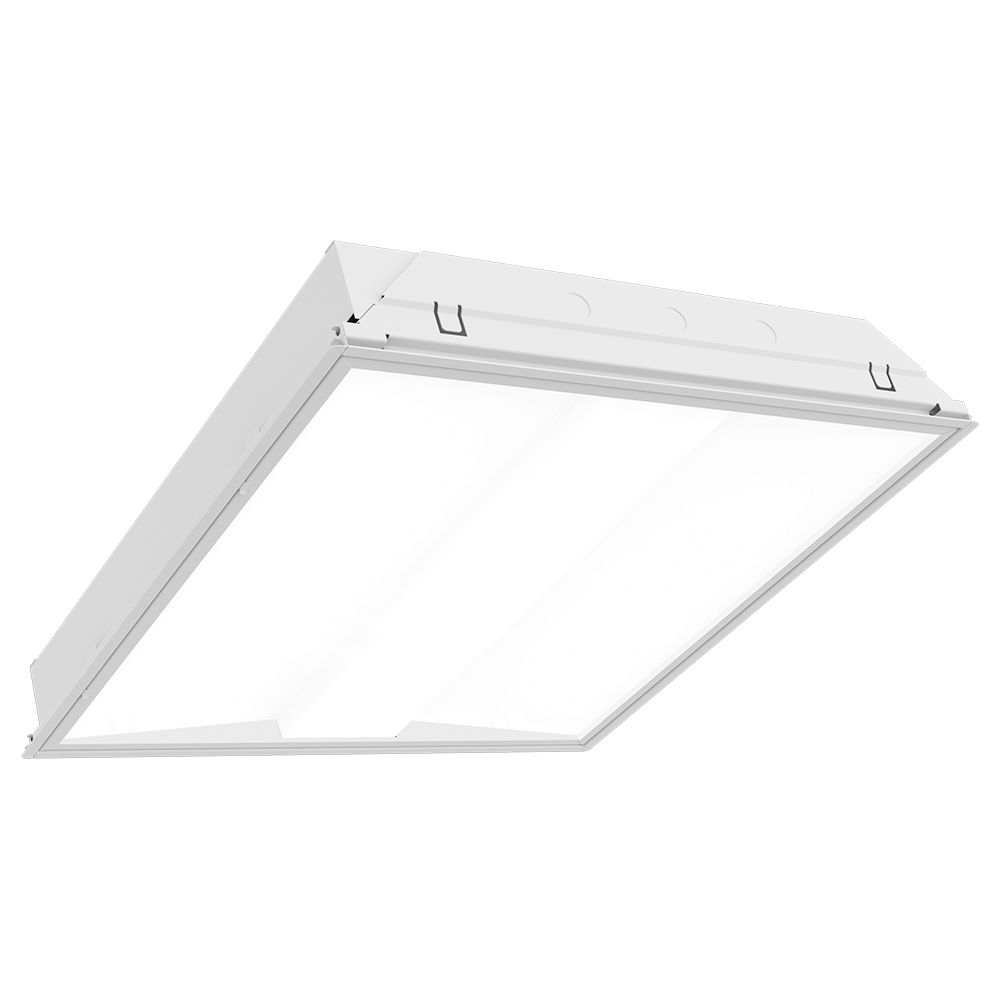

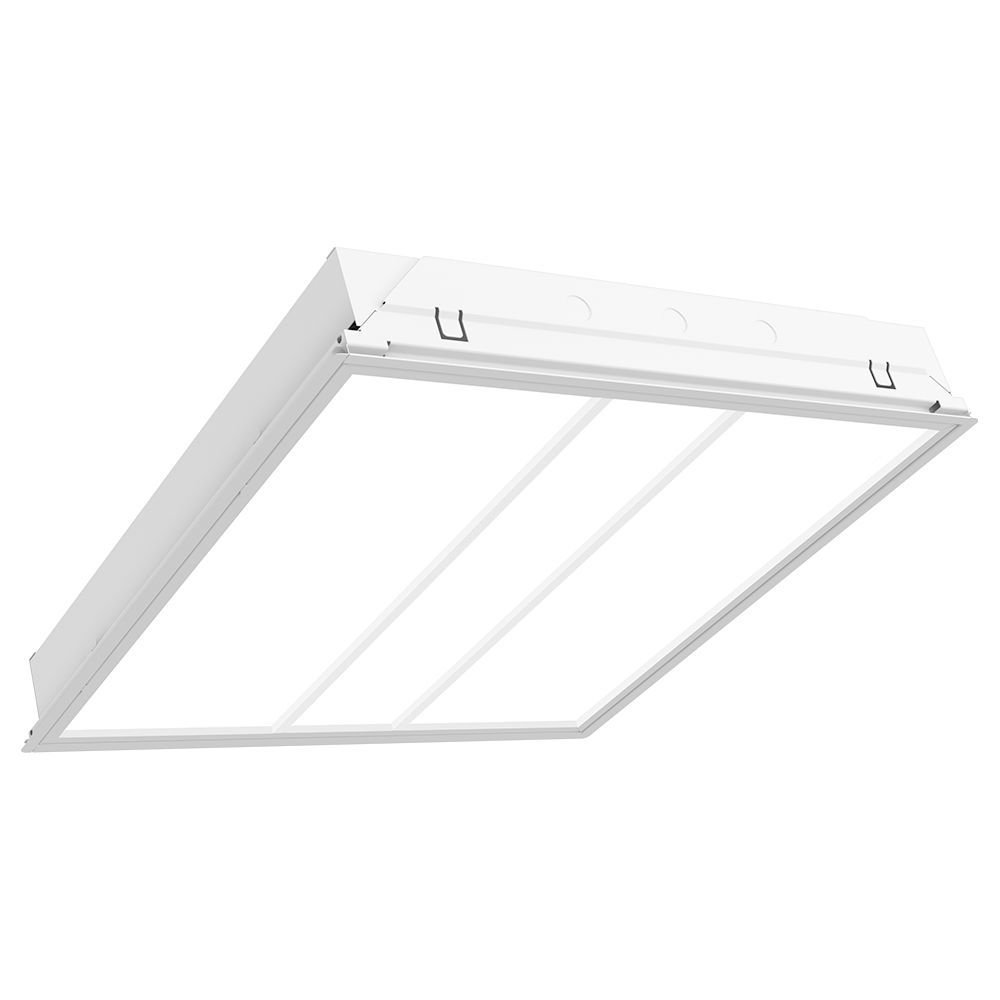

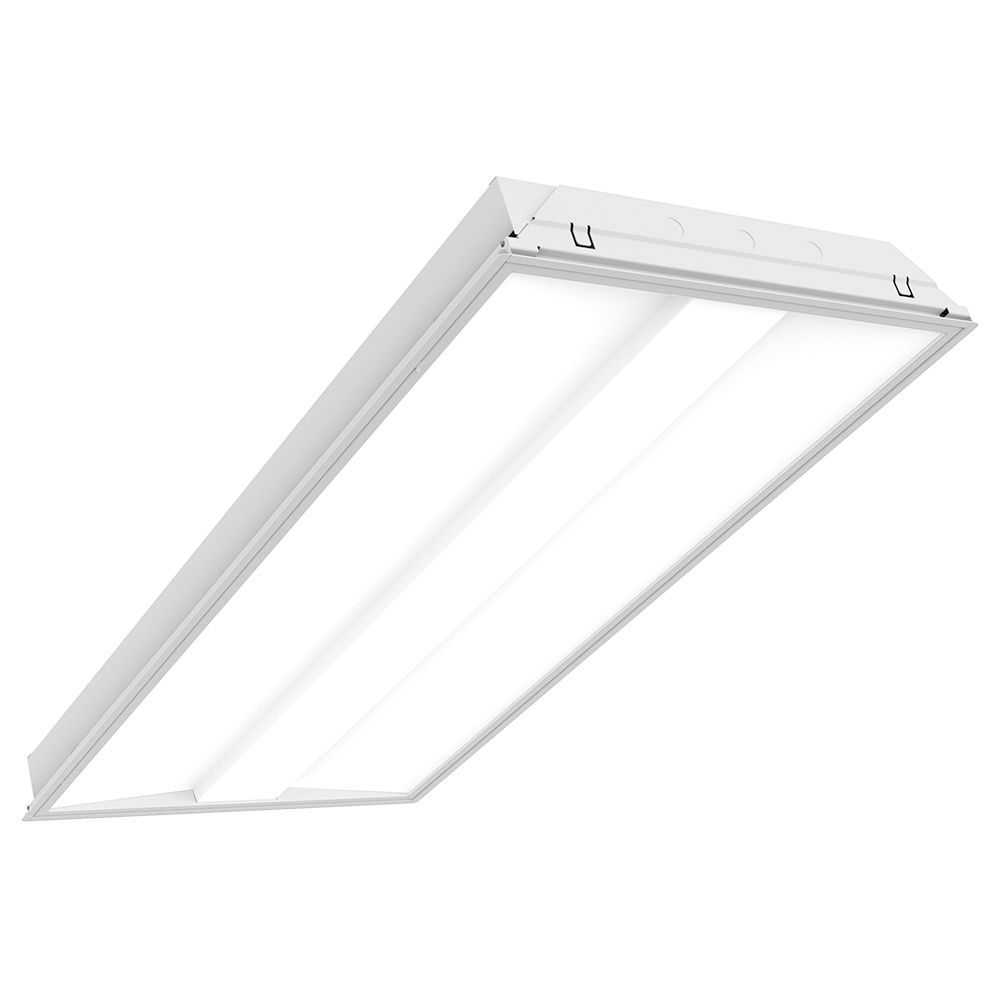

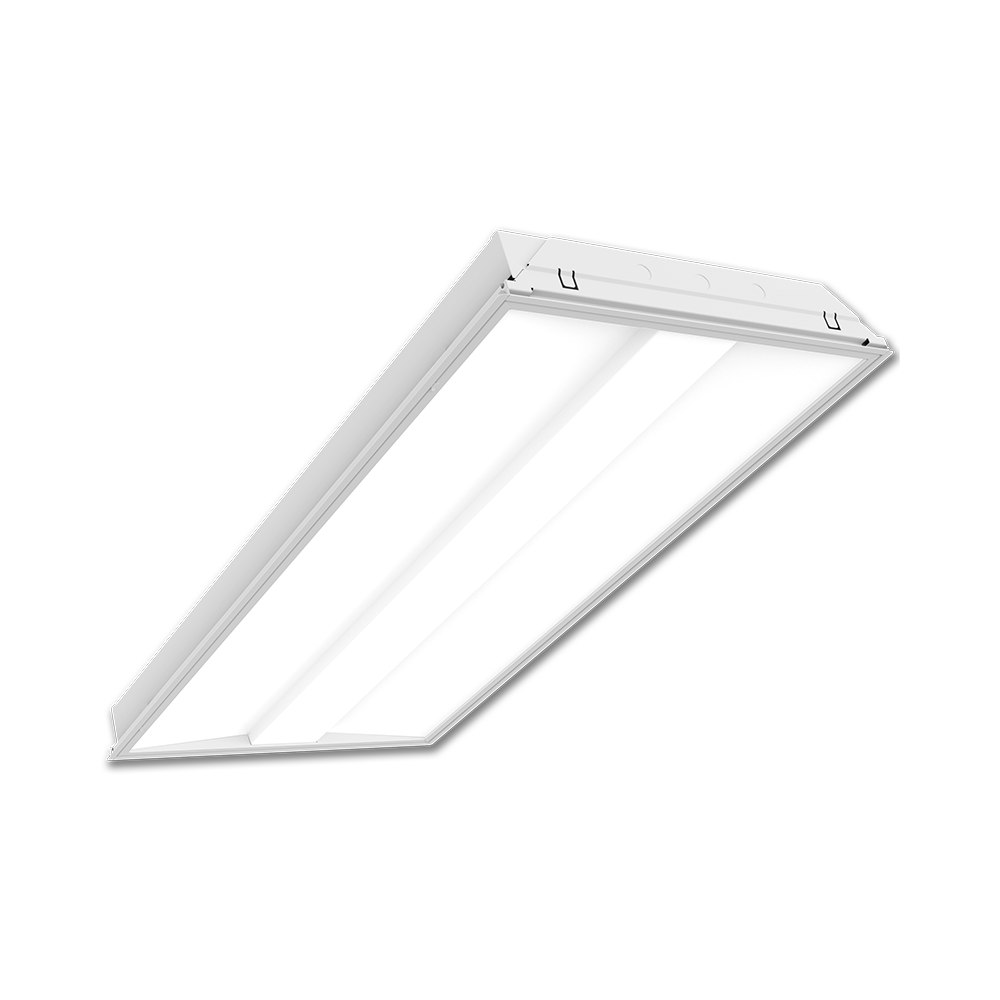

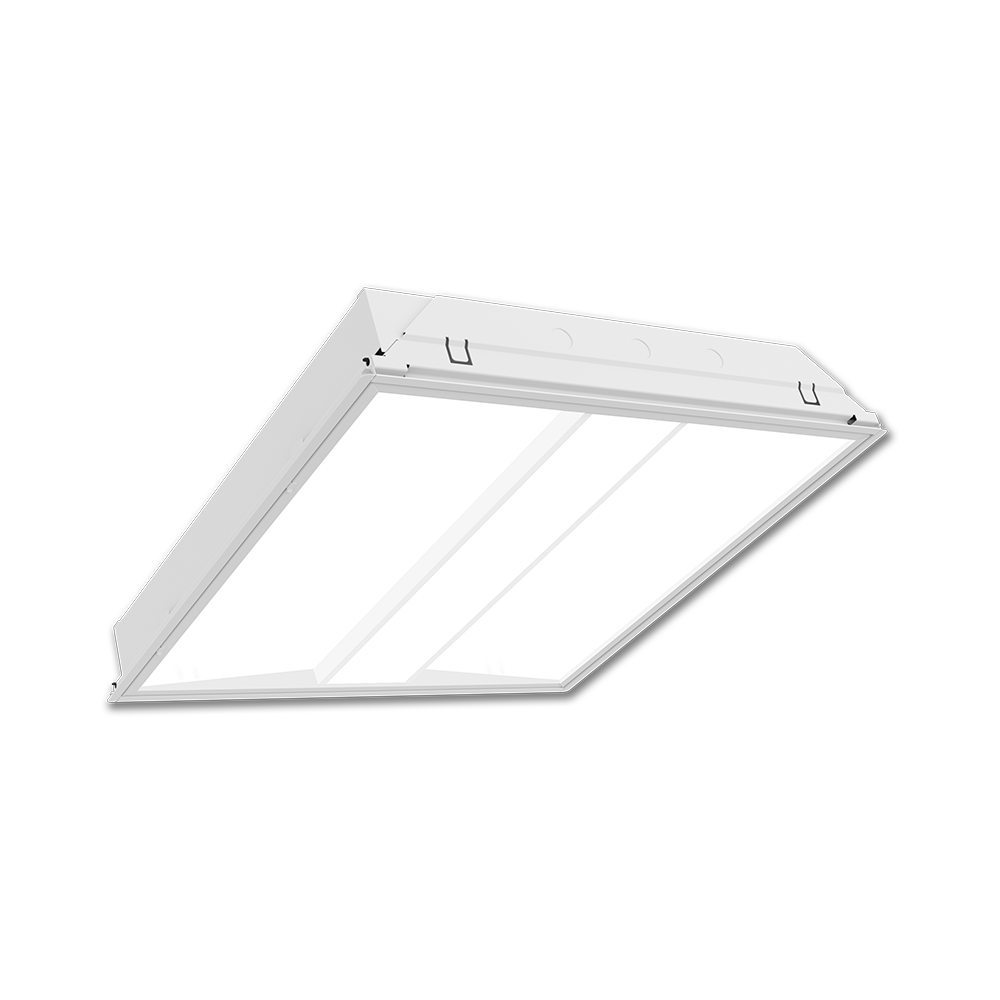

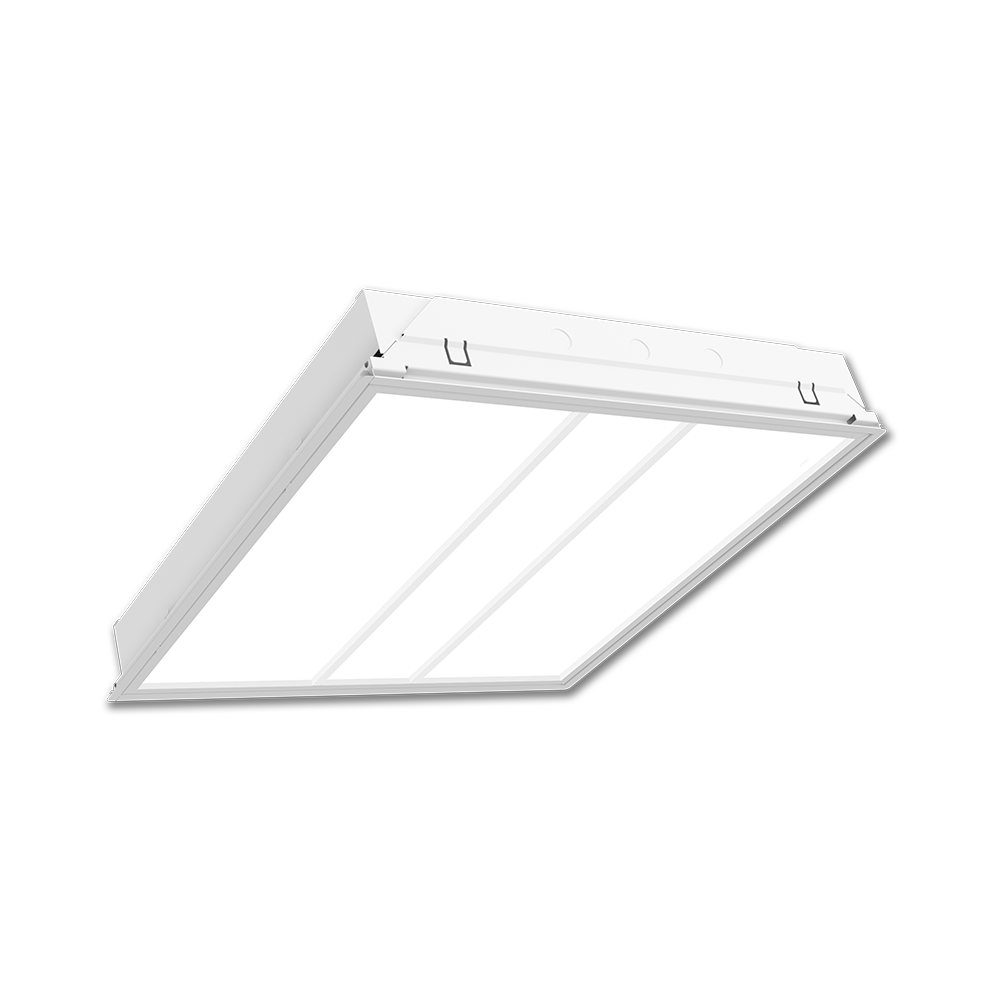

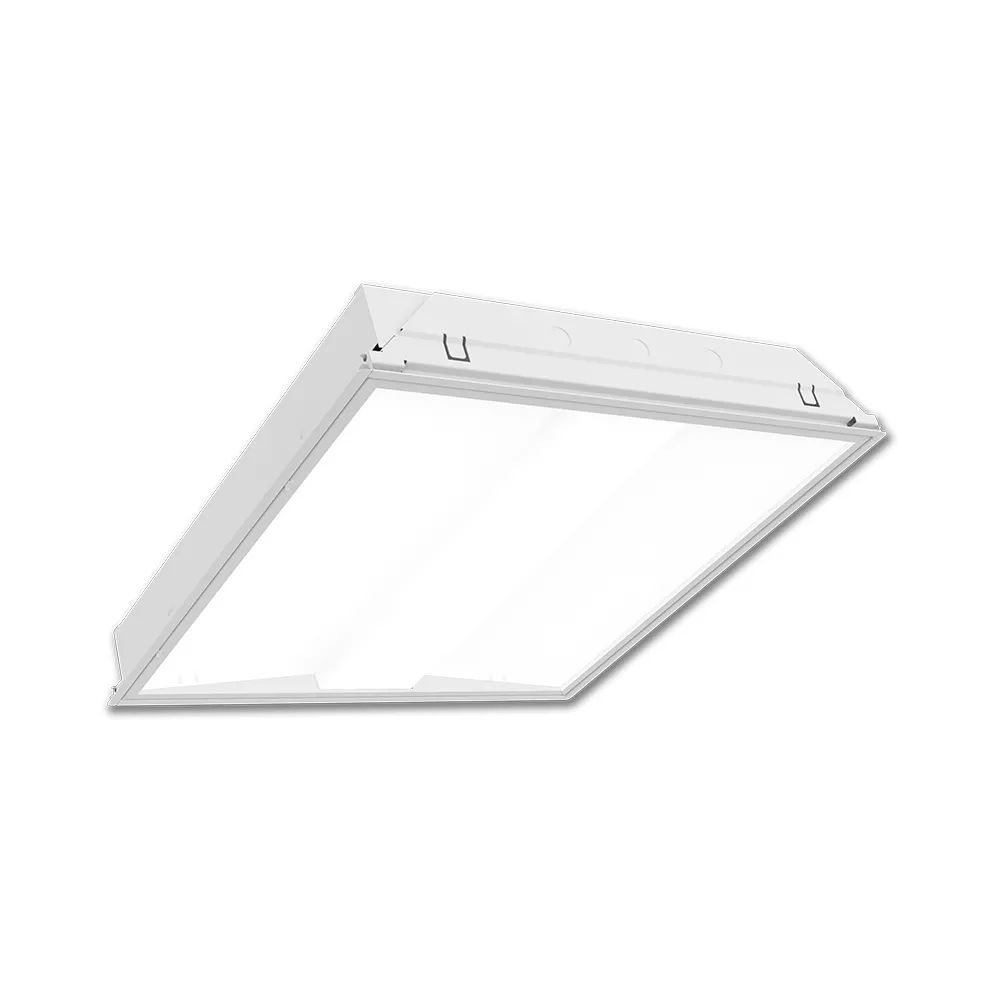

LED Recessed Troffer with Door Frame

LRTG

If you're searching for architectural LED lighting that combines performance, flexibility, and visual comfort, the LRTG LED Recessed Type G fixture is a standout solution. Designed for T-Bar ceiling applications, this premium-grade luminaire delivers soft, uniform illumination that enhances workspaces, corridors, and healthcare environments. Its sleek, low-profile design makes it ideal for shallow or obstructed plenums, while its robust construction ensures long-term reliability.

At the heart of the LRTG’s design is a single piece luminous lens, engineered to diffuse light evenly across the surface. This feature not only improves visual comfort but also contributes to a clean, modern ceiling aesthetic. The fixture’s optical system includes precision-formed reflectors that provide low-glare, indirect illumination with wide, uniform distribution perfect for environments where balanced lighting is essential.

One of the LRTG’s key differentiators is its availability in both standard and fixture available in non-standard sizes, including 20x60, 30x30, 750x750, and 500x1500. This flexibility allows designers and specifiers to meet unique architectural requirements without compromising on performance or style. Whether you're outfitting a classroom, retail space, or hospital corridor, the LRTG adapts to your layout with ease.

This recessed light fixture is built for efficiency and longevity. It features high-performance LEDs rated for L80 performance beyond 50,000 hours, with lumen packages ranging from 3700 to 9200 lumens. Standard 0–10V dimming (down to 1%) supports energy savings and lighting control, while optional features like emergency battery packs, air handling slots, and decorative lens rails expand its functionality. The fixture is fully serviceable from below, making maintenance simple and cost-effective.

Constructed from die-formed, heavy-gauge steel and finished in white polyester powder paint, the LRTG is both durable and visually refined. It meets CSA/UL standards, is suitable for damp locations, and is DesignLights Consortium® qualified (check specific configurations for eligibility). With multiple color temperature options (3000K to 5000K) and CRI ratings of 80+ or 90+, the LRTG can be tailored to meet both aesthetic and performance goals.

Whether you're designing a new space or upgrading an existing one, the LRTG LED Recessed Type G fixture offers a high-performance, flexible lighting solution that integrates seamlessly into architectural environments.

  • Architectural LED lighting solution with a frosted single-piece luminous lens for smooth, uniform light distribution.
  • Fixture available in non-standard sizes including 20x60, 30x30, 750x750, and 500x1500 to meet unique project requirements.
  • Recessed light fixture designed for T-Bar ceilings with low-profile housing ideal for shallow plenums.
  • Delivers up to 9200 lumens with high efficacy (up to 138.4 lm/W) and standard 0–10V dimming down to 1%.
  • Fully serviceable from below with optional features like air handling, emergency battery backup, and decorative lens rails.
Country of Origin: Canada

Product Information

  • Product Specifications

    Application : Classroom,Hospitals,Nursing Homes,Office,Retail Store,School

    Available Size(s) : 1x4,2x2,2x4,30x30,750x750,20x60,500x1500

    Brand : VIS

    CRI : 80+,90+

    Certification : DLC Listed,UL Listed (C/US),Damp Locations,IESNA LM-79

    Color Temperature : 3000K,3500K,4000K,5000K

    Fixture Type : Recessed,Troffer,T-Bar,Metric,Low Plenum

    Grade : Premium Grade

    Light Source : LED

    Lumen Output : 4000,3700-5000,4000-9200

    Market : Education,Healthcare,Commercial,General Area
