LED - Architectural Recessed Troffer with Square Corners Regressed Lens
ALTO - Square Corners

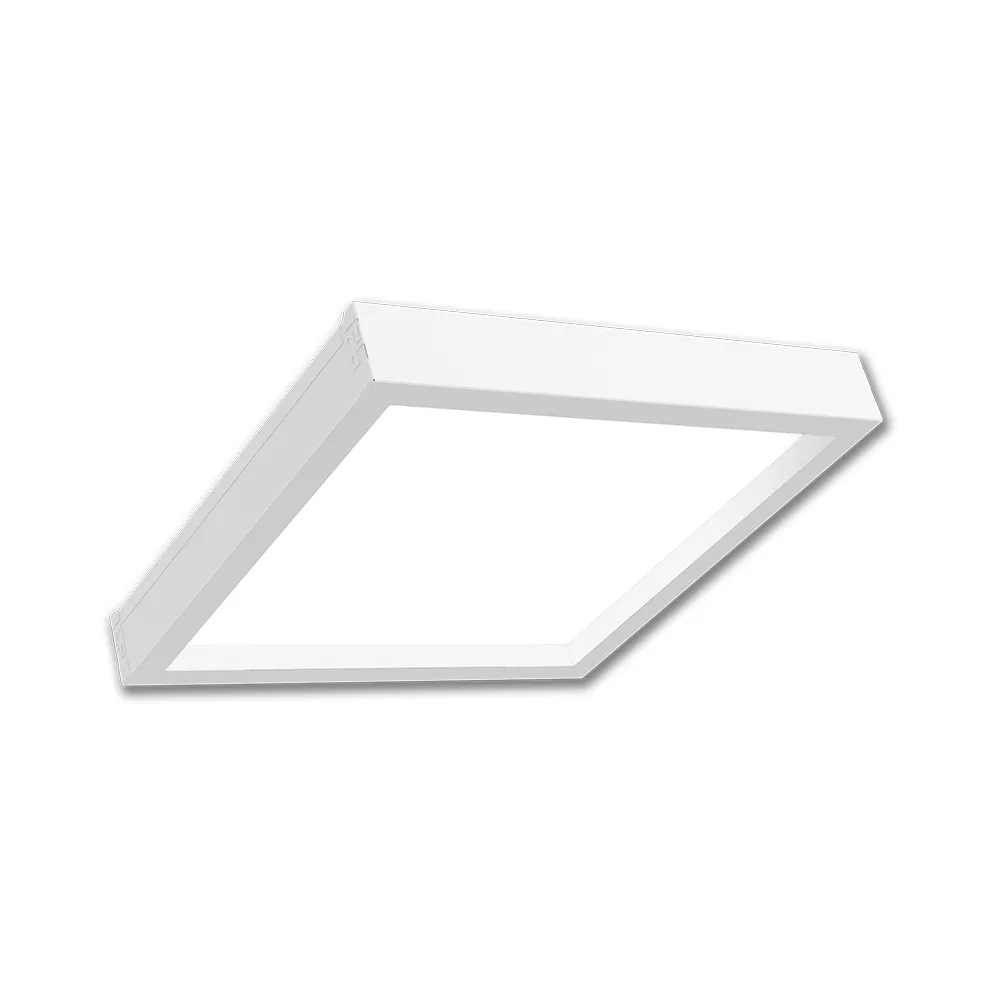

The ALTO - Square Corners LED recessed light fixture is engineered for modern architectural environments that demand both performance and visual comfort. Featuring a 1.25” regressed aperture, this fixture delivers enhanced optical cut-off and a soft, luminous glow that elevates the ambiance of any space. Designed for T-Bar ceiling applications, the ALTO combines sleek aesthetics with robust functionality, making it a standout choice for commercial interiors.

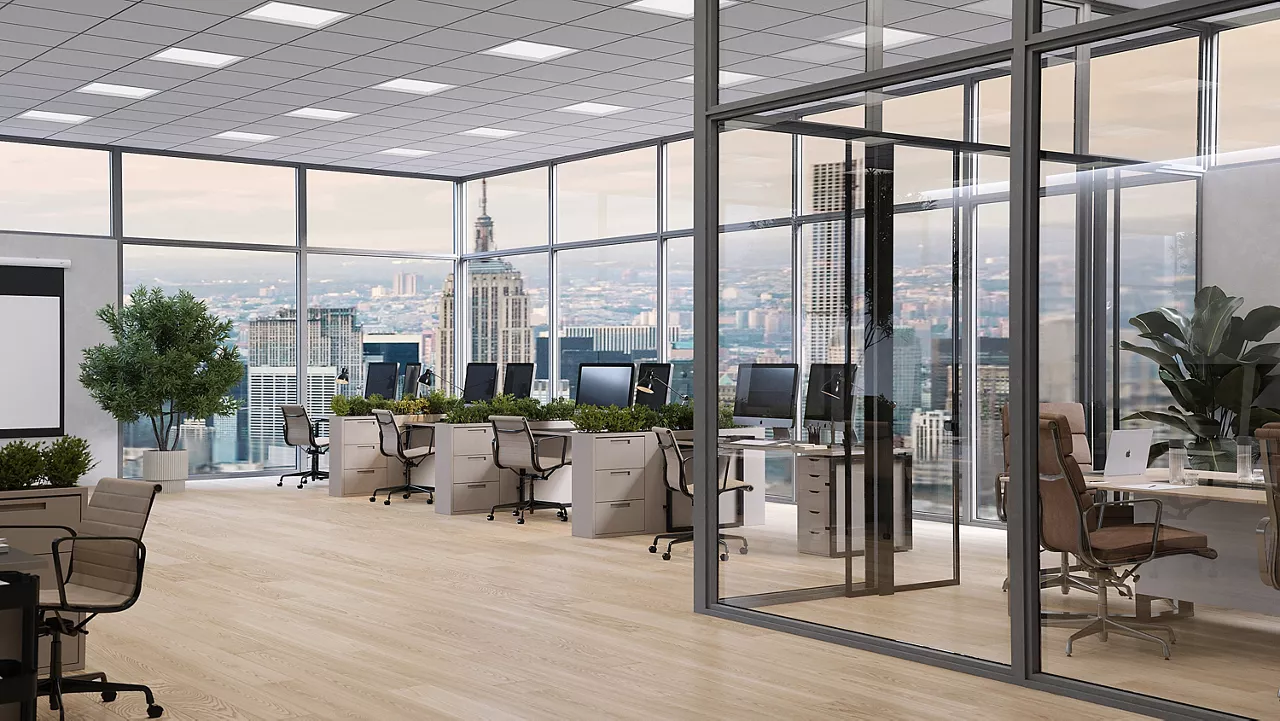

Ideal for offices, classrooms, healthcare facilities, and hospitality settings, the ALTO offers a square-cornered aperture that ensures even illumination across the lens. Its frosted, single-piece diffuser is recessed into the housing, minimizing glare while maintaining consistent brightness. Available in 1x4, 2x2, and 2x4 sizes, the fixture supports a wide range of lumen outputs from 2000 to 7000 lumens allowing for tailored lighting solutions. The fixture is compatible with insulated ceilings and includes integral earthquake clips for added safety.
What sets the ALTO apart is its commitment to energy efficiency and longevity. Powered by high-performance LEDs and efficient drivers, it achieves L80 performance beyond 60,000 hours, with calculated L70 lifespans exceeding 238,000 hours. The fixture supports standard 0–10V dimming and offers advanced options like DALI digital dimming and tunable white configurations (2700K–6500K). Emergency lighting battery packs, wireless controls, and cold-weather options further expand its versatility.
Constructed from die-formed, cold-rolled steel and finished with white polyester powder paint, the ALTO is built to last. It meets ETL standards, is RoHS compliant, and is suitable for damp locations. Whether you're designing a new space or upgrading an existing one, this architectural LED lighting solution delivers both form and function with precision.
With its clean lines, square corners, and regressed lens, the ALTO is more than just a light fixture it’s a design element that enhances the overall experience of a space. Its modular options and scalable performance make it a reliable choice for professionals seeking quality, flexibility, and style.
- 1.25” regressed lens enhances optical cut-off and reduces glare for improved visual comfort.
- Square-cornered aperture provides clean, modern aesthetics with uniform illumination.

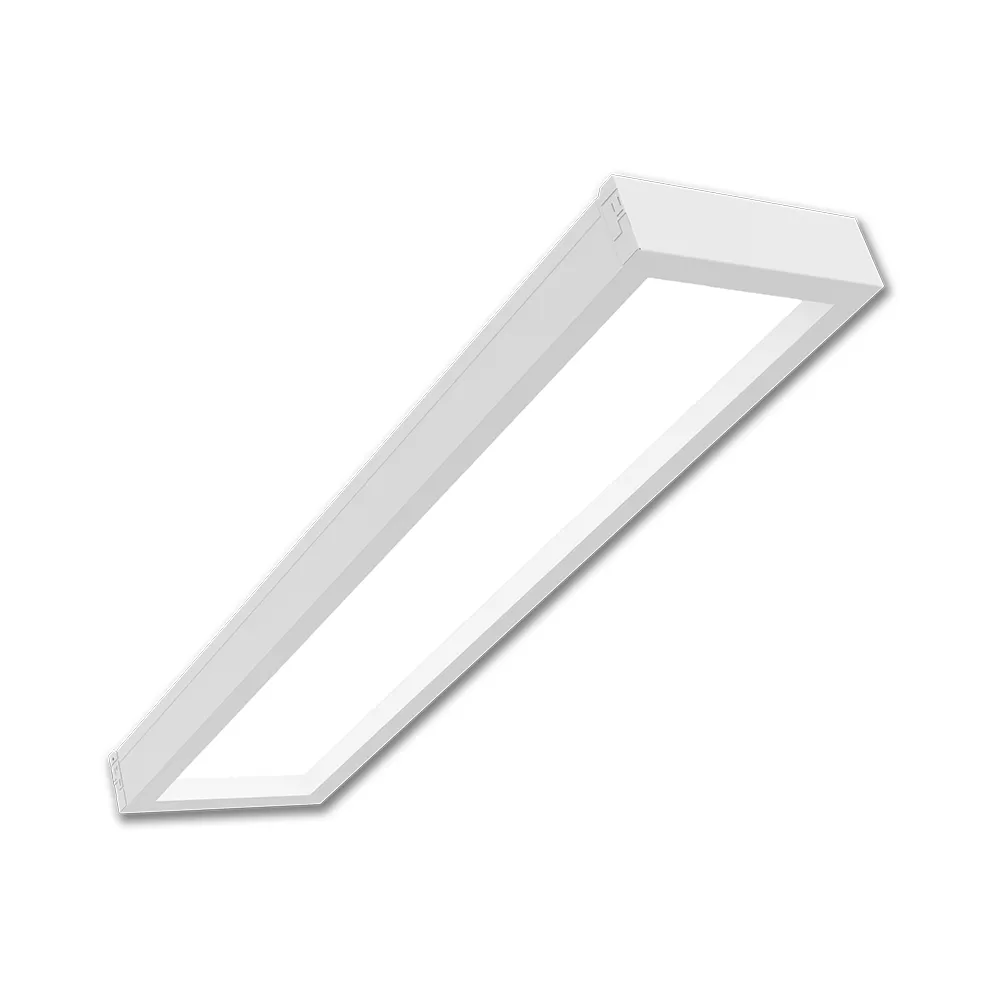

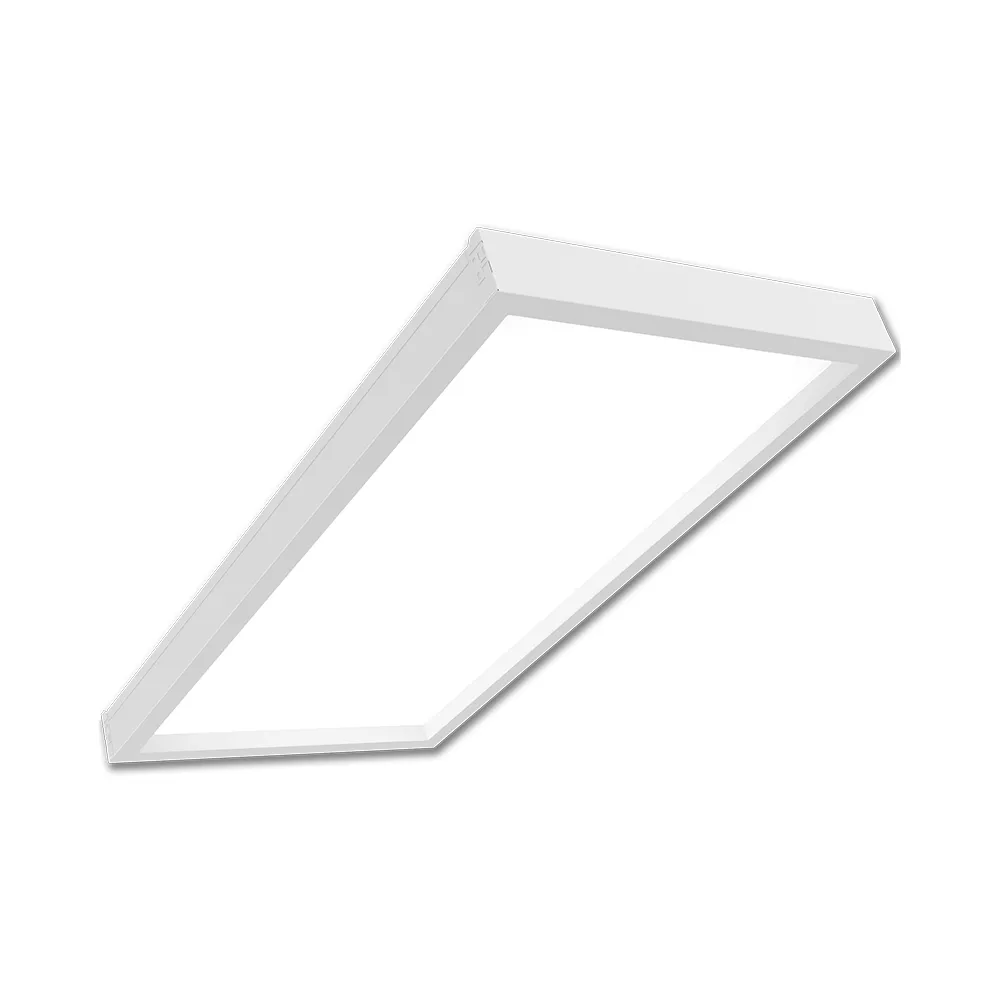

- Available in 1x4, 2x2, and 2x4 sizes, with lumen outputs ranging from 2000 to 7000 for flexible lighting design.
- Rated for L80 > 60,000 hours, ensuring long-term performance and reduced maintenance.
- Supports advanced controls, including DALI dimming, tunable white, and emergency battery packs.
Product Information
Product Specifications
Application : Office,Retail Store,Classroom,Hospitals,Nursing Homes,Hospitality
Available Size(s) : 1x4,2x2,2x4
Brand : VIS
CRI : 80+,90+
Certification : ETL Listed,Suitable for Damp Locations,ROHS Compliant, Tested in accordance to IESNA LM-79
Color Temperature : 3000K,3500K,4000K,5000K,2765KT
Fixture Type : Architectural,Recessed,Troffer
Grade : Premium Grade
Light Source : LED
Lumen Output : 2000-4000,2400-5000,3600-7000
Market : Commercial,Education,Healthcare
Related Videos
Visioneering's ALTO | Architectural Recessed Troffer with Regressed lens
