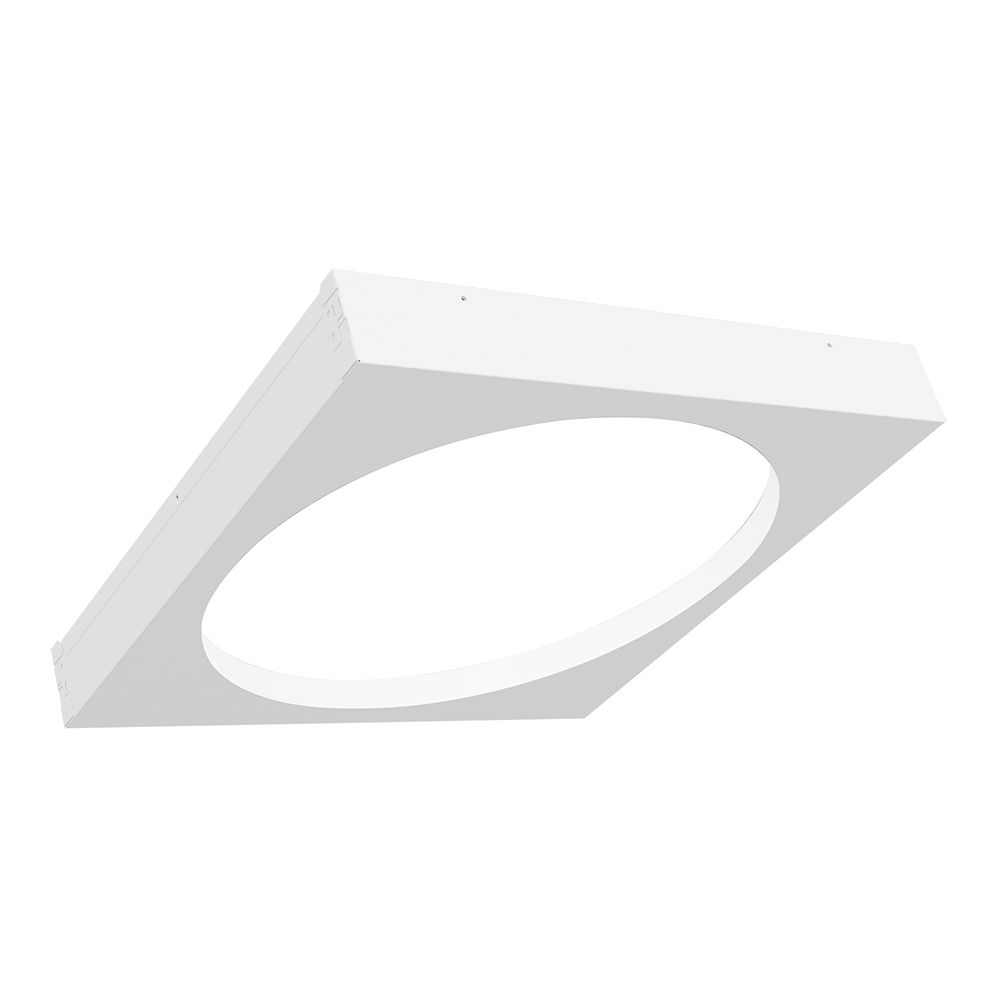

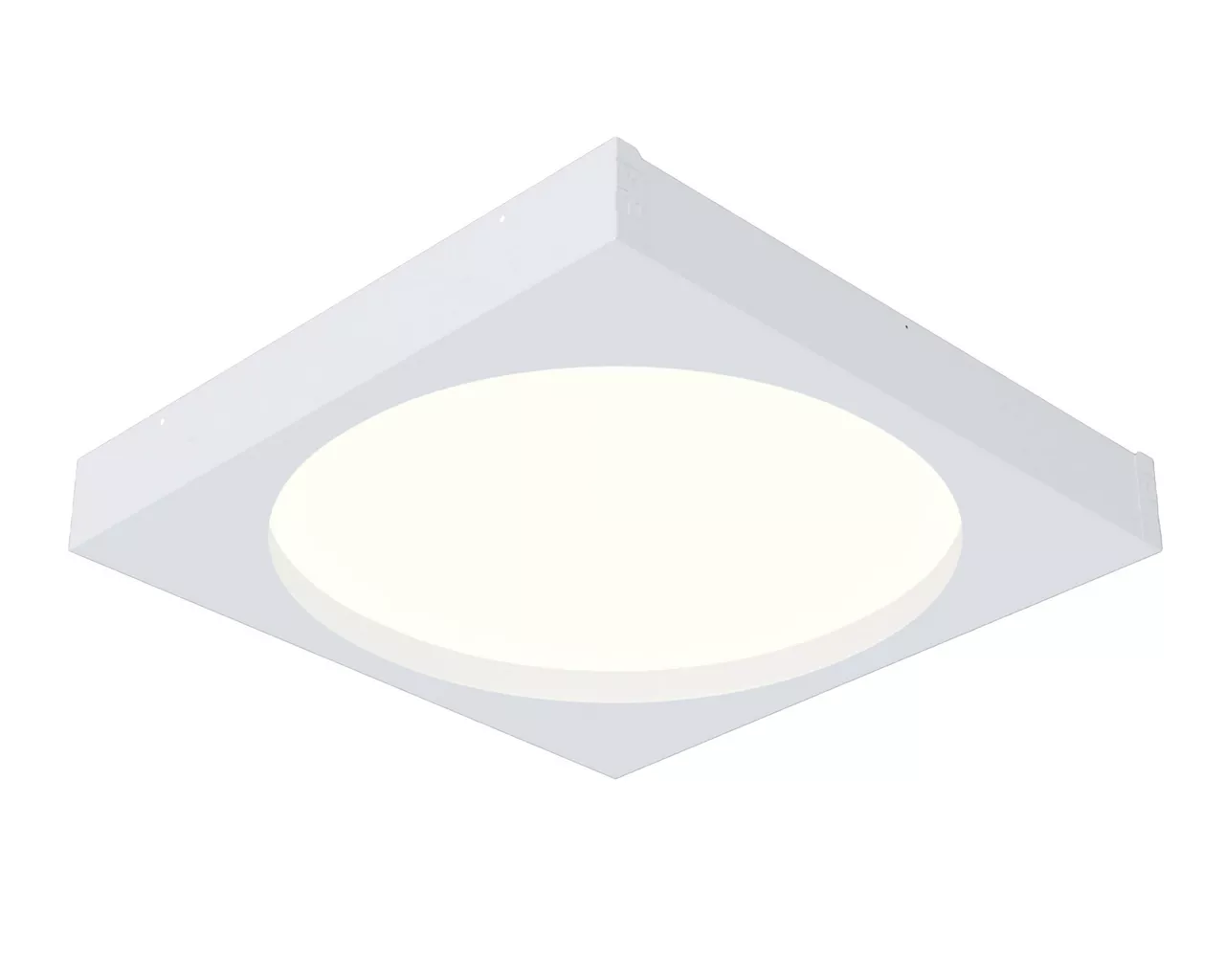

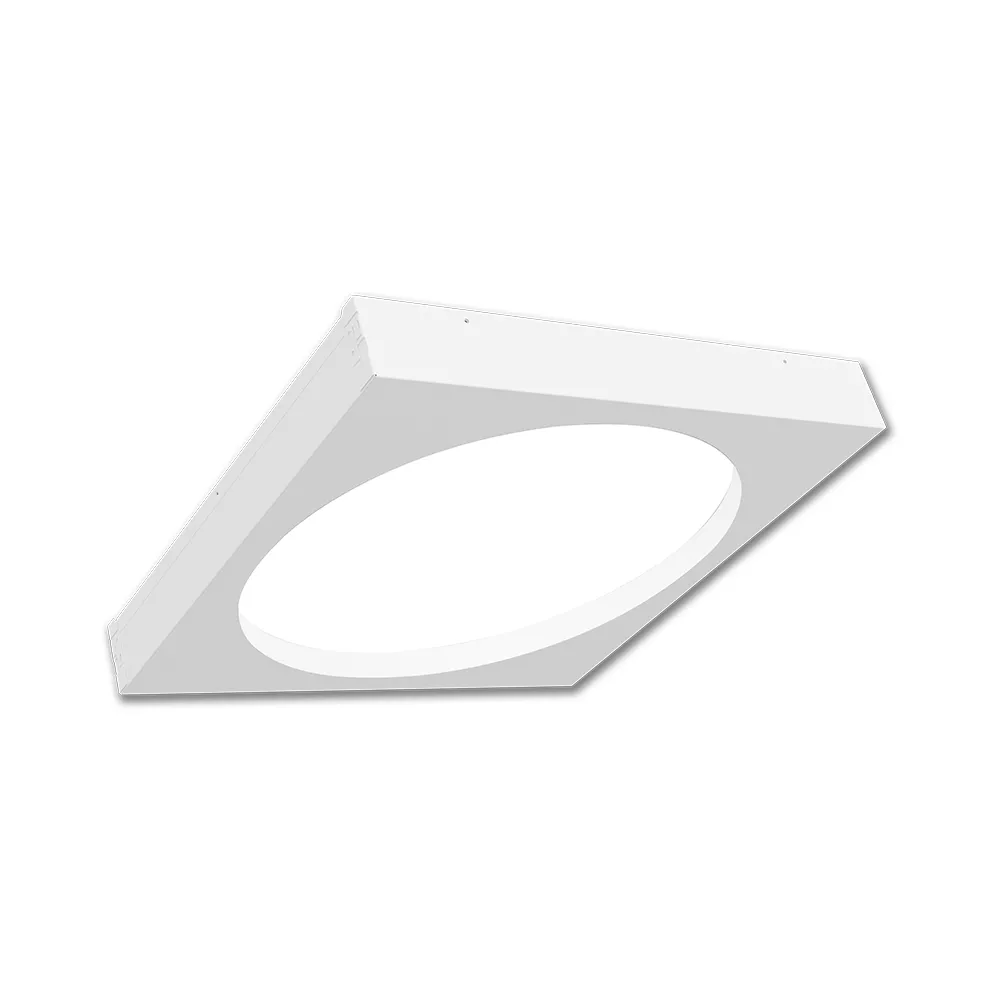

LED - Architectural Recessed Troffer with Regressed Circular Lens
ALTO Circular
The ALTO Circular LED recessed light fixture is engineered for modern architectural environments requiring a clean, luminous aesthetic. Designed with a circular aperture, this fixture delivers even illumination and high visual comfort, making it ideal for commercial interiors where lighting performance and design matter. Its 1.25” round regressed aperture enhances optical cut-off, reducing glare while maintaining a soft, inviting glow across the space.
Built for versatility, the ALTO Circular LED is suitable for a wide range of applications including offices, classrooms, healthcare facilities, and hospitality environments. The fixture integrates seamlessly into T-Bar ceilings and includes mounting features such as chain support holes and earthquake clips for added stability. Its frosted, single-piece diffuser is regressed into the housing, contributing to its sleek profile and consistent light distribution. Whether you're upgrading an existing space or designing a new one, this recessed light fixture offers a refined solution that balances form and function.
Performance is a key differentiator. The ALTO delivers up to 5,000 lumens with high efficacy over 100 lumens per watt while maintaining L80 performance beyond 60,000 hours. It supports standard 0–10V dimming and is available in multiple color temperatures (3000K to 5000K), including tunable white options (2700K–6500K). For enhanced control, wireless and DALI dimming options are available. Emergency battery packs, cold weather configurations, and extended runtime options further expand its utility in demanding environments.
From a construction standpoint, the fixture features a die-formed, cold-rolled steel housing with a white polyester powder finish. It meets ETL and RoHS compliance standards and is suitable for damp locations. The ALTO ensuring energy efficiency and rebate eligibility in many regions. With its architectural-grade build and advanced LED technology, the ALTO Circular LED is a standout choice in architectural LED lighting.
Whether you're specifying for a retrofit or a new build, the ALTO Circular LED offers a compelling blend of performance, aesthetics, and reliability. Its thoughtful design and broad feature set make it a go-to solution for professionals seeking high-quality recessed lighting with a modern edge.
- Circular aperture with 1.25” regressed lens enhances visual comfort and reduces glare for a clean, modern look.
- High-performance LED system delivers up to 5,000 lumens with over 100 lm/W efficiency and L80 > 60,000 hours.
- Versatile mounting options include T-Bar compatibility, chain support holes, and earthquake clips for secure installation.
- Advanced control features such as 0–10V dimming, DALI, and wireless options support flexible lighting environments.
- Certified for quality and safety, including ETL listing, RoHS compliance, and suitability for damp locations.
Product Information
Product Specifications
Application : Office,Retail Store,Classroom,Hospitals,Nursing Homes,Hospitality
Available Size(s) : 2x2
Brand : VIS
CRI : 80+,90+
Certification : ETL Listed,Suitable for Damp Locations,ROHS Compliant, Tested in accordance to IESNA LM-79
Color Temperature : 3000K,3500K,4000K,5000K,2765KT
Fixture Type : Architectural,Recessed,Troffer
Grade : Premium Grade
Light Source : LED
Lumen Output : 2400-5000
Market : Commercial,Education,Healthcare
