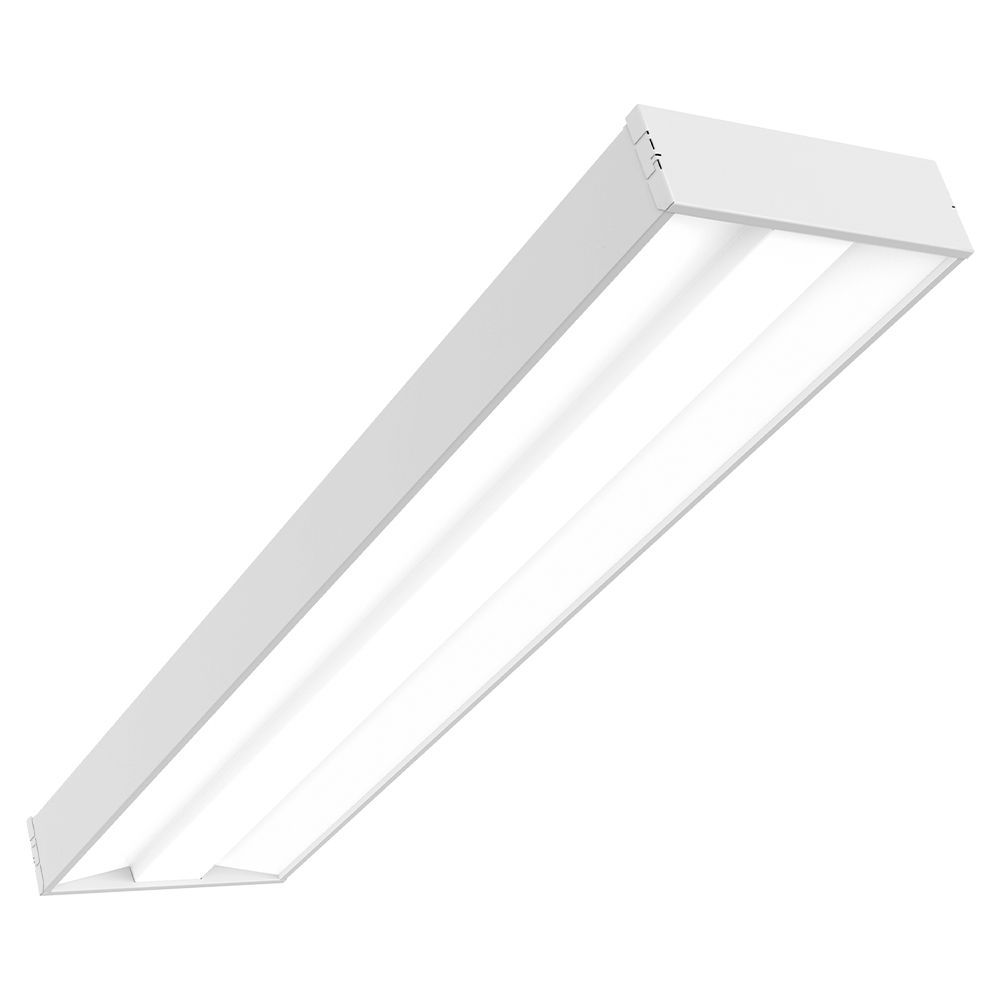

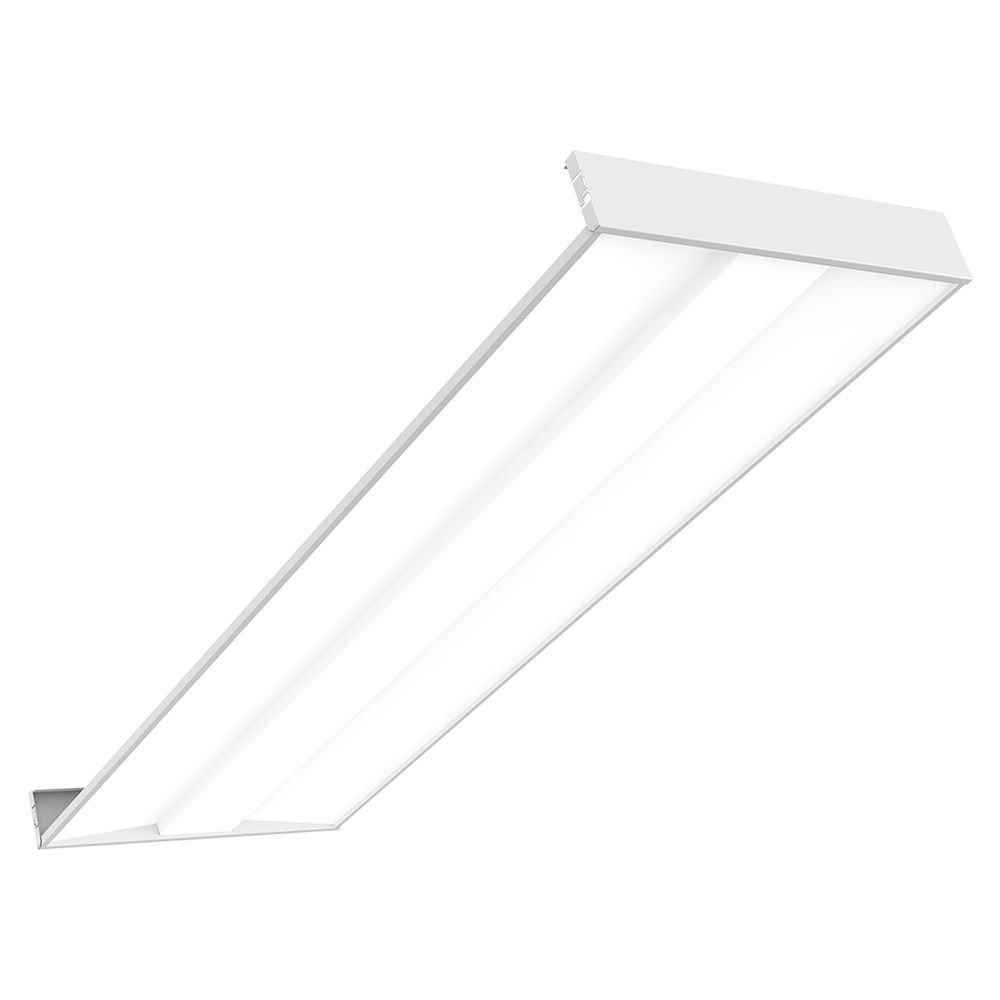

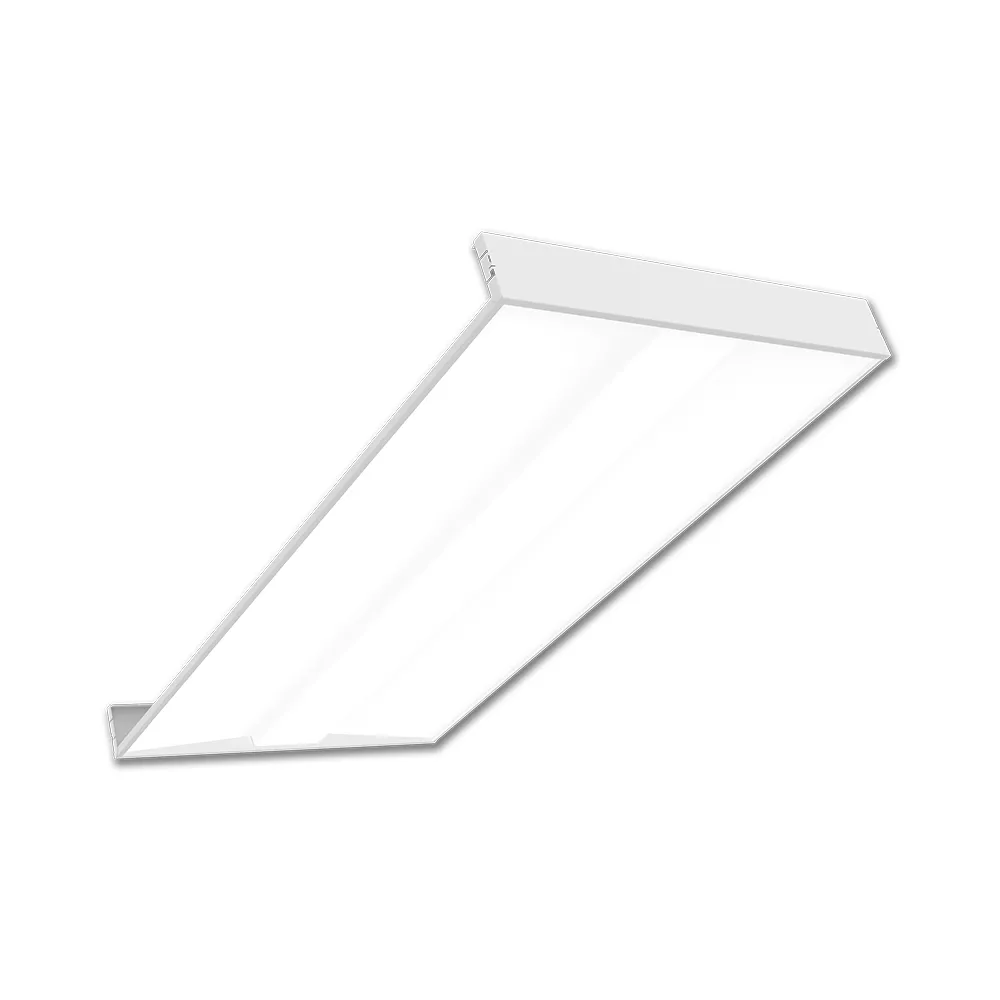

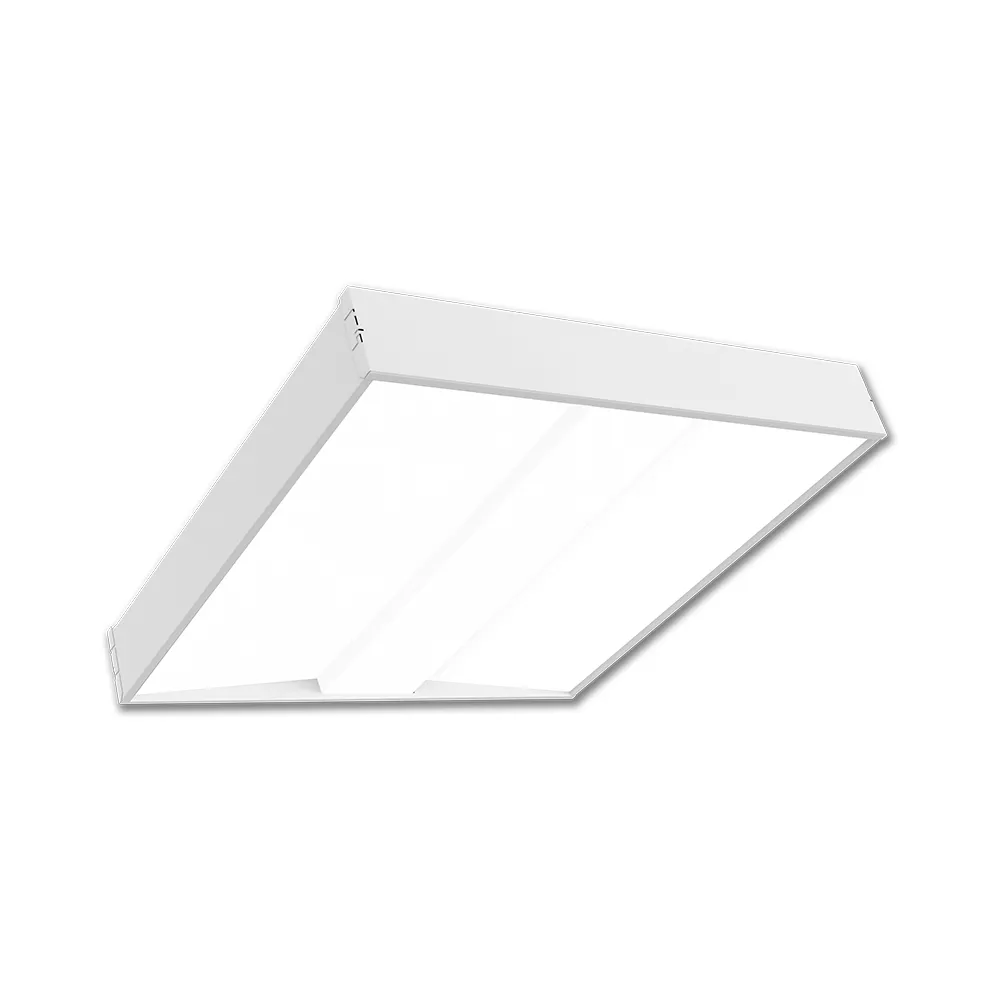

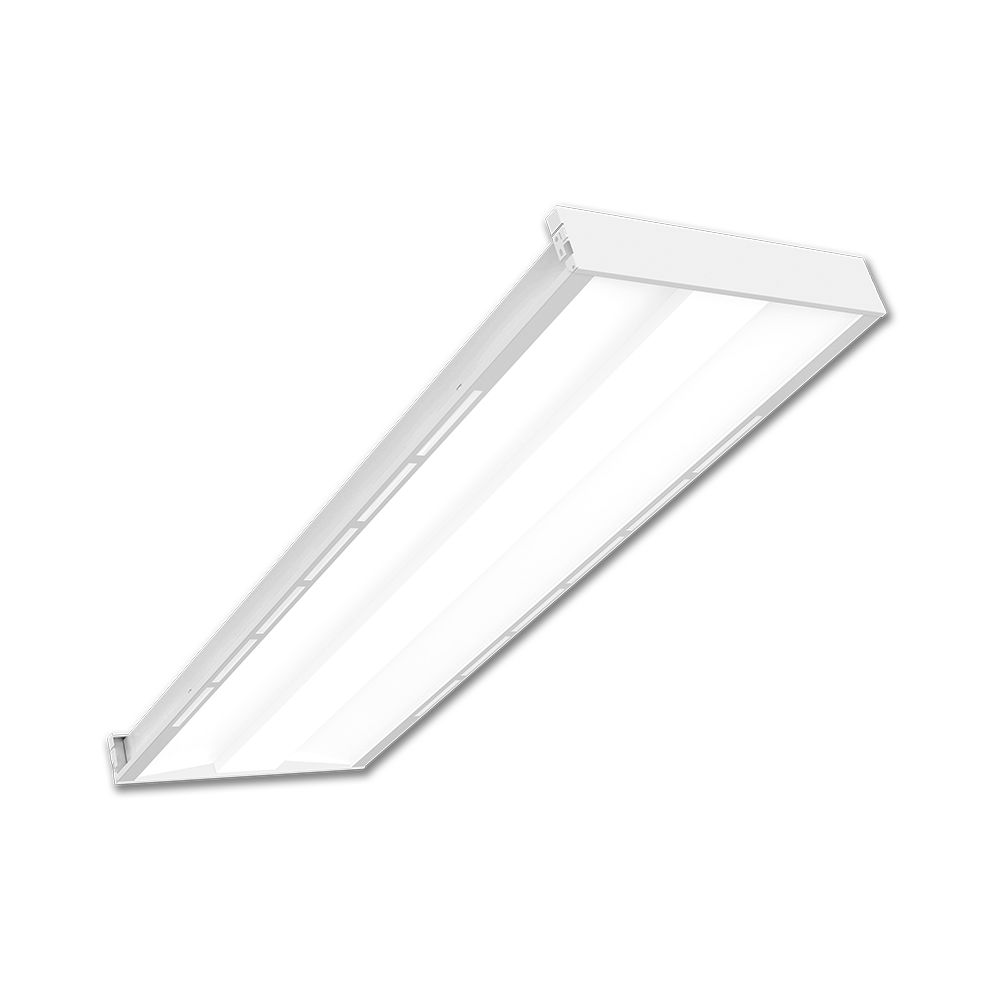

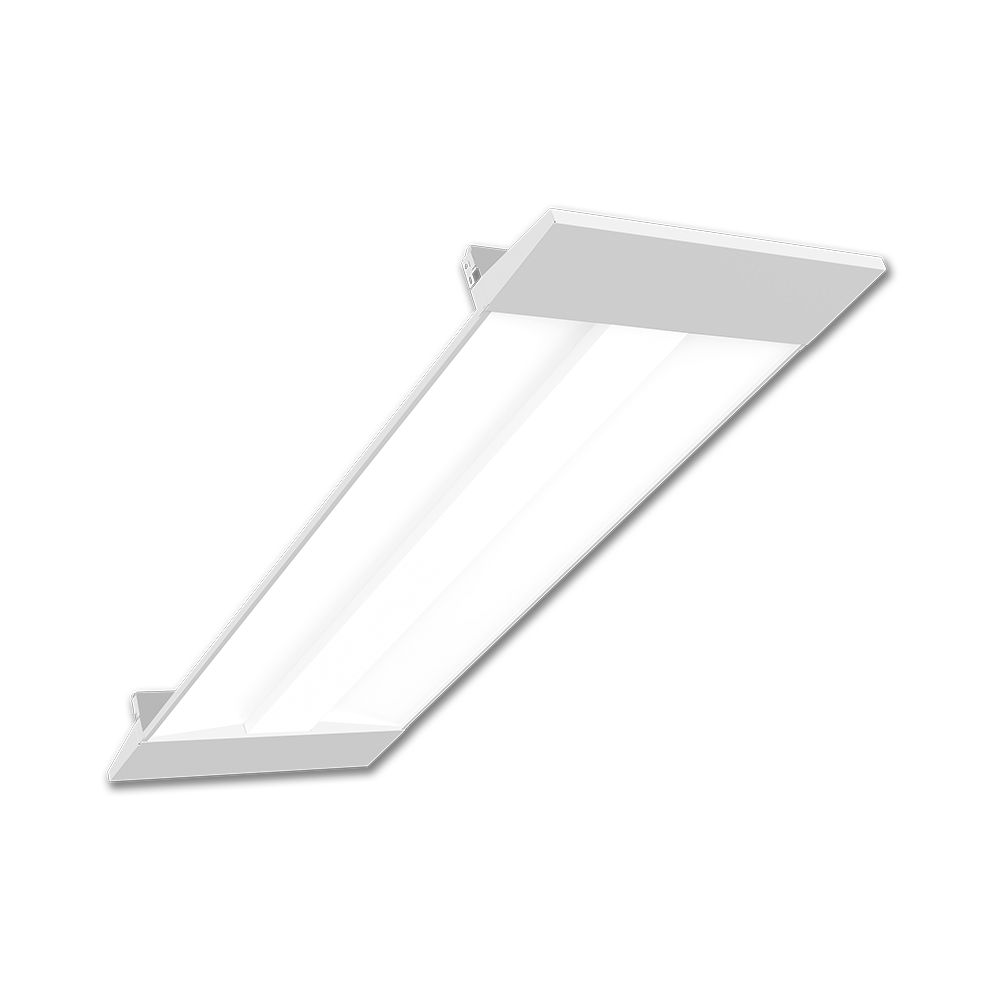

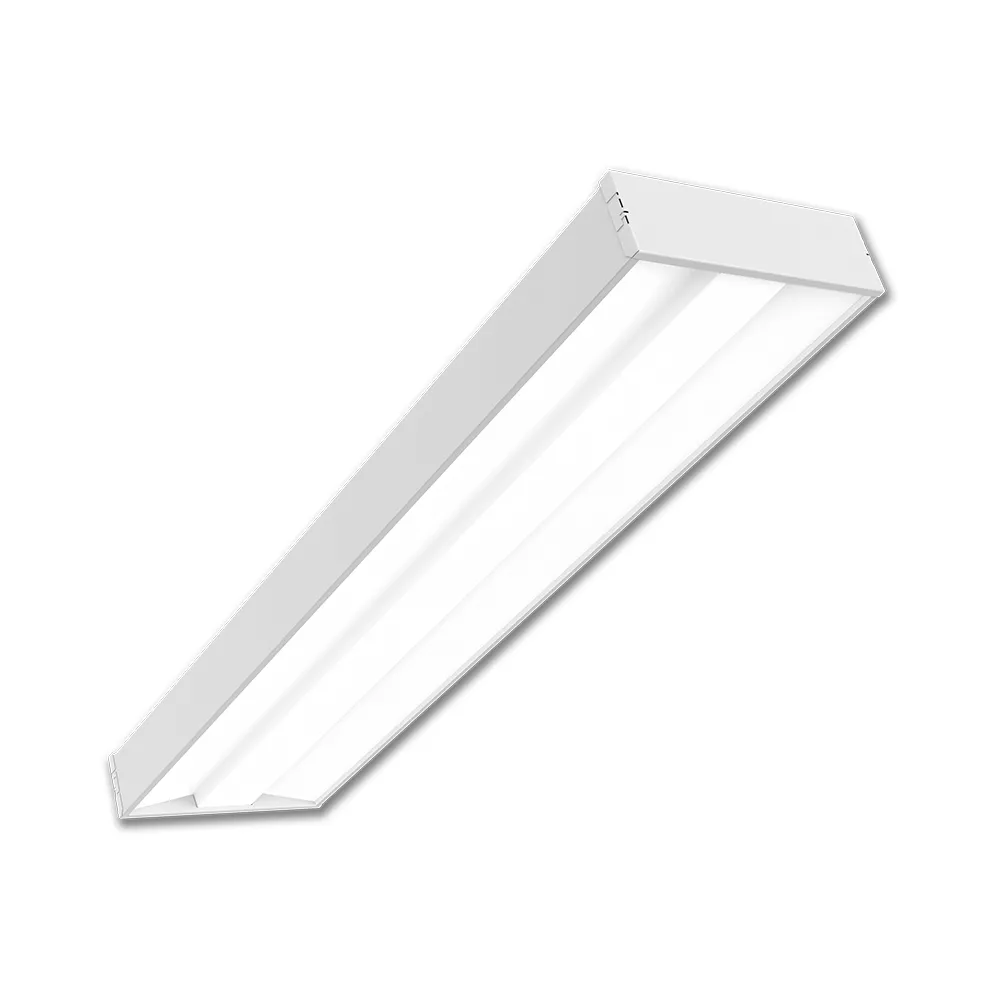

LED Architectural Recessed Troffer with Single Piece Lens

ClearForm

When shallow ceiling spaces demand performance without compromise, the ClearForm-LRTG delivers. This premium-grade tunable white lighting solution is engineered for recessed T-Bar applications where both aesthetics and efficiency matter. With a low-profile design and a luminous single-piece lens, it provides uniform, glare-free illumination ideal for modern commercial interiors.

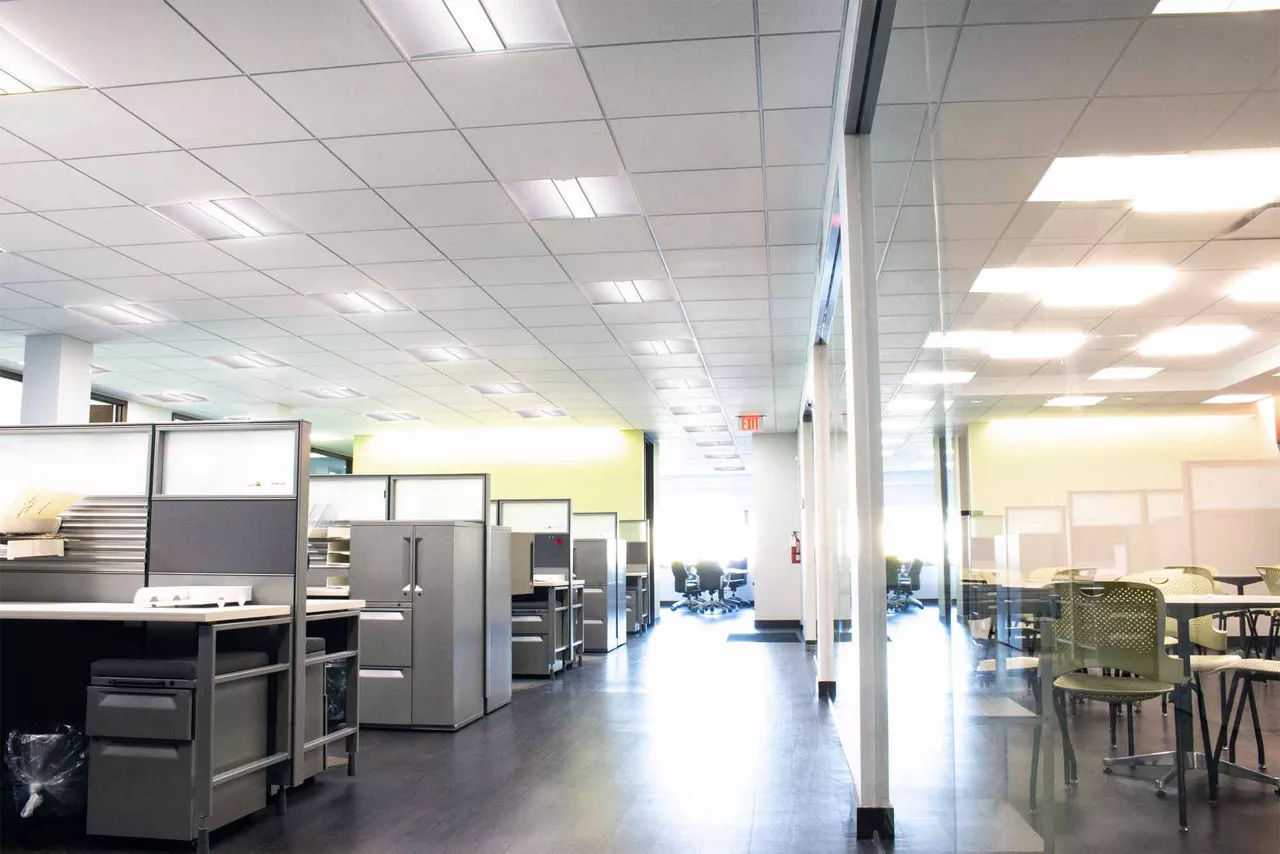

Designed for versatility, the ClearForm-LRTG is available in multiple sizes including 1x4, 2x2, 2x4, and metric options, making it suitable for a wide range of ceiling grids and layouts. Its recessed LED troffer construction ensures seamless integration into office areas, classrooms, healthcare facilities, and retail environments. The fixture’s frosted polycarbonate diffuser enhances visual comfort while delivering high efficacy up to 145 lumens per watt ensuring energy savings without sacrificing light quality.

What sets this luminaire apart is its single piece luminous lens, which maximizes the luminous opening and eliminates the need for a door frame. This not only enhances the fixture’s clean architectural appearance but also simplifies maintenance. The lens is paired with long-life LEDs and high-efficiency drivers, rated for L80 performance beyond 60,000 hours, ensuring reliable, low-maintenance operation over time.

The CLEARFORM-LRTG supports architectural lighting needs with a range of options including tunable white (2700K–6500K), emergency battery packs, and decorative lens rails. It’s also compatible with advanced dimming controls (0–10V standard, 1% dimming optional), and offers flexible wiring configurations including dual-circuit and armored cable whips. For projects requiring air handling or plenum-rated construction, options like air supply slots and Chicago Plenum compliance are available.

Installation is straightforward thanks to its IC-rated, die-formed steel housing and full serviceability from below. Earthquake clips and chain-mounting holes provide added security, while surface and flange kits support hard ceiling applications. The fixture is UL listed for insulated ceilings, suitable for damp locations, and DLC-qualified for select configurations making it a smart choice for specifiers and contractors alike.

Whether you're upgrading an existing space or designing a new one, the ClearForm-LRTG offers a refined balance of performance, flexibility, and visual appeal. Its tunable white capability supports circadian lighting strategies, while its sleek form factor meets the demands of today’s architectural environments.

  • Tunable white lighting (2700K–6500K) supports dynamic environments and circadian-friendly design strategies.
  • Recessed LED troffer design fits shallow or obstructed plenums with ease, ideal for modern commercial ceilings.
  • Single piece luminous lens provides a clean, frameless look with uniform light distribution and easy maintenance.
  • Architectural lighting options include decorative lens rails, emergency battery packs, and air handling features.
  • High efficacy up to 145 LPW and L80 > 60,000 hours ensure long-term energy savings and performance reliability.
Country of Origin: Canada

Product Information

  • Product Specifications

    Application : Boardroom,Cafeteria,Classroom,Corridor,Library,Nursing Homes,Office,Retail Store,Showroom,Supermarket,Data Centers

    Available Size(s) : 1x4,2x2,2x4,30x30,750x750,20x60,500x1500

    Brand : VIS

    CRI : 80+,90+

    Certification : CSA & UL Standards,DLC Listed,Damp Location ,IESNA LM-79

    Color Temperature : 3000K,3500K,4000K,5000K,2765KT

    Fixture Type : Metric,Recessed,Architectural,Troffer,Low Plenum,T-Bar

    Grade : Premium Grade

    Light Source : LED

    Lumen Output : 3001-4000,4001-5000,5001-10000

    Market : Education,Commercial,Healthcare,General Area

    Quickship : 3 Days
