LED Patient Room Luminaire with Ambient/Exam/Reading functions

MD3-Alto

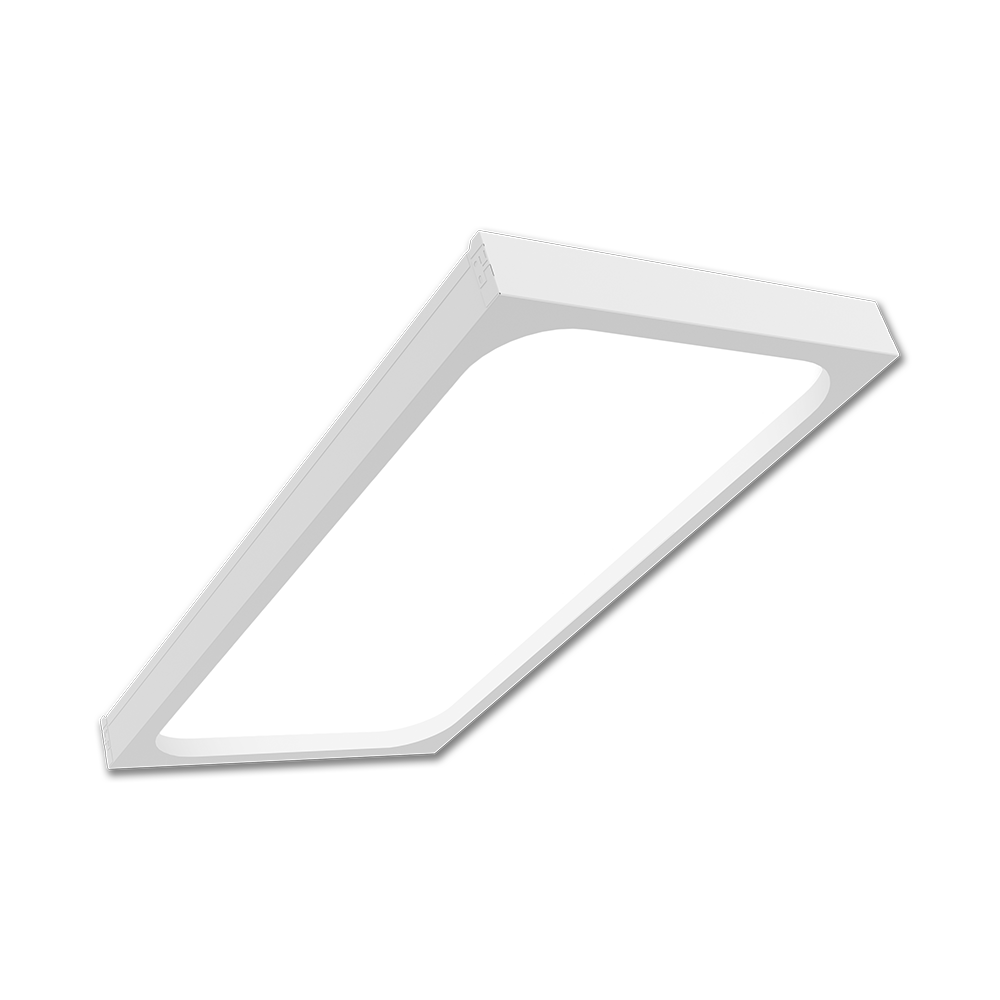

The MD3-ALTO LED Patient Room Luminaire is engineered to deliver superior performance and comfort in healthcare environments. Featuring a 1.25” regressed aperture, this fixture combines visual depth with practical functionality, making it ideal for modern patient rooms. Designed for 9/16” and 15/16” grid ceilings, the MD3-ALTO offers a clean, antimicrobial matte white finish and a sealed lens system for easy maintenance and infection control. Its integrated design ensures compliance with stringent healthcare standards while providing a visually appealing solution for patient care spaces.

As a multi-function over-bed luminaire, the MD3-ALTO supports three distinct lighting modes: ambient, exam, and reading. Ambient lighting creates a soft, uniform glow for patient comfort, while high-performance exam lighting delivers precise illumination for clinical tasks. Reading lights, positioned with shielded reflectors, provide localized, shadow-free illumination for patient convenience. Each mode operates independently, with dimmable drivers and optional low-voltage controllers for seamless integration with nurse call systems and pillow speakers. Tunable white and circadian technology options further enhance circadian support and wellness, making this luminaire a versatile choice for healthcare facilities.

Built for durability and efficiency, the MD3-ALTO incorporates advanced LED technology with selectable color temperatures (3000K, 3500K, 4000K) and CRI options (80 or 90). The LED modules deliver consistent color and lumen performance, with an L70 lifetime exceeding 60,000 hours. Exam lighting achieves up to 7,311 lumens, while ambient and reading functions maintain optimal illumination levels for comfort and functionality. The frosted diffuser and overlapping germ-shield lens ensure smooth light distribution and easy cleaning, critical for maintaining hygiene in medical settings. Electrical components include high-efficiency drivers, dimmable to 1% using 0–10V protocols, and compatibility with DALI systems for advanced control.

When it comes to medical lighting, the MD3-ALTO stands out for its combination of performance, safety, and adaptability. IP64-rated and ETL-listed for damp locations, it meets rigorous standards for healthcare environments. Its antimicrobial finish and sealed construction minimize contamination risks, while the recessed installation supports a clean, unobtrusive ceiling aesthetic. Whether for patient comfort, clinical precision, or staff convenience, this luminaire delivers reliable, energy-efficient lighting tailored to the unique demands of healthcare spaces.

Incorporating the latest in patient room lighting design, the MD3-ALTO offers a comprehensive solution that balances aesthetics, functionality, and infection control. With customizable options, integrated controls, and a five-year warranty, it provides long-term value for hospitals, clinics, and other care facilities seeking advanced lighting solutions.

  • 1.25” regressed aperture with frosted diffuser and germ-shield lens for visual depth and easy cleaning.
  • Multi-function over-bed luminaire offering ambient, exam, and reading modes with independent controls.
  • Advanced LED technology with selectable CCT (3000K–4000K), CRI options, and tunable white capability.
  • IP64-rated, ETL-listed for damp locations, antimicrobial finish for infection control compliance.
  • Optional low-voltage controllers, DALI compatibility, and circadian technology for circadian support.
Country of Origin: Canada

Product Information

Updated
IES

  • Product Specifications

    Application : Healthcare,Hospitals,Patient Room

    Available Size(s) : 2x4

    Brand : CER

    CRI : 80+,90+

    Certification : IP64,ETL Damp Location

    Color Temperature : 3000K,3500K,4000K

    Fixture Type : Medical,Recessed

    Grade : Specification Grade

    Light Source : LED

    Lumen Output : 3000-5000,3600-7000

    Market : Healthcare,Patient Room
