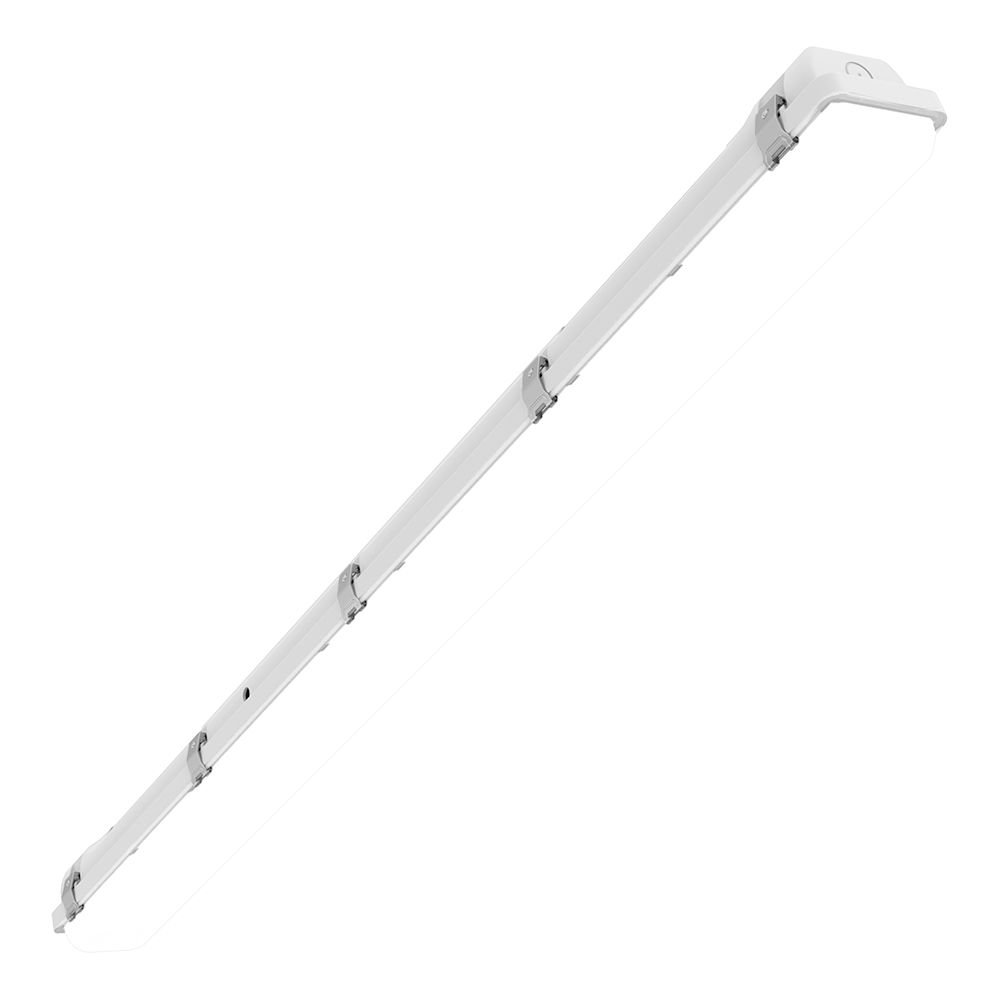

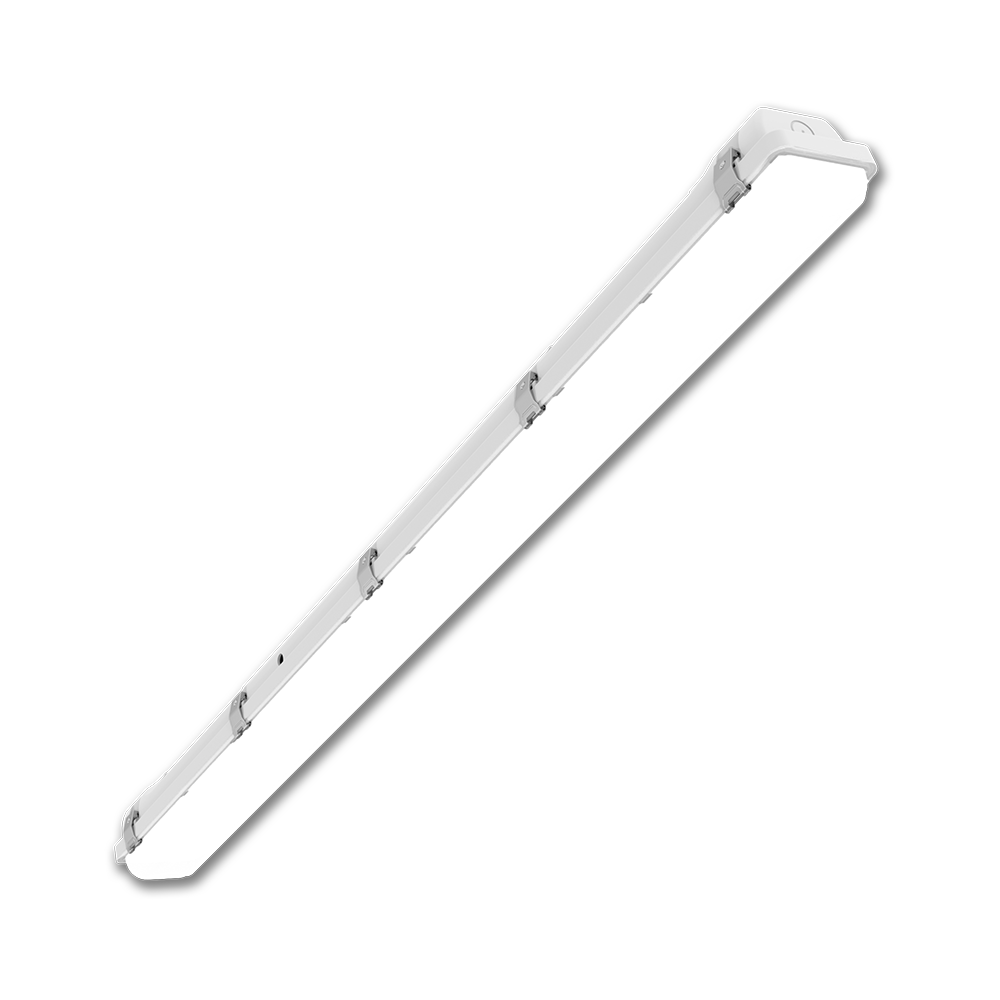

LED - LSVB-Select IP66 Adjustable Linear
LSVB-Select
The LSVB-Select color selectable LED fixture is a rugged, commercial-grade luminaire designed for high-performance lighting in demanding indoor environments. With selectable color temperatures (3500K, 4000K, 5000K) and adjustable output levels (low, medium, high), this fixture offers unmatched flexibility for a wide range of applications. Whether you're lighting cold storage facilities, garages, or dusty workshops, the LSVB-Select delivers reliable illumination with a sealed, impact-resistant design.
Built to withstand harsh conditions, this IP66 vapor tight light features a 5VA flame-rated polycarbonate housing and lens that is non-corrosive and highly durable. The frosted polycarbonate diffuser is UV-stabilized and designed to reduce glare while maintaining high efficiency. Stainless steel latches and a continuous gasket seal ensure protection against dust and water ingress, making the fixture suitable for wet locations and NEMA 4X environments.
The LSVB-Select supports mounting via stainless steel surface brackets, snap-in brackets, or optional V-hooks for chain suspension. It operates in ambient temperatures from -20°C to 40°C and is compatible with 120V, 277V, and 347V systems. With efficacy ratings up to 150 lumens per watt and L80-rated life beyond 60,000 hours, this sealed LED lighting solution is built for longevity and energy efficiency. Optional features include emergency battery packs and IP65-rated motion sensors for automated control.
Whether you're retrofitting a facility or designing a new space, this wet location linear LED fixture offers the adaptability, performance, and ruggedness required in industrial and commercial settings. The LSVB-Select is CSA and UL listed, tested to LM-79 standards, and pending DesignLights Consortium® qualification for energy rebate eligibility.
In summary, the LSVB-Select is a versatile, adjustable linear luminaire that combines high output, sealed construction, and selectable performance—making it a smart choice for professionals seeking flexible lighting in regulated or rugged environments.
- Selectable Performance: Offers three color temperatures and three output levels for dynamic lighting control.
- IP66 Rated: Fully sealed enclosure resists dust and water, ideal for wet and dusty environments.
- Durable Build: Flame-rated polycarbonate housing with stainless steel latches and continuous gasket seal.
- High Efficiency: Delivers up to 9,826 lumens with efficacy up to 150 LPW and L80-rated life over 60,000 hours.
- Smart Controls: Compatible with 0–10V dimming and optional IP65 motion sensors for energy savings.
Product Information
Product Specifications
Application : Agriculture,Cold Storage,Wet Location,Dusty, Damp Location,Food Processing,Enclosed Parking Garage,Workshop/Garage
Available Size(s) : 48",96"
Brand : VIS
CRI : 80+
Certification : UL Listed (C/US),NSF,NEMA 4X,IP66,Wet Location,IK10,RoHS Compliant
Color Temperature : 3500K,4000K,5000K
Fixture Type : Enclosed & Gasketed,Surface,Suspended,Vapour/Vapor Tight,Weather Resistant,Hazardous Location,Wall Mount
Grade : Commercial Grade
Light Source : LED
Lumen Output : 2785-4707,5570-9414
Market : Dusty, Damp Location,Agriculture,Commercial,Industrial,Wet Location
