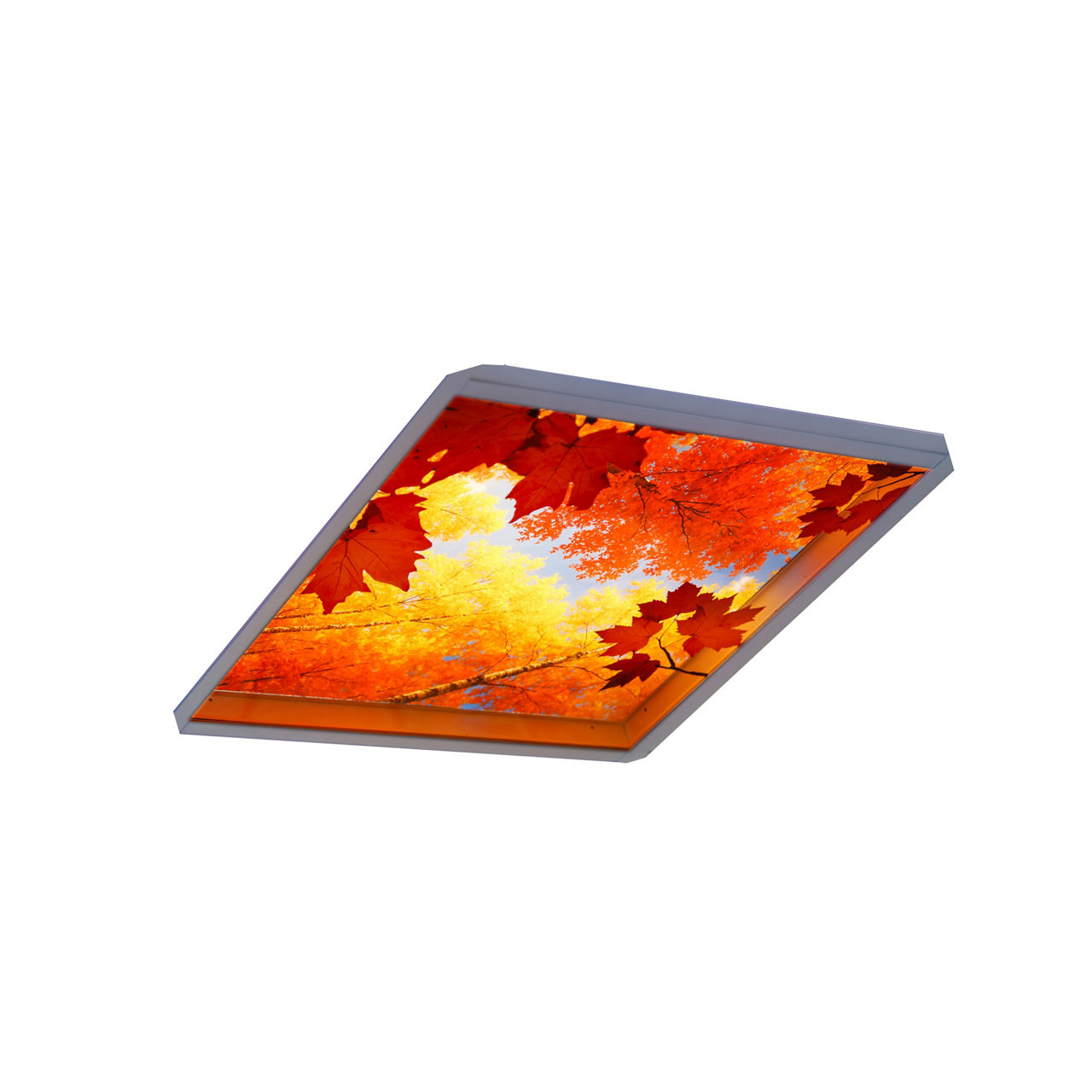

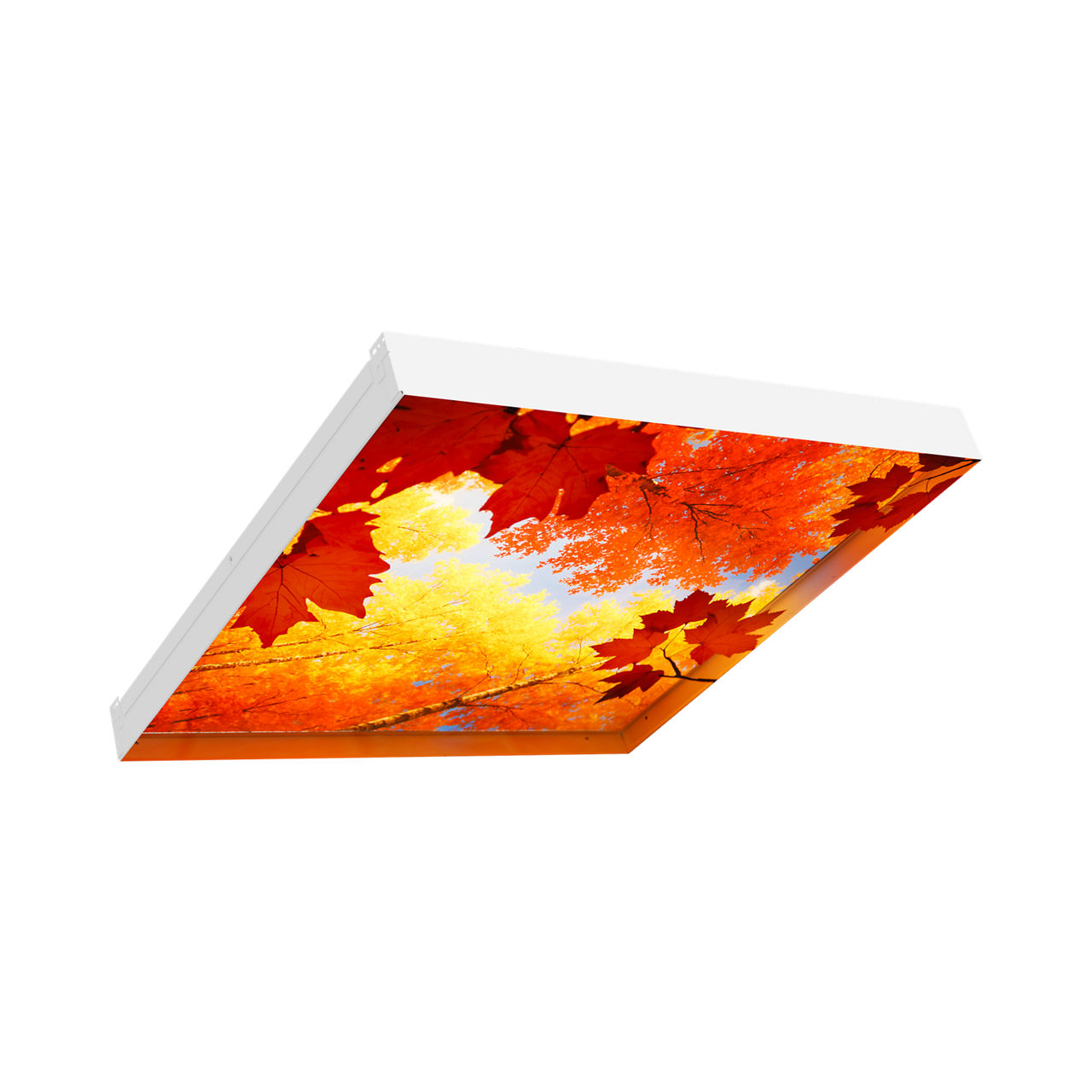

LED - 3D Architectural Recessed Graphic Troffer
AZURE 3D
The AZURETM 3D luminaire introduces a fully immersive three-dimensional lighting experience designed to add depth, warmth, and visual interest to interior environments. Engineered as a graphic light panel that integrates seamlessly into standard T‑grid ceilings, it delivers a uniformly luminous surface that enhances both the aesthetic quality and emotional tone of a space. Its shallow profile makes it ideal for obstructed plenums, while its high‑resolution printed acrylic lens provides a smooth, low‑glare appearance. Whether placed in healthcare, education, office, or public settings, AZURE 3D serves as a functional light source that also brings subtle artistic impact. The result is an upgraded visual environment that feels more welcoming, polished, and thoughtfully designed.
Built as a recessed light fixture for grid ceilings, AZURE 3D balances architectural beauty with robust technical performance. The die‑formed steel housing ensures long‑term durability, while the LED light engine delivers consistent CRI, color accuracy, and lumen output over time. Field‑replaceable components and a serviceable plenum‑side design simplify maintenance. Standard 0–10V dimming down to 1% supports adaptable illumination, with optional 0.1% and DALI controls available for advanced integration. High‑efficiency LEDs are rated for L70 performance beyond 60,000 hours, and extended lifetime data (L80 and L90) underscores long‑term reliability. Multiple image‑based lens options like Clouds, Palm Trees, Balloons, Blossoms, and Fall Leaves, allow designers to tailor the fixture to mood, theme, or branding needs. Available in 2x2 and 2x4 sizes, the system also accommodates single‑panel or multi‑panel image layouts for maximum visual flexibility.
As a piece of architectural LED lighting, AZURE 3D helps soften sterile or high‑stress interiors while still delivering the performance required for commercial environments. ETL certification to UL1598 and CSA standards, LM‑79 testing, and RoHS compliance confirm its safety and quality. It is suitable for dry and damp locations and is IC‑rated for insulated ceilings. The 5‑stage pretreatment and polyester powder‑coat finish ensure long‑lasting appearance, even in demanding settings. Emergency battery pack options including 10W, 20W, cold‑weather, self‑testing, 120‑minute, and 347V configurations support code compliance and operational continuity. With power consumption at 36W (2x2) and 72W (2x4), the fixture provides efficient illumination while delivering the added value of a calming visual focal point.
In spaces where atmosphere matters, AZURE 3D combines lighting performance with expressive design, giving facilities a simple but powerful way to enhance user experience. Its blend of efficiency, serviceability, image customization, and premium illumination makes it a standout choice for specifiers seeking a versatile yet visually distinctive recessed solution.
- High‑resolution acrylic lens produces uniform, low‑glare illumination while displaying detailed printed imagery that enhances visual comfort.
- Die‑formed steel housing, LM‑79‑tested performance, IC rating, and ETL/CSA approvals ensure dependable long‑term operation in commercial settings.
- LED system offers lifetime ratings beyond 60,000 hours with field‑replaceable components for simplified servicing.
- Multiple dimming platforms including 0–10V, 0.1% options, and DALI support flexible control strategies across varied applications.
- Wide range of image layouts, sizes, and emergency battery pack configurations enable tailored design and safety compliance.
Specifications
Resources
IES
Revit
Technical Information
Product Specifications
Application : Daycares,Office,Libary,Hallways,Boardroom,Nursing Homes
Available Size(s) : 2x2,2x4
Brand : VIS
CRI : 80+,90+
Certification : ETL Listed,Suitable for Damp Locations,ROHS Compliant, Tested in accordance to IESNA LM-79,IC Rated
Color Temperature : 4000K,5000K
Fixture Type : Architectural,Recessed,Troffer
Grade : Premium Grade
Light Source : LED
Lumen Output : 5000
Market : Commercial,Education,Healthcare
Related Videos
Azure™ 3D | A Three‑Dimensional Backlit Ceiling Lighting for Modern Spaces
