LED - Architectural Recessed Graphic Troffer
AZURE

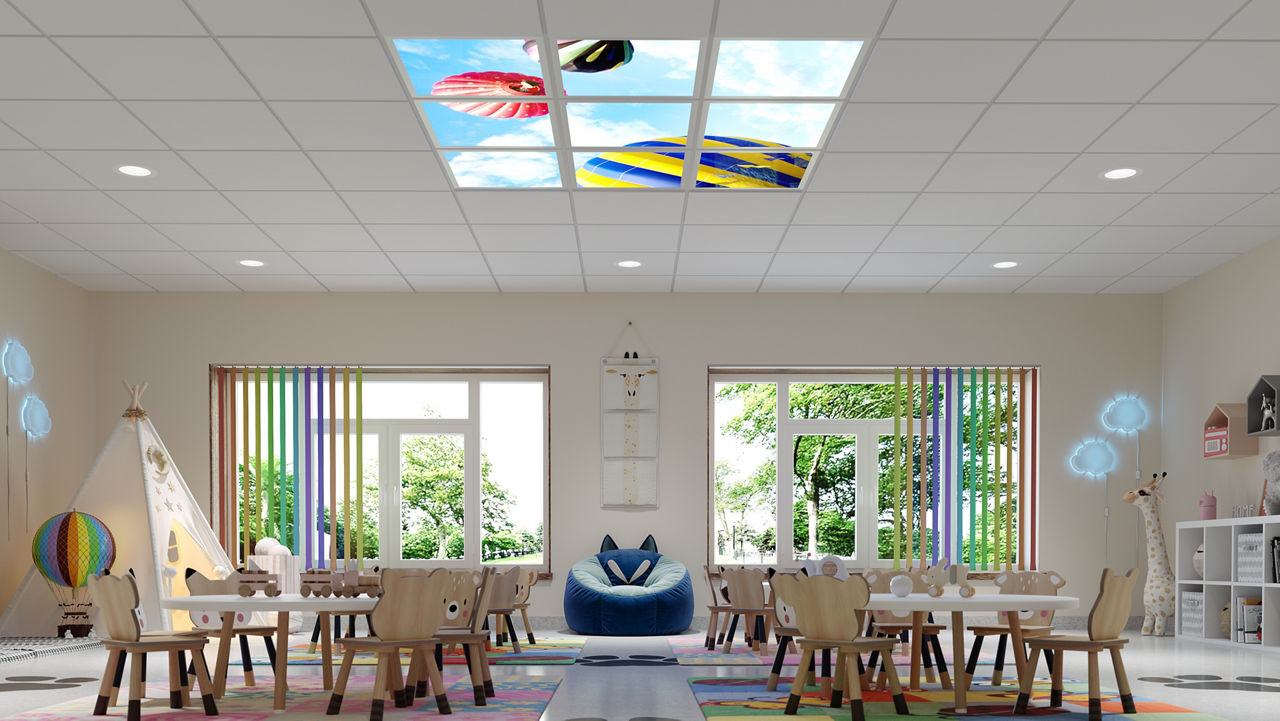

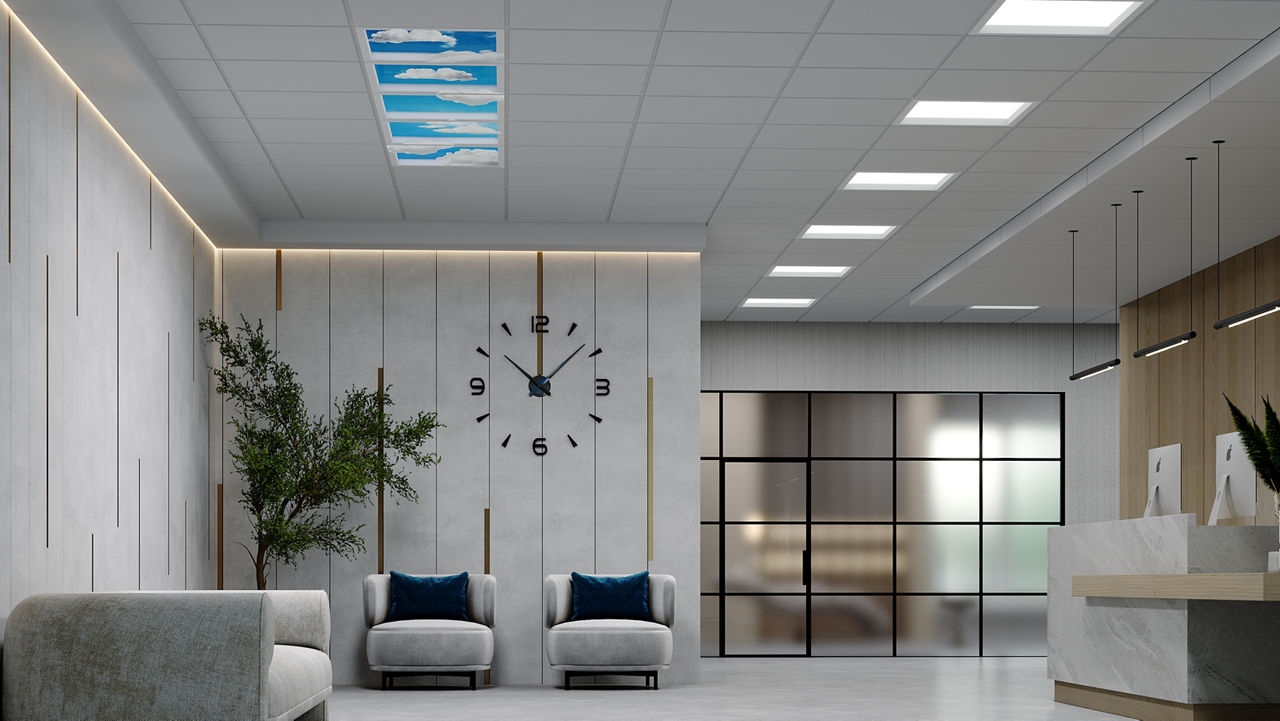

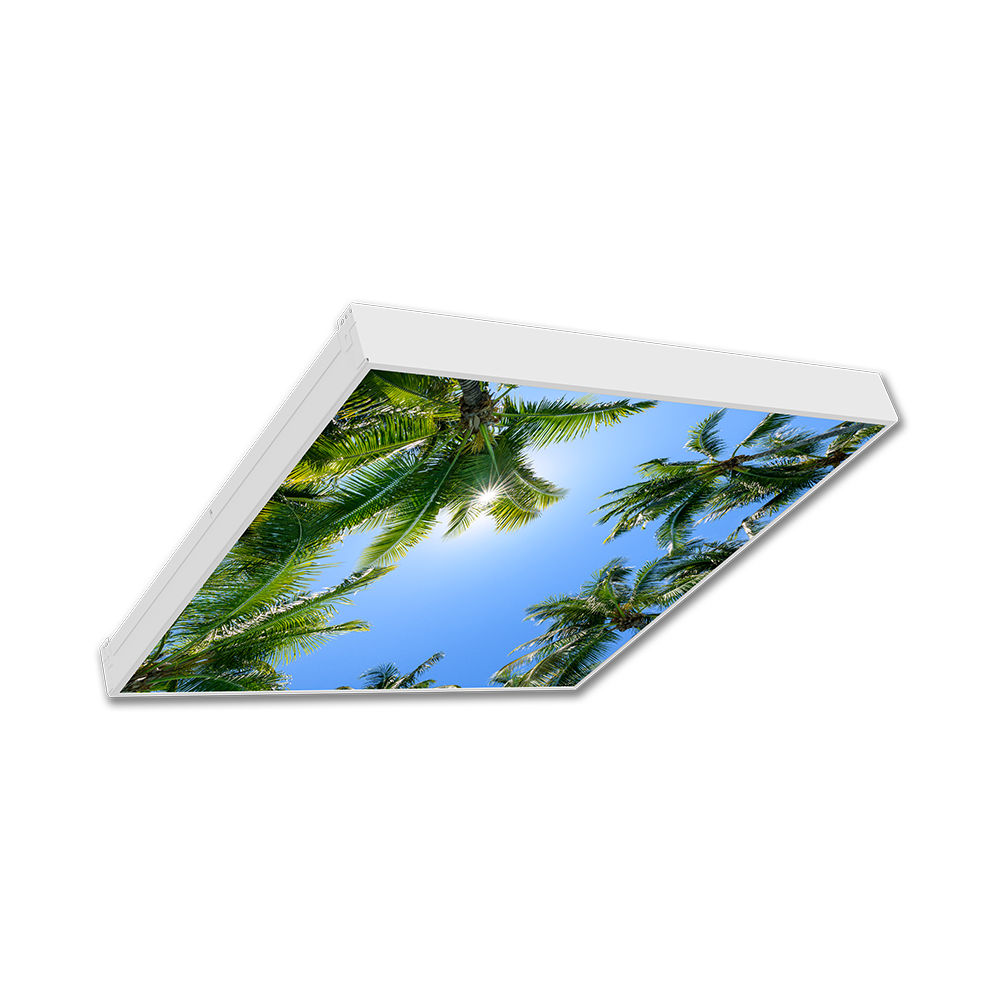

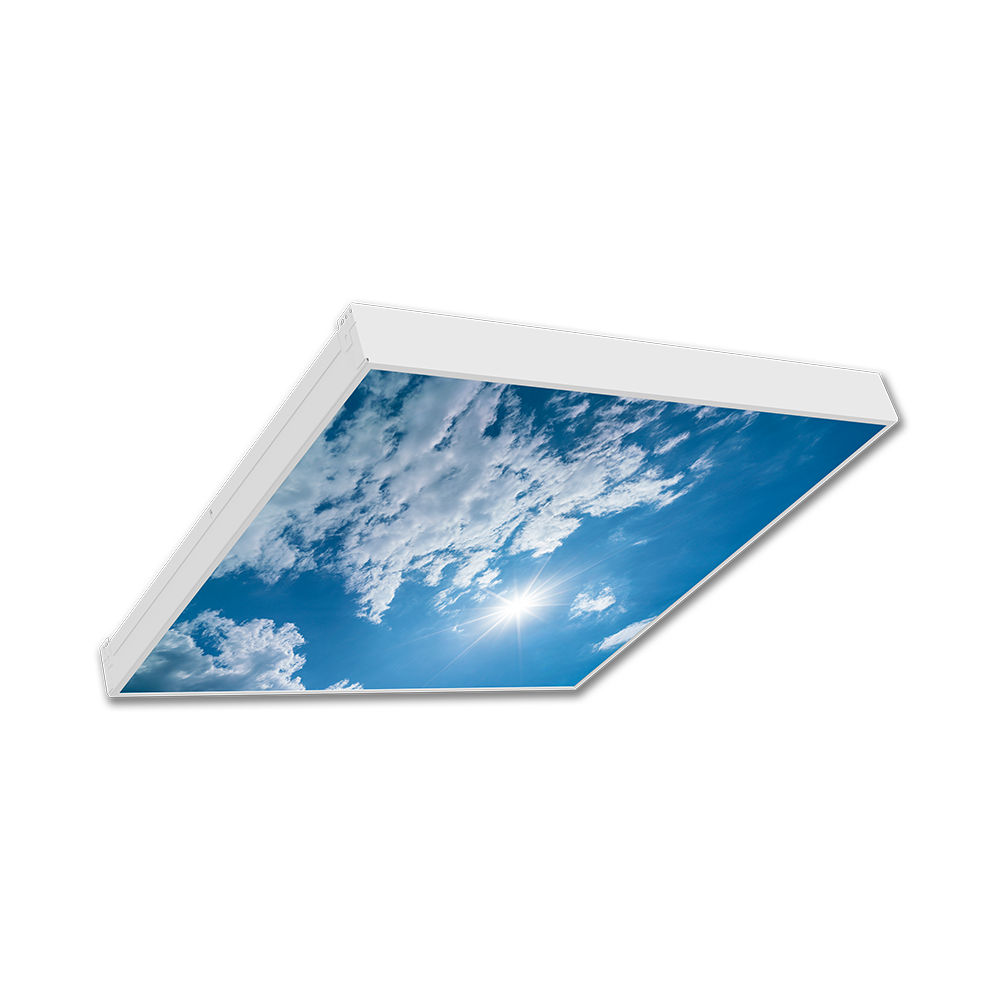

The AZURETM Lay‑In Backlit Troffer is designed for environments that benefit from a calming visual focal point while maintaining the performance of a commercial lighting system. As a graphic skylight solution, it introduces immersive ceiling imagery like clouds, trees, blossoms, balloons, and more creating a comfortable atmosphere in daycares, offices, hallways, libraries, dental clinics, boardrooms, and nursing homes. Its uniformly luminous aperture and shallow profile support obstructed plenum applications, while high‑resolution printed acrylic lenses ensure low glare, soft illumination, and dependable light distribution.
Across interior settings where visual comfort is essential, AZURE provides the flexibility of a graphic light panel paired with the reliability of a field‑serviceable LED system. The fixture incorporates a long‑life LED light engine regulated for color consistency, lumen stability, and high efficacy. Rated for L70 performance beyond 60,000 hours and supported by high‑efficiency drivers, it delivers consistent lighting suited for both functional and ambient needs. The design is optimized for grid‑ceiling installations and includes integral earthquake clips and mounting provisions for secure support to the building structure. Standard 0–10V low‑voltage dimming down to 1% further enhances the ability to tailor the environment.

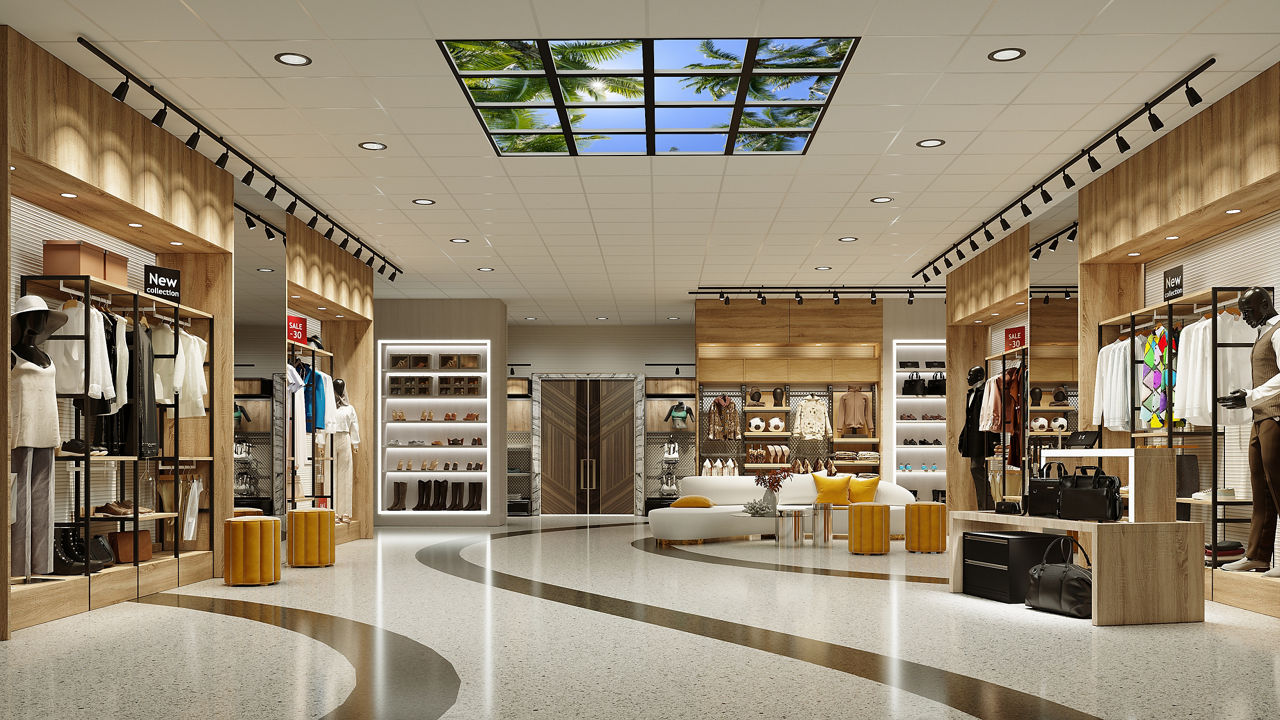

The AZURE series stands out as a visually engaging option within the broader category of recessed light fixtures, offering a differentiated blend of artistic imagery and professional‑grade performance. With configurations available in 2x2 and 2x4 sizes and a range of image panel layouts, it adapts to small rooms, large corridors, and collaborative spaces. The printed acrylic lenses maintain high efficiency while creating a realistic sense of depth and openness. Optional DALI drivers, 0.1% dimming, and multiple emergency battery pack selections including cold‑weather, self‑testing, high‑output, and extended‑runtime variants ensure the fixture meets both design inspirations and operational requirements.
As part of Visioneering’s commitment to dependable architectural LED lighting, the AZURE line features durable, die‑formed cold‑rolled steel housing with a matte white polyester powder‑coated finish for long‑term performance. It is ETL‑certified to UL1598 and CSA standards, RoHS compliant, and suitable for dry and damp locations. With lumen performance regulated to maintain CRI and visual consistency across installations, the fixture integrates seamlessly into healthcare, education, and commercial spaces where atmosphere and functionality must work in harmony.
In environments seeking a visually uplifting lighting experience without compromising reliability, durability, or maintainability, the AZURE troffer delivers a balanced combination of artistic ceiling imagery and robust LED engineering. Its calming visuals, flexible dimming, and broad configuration options make it a standout choice for teams designing human‑focused spaces that require both aesthetic enhancement and dependable day‑to‑day performance.
- Fully luminous aperture and high‑resolution printed acrylic lens deliver soft, uniform illumination while enhancing spaces with immersive imagery.
- Field‑replaceable LED light engine offers long‑life performance with L70 ratings beyond 60,000 hours for reduced maintenance.
- Durable cold‑rolled steel housing and matte white powder‑coated finish ensure long‑term reliability in commercial environments.
- Standard 0–10V dimming to 1% with optional 0.1% and DALI support provides precise control across various applications.
- ETL‑certified to UL1598 and CSA standards, suitable for dry and damp locations, and available with multiple emergency battery configurations.
Specifications
Resources
IES
Revit
Technical Information
Product Specifications
Application : Daycares,Office,Libary,Hallways,Boardroom,Nursing Homes
Available Size(s) : 2x2,2x4
Brand : VIS
CRI : 80+,90+
Certification : ETL Listed,Suitable for Damp Locations,ROHS Compliant, Tested in accordance to IESNA LM-79,IC Rated
Color Temperature : 4000K,5000K
Fixture Type : Architectural,Recessed,Troffer
Grade : Premium Grade
Light Source : LED
Lumen Output : 5000
Market : Commercial,Education,Healthcare
